TA8AKRC161907-3Remote radio unit supporting NR

Ericsson AB

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 04, 2021
Application Purpose: Original Equipment
Date of Application: Feb 04, 2021
Equipment Note: Remote radio unit supporting NR
Frequency Range: 3750.00000000 - 3930.00000000
Company: Ericsson AB
Country: Sweden

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) EHUAYAN No. TA8AKRC161907-3 Approved Checked Date Rev Reference CBC/XRV/D Hua Yang 2020-12-16 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID : TA8AKRC161907-3 To Whom It May Concern: E ricsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. T he radio operates in the Cellular band as per 47 CFR Part 27. This radio (Radio 8863 B77D) is designed for use in NR cellular telephone system. This TDD radio operates in Band 77D, the transmitter and the receiver from 3700 MHz to 3980 MHz. It supports radio access technology SR NR. I t supports channel bandwidths of 10 MHz, 15 MHz, 20 MHz, 30 MHz, 40 MHz, 50 MHz, 60 MHz, 70 MHz, 80 MHz, 90MHz and 100MHz for NR. The radio supports modulation types of QPSK, 16 QAM, 64QAM and 256 QAM for NR. T he radio supports spectrum consisting of two or more sub-blocks separated by sub-block gap(s), NCS (Non- Contiguous Spectrum). The radio unit supports carrier aggregation. T he radio has the ability to be used in a RBS system configured for 3GPP MIMO/Spatial multiplexing and beam- forming technologies for NR. T he radio has 8 TX/RX ports. This radio will in normal mode operates at a maximum power of 10W for channel bandwidth 10 MHz, 15W for 15MHz, 20W for 20MHz, 30W for 30MHz and 40W for 40, 50, 60, 70, 80, 90, 100MHz per port at the output connector. T he Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. T his application is only valid for the model specified in the Exhibit 12 circuit description. E ricsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. H ua Yang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e- mail: [email protected]

Cover Letter(s)

Ericsson Internal EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. EHUAYAN TA8AKRC 161907-3 Approved Checked Date Rev Reference CBC/XRV/D Hua Yang 2020-12-16 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046, USA Attention: Equipment Authorization Branch Subject: Request for Confidentiality FCC ID: TA8AKRC161907-3 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules for FCC. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio DoT (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limite d to, internal photos of the BS, RU, RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 9 Internal Photos EXHIBIT 5 Schematics EXHIBIT 10 Parts List EXHIBIT 8 Manuals EXHIBIT 12 Technical Circuit Description Ericsson Internal EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. EHUAYAN TA8AKRC 161907-3 Approved Checked Date Rev Reference CBC/XRV/D Hua Yang 2020-12-16 A Hua Yang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e- mail: [email protected]

Cover Letter(s)

Page 1 (1) Attending to this matter, name, telephone Date Rev Our Reference BNEW DNEW RA RPSE1 RA2, Adam Sheng, +46 73 0958256 2020-12-04 K 1/0133-600/FEA2926603/14 Uen Ericsson AB Mail Office address Telephone V.A.T. No. SE556056625801 SE-164 80 Stockholm Torshamnsgatan 23 Nat 010 - 719 00 00 Reg. No: 556056-6258 SWEDEN KISTA Int + 46 10 719 00 00 FCC authorization letter I, the undersigned, hereby entrust Lars Wallin David Bolzon Xiaoying Jiang Linda Grell Denis Lalonde Hua Yang Bertil Johansson Ericsson Canada INC Wei Qun Chen Niklas Roos BNEW DNEW Tinting Wang Audun Helle PDU Radio Ericsson (China) Communications Co.Ltd. Ericsson AB 349 Terry Fox Drive BNEW DNEW BNEW DNEW Ottawa, K2K 2V 6 Canada PDU Radio PDU Radio No.5 Lize East Street, Chaoyang District Torshamnsgatan 23 100102 Beijing, China SE-164 80 Stockholm, Sweden Mihai Simon Xiao Hu Z Ericsson AB Ling Pan L BNEW DNEW Ericsson (China) Communications Co.Ltd. PDU Radio BNEW DNEW Lindholmspiren 11 PDU Radio SE-417 56 Gothenburg No.1366 Tianfu Avenue Sweden 610041 Chengdu, China to act as my representatives in the following: To make the necessary applications for FCC equipment certifications. ....................................... (Signature) Igor Tasevski Head PDU Radio Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm, Sweden DocuSign Envelope ID: B06C5A4E-3F9D-474E-80A3-34C1ADEBFC11 07 december 2020 | 21:19:17 CET

External Photos

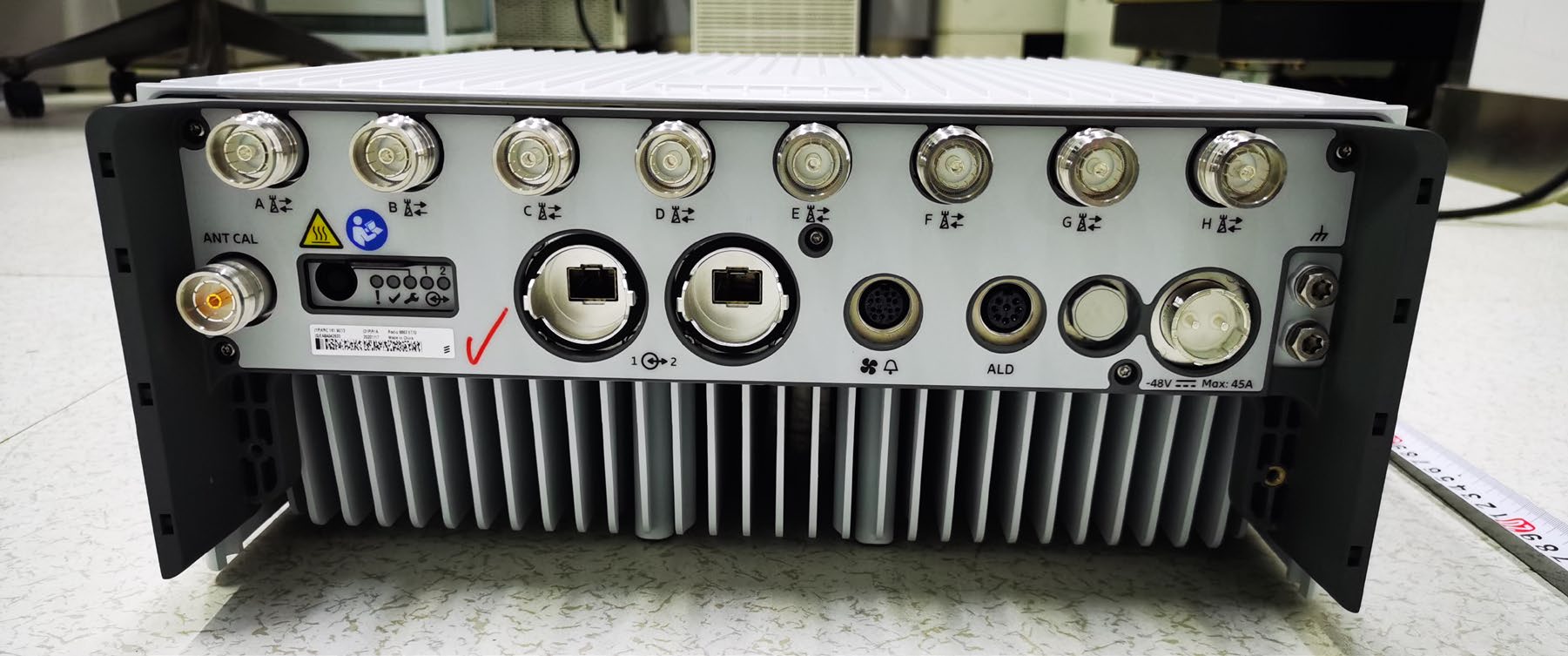

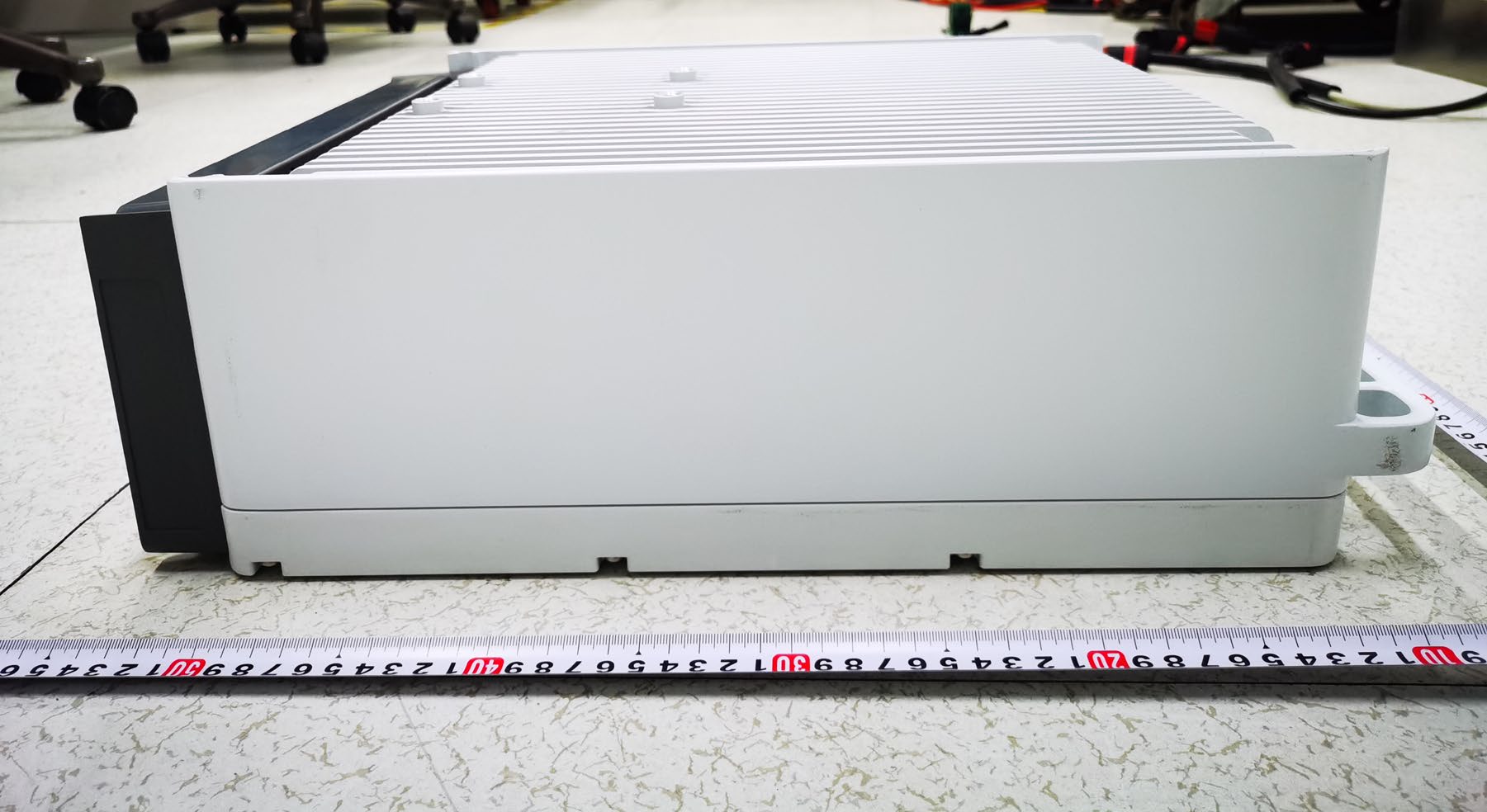

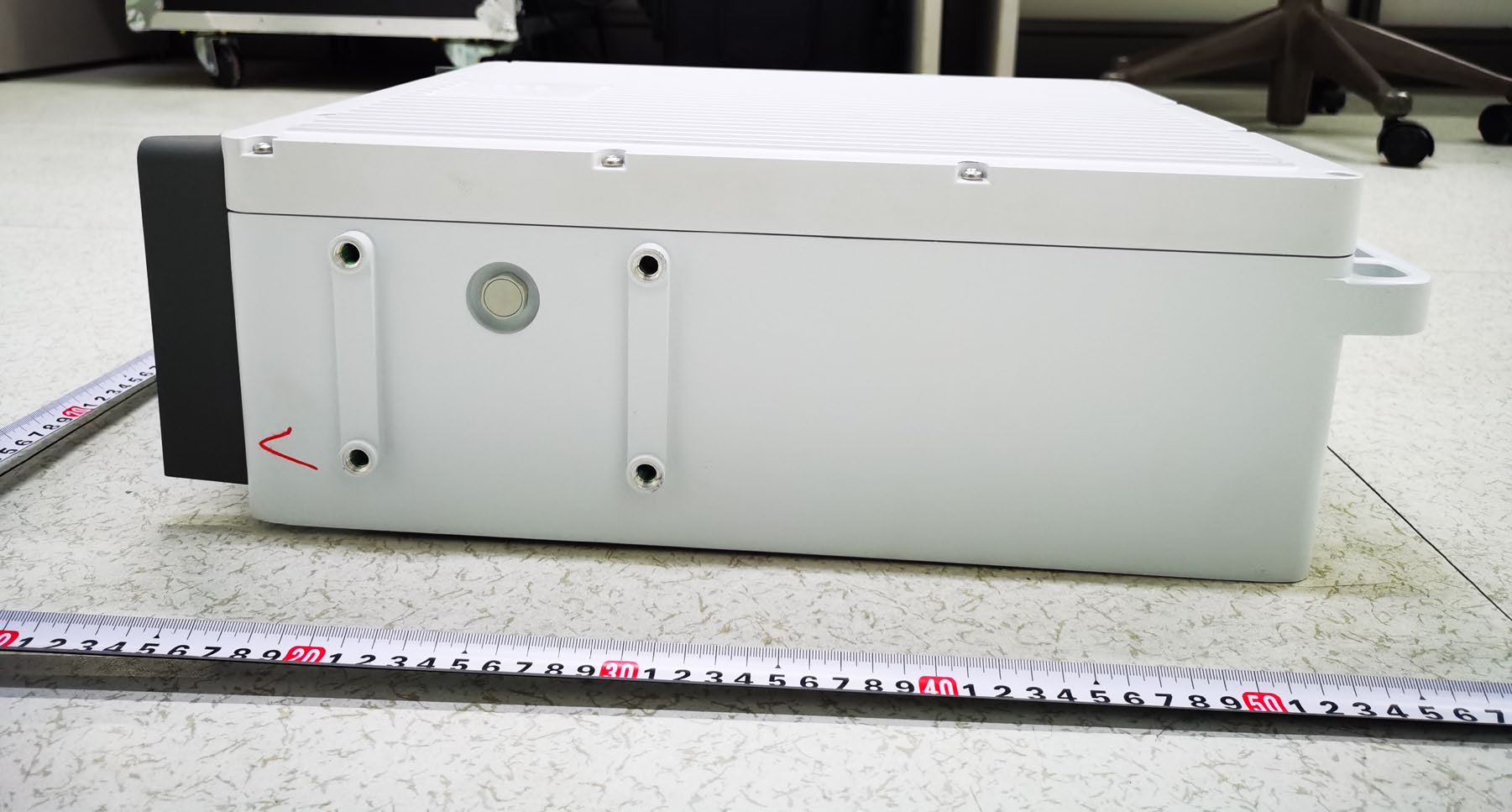

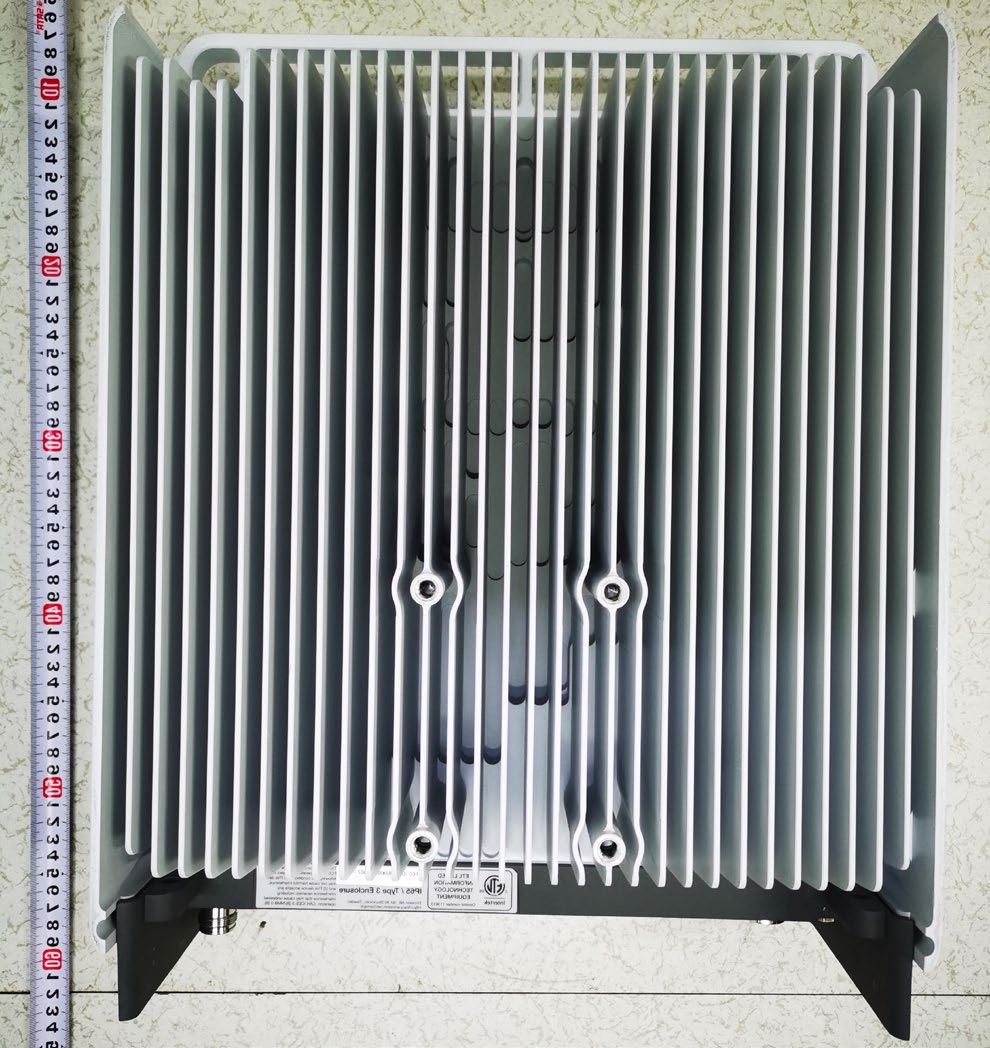

Date Page Exhibit 3 External photos 12/16/2020 1(3) FCC ID: TA8AKRC161907-3 Front side Rear side Date Page Exhibit 3 External photos 12/16/2020 2(3) FCC ID: TA8AKRC161907-3 Left side Right side Date Page Exhibit 3 External photos 12/16/2020 3(3) FCC ID: TA8AKRC161907-3 Top side Bottom side

ID Label/Location Info

Date Page Exhibit 1 ID label and placement 12/16/2020 1( 1) FCC ID: TA8AKRC161907-3 FCC ID: TA8AKRC161907-3

Test Report

Ericsson AB RF TEST REPORT Report Type: FCC Part 27 RF report PRODUCT NAME: Radio 8863 B77D REPORT NUMBER: 210102314SHA-001 ISSUE DATE: January 27, 2021 DOCUMENT CONTROL NUMBER: TTRFFCC Part 27_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCC Part 27_V1 © 2018 Intertek Page 2 of 184 Report no.: 210102314SHA-001 Applicant: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden Manufacturer: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden FCC ID: TA8AKRC161907-3 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC CFR 47 Part 27: MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES PREPARED BY: REVIEWED BY: Project Engineer Jackson Huang Reviewer Edwin Xu Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 3 of 184 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 RELATED DOCUMENTS .......................................................................................................................................... 9 2.2 PRODUCT INFORMATION ....................................................................................................................................... 9 2.3 CONFIGURATION DESCRIPTION ............................................................................................................................. 10 2.4 TEST SETUP ...................................................................................................................................................... 12 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 14 2.6 INSTRUMENT LIST .............................................................................................................................................. 15 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 16 3 MAXIMUM OUTPUT POWER AND PEAK TO AVERAGE POWER RATIO AND EIRP ........................................ 17 3.1 LIMIT .............................................................................................................................................................. 17 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 17 3.3 MEASUREMENT RESULT ...................................................................................................................................... 18 4 OCCUPIED BANDWIDTH ............................................................................................................................ 28 4.1 MEASUREMENT PROCEDURE ............................................................................................................................... 28 4.2 MEASUREMENT RESULT ...................................................................................................................................... 29 5 UNWANTED EMISSIONS AT BAND EDGE .................................................................................................... 47 5.1 LIMIT .............................................................................................................................................................. 47 5.2 MEASUREMENT PROCEDURE ............................................................................................................................... 47 5.3 MEASUREMENT RESULT ...................................................................................................................................... 48 6 CONDUCTED UNWANTED EMISSION ........................................................................................................108 6.1 LIMIT .........................…

Text truncated - open the document above for the full version.

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 36 of 184 40MHz, Channel position B 40MHz, Channel position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 37 of 184 40MHz, Channel position T 50MHz, Channel position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 38 of 184 50MHz, Channel position M 50MHz, Channel position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 39 of 184 60MHz, Channel position B 60MHz, Channel position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 40 of 184 60MHz, Channel position T 70MHz, Channel position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 41 of 184 70MHz, Channel position M 70MHz, Channel position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 42 of 184 80MHz, Channel position B 80MHz, Channel position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 43 of 184 80MHz, Channel position T 90MHz, Channel position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 44 of 184 90MHz, Channel position M 90MHz, Channel position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 45 of 184 100MHz, Channel position B 100MHz, Channel position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 46 of 184 100MHz, Channel position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 47 of 184 5 Unwanted Emissions at Band Edge Test result: Pass 5.1 Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 5.2 Measurement Procedure The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. For MIMO mode configurations, the limit was adjusted with a correction of -9.03dB [10Log(1/8)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports . Then the limit was adjusted to -22.03dBm. In the 1 MHz bands immediately outside and adjacent to the frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed and a RBW of 1MHz for measurements of emissions > 1MHz away from the band edges. Spectrum analyzer detector was set as RMS. Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 48 of 184 5.3 Measurement result NR-MIMO-1C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 10 100 -22.03 1000 -22.03 E T 16QAM 10 100 -22.03 1000 -22.03 Channel Position B

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 49 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 50 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 51 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 15 150 -22.03 1000 -22.03 E T 16QAM 15 150 -22.03 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 52 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 53 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 54 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 20 200 -22.03 1000 -22.03 E T 16QAM 20 200 -22.03 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 55 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 56 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 57 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 30 300 -22.03 1000 -22.03 E T 16QAM 30 300 -22.03 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 58 of 184 Channel Position T

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 59 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 40 430 -22.03 1000 -22.03 E T 16QAM 40 430 -22.03 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 60 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 61 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 62 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 63 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 50 510 -22.03 1000 -22.03 E T 16QAM 50 510 -22.03 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 64 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 65 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 66 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 60 620 -22.03 1000 -22.03 E T 16QAM 60 620 -22.03 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 67 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 68 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 70 750 -22.03 1000 -22.03 E T 16QAM 70 750 -22.03 1000 -22.03 Channel Position B

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 79 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 80 of 184 NR-MIMO-2C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 10 100 -22.03 1000 -22.03 E T 16QAM 10 100 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 81 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 82 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 83 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 15 150 -22.03 1000 -22.03 E T 16QAM 15 150 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 84 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 85 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 86 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 20 200 -22.03 1000 -22.03 E T 16QAM 20 200 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 87 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 88 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 89 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 40 430 -22.03 1000 -22.03 E T 16QAM 40 430 -22.03 1000 -22.03

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 90 of 184 Channel Position B Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 91 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 60 620 -22.03 1000 -22.03 E T 16QAM 60 620 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 92 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 93 of 184 Channel Position T Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 80 820 -22.03 1000 -22.03 E T 16QAM 80 820 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 94 of 184 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 95 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 96 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 100 1000 -22.03 1000 -22.03 E T 16QAM 100 1000 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 97 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 98 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 99 of 184 Configuration NR-MIMO-3C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 10 100 -22.03 1000 -22.03 E T 16QAM 10 100 -22.03

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 100 of 184 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 101 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 102 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 15 150 -22.03 1000 -22.03 E T 16QAM 15 150 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 103 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 104 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 105 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 50 510 -22.03 1000 -22.03 E T 16QAM 50 510 -22.03 1000 -22.03 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 106 of 184 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 107 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 108 of 184 6 Conducted Unwanted Emission Test result: Pass 6.1 Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 6.2 Measurement Procedure In accordance with FCC rules, the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. The spurious emissions from the antenna terminal were measured. The transmitter output power was attenuated using an attenuator and the frequency spectrum investigated from 9kHz to 40GHz. The resolution bandwidth of 1MHz was employed for frequency band 9kHz to 40GHz. The spectrum analyzer detector was set to RMS. For MIMO mode configurations, the limit was adjusted with a correction of -9.03dB [10Log(1/8)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports. Then the limit was adjusted to - 22.03dBm. Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 109 of 184 6.3 Measurement result NR-MIMO-1C Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 10 1000 -22.03 E M 16QAM 10 1000 -22.03 E T 16QAM 10 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 110 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 111 of 184 Channel Position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 112 of 184

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 113 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 114 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 115 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 116 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 15 1000 -22.03 E M 16QAM 15 1000 -22.03 E T 16QAM 15 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 117 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 118 of 184 Channel Position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 119 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 120 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 121 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 122 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 123 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 20 1000 -22.03 E M 16QAM 20 1000 -22.03 E T 16QAM 20 1000 -22.03 Channel Position B

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 124 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 125 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 126 of 184 Channel Position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 127 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 128 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 129 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 130 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 131 of 184 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) E B 16QAM 30 1000 -22.03 E M 16QAM 30 1000 -22.03 E T 16QAM 30 1000 -22.03 Channel Position B Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 132 of 184

Test Report

Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 133 of 184 Channel Position M Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 134 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 135 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 136 of 184 Channel Position T Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 137 of 184 Report No.: 210102314SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 138 of 184 Antenna Port Channel Positi…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Peter Moberg(Head of PEU Radio)

[email protected]+46 10 719 00 00Fax: +46 10 716 00 28

Test Firm

Intertek Testing Services ShanghaiLeah Xu

[email protected]+86 21 61278200

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
11	27	3.75 GHz - 3.93 GHz	40 W	100MW7D	0.05 ppm

Confidentiality

Long Term

Grant Notes

The power output listed is conducted per port. This transmitter supports single and multi-carrier operation in NR mode. This transmitter must only be operated in the grantees RBS systems. RF exposure is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-locating requirements of 1.1307 (b)(3).
