TA8AKRC161912-3Multi-standard remote radio

Ericsson Confidential 1 (1) Prepared (also subject responsible if other) No. EDAVBOL [David Bolzon] TA8AKRC161912-3 Approved Checked Date Rev Reference 2021-06-03 A FRN: 0013476155 FRN: 0013476155 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 03 June 2021 FCC ID: TA8AKRC161912-3 Model: Radio 4460 44B2/25 44B66 C Product Number: KRC 161 912/3 Attn: Director of Certification Authority to Act as Agent FCC On behalf of Ericsson AB / Ericsson Canada, I appoint Geremy Bradshaw of Nemko USA, Inc, at 2648 FM 407, Suite 215, Bartonville, TX 76226 to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Ericsson AB, Isafjordsgatan 10, SE-164 80 Stockholm Sweden. Dated this 3 rd Day of June 2021 By: David Bolzon Signature Printed Agency agreement expiration date: 3 June 2022 Title: SR. RF Engineer Telephone: +1 613 219-5892 Applicant: Ericsson AB DAVID BOLZON Sr. RF Engineer – Regulatory Approvals Ericsson Canada Inc. 349 Terry Fox Drive Ottawa, On, K2K 2V6, Canada Mobile: +1.613.219.5892 Email: [email protected]

Page 1 (1) Attending to this matter, name, telephone Date Rev Our Reference BNEW DNEW RA RPSE1 RA2, Adam Sheng, +46 73 0958256 2020-12-04 K 1/0133-600/FEA2926603/14 Uen Ericsson AB Mail Office address Telephone V.A.T. No. SE556056625801 SE-164 80 Stockholm Torshamnsgatan 23 Nat 010 - 719 00 00 Reg. No: 556056-6258 SWEDEN KISTA Int + 46 10 719 00 00 FCC authorization letter I, the undersigned, hereby entrust Lars Wallin David Bolzon Xiaoying Jiang Linda Grell Denis Lalonde Hua Yang Bertil Johansson Ericsson Canada INC Wei Qun Chen Niklas Roos BNEW DNEW Tinting Wang Audun Helle PDU Radio Ericsson (China) Communications Co.Ltd. Ericsson AB 349 Terry Fox Drive BNEW DNEW BNEW DNEW Ottawa, K2K 2V 6 Canada PDU Radio PDU Radio No.5 Lize East Street, Chaoyang District Torshamnsgatan 23 100102 Beijing, China SE-164 80 Stockholm, Sweden Mihai Simon Xiao Hu Z Ericsson AB Ling Pan L BNEW DNEW Ericsson (China) Communications Co.Ltd. PDU Radio BNEW DNEW Lindholmspiren 11 PDU Radio SE-417 56 Gothenburg No.1366 Tianfu Avenue Sweden 610041 Chengdu, China to act as my representatives in the following: To make the necessary applications for FCC equipment certifications. ....................................... (Signature) Igor Tasevski Head PDU Radio Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm, Sweden DocuSign Envelope ID: B06C5A4E-3F9D-474E-80A3-34C1ADEBFC11 07 december 2020 | 21:19:17 CET

COMMERCIAL IN CONFIDENCE EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EDAVBOL DAB/EMC NDA 12.08.14 Approved Checked Date Rev Reference 2014-08-29 PA1 NDA Confidentiality Clause Confidentiality: Each party agrees that all confidential documents, work, product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

1 (1) Prepared (also subject responsible if other) No. EDAVBOL [David Bolzon] TA8AKRC161912-3 / 287AB-AS1619123 Approved Checked Date Rev Reference 2021-06-06 A Radio 4460 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046-1609 06 June 2021 FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 HVIN: AS1619123 FCC Reference: CFR 47 Part 2, Part 24, Part 27 Subject: Request for FCC Certification Ericsson AB / Ericsson Canada Inc. formally request Certification for the above referenced product. Transmission Bandwidth Configurations: Band 2/25 DL 1930 – 1995MHz: LTE/NR: 5, 10, 15, 20MHz, (LTE+NB-IoT (IB): 5MHz, LTE+NB-IoT (IB, GB) 10, 15, 20MHz) WCDMA: 5MHz; GSM: 200kHz; CDMA: 1.25MHz Band 66 DL 2110 – 2200MHz: LTE/NR: 5, 10, 15, 20MHz, (LTE+NB-IoT (IB): 5MHz, LTE+NB-IoT (IB, GB) 10, 15, 20MHz) WCDMA: 5MHz This Radio is designed for SC/MC Cellular Communications supporting SRO/MRO for NR (New Radio) and LTE including LTE+NB-IoT (IB, GB) operations, WCDMA, GSM and CDMA. The Radio is a Dual Band FDD transceiver operating in Band 2 / Band 25 and Band 66. Band 2/25 Band 66 TX (DL): 1930 - 1995 MHz RX (UL): 1850 - 1915 MHz TX (DL): 2110 - 2200 MHz RX (UL): 1710 - 1780 MHz The Radio 4460 44B2/25 44B66 C supports LTE/NR Channel Bandwidths of 5, 10, 15 and 20MHz with Modulation type QPSK, 16QAM, 64QAM and 256QAM; WCDMA: QPSK, 16QAM, 64QAM; GSM: GMSK, 8- PSK, AQPSK; CDMA: QPSK, 8-PSK, 16QAM. The Radio 4460 is capable of operating in an RBS System supporting 3GPP MIMO/Spatial Multiplexing, Carrier Aggregation, ESS (Ericsson Spectrum Sharing) and NB- IoT (IB, GB) technologies. Dated this 6 th Day of June 2021 By: David Bolzon Si gnature Printed Applicant: Ericsson AB DAVID BOLZON Sr. RF Engineer – Regulatory Approvals Ericsson Canada Inc. 349 Terry Fox Drive Ottawa, On, K2K 2V6, Canada Mobile: +1.613.219.5892 Email: [email protected]

1 (1) Prepared (also subject responsible if other) No. EDAVBOL [David Bolzon] TA8AKRC161912-3 / 287AB-AS1619123 Approved Checked Date Rev Reference 2021-06-03 A Radio 4460 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046-1609 03 June 2021 FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 HVIN: AS1619123 Subject: Request for Permanent Confidentiality To Whom It May Concern: Pursuant to Sections 0.457(d) and 0.459 of the FCC Rules, We, Ericsson Canada / Ericsson AB, hereby request the Exhibits/Items listed below be withheld from public inspection or disclosure. This is based on the following reasons: This product is intended for use in an Ericsson Radio Base Station (BS) designed and built to state of the art technical specification and implemented with innovative solutions for a highly competitive market. Competition in this market is very intense and therefor the necessity for confidentiality is essential to protect Ericsson IP and trade secrets. Ericsson AB / Ericsson Canada confidential exhibits / documentation contain Ericsson company proprietary information (or that of our suppliers and contactors), in addition to trade secrets and proprietary information that are not intended for public disclosure. The confidential exhibits in this application are provided exclusively for the radio authorization submission and approval process and therefore need to be protected from public disclosure. Ericsson AB / Ericsson Canada has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology and solutions developed and / or implemented by Ericsson, with actual and patents pending. The Confidential Exhibits listed below contain highly technical and confidential information about our product and are only available to trained and authorized service personnel. This equipment is not available to be sold to the general public, (nor is it a consumer product) and can only be accessed and installed by trained service personnel under NDA (Non-Disclosure Agreement) with Ericsson. In addition, this product is only serviceable by the licensee or his designated / authorized technicians. As per Exhibit 13 “Commercial in Confidence” all sales of this product are under NDA, including third party sales. Confidential product information can be found in, but not necessarily limited to, internal photos, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Internal photographs contain product details not disclosed to or accessible by the general public. Under Special Circumstances, we (Ericsson) therefore request the inclusion of Exhibit 09 Internal Photographs and Exhibit 08 User Manuals to be held for Long Term Confidentiality based on the above justification. Product: KRC 161 912/3 Radio 4460 44B2/25 44B66 C - Long Term Confidentiality List: Exhibit 04 Block Dia gram Exhibit 05 Schematics Exhibit 08 User Manuals Exhibit 09 Internal Photo graphs Exhibit 10 Bill of Materials Exhibit 12 Operational and Technical Descriptions Should additional information be required, please contact the undersigned: DAVID BOLZON Sr. Engineer - Regulatory Approvals FCC Registration Number (FRN) 0013476155 IC: 287AB / IC: 11635A Ericsson Canada Inc. 349 Terry Fox Drive Ottawa, On, K2K 2V6, Canada Mobile: +1.613.219.5892 Email: [email protected]

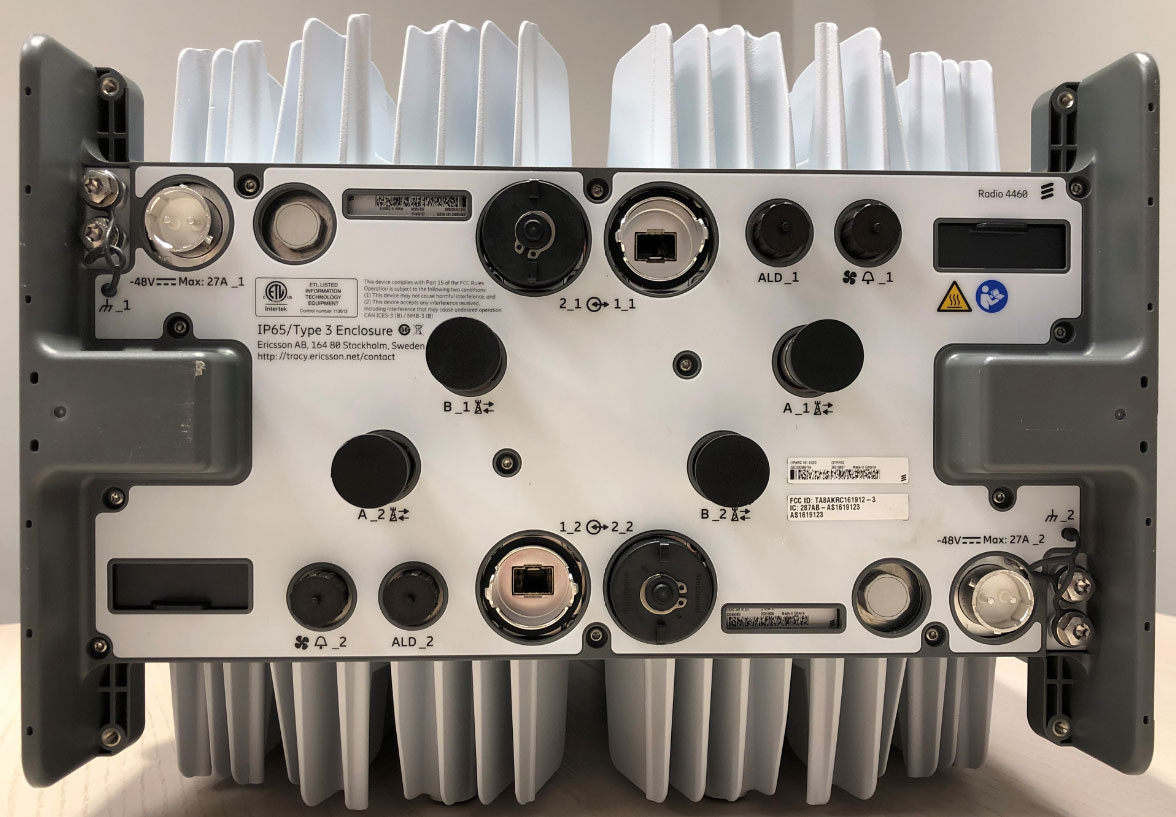

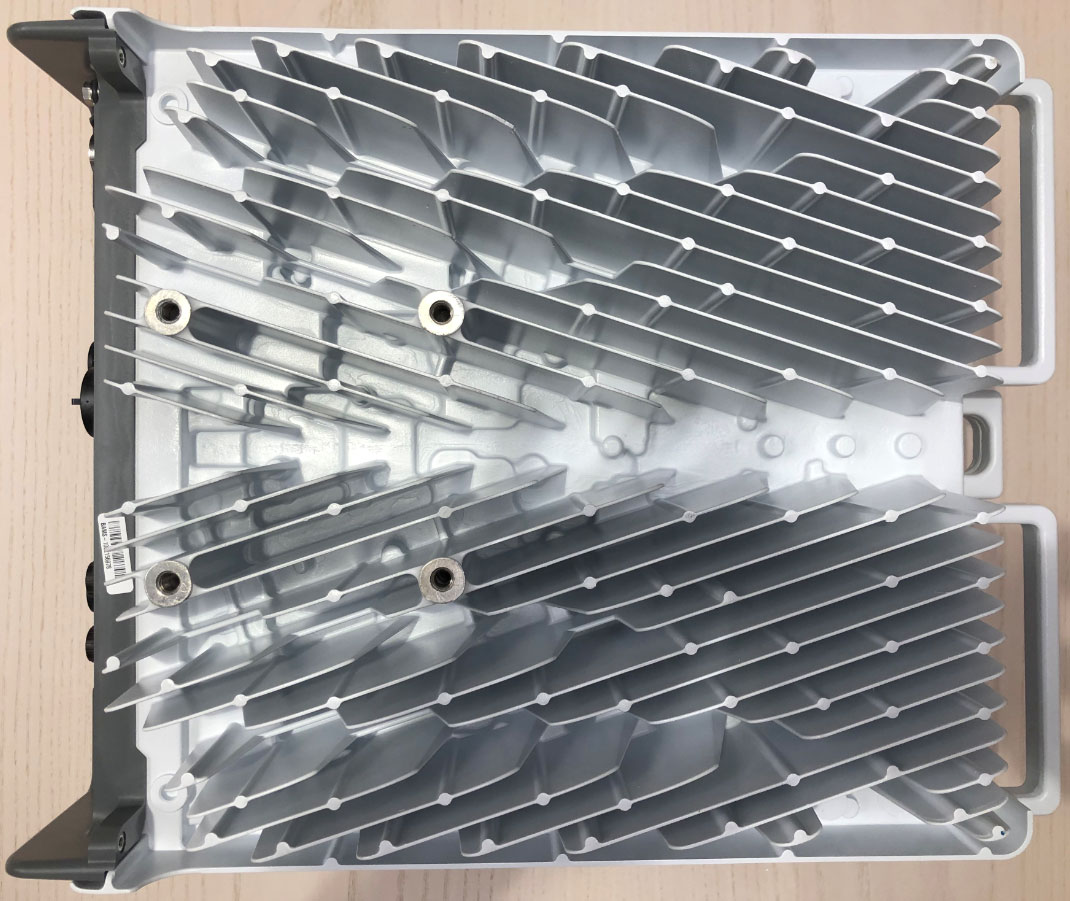

Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 1 of 5 Exhibit 09: External Photographs – Ericsson Confidential KRC 161 912/3: Photo Submission (External) Radio 4460 44B2/25 44B66 C (Multi-Standard) FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 HVIN: AS1619123 Date: 09 March 2021 Author: Ericsson Canada File: Radio 4460 External Photos ONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 2 of 5 Figure 1: Radio 4460 44B2/25 44B66 C Bottom / Connector View Figure 2: Radio 4460 44B2/25 44B66 C Top / Handle View Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 3 of 5 Figure 3: Radio 4460 44B2/25 44B66 C Front / Back (Mounting) View Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 4 of 5 Figure 4: Radio 4460 44B2/25 44B66 C Side View Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 5 of 5 Figure 5: Radio 4460 44B2/25 44B66 C Product Labels

Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 1 of 2 Exhibit 01: ID Label KRC 161 912/3: Product ID / Authorization Radio 4460 44B2/25 44B66 C (Multi-Standard) FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 HVIN: AS1619123 Date: 06 June 2021 Author: Ericsson Canada File: Radio 4460 44B2/25 44B66 C Legal Overlay CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information Radio 4460 44B2/25 44B66 C KRC 161 912/3 Restricted Use and Duplication FCC ID: TA8AKRC161912-3 IC: 287AB-AS1619123 QRM Regulatory Compliance 17/06/2021 Page 2 of 2 Regulatory ID Label Product Label

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC 27 and RSS-139.docx; Date: Jul 2017 Choose Scandinavian trust Radio Test report – Radio 4460 B2/25 B66 C Project number: 421910-1TRFWL-R1 Applicant: Ericsson Canada Inc. Product name: Model (PMN): Part number: Radio 4460 Radio 4460 44B2/25 44B66 C KRC 161 912/3 FCC ID: ISED Reg. Number: HVIN: TA8AKRC161912-3 287AB-AS1619123 AS1619123 Requirements/Summary: Standard Environmental phenomenon Compliance FCC 47 CFR Part 27 Miscellaneous wireless communications services Yes FCC 47 CFR Part 24, Subpart E Broadband Personal Communications Services (PCS) Yes RSS-133 Issue 6 A1, Jan 18, 2018 2 GHz Personal Communications Services Yes RSS-139 Issue 3, July 16, 2015 Advanced Wireless Services (AWS) Equipment Operating in the Bands 1710–1780 MHz and 2110–2180 MHz Yes RSS-170 Issue 3, July 9, 2015 Ancillary Terrestrial Component (ATC) Equipment Operating in the Mobile-Satellite Service (MSS) Bands AWS-4 (2180–2200MHz) Limitation as per IC P9 Licensing Agreement https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf11536.html Yes Date of issue: June 29, 2021 Andrey Adelberg, Senior EMC/Wireless Specialist Tested by Signature Kevin Rose, Wireless/EMC Specialist Reviewed by Signature Report reference ID: 421910-1TRFWL-R1 Page 2 of 239 Two test locations Company name Nemko Canada Inc. Address 303 River Road 349 Terry Fox City Ottawa Ottawa Province Ontario Ontario Postal code K1V 1H2 K2K 2V6 Country Canada Canada Telephone +1 613 737 9680 +1 613 963 8000 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Site number FCC test site registration number: CA2040, IC: 2040A-4 (3 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this reAnt Are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 421910-1TRFWL-R1 Page 3 of 239 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer .................................................................................................................................................................................... 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test method ............................................................................................................................................................................................................. 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 Testing location ........................................................................................................................................................................................................ 5 2.2 Testing period .......................................................................................................................................................................................................... 5 2.3 Sample information .................................................................................................................................................................................................. 5 2.4 FCC Part 27/24 test results ....................................................................................................................................................................................... 6 2.5 RSS-133/139/170 test results ................................................................................................................................................................................... 6 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 7 …

Text truncated - open the document above for the full version.

Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 74 of 239 Test data, continued Figure 8.3-9: Conducted spurious emissions of LTE 15 MHz top channel, single carrier operation Figure 8.3-10: Conducted spurious emissions of LTE 20 MHz low channel, single carrier Figure 8.3-11: Conducted spurious emissions of LTE 20 MHz mid channel, single carrier operation Figure 8.3-12: Conducted spurious emissions of LTE 20 MHz top channel, single carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 75 of 239 Test data, continued Figure 8.3-13: Conducted spurious emissions of LTE 5 MHz, three-carrier operation (non-contiguous) Figure 8.3-14: Conducted spurious emissions of LTE 5 MHz four contiguous bottom channels, four-carrier operation Figure 8.3-15: Conducted spurious emissions of LTE 5 MHz four contiguous mid channels, four-carrier operation Figure 8.3-16: Conducted spurious emissions of LTE 5 MHz four contiguous top channels, four-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 76 of 239 Test data, continued Figure 8.3-17: Conducted spurious emissions of LTE 10 MHz two non- contiguous channels, two-carrier operation Figure 8.3-18: Conducted spurious emissions of LTE 10 MHz two contiguous bottom channels, two-carrier operation Figure 8.3-19: Conducted spurious emissions of LTE 10 MHz two contiguous mid channels, two-carrier operation Figure 8.3-20: Conducted spurious emissions of LTE 10 MHz two contiguous top channels, two-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 77 of 239 Test data, continued Figure 8.3-21: Conducted spurious emissions of LTE 15 MHz two non- contiguous channels, two-carrier operation Figure 8.3-22: Conducted spurious emissions of LTE 15 MHz two contiguous top channels (sample), two-carrier operation Figure 8.3-23: Conducted spurious emissions of LTE 20 MHz two non- contiguous channels, two-carrier operation Figure 8.3-24: Conducted spurious emissions of LTE 20 MHz two contiguous top channels (sample), two-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 78 of 239 Test data, continued Figure 8.3-25: Conducted spurious emissions of LTE 10 MHz three contiguous bottom channels, three-carrier operation Figure 8.3-26: Conducted spurious emissions of LTE 10 MHz three contiguous mid channels, three-carrier operation Figure 8.3-27: Conducted spurious emissions of LTE 10 MHz three contiguous top channels, three-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 79 of 239 Test data, continued Figure 8.3-28: Conducted spurious emissions of NR 5 MHz low channel, single-carrier operation Figure 8.3-29: Conducted spurious emissions of NR 5 MHz mid channel, single-carrier operation Figure 8.3-30: Conducted spurious emissions of NR 5 MHz top channel, single-carrier operation Figure 8.3-31: Conducted spurious emissions of NR 10 MHz low channel, single-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 80 of 239 Test data, continued Figure 8.3-32: Conducted spurious emissions of NR 10 MHz mid channel, single-carrier operation Figure 8.3-33: Conducted spurious emissions of NR 10 MHz top channel, single-carrier operation Figure 8.3-34: Conducted spurious emissions of NR 15 MHz low channel, single-carrier operation Figure 8.3-35: Conducted spurious emissions of NR 15 MHz mid channel, single-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 81 of 239 Test data, continued Figure 8.3-36: Conducted spurious emissions of NR 15 MHz top channel, single-carrier operation Figure 8.3-37: Conducted spurious emissions of NR 20 MHz low channel, single-carrier operation Figure 8.3-38: Conducted spurious emissions of NR 20 MHz mid channel, single-carrier operation Figure 8.3-39: Conducted spurious emissions of NR 20 MHz top channel, single-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 82 of 239 Test data, continued Figure 8.3-40: Conducted spurious emissions of NR 5 MHz three non- contiguous channels, three-carrier operation Figure 8.3-41: Conducted spurious emissions of NR 5 MHz four contiguous bottom channels, four-carrier operation Figure 8.3-42: Conducted spurious emissions of NR 5 MHz four contiguous mid channels, four-carrier operation Figure 8.3-43: Conducted spurious emissions of NR 5 MHz four contiguous top channels, four-carrier operation Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 83 of 239 Test data, continued Figure 8.3-44: Conducted spurious emissions of NR 10 MHz two non- contiguous channels, two-carrier operation Figure 8.3-45: Conducted spurious emissions of NR 10 MHz tw…

Text truncated - open the document above for the full version.

Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 103 of 239 Test data, continued Figure 8.3-125: Conducted emission at the lower band edge Figure 8.3-126: Conducted emission 1 MHz away from the lower band edge Frequency: 2110 MHz Mode: Single-carrier operation Frequency: 2109 MHz Mode: Single-carrier operation Meas. BW: 1% of EBW Tech.: NR 15 MHz Meas. BW: 1 MHz Tech.: NR 15 MHz Limit: −19 dBm/150 kHz Notes: None Limit: −19 dBm/MHz Notes: None Figure 8.3-127: Conducted emission at the upper band edge Figure 8.3-128: Conducted emission 1 MHz away from the upper band edge Frequency: 2200 MHz Mode: Single-carrier operation Frequency: 2201 MHz Mode: Single-carrier operation Meas. BW: 1% of EBW Tech.: NR 15 MHz Meas. BW: 1 MHz Tech.: NR 15 MHz Limit: −19 dBm/150 kHz Notes: None Limit: −19 dBm/MHz Notes: None Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 104 of 239 Test data, continued Figure 8.3-129: Conducted emission at the lower band edge Figure 8.3-130: Conducted emission 1 MHz away from the lower band edge Frequency: 2110 MHz Mode: Single-carrier operation Frequency: 2109 MHz Mode: Single-carrier operation Meas. BW: 1% of EBW Tech.: NR 20 MHz Meas. BW: 1 MHz Tech.: NR 20 MHz Limit: −19 dBm/200 kHz Notes: None Limit: −19 dBm/MHz Notes: None Figure 8.3-131: Conducted emission at the upper band edge Figure 8.3-132: Conducted emission 1 MHz away from the upper band edge Frequency: 2200 MHz Mode: Single-carrier operation Frequency: 2201 MHz Mode: Single-carrier operation Meas. BW: 1% of EBW Tech.: NR 20 MHz Meas. BW: 1 MHz Tech.: NR 20 MHz Limit: −19 dBm/200 kHz Notes: None Limit: −19 dBm/MHz Notes: None Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 105 of 239 Test data, continued Figure 8.3-133: Conducted emission at the lower band edge Figure 8.3-134: Conducted emission 1 MHz away from the lower band edge Frequency: 2110 MHz Mode: Multi-carrier operation Frequency: 2109 MHz Mode: Multi-carrier operation Meas. BW: 1% of EBW Tech.: 2 × NR 10 MHz Meas. BW: 1 MHz Tech.: 2 × NR 10 MHz Limit: −19 dBm/100 kHz Notes: None Limit: −19 dBm/MHz Notes: None Figure 8.3-135: Conducted emission at the upper band edge Figure 8.3-136: Conducted emission 1 MHz away from the upper band edge Frequency: 2200 MHz Mode: Multi-carrier operation Frequency: 2201 MHz Mode: Multi-carrier operation Meas. BW: 1% of EBW Tech.: 2 × NR 10 MHz Meas. BW: 1 MHz Tech.: 2 × NR 10 MHz Limit: −19 dBm/100 kHz Notes: None Limit: −19 dBm/MHz Notes: None Section 8 Testing data Test name Spurious emissions at RF antenna connector (Band 66) Specification FCC Part 27, RSS-139, Issue 3, RSS-170 Issue 3 Report reference ID: 421910-1TRFWL-R1 Page 106 of 239 Test data, continued Figure 8.3-137: Conducted emission at the lower band ed…

Text truncated - open the document above for the full version.
