Subject: Certification for FCC ID: TA8AKRC161922 Confidentiality Class External Confidentiality Label Document Type Page Ericsson Internal 1 (1) Prepared By (Subject Responsible) Approved By (Document Responsible) Checked EALIAFR Afrah Ali Sadiq Document Number Revision Date Reference C 2021-06-23 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above-mentioned FCC Identifier. The radio operates in the Personal Communications Services and Miscellaneous Wireless Communications Services and is designed for use in LTE, NB IoT, NR cellular telephone system. This FDD radio operates in Band 71 and Band 85A as per FCC 47 CFR Part 27. Band 71: Transmitter from 617 - 652 MHz and the receiver from 663 - 698 MHz. Band 85A: Transmitter from 728 - 745 MHz and the receiver from 698 - 715 MHz. Details regarding supported functionality, see clause 1.1 and 1.2 in Exhibit 12 - Technical Circuit Description. This radio will always require a license for transmission. The Exhibit 8 - manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 – Technical Circuit description. Ericsson AB accept by this request the agreement set out in the document “IP SPCR 125 Annex A2 Agreements on Post-market surveillance for radio equipment certified for the US market. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Lars Wallin Quality and Release Management Isafjordsgatan 10 SE-164 80 Stockholm Sweden Telephone No. +46 70 267 00 42 e-mail: [email protected]

Confidentiality Class External Confidentiality Label Document Type Page Ericsson Internal 1 (1) Prepared By (Subject Responsible) Approved By (Document Responsible) Checked EALIAFR Afrah Ali Sadiq Document Number Revision Date Reference B 2021-06-10 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046, USA Attention: Equipment Authorization Branch Subject: Request for Long term Confidentiality: FCC ID: TA8AKRC161922 To whom it may concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance to sections 0.457 and 0.459 of the Commission’s Rules for FCC. This due to the following reasons: Ericsson Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio Dot (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in- depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built-in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS RU RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase out BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. Details for justification of Long term confidentiality under special conditions, according to KDB 726920, see document: Circuit Description - LTC Manuals and Internal photos justification. EXHIBIT 5 Schematics EXHIBIT 9 Internal Photos EXHIBIT 8 Manuals EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description .......................................................... Lars Wallin Quality and Release Management, Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 SE-164 80 Stockholm Sweden Telephone No. +46 70 267 00 42 e-mail: [email protected]

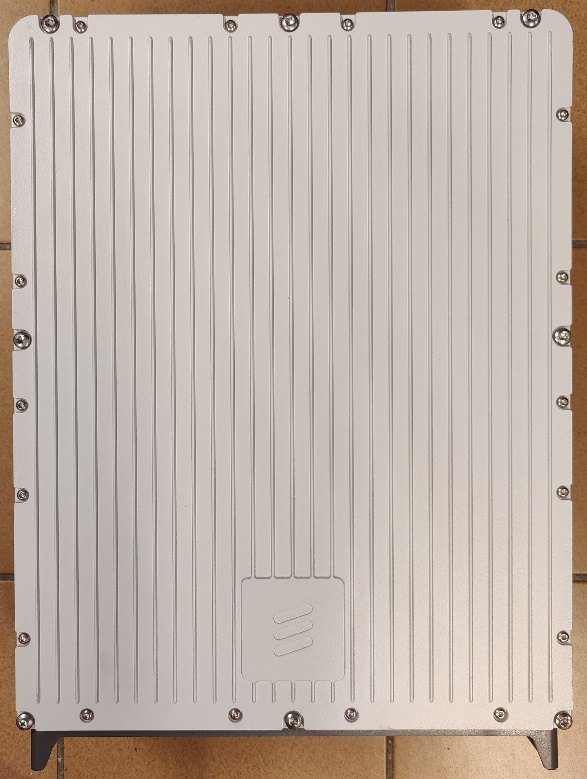

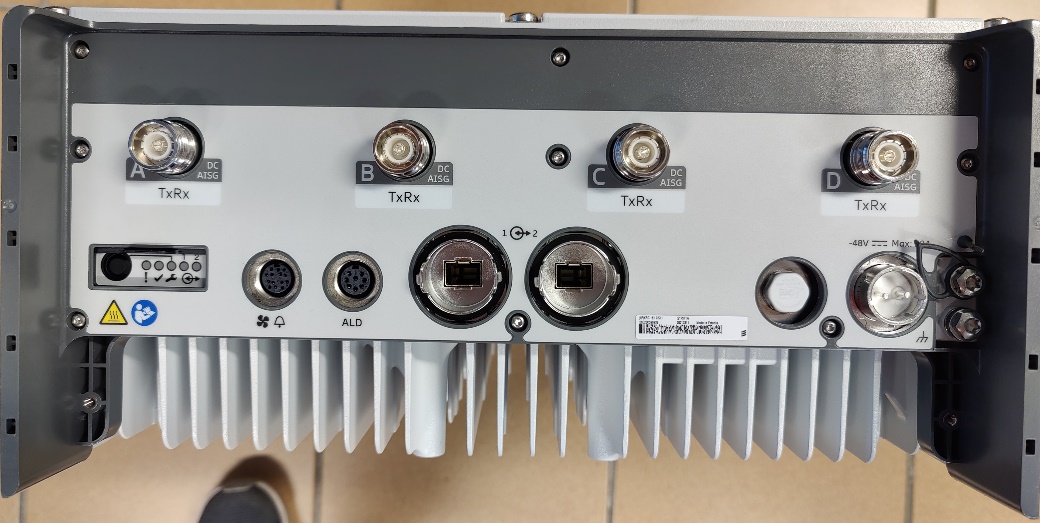

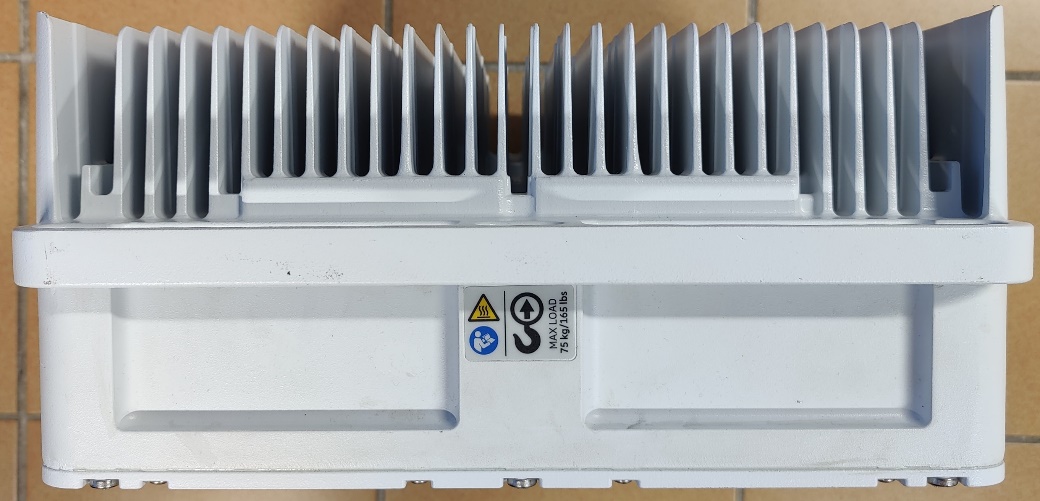

Date Page Exhibit 3 External photos 2021-06-21 1( 2) FCC ID: TA8AKRC161922 IC:287AB-AS161922 Radio 4480 44B71 44B85A C, KRC 161 922/1 R1A Front side Rear side* *Note: The photo include the wrong version of the label overlay. The figure 1 displays the overlay will be replaced on the samples placed on the USA and Canada markets. Figure 1 Date Page Exhibit 3 External photos 2021-06-21 2( 2) FCC ID: TA8AKRC161922 IC:287AB-AS161922 Bottom side Top side Left side Right side

Exhibit 1-ID label and placement Confidentiality Class External Confidentiality Label Document Type Page Ericsson Internal 1 (1) Prepared By (Subject Responsible) Approved By (Document Responsible) Checked EALIAFR Afrah Ali Sadiq Document Number Revision Date Reference D 2021-05-28 Radio 4480 44B71 44B85A C The label is a plastic sticker affixed to the product via permanent adhesive. It is designed to last the expected lifetime of the product in the environment in which the product is to be operated.

1 (10) GFTL-21:000201 Uen, Rev C, 2021-07-05 © Telefonaktiebolaget LM Ericsson AB. This report shall not be reproduced except in full, without written approval of the laboratory. EMF Test Report: Ericsson Radio 4480 B71 B85A (FCC) Accred. no. 1761 Testing ISO/IEC 17025 Test report issued by an Accredited Testing Laboratory Document number: GFTL-21:000201 Uen Rev C Date of report: 2021-07-05 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80 Stockholm Sweden Company/Client: Magnus Karlsson B Ericsson AB SE-164 80 Stockholm Sweden Tests performed by: Davide Colombi Dates of tests: 2021-02-18 (Rev A) 2021-06-02 (Rev B) 2021-07-02 (Rev C) Manufacturer and market name(s) of device: Ericsson Radio 4480 B71 B85A Testing has been performed in accordance with: FCC OET Bulletin 65 IEC 62232:2017 Test results: RF exposure compliance boundaries (exclusion zones) related to the limits in FCC 47 CFR 1.1310 to be included in the Customer Product Information (CPI) for Ericsson Radio 4480 B71 B85A. Additional information: Signatures: Test Engineer __________________ Davide Colombi Master Researcher [email protected] Tel: +46767602089 Deputy Quality Manager __________________ Paramananda Joshi Senior Researcher [email protected] Tel: +46725074006 2 (10) GFTL-21:000201 Uen, Rev C, 2021-07-05 Summary of EMF Test Report 1 Equipment under test (EUT) Product name Radio 4480 B71 B85A Product number KRC 161 922/1 Supported bands, Tx frequency range (MHz) and standards Band 71 617 – 652 LTE, NR, NB-IoT Band 85A 728 – 745 LTE, NB-IoT Duplexing technology FDD Antennas Product number RFS APXVAARR18_43-U-NA20 Tested mode(s) Band 71 (L/N/I) 2 + Band 85A (L/I) Results RF exposure compliance boundaries, outside of which the exposure is below the general public (GP) and workers (W) exposure limits, are listed below. Dimensions of the box-shaped compliance boundary for general public (GP) and workers (W) exposure for Radio 4480 applicable in the markets employing the FCC RF exposure limits. The compliance boundaries are determined for maximum output power with 0.5 dB transmission loss and 0.6 dB output power tolerance included. 1 This page contains a summary of the test results. The full report provides a complete description of all test details and results. 2 The standards are abbreviated in this report according to: L for LTE, N for NR and I for NB-IoT. Mode and output power for Radio 4480 Dimensions of the box-shaped compliance boundary (m) Distance in front of antenna Width Height Distance behind the antenna Band Standard 2 Maximum nominal output power from the radio IEC 62232 installation class GP W GP W GP W GP W B71 + B85A L/N/I + L/I 4 × 60 W (B71) + 4 × 40 W (B85A) E+ 20.2 9.0 16.0 7.2 3.8 2.3 0.6 0.3 For the power levels specified in the table with tolerances added, and the upward rounding of compliance boundary dimensions to the nearest decimeter, the specified results are conservative. 3 (10) GFTL-21:000201 Uen, Rev C, 2021-07-05 1 General information The test results presented in this report define compliance boundaries for Radio 4480 B71 B85A. Outside these compliance boundaries, the radio frequency (RF) exposure levels are below the limits specified by the Federal Communications Commission (FCC) [1]. The tests were performed by calculations in accordance with the Ericsson RF exposure calculation procedure for base stations [2], which is in conformity with the FCC OET Bulletin 65 [3] and IEC 62232:2017 [4]. It should be noted that the test results presented in this test report are valid for the frequency range specified in Table 1, for the antenna properties specified in Table 2, and for the power levels, power tolerance and transmission loss specified in Table 3. These data as well as the applied antenna pattern files were supplied by the client and may affect the validity of the results. Proposed EMF health and safety information for inclusion in the Customer Product Information (CPI) is provided in Appendices A, B and C. 2 Equipment under test Tables 1 and 2 below summarize the technical data for the equipment under test (EUT) and the properties of antenna. Table 3 lists the maximum nominal output power from the radio unit (total peak power from all antenna branches) and the total time-averaged power delivered to the antenna for the specified configurations. The total time-averaged power delivered to the antenna includes transmission loss and output power tolerance. The EUT related data in Tables 1-3 were supplied by the client. Table 1 Technical data for the EUT. Product name and product number Radio 4480 B71 B85A KRC 161 922/1 Supported bands, Tx frequency range (MHz) and standards. Band 71 617 – 652 LTE, NR, NB-IoT Band 85A 728 – 745 LTE, NB-IoT Duplexing technology FDD Exposure environment General public, Workers IEC 62232 installation class [4] 3 E+ Table 2 Properties of the antenna. Product number RFS APXVAARR18_43-U-NA20 Type Macro cell, directional, 4 Tx (2 columns, X polarized) Frequency range (MHz) 617 – 2200 Tested band and frequency range (MHz) B71: 617 – 652 B85A: 728 – 745 Maximum gain 4 (dBi) per antenna port 14.5 (B71) 14.9 (B85A) Electrical tilt (degrees) 0 Dimensions, 푯×푾×푫 (mm) 1829 × 609 × 215 3 The stated IEC 62232 installation class was determined based on the total EIRP without power tolerance included and considering the transmission loss. The total EIRP was obtained using the antenna patterns provided by the client. 4 Maximum gain among the antenna ports obtained using the antenna patterns provided by the antenna manufacturer. 4 (10) GFTL-21:000201 Uen, Rev C, 2021-07-05 Table 3 EUT configurations with maximum nominal output power levels and total time-averaged power levels including transmission loss and output power tolerance. Band Standard Maximum nominal output power from the radio Transmission loss (dB) Power tolerance (dB) Total time-averaged power delivered to the antenna (dBm/W) B71 + B85A L/N/I + L/I 4 × 60 W (B71) + 4 × 40 W…

Text truncated - open the document above for the full version.

REPORT issued by an Accredited Testing Laboratory Contact person RISE Date Reference Page Tomas Lennhager 2021-06-29 P110208-F27 1 (189) Safety and Transport +46 10 516 54 09 [email protected] Ericsson AB Anders Karlsson BURA DURA RP QRM Torshamnsgatan 21 164 80 Stockholm Radio measurements on 4480 44B71 44B85A C equipment with FCC ID TA8AKRC161922 and IC 287AB- AS161922 Accred. No. 1002 Testing ISO/IEC 17025 RISE Research Institutes of Sweden AB Postal address Office location Phone / Fax / E-mail This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. Box 857 SE-501 15 BORÅS SWEDEN Brinellgatan 4 SE-504 62 Borås SWEDEN +46 10 516 50 00 +46 33 13 55 02 [email protected] Product name: Radio 4480 44B71 44B85A C (with optional fan BKV 106 246/1) Product number: KRC 161 922/1 RISE Research Institutes of Sweden AB Vehicles and Automation – EMC-IKT Performed by Examined by Signature 1 Signature 2 Tomas Lennhager Daniel Lundgren REPORT Date Reference Page 2021-06-29 P110208-F27 2 (189) RISE Research Institutes of Sweden AB Summary..................................................................................................................................... 4 Description of the test object ...................................................................................................... 5 Purpose of test ............................................................................................................................ 8 Operation modes during measurements ..................................................................................... 8 Conducted measurements ........................................................................................................... 9 Radiated measurements .............................................................................................................. 9 Test facility ................................................................................................................................. 9 References .................................................................................................................................. 9 Measurement equipment .......................................................................................................... 10 Uncertainties ............................................................................................................................. 10 Reservation ............................................................................................................................... 11 Delivery of test object .............................................................................................................. 11 Manufacturer’s representative .................................................................................................. 11 Test engineers ........................................................................................................................... 11 Test participant(-s) .................................................................................................................... 11 Test frequencies used for conducted measurements ................................................................. 12 Test frequencies used for radiated measurements .................................................................... 18 Test setup: conducted measurements ....................................................................................... 20 Test setup: radiated measurements ........................................................................................... 21 RF power output measurements according to CFR 47 §27.50/ RSS-130 4.6, conducted ........ 22 Test set-up and procedure ..................................................................................................... 22 Results NR B71 .................................................................................................................... 22 Results LTE B71 .................................................................................................................. 25 Results NB IoT SA, LTE with NB IoT GB B71 .................................................................. 29 Results LTE B85A ............................................................................................................... 31 Results NB IoT SA, LTE with NB IoT GB B85A ............................................................... 33 Remark ................................................................................................................................. 35 Limits .................................................................................................................................... 35 Occupied bandwidth measurements according to CFR47 §2.1049/ RSS-Gen 6.7 ................... 36 Test set-up and procedure ..................................................................................................... 36 Results NR B71 .................................................................................................................... 36 Results LTE B71 .................................................................................................................. 37 Results NB IoT SA/ GB B71 ................................................................................................ 38 Results LTE B85A ............................................................................................................... 39 Band edge measurements according to CFR 47 §2.1049/ RSS-130 4.7.1................................ 58 Test set-up and procedure ..................................................................................................... 58 Results NR B71 .................................................................................................................... 59 Results LTE B71 ..........................................................................…

Text truncated - open the document above for the full version.

REPORT Date Reference Page 2021-06-29 P110208-F27 106 (189) RISE Research Institutes of Sweden AB Diagram 2.45a LTE: ETM1.1, T 5LTE , Port D: Diagram 2.45b LTE: ETM1.1, T 5LTE , Port D: REPORT Date Reference Page 2021-06-29 P110208-F27 107 (189) RISE Research Institutes of Sweden AB Diagram 2.46a LTE: ETM1.1, T 10LTE , Port B: Diagram 2.46b LTE: ETM1.1, T 10LTE , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 108 (189) RISE Research Institutes of Sweden AB Diagram 2.47a LTE: ETM1.1, Bim LTE , Port B: Diagram 2.47b LTE: ETM1.1, Bim LTE , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 109 (189) RISE Research Institutes of Sweden AB Diagram 2.48a LTE: ETM1.1, Tim LTE , Port B: Diagram 2.48b LTE: ETM1.1, Tim LTE , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 110 (189) RISE Research Institutes of Sweden AB Diagram 2.49a NB IoT SA: N-TM, LTE: E-TM1.1, B IoT+L , Port B: Diagram 2.49b NB IoT SA: N-TM, LTE: E-TM1.1, B IoT+L , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 111 (189) RISE Research Institutes of Sweden AB Diagram 2.50a NB IoT SA: N-TM, LTE: E-TM1.1, Bim 2IoT+L , Port B: Diagram 2.50b NB IoT SA: N-TM, LTE: E-TM1.1, Bim 2IoT+L , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 112 (189) RISE Research Institutes of Sweden AB Diagram 2.51a NB IoT SA: N-TM, LTE: E-TM1.1, T IoT+L , Port B: Diagram 2.51b NB IoT SA: N-TM, LTE: E-TM1.1, T IoT+L , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 113 (189) RISE Research Institutes of Sweden AB Diagram 2.52a NB IoT SA: N-TM, LTE: E-TM1.1, Tim 2IoT+L , Port B: Diagram 2.52b NB IoT SA: N-TM, LTE: E-TM1.1, Tim 2IoT+L , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 114 (189) RISE Research Institutes of Sweden AB Diagram 2.53a NB IoT SA: N-TM, LTE: E-TM3.1, B10 Guard , Port B: Diagram 2.53b NB IoT SA: N-TM, LTE: E-TM3.1, B10 Guard , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 115 (189) RISE Research Institutes of Sweden AB Diagram 2.54a NB IoT SA: N-TM, LTE: E-TM3.1, T10 Guard , Port B: Diagram 2.54b NB IoT SA: N-TM, LTE: E-TM3.1, T10 Guard , Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 116 (189) RISE Research Institutes of Sweden AB Conducted spurious emission measurements according to CFR 47 §27.53/ RSS-130 4.7.1 Date 2021-05-12 2021-05-18 Temperature 23 °C ± 3 °C 23 °C ± 3 °C Humidity 18 % ± 5 % 20 % ± 5 % Test set-up and procedure The measurements were made per definition in ANSI C63.26, 5.7.4. The output was connected to a spectrum analyzer with the RMS detector activated. Before comparing the results to the limit, 6 dB [10 log 10 (4)] to cover 4x4 MIMO, should be added according to ANSI C63.26 6.4.4.1 c “measure and add 10 log 10 (N ANT )”. Measurement equipment RISE number R&S FSW 43 902 073 RF attenuator 902 282 High pass filter 1-20 GHz 901 373 Coaxial cable Sucoflex 102EA BX50236 Coaxial cable Sucoflex 102EA BX50237 Testo 635, temperature and humidity meter 504 203 Measurement uncertainty: 2.6 dB For all measurements the radio was configured with the max output power per port. For measurements noted with B71 the Carrier(s) were configured with the maximum possible output power for the Carrier(s) in that band. The carrier in B85A was a 5 MHz LTE carrier on 736.5 MHz configured with the maximum output power of 40 Watts in that Band. Diagram 3.1 – 3.38 For measurements noted with B85A in, the Carrier(s) were configured with the maximum possible output power for the Carrier(s) in that band. The carrier in B71 was a 10 MHz LTE carrier on 634.5 MHz configured with the maximum output power of 60 Watts in that Band. Diagram 3.39 – 3.57 REPORT Date Reference Page 2021-06-29 P110208-F27 117 (189) RISE Research Institutes of Sweden AB Results NR B71 Single carrier NR: RF1-TM1.1 Diagram Symbolic name Tested Port 3.1 a-b B 5NR RF B 3.2 a-b M 5NR RF A 3.3 a-b M 5NR RF B 3.4 a-b M 5NR RF C 3.5 a-b M 5NR RF D 3.6 a-b M 10NR RF B 3.7 a-b M 15NR RF B 3.8 a-b M 20NR RF B 3.9 a-b T 5NR RF B Multi carrier NR: RF1-TM1.1 Diagram Symbolic name Tested Port 3.10 a-c Bim NR RF B 3.11 a-c Tim NR RF B 3.12 a-c M6 NR RF B Results LTE B71 Single carrier E-TM1.1 Diagram Symbolic name Tested Port 3.13 a-b B 5LTE RF B 3.14 a-b B 20LTE RF B 3.15 a-b M 5LTE RF B 3.16 a-b M 10LTE RF A 3.17 a-b M 10LTE RF B 3.18 a-b M 10LTE RF C 3.19 a-b M 10LTE RF D 3.20 a-b M 15LTE RF B 3.21 a-b M 20LTE RF B 3.22 a-b T 5LTE RF B 3.23 a-b T 20LTE RF B Multi carrier E-TM1.1 Diagram Symbolic name Tested Port 3.24 a-c Bim LTE RF B 3.25 a-c Tim LTE RF B 3.26 a-c M6 LTE RF B Note: Measurements were mainly limited to port RF B due to the measurement result in single carrier mode that shows that the ports are electrical identical as declared by the client. REPORT Date Reference Page 2021-06-29 P110208-F27 118 (189) RISE Research Institutes of Sweden AB Results NB IoT SA/ GB/ IB B71 Multi RAT: NB IoT SA/GB/IB: N-TM, LTE: E-TM3.1 Diagram Symbolic name Tested Port 3.27 a-c B IoT+L RF B 3.28 a-c B IBIoT+L RF B 3.29 a-c M IoT+L RF B 3.30 a-c M IBIoT+L RF B 3.31 a-c T IoT+L RF B 3.32 a-c T IBIoT+L RF B 3.33 a-c T 10Guard RF B 3.34 a-c T 15Guard RF B 3.35 a-c T 20Guard RF B 3.36 a-c Bim 2IoT+L RF B 3.37 a-c Tim 2IoT+L RF B Results NR + LTE + NB IoT SA B71 Multi RAT: NB IoT SA: N-TM, LTE: E-TM1.1, NR: FR1-TM1.1 Diagram Symbolic name Tested Port 3.38 a-c Max IoT+L+NR RF B REPORT Date Reference Page 2021-06-29 P110208-F27 119 (189) RISE Research Institutes of Sweden AB Results LTE B85A Single carrier E-TM1.1 Diagram Symbolic name Tested Port 3.39 a-b B 5LTE RF B 3.40 a-b M 5LTE RF B 3.41 a-b M 10LTE RF A 3.42 a-b M 10LTE RF B 3.43 a-b M 10LTE RF C 3.44 a-b M 10LTE RF D 3.45 a-b T 5LTE RF B Multi carrier E-TM1.1 Diagram Symbolic name Tested Port 3.46 a-c Bim LTE RF B 3.47 a-c Tim LTE RF B Note: Measurements were mainly limited to port RF B due to the measurement result in single carrier mode that shows that the ports are electrical identical as declared by the client. Results NB IoT SA/ GB/ IB B85A Multi RAT:…

Text truncated - open the document above for the full version.

REPORT Date Reference Page 2021-06-29 P110208-F27 166 (189) RISE Research Institutes of Sweden AB Diagram 3.45a LTE: E-TM1.1, T 5LTE , 9 kHz – 1 GHz, Port B: Diagram 3.45b LTE: E-TM1.1, T 5LTE , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 167 (189) RISE Research Institutes of Sweden AB Diagram 3.46a LTE: E-TM1.1, Bim LTE , 9 kHz – 1 GHz, Port B: Diagram 3.46b LTE: E-TM1.1, Bim LTE , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.46c LTE: E-TM1.1, Bim LTE , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 168 (189) RISE Research Institutes of Sweden AB Diagram 3.47a LTE: E-TM1.1, Tim LTE , 9 kHz – 1 GHz, Port B: Diagram 3.47b LTE: E-TM1.1, Tim LTE , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.47c LTE: E-TM1.1, Tim LTE , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 169 (189) RISE Research Institutes of Sweden AB Diagram 3.48a NB IoT SA: N-TM, LTE: E-TM3.1, B IoT+L , 9 kHz – 1 GHz, Port B: Diagram 3.48b NB IoT SA: N-TM, LTE: E-TM3.1, B IoT+L , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.48c NB IoT SA: N-TM, LTE: E-TM3.1, B IoT+L , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 170 (189) RISE Research Institutes of Sweden AB Diagram 3.49a NB IoT IB: N-TM, LTE: E-TM3.1, B IBIoT+L , 9 kHz – 1 GHz, Port B: Diagram 3.49b NB IoT IB: N-TM, LTE: E-TM3.1, B IBIoT+L , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.49c NB IoT SA: N-TM, LTE: E-TM3.1, B IBIoT+L , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 171 (189) RISE Research Institutes of Sweden AB Diagram 3.50a NB IoT SA: N-TM, LTE: E-TM3.1, M IoT+L , 9 kHz – 1 GHz, Port B: Diagram 3.50b NB IoT SA: N-TM, LTE: E-TM3.1, M IoT+L , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.50c NB IoT SA: N-TM, LTE: E-TM3.1, M IoT+L , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 172 (189) RISE Research Institutes of Sweden AB Diagram 3.51a NB IoT IB: N-TM, LTE: E-TM3.1, M IBIoT+L , 9 kHz – 1 GHz, Port B: Diagram 3.51b NB IoT IB: N-TM, LTE: E-TM3.1, M IBIoT+L , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.51c NB IoT IB: N-TM, LTE: E-TM3.1, M IBIoT+L , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 173 (189) RISE Research Institutes of Sweden AB Diagram 3.52a NB IoT SA: N-TM, LTE: E-TM3.1, T IoT+L , 9 kHz – 1 GHz, Port B: Diagram 3.52b NB IoT SA: N-TM, LTE: E-TM3.1, T IoT+L , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.52c NB IoT SA: N-TM, LTE: E-TM3.1, T IoT+L , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 174 (189) RISE Research Institutes of Sweden AB Diagram 3.53a NB IoT IB: N-TM, LTE: E-TM3.1, T IBIoT+L , 9 kHz – 1 GHz, Port B: Diagram 3.53b NB IoT IB: N-TM, LTE: E-TM3.1, T IBIoT+L , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.53c NB IoT IB: N-TM, LTE: E-TM3.1, T IBIoT+L , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 175 (189) RISE Research Institutes of Sweden AB Diagram 3.54a NB IoT GB: N-TM, LTE: E-TM3.1, T10 Guard , 9 kHz – 1 GHz, Port B: Diagram 3.54b NB IoT GB: N-TM, LTE: E-TM3.1, T10 Guard , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.54c NB IoT GB: N-TM, LTE: E-TM3.1, T10 Guard , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 176 (189) RISE Research Institutes of Sweden AB Diagram 3.55a NB IoT SA: N-TM, LTE: E-TM3.1, Bim 2IoT+LTE , 9 kHz – 1 GHz, Port B: Diagram 3.55b NB IoT SA: N-TM, LTE: E-TM3.1, Bim 2IoT+LTE , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.55c NB IoT SA: N-TM, LTE: E-TM3.1, Bim 2IoT+LTE , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 177 (189) RISE Research Institutes of Sweden AB Diagram 3.56a NB IoT SA: N-TM, LTE: E-TM3.1, Tim 2IoT+LTE , 9 kHz – 1 GHz, Port B: Diagram 3.56b NB IoT SA: N-TM, LTE: E-TM3.1, Tim 2IoT+LTE , 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.56c NB IoT SA: N-TM, LTE: E-TM3.1, Tim 2IoT+LTE , 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 178 (189) RISE Research Institutes of Sweden AB Diagram 3.57a NB IoT SA: N-TM, LTE: E-TM3.1, M 2IoT+3LTE , 9 kHz – 1 GHz, Port B: Diagram 3.57b NB IoT SA: N-TM, LTE: E-TM3.1, 550 – 800 MHz, Port B: Note: The purpose of this measurement is to find IM products, not to verify compliance at the Band edges. Diagram 3.57c NB IoT SA: N-TM, LTE: E-TM3.1, 1 – 8 GHz, Port B: REPORT Date Reference Page 2021-06-29 P110208-F27 179 (189) RISE Research Institutes of Sweden AB Field strength of spurious radiation measurements according to CFR 47 §27.53/ RSS-130 6.7.1 Date 2021-04-14 2021-04-15 2021-04-16 Temperature 22 °C ± 3 °C 22 °C ± 3 °C 23 °C ± 3 °C Humidity 27 % ± 5 % 26 % ± 5 % 27 % ± 5 % The test site conforms to the site validation criterion specifie…
