Confidential EXHIBIT 13 1 (1) Prepared (Subject resp) No. ESAVMIK TA8AKRD901043 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2013-10-30 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TÜV SÜD BABT Octagon House, Concorde Way Segensworth North, Fareham , Hampshire PO15 5RL United Kingdom October 14, 2013 Subject: Certification for FCC ID: TA8AKRD901043 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver (Radio Base Station – RBS 6401 B25) is designed for use in WCDMA and LTE cellular telephone system. The transmitter will operate from 1930 MHz to 1995 MHz. The receiver circuit supports 1850 MHz to 1915 MHz. It supports channel bandwidths of 5, 10 and 20 MHz for LTE. This Radio Unit supports modulation type and QPSK, 16QAM and 64QAM for WCDMA and LTE. The base station operates in the Cellular band as per 47 CFR Part 27 subpart L. It meets the requirements of Third Generation Partnership Project (3GPP) for the Universal Mobile Telephone System (UMTS 3G) mobile standard (cellular telephone system) for operation in WCDMA and LTE cellular systems. This base station transceiver (Radio Base Station – RBS 6401) will in normal mode operate at a nominal power out of 100 milliwatts, 250 milliwats and 1 watts at the output connectors, to feed an Integrated wide Sector antenna or alternative external antenna(s). This RBS supports 2x2 MIMO DL (Multiple Input Multiple Output) for LTE. This RBS supports MSR with WCDMA and LTE in a single mode. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". If additional information is needed, please contact me on the below listed number. Mika Savilakso Verification Engineer, R&D Center Oulu Ericsson AB FCC Registration Number (FRN): 0013476155 Elektroniikkatie 10 FI -90590 OULU, Finland Telephone No.: +358 9 299 3714 e-mail: [email protected]

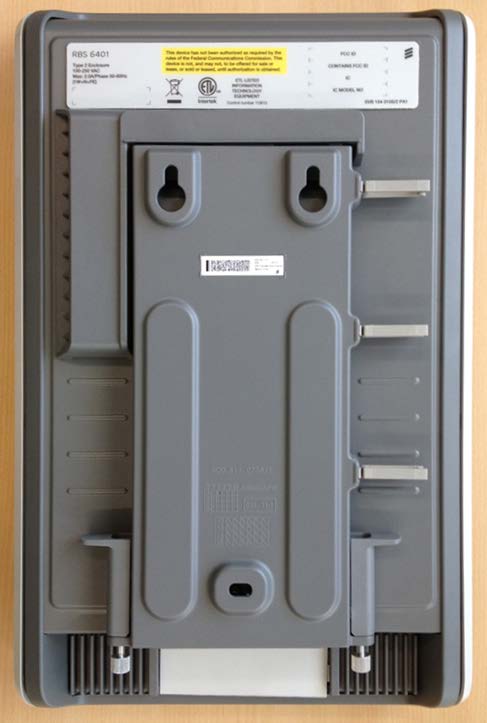

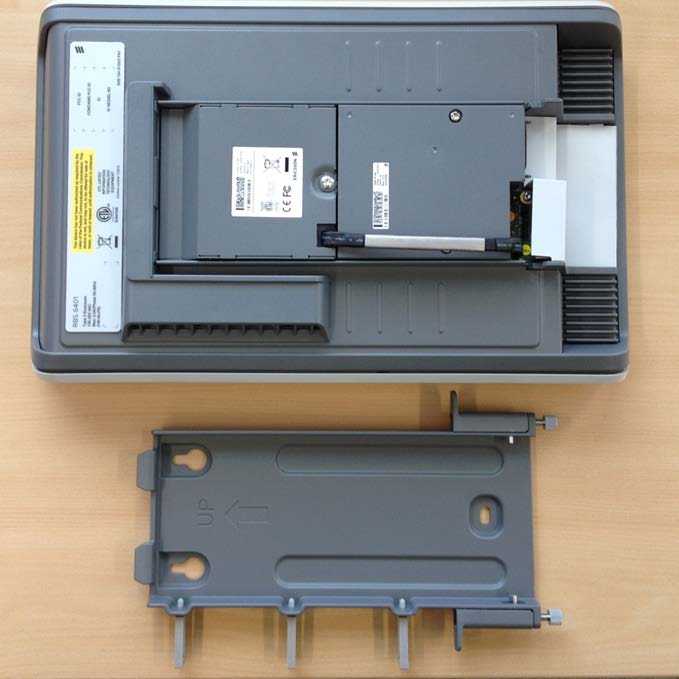

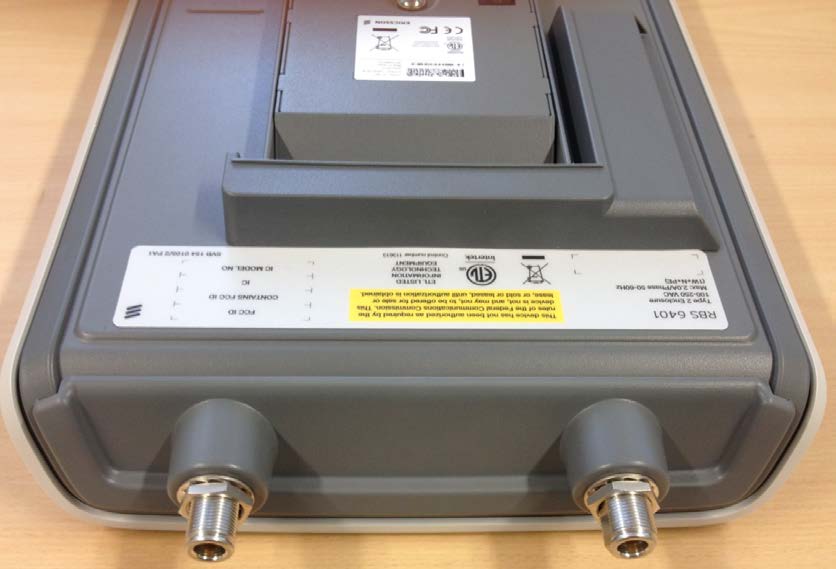

Date Page Exhibit 3 External photos 2013-10-30 1(5 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 Front side, without external antenna connector kit Date Page Exhibit 3 External photos 2013-10-30 2(5 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 Back Side, wall mount attached, without external antenna connector kit Date Page Exhibit 3 External photos 2013-10-30 3(5 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 Back Side, wall mount detached, without external antenna connector kit Date Page Exhibit 3 External photos 2013-10-30 4(5 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 Bottom side Top side, without external antenna connector kit Date Page Exhibit 3 External photos 2013-10-30 5(5 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 Top side, with external antenna connector kit Top side, with external antenna connector kit

Date Page Exhibit 01 ID Label 2013-10-31 1(4 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 The ID label is located Back Side KRD901043/1. FCC ID: TA8AKRD901043 IC: 287AB-AS901043 IC MODEL N UMBER: AS9010431 Date Page Exhibit 01 ID Label 2013-10-31 2(4 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 The ID label is located Back Side KRD901043/2. FCC ID TA8AKRD901043 CONTAIS FCC ID: RAR40025002 IC: 287AB-AS9010432 IC MODEL NUMBER: AS9010432 CONTAIS TRANSMITTER MODULE IC: 4674A-40025002 Date Page Exhibit 01 ID Label 2013-10-31 3(4 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 The ID label is located Back Side KRD901043/3. FCC ID: TA8AKRD901043 IC: 287AB-AS901043 IC MODEL NUMBER: AS9010433 Date Page Exhibit 01 ID Label 2013-10-31 4(4 ) FCC ID: TA8AKRD901043 IC: 287AB-AS901043 The ID label is located Back Side KRD901043/4. FCC ID TA8AKRD901043 CONTAIS FCC ID: RAR40025002 IC: 287AB-AS901043 IC MODEL NUMBER: AS9010434 CONTAIS TRANSMITTER MODULE IC: 4674A-40025002

1 (15) EAB-13:063137 Uen, Rev B, 2013-11-15 © Telefonaktiebolaget LM Ericsson AB. This report shall not be reproduced except in full, without written approval of the laboratory. Rapport utfärdad av ackrediterat provningslaboratorium Test report issued by an Accredited Testing Laboratory EMF Test Report: Ericsson RBS 6401 LTE B2 B25 Document number: Rev B Date of report: 2013-11-15 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80 Stockholm Sweden Company/Client: Mika Savilakso Oy LM Ericsson AB Elektroniikkatie 10 FI - 905903 Oulu Finland Tests performed by: Paramananda Joshi Jaroslav Kazejev Dates of tests: 2013-09-16 to 2013-10-18 Manufacturer and market name(s) of device: Ericsson RBS 6401 Testing has been performed in accordance with: FCC CFR title 47, part 1.1310, FCC KDB447498 D01, Industry Canada RSS 102 Test results: The tested device complies with the requirements in respect of all parameters subject to the test. Additional information: Signature: Test engineer __________________________ Paramananda Joshi Researcher [email protected] Tel: +46 10 711 00 06 Test engineer __________________________ Jaroslav Kazejev Experienced Researcher [email protected] Tel: +46 10 7134344 Quality Manager __________________________ Björn Thors Master Researcher [email protected] Tel: +46 10 717 18 24 2 (15) EAB-13:063137 Uen, Rev B, 2013-11-15 Table of Contents 1 Summary of EMF Test Report ............................................................................................................ 3 1.1 Equipment under test (EUT) ..................................................................................................... 3 1.2 Results ...................................................................................................................................... 3 2 General information ............................................................................................................................ 5 3 Equipment under test .......................................................................................................................... 5 4 Test equipment ................................................................................................................................... 6 4.1 Near-field scanner .................................................................................................................... 6 4.2 Additional equipment ................................................................................................................ 7 5 FCC EMF exposure assessments ...................................................................................................... 7 5.1 Field strength system performance check ................................................................................ 7 5.2 Field strength measurement description .................................................................................. 7 5.3 Field strength measurement results ......................................................................................... 8 5.4 Field strength measurement uncertainty .................................................................................. 9 5.5 Field strength calculations ...................................................................................................... 10 6 Conclusion ........................................................................................................................................ 11 7 References ........................................................................................................................................ 11 8 Revision History ................................................................................................................................ 12 APPENDIX A: Photographs of the EUT ................................................................................................... 13 APPENDIX B: Electric and magnetic field strength probe calibration parameters ................................... 14 APPENDIX C: Photographs of the EUT when positioned for field strength measurements .................... 15 3 (15) EAB-13:063137 Uen, Rev B, 2013-11-15 1 Summary of EMF Test Report 1 1.1 Equipment under test (EUT) Product name RBS 6401 Product number KRD 901 040/1/2/3/4/5/6, KRD 901 043/1/2/3/4 Frequency Band [MHz] 1900 2412 5180 5260 5500 5745 Modes LTE Wi-Fi Wi-Fi Wi-Fi Wi-Fi Wi-Fi Supported       Covered by report       Exposure environment General public 1.2 Results RF exposure assessment results for general public (uncontrolled) exposure applicable in USA and Canada [1] - [3] are given in the tables below. The equipment under test (EUT) conforms to the requirements of the relevant standards when the combined exposure ratio is less than one. RF exposure assessment results for general public (uncontrolled) exposure as obtained for the Pico RBS with the internal cellular antenna (sector coverage) together with an assumed output power tolerance of 0.6 dB using procedures applicable for the US and Canadian markets [2], [3]. 3GPP band Standard Nominal output power from the radio Test position 2 Test separation distance 3 Exposure ratio 4 Combined exposure ratio 5 Result B2, B25 (1900) L (channels 8065, 8340, 8665) 2 x 1 W Front 20 cm 0.58 NA PASSED B2, B25 6 (1900) L (channels 8065, 8340, 8665) 2 x 1 W Front 20 cm 0.58 0.72 PASSED Wi-Fi 2.4 GHz (channel 1) 0.1 W 0.04 Wi-Fi 5 GHz (channels 36, 52, 100, 149) ≤ 0.25 W 0.10 1 This and the following page contain a summary of the test results. The full report provides a complete description of all test details and results. 2 For a test separation distance of 20 cm, the exposure was found to be well below applicable exposure limits in front of the antenna. Since this test position corresponds to the direction of maximum exposure [3] and the Pico RBS is classified as a mobile device with an intended separation distance to the use…

Text truncated - open the document above for the full version.

Test report no.1307119-3 Ed. 4 Page2 (31 ) Revision History EditionDateDescription 12013-09 -13First release 22013-09-17Product configuration corrected 32013-11 -19EIRP measurements added 42013-11 -20Editorial and product configuration corrections Test report no.1307119-3 Ed. 4 Page3 (31 ) CONTENTS Page 1CLIENT INFORMATION....................................................................................................................5 2EQUIPMENT UNDER TEST(EUT).................................................................................................. 5 2.1IDENTIFICATIONOF THEEUTACCORDING TO THE MANUFACTURER/CLIENT DECLARATION.........5 2.2DESCRIPTION OF THEEUT............................................................................................................6 2.3TEST SETUP BLOCK DIAGRAM........................................................................................................6 2.4EXTERNAL CABLES CONNECTED TO THEEUT:.............................................................................7 2.5AUXILIARY EQUIPMENT...................................................................................................................7 2.6EUTHARDWARE LIST.....................................................................................................................8 2.7EUTSOFTWARE.............................................................................................................................8 2.8MODIFICATION DURING THE TESTS................................................................................................8 3TEST SPECIFICATIONS...................................................................................................................9 3.1STANDARDS...................................................................................................................................9 3.2ADDITIONS,DEVIATIONS AND EXCLUSIONS FROM STANDARDS AND ACCREDITATION..................9 3.3TEST SITE.......................................................................................................................................9 3.4TEST CONDITIONS..........................................................................................................................9 4TEST SUMMARY..............................................................................................................................10 5TRANSMITTER EQUIVALENT ISOTROPIC RADIATED POWER..........................................11 5.1TEST SPECIFICATIONS..................................................................................................................11 5.2OPERATION MODE........................................................................................................................11 5.3TEST EQUIPMENT.........................................................................................................................12 5.4MEASUREMENT SET-UP...............................................................................................................13 5.5DATA SUMMARY...........................................................................................................................14 6TRANSMITTER RADIATEDSPURIOUS EMISSIONS..............................................................17 6.1TEST SPECIFICATIONS..................................................................................................................17 6.2TEST EQUIPMENT.........................................................................................................................17 6.3OPERATION MODE........................................................................................................................18 6.4MEASUREMENT SET-UP...............................................................................................................19 6.5PREVIEW SWEEPS........................................................................................................................20 6.6DATA SUMMARY...........................................................................................................................2 1 7RECEIVER RADIATED SPURIOUS EMISSIONS.......................................................................22 7.1TEST SPECIFICATIONS..................................................................................................................22 7.2TEST EQUIPMENT.........................................................................................................................22 7.3OPERATION MODE........................................................................................................................22 7.4MEASUREMENT SET-UP...............................................................................................................22 7.5PREVIEW SWEEPS........................................................................................................................23 7.6DATA SUMMARY...........................................................................................................................24 8AC LINE CONDUCTEDEMISSION, 150 KHZ TO 30 MHZ.......................................................25 8.1TEST SPECIFICATIONS..................................................................................................................25 8.2TEST EQUIPMENT.........................................................................................................................25 8.3OPERATION MODE........................................................................................................................25 8.4MEASUREMENT SET-UP...............................................................................................................25 8.5PREVIEW SWEEPS........................................................................................................................27 8.6DATA SUMMARY.....................................................................................................................…

Text truncated - open the document above for the full version.

Document 75923959 Report 03 Issue 3 October 2013 Report On FCC and Industry Canada Testing of the Ericsson AB RBS 6401 1.0 B25 LTE / KRD 901 043/4 COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRD901043 IC ID: 287AB-AS901043 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75923959 Report 03 Issue 3 Page 1 of 58 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC and Industry Canada Testing of the Ericsson AB RBS 6401 1.0 B25 LTE / KRD 901 043/4 Document 75923959 Report 03 Issue 3 October 2013 PREPARED FOR Oy L M Ericsson AB Elektoniikkatie 10 90590 Oulu Finland PREPARED BY R Small Test Engineer APPROVED BY N Forsyth Authorised Signatory DATED 28 October 2013 This report has been up-issued to Issue 2 to amend the Manufacturer’s Declaration. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with FCC CFR 47: Part 24 and Industry Canada RSS-133. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); R Small COMMERCIAL-IN-CONFIDENCE Document 75923959 Report 03 Issue 3 Page 2 of 58 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Manufacturer’s Declaration ........................................................................................................... 7 1.4 Product Information ...................................................................................................................... 8 1.5 Test Conditions ........................................................................................................................... 12 1.6 Deviations From the Standard .................................................................................................... 12 1.7 Modification Record .................................................................................................................... 12 1.8 Alternative Test Site .................................................................................................................... 12 2 TEST DETAILS .......................................................................................................................... 13 2.1 Maximum Peak Output Power - Conducted ............................................................................... 14 2.2 Peak – Average Ratio ................................................................................................................. 18 2.3 Modulation Characteristics ......................................................................................................... 24 2.4 Occupied Bandwidth ................................................................................................................... 27 2.5 Spurious Emissions at Antenna Terminals (±1MHz) .................................................................. 34 2.6 Conducted Spurious Emissions .................................................................................................. 42 2.7 Frequency Stability Under Temperature Variations ................................................................... 50 2.8 Frequency Stability Under Voltage Variations ............................................................................ 52 3 TEST EQUIPMENT USED ......................................................................................................... 54 3.1 Test Equipment Used ................................................................................................................. 55 3.2 Measurement Uncertainty .......................................................................................................... 56 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 57 4.1 Accreditation, Disclaimers and Copyright ................................................................................... 58 COMMERCIAL-IN-CONFIDENCE Document 75923959 Report 03 Issue 3 Page 3 of 58 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC and Industry Canada Testing of the Ericsson AB RBS 6401 1.0 B25 LTE / KRD 901 043/4 COMMERCIAL-IN-CONFIDENCE Document 75923959 Report 03 Issue 3 Page 4 of 58 COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the Ericsson AB RBS 6401 1.0 B25 LTE / KRD 901 043/4 to the requirements of FCC CFR 47 Part 24 and Industry Canada RSS-133. Testing was carried out in support of an application for Grant of Equipment Authorisation in the name of RBS 6401 1.0 B25 LTE / KRD 901 043/4. Objective To perform FCC and Industry Canada Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Ericsson AB Product Name RBS 6401 1.0 B25 LTE Part Number KRD 901 043/4 IC Model Name AS901043 Serial Number(s) C827268550 Software Version LTE Arago 82 Prod build 2013-08-13 Hardware Version R1B/A Number of Samples Tested 1 Non Test Variants KRD 901 040/3 KRD 901 040/2 KRD 901 040/1 Test Specification/Issue/Date FCC CFR 47 Part 24: 2012 Industry Canada RSS-133 Issue 6: 2013 Order Number Date 9201663674 20 August 2013 Start of Test 30 August 2013 Finish of Test 03 September 2013 Name of Engineer(s) R Small Related Document(s) ANSI C63.4: 2009 FCC CFR 47 Part 2: 2012 Industry Canada RSS-GEN Issue 3: 20…

Text truncated - open the document above for the full version.

Exhibit 7 Test Setup Photo Confidential EXHIBIT 7 TEST SETUP PHOTO 1 (1) Prepared (Subject resp) No. ESAVMIK TA8AKRD901043 / 287AB-AS901043 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2013-10-12 A Exhibit 7 - Test Setup Photo RBS 6401 B25 FCC ID: TA8AKRD901043 and IC ID 287AB-AS901043 1 Radio Base Station RBS 6401 B25 KRD 901 043/1, KRD 901 043/2, KRD 901 043/3, KRD 901 043/4 1.1 Test Setup Photo Figure 1 Test Setup Photo
