TA8AKRD901060LTE Radio Base Station

EXHIBIT 13 1 (1) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-28 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TÜV SÜD BABT Octagon House, Concorde Way Segensworth North,|Fareham , Hampshire PO15 5RL United Kingdom April 28, 2015 Subject: Certification for FCC ID: TA8AKRD901060 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver (Radio Base Station – RBS 6402) is designed for use in LTE cellular telephone system. The transmitter will operate from 1930 MHz to 1990 MHz, from 1930 to 1995 MHz, from 2110 to 2155 MHz and from 2620 to 2690 MHz. The receiver circuit supports from 1850 to 1910 MHz, form 1850 to 1915 MHz, from 1710 to 1755 MHz, from 2500 to 2570 MHz. It supports channel bandwidths of 5, 10, 15 and 20 MHz for LTE. This Radio Base Station supports modulation type and QPSK, 16QAM and 64QAM for LTE. The base station operates in the Cellular band as per RSS-130. It meets the requirements of Third Generation Partnership Project (3GPP) for operation in LTE cellular systems. This base station transceiver (Radio Base Station – RBS 6402) will in normal mode operate at a nominal power out of 250 milliwats at the output connectors, to feed an Integrated omni antenna. This RBS 6402 is has two a dual-TX radio units where two RF chains are identical. Can be configured to two 2x2 MIMO per radio or CA inter-band CA, intra band CA with two radio cards and 4x4 MIMO with two radio cards This RBS 6402 supports two Radio Modules of which both have two identical down-link and up-link signal paths The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Mika Savilakso Senior Developer, R&D Center Oulu Ericsson AB FCC Registration Number (FRN): 0013476155 Elektroniikkatie 10 FI -90590 OULU, Finland Telephone No.: +358 9 299 3714 e-mail: [email protected]

Commercial in confidence EXHIBIT 13 1 (1) Prepared (Subject resp) No. EAB/FJB/VA Christer Gustavsson EAB/FJB-13:0138 Uen Approved (Document resp) Checked Date Rev Reference EAB/FJB/VA [Stefan Ekelöf] 2013-03-13 A NDA Confidentiality Clause Confidentiality. Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

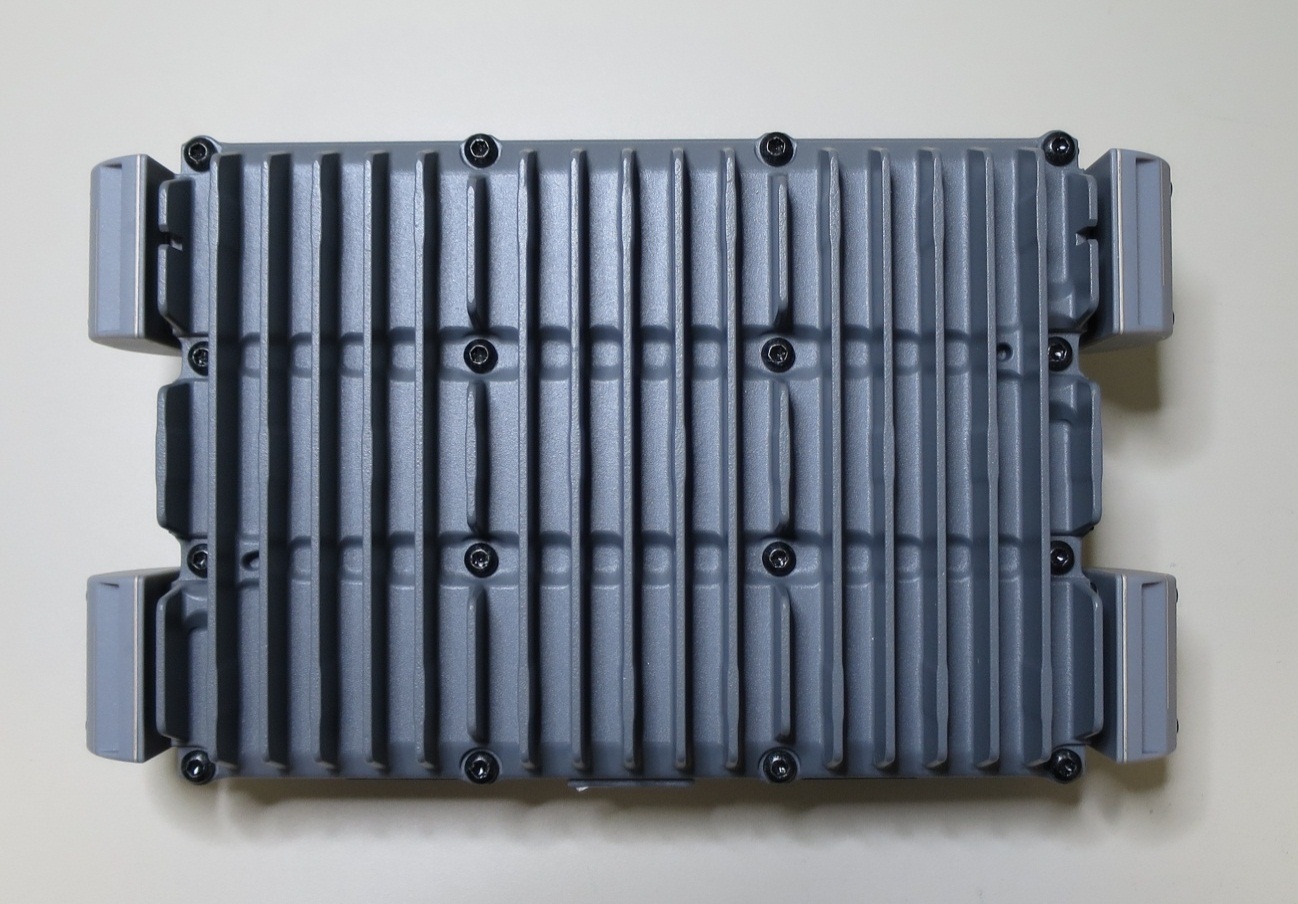

Exhibit 3 External photos ‐ Confidential CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson AB. All Rights Reserved. The information contained in this document is the property of Ericsson Finland. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Confidential EXHIBIT 4 BLOCK DIAGRAMS 1 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-27 A Exhibit 3 - External photos RBS 6402 B2 B25 B4 B7 FCC ID: TA8AKRD901060 and IC ID 287AB-AS901060 1 Radio Base Station RBS 6402 KRD 901 060/1, KRD 901 060/2, KRD 901 060/7, KRD 901 060/8, KRD 901 060/9 1.1 External photos for RBS 6402 B2 B25 B4 B7 Confidential EXHIBIT 4 BLOCK DIAGRAMS 2 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-27 A Figure 1 Front side Figure 2 Back side with wall mount attached Confidential EXHIBIT 4 BLOCK DIAGRAMS 3 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-27 A Figure 3 Back side Confidential EXHIBIT 4 BLOCK DIAGRAMS 4 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-27 A Figure 4 Front side cover removed Figure 5 Back side cover removed Confidential EXHIBIT 4 BLOCK DIAGRAMS 5 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-27 A Figure 6 Covers

Exhibit 01 ID Label Confidential EXHIBIT 01 ID LABEL 1 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-21 A Exhibit 01- ID Label RBS 6402 B2 B25 B4 B7 FCC ID: TA8AKRD901060 and IC ID 287AB-AS901060 1 Radio Base Station RBS 6402 KRD 901 060/1, KRD 901 060/2, KRD 901 060/7, KRD 901 060/8, KRD 901 060/9 1.1 ID label for RBS 6402 B2 B25 B4 B7 Confidential EXHIBIT 01 ID LABEL 2 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-21 A Figure 1 Label Detail Product ID / Serial Number FCC / IC label FCC / IC Label information: KRD 901 060/1 FCC ID: TA8AKRD901060 IC: 287AB-AS901060 IC MODEL NO: AS9010601 Confidential EXHIBIT 01 ID LABEL 3 (3) Prepared (Subject resp) No. ESAVMIK TA8AKRD901060 / 287AB-AS901060 Approved (Document resp) Checked Date Rev Reference LMF/TXA (Mika Savilakso) 2015-04-21 A KRD 901 060/2 FCC ID: TA8AKRD901060 IC: 287AB-AS901060 IC MODEL NO: AS9010602 KRD 901 060/7 FCC ID: TA8AKRD901060 IC: 287AB-AS901060 IC MODEL NO: AS9010607 KRD 901 060/8 FCC ID: TA8AKRD901060 IC: 287AB-AS901060 IC MODEL NO: AS9010608 KRD 901 060/9 IC: 287AB-AS901060 IC MODEL NO: AS9010609

1 (23) EAB-15:023179 Uen, Rev B, 2015-04-21 © Telefonaktiebolaget LM Ericsson AB. This report shall not be reproduced except in full, without written approval of the laboratory. Rapport utfärdad av ackrediterat provningslaboratorium Test report issued by an Accredited Testing Laboratory EMF Test Report: Ericsson RBS 6402 LTE B2 B4 B7 B25 FCC and Industry Canada Document number: Rev B Date of report: 2015-04-21 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80 Stockholm Sweden Company/Client: Mika Savilakso Oy LM Ericsson AB Elektroniikkatie 10 FI - 905903 Oulu Finland Tests performed by: Paramananda Joshi Dates of tests: 2015-03-27 to 2015-04-02 Manufacturer and market name(s) of device: Ericsson RBS 6402 Testing has been performed in accordance with: FCC CFR title 47, part 1.1310, FCC KDB447498 D01, Industry Canada RSS 102 Test results: The tested device complies with the requirements in respect of all parameters subject to the test. Additional information: Signature: Test engineer __________________________ Paramananda Joshi Experienced Researcher [email protected] Tel: +46 10 711 00 06 Quality Manager __________________________ Björn Thors Senior Specialist RF Exposure Assessment [email protected] Tel: +46 10 717 18 24 2 (23) EAB-15:023179 Uen, Rev B, 2015-04-21 Table of Contents 1 Summary of EMF Test Report ............................................................................................................ 3 1.1 Equipment under test (EUT) ..................................................................................................... 3 1.2 Results ...................................................................................................................................... 3 2 General information ............................................................................................................................ 5 3 Equipment under test .......................................................................................................................... 5 4 Test equipment ................................................................................................................................... 6 4.1 Near-field scanner .................................................................................................................... 6 4.2 Additional equipment ................................................................................................................ 7 5 EMF exposure assessments .............................................................................................................. 7 5.1 Field strength system performance check ................................................................................ 7 5.2 Field strength measurement description .................................................................................. 7 5.3 Field strength measurement results ......................................................................................... 9 5.4 Field strength measurement uncertainty ................................................................................ 18 6 Conclusion ........................................................................................................................................ 19 7 References ........................................................................................................................................ 19 8 Revision History ................................................................................................................................ 20 APPENDIX A: Photographs of the EUT ................................................................................................... 21 APPENDIX B: Electric and magnetic field strength probe calibration parameters ................................... 22 APPENDIX C: Photographs of the EUT when positioned for field strength measurements .................... 23 3 (23) EAB-15:023179 Uen, Rev B, 2015-04-21 1 Summary of EMF Test Report 1 1.1 Equipment under test (EUT) Product name RBS 6402 Product number KRD 901 060/1, KRD 901 060/2, KRD 901 060/7, KRD 901 060/8, KRD 901 060/9 Frequency Band [MHz] 1900 2100 2600 Modes LTE LTE LTE Supported    Covered by report    Exposure environment General public 1.2 Results RF exposure assessment results for general public (uncontrolled) exposure applicable in USA and Canada [1] - [3] are given in the tables below. The equipment under test (EUT) conforms to the requirements of the relevant standards when the combined exposure ratio is less than one. RF exposure assessment results for general public (uncontrolled) exposure as obtained for the Pico RBS with the internal cellular antenna together with an assumed output power tolerance of 0.6 dB using procedures and exposure limits applicable for the US markets [3]. 3GPP band Standard Nominal output power from the radio Test position Test separation distance 2 Exposure ratio 3 Result B2, B25 4 (1900), B4 (2100), B7 (2600) L 4 x 0.25 W Front 20 cm 0.15 PASSED B2, B25 4 (1900), B4 (2100), B7 (2600) L 4 x 0.25 W 45 degree radial towards the right 20 cm 0.16 PASSED B2, B25 4 (1900), B4 (2100), B7 (2600) L 4 x 0.25 W Right 20 cm 0.18 PASSED 1 This and the following page contain a summary of the test results. The full report provides a complete description of all test details and results. 2 The separation distance is measured from the EUT casing. 3 The exposure ratio is defined as the evaluated exposure parameter expressed as the power fraction of the related exposure limit. Here, the maximum ER value among all different possible configurations is shown. 4 Test was conducted for B25, since B2 is a sub-set of B25. Expanded uncertainty (k=2) 95 % for field strength measurements using the DASY5 near field scanner. < 30% 4 (23) EAB-15:023179 Uen, Rev B, 2015-04-21 RF exposure assessment results for general public (uncontrolled) exposure as obtained for the Pico RBS with t…

Text truncated - open the document above for the full version.

Test report No. 1507865STO-001, Ed. 1 Page 2 (24) Revision History Edition Date Description Changes 1 2015-03-30 First release Test report No. 1507865STO-001, Ed. 1 Page 3 (24) CONTENTS Page 1 Client Information ............................................................................................................... 4 2 Equipment under test (EUT) ............................................................................................... 4 Identification of the EUT ........................................................................................... 4 2.1 FCC ID, IC and IC model number ............................................................................ 5 2.2 EUT description ........................................................................................................ 5 2.3 Additional information about the EUT ...................................................................... 7 2.4 Peripheral equipment ............................................................................................... 7 2.5 Modifications made to improve EMC-characteristics ............................................... 7 2.6 3 Test Specifications ............................................................................................................. 8 Standards ................................................................................................................. 8 3.1 Additions, deviations and exclusions from standards and accreditation ................. 8 3.2 Test site .................................................................................................................... 8 3.3 Mode of operation during the test ............................................................................ 8 3.4 Test setup block diagram ......................................................................................... 9 3.5 4 Test Summary .................................................................................................................. 11 5 Conducted continuous disturbances ................................................................................ 12 Test set-up and test procedure .............................................................................. 12 5.1 Conducted emission requirements: ....................................................................... 12 5.2 Test results: AC Power input port on AC/DC adapter ............................................ 13 5.3 Test results: AC Power input port on PoE injector ................................................. 14 5.4 6 Out of band spurious emissions the frequency-range 30 MHz to 20 GHz ....................... 15 Test set-up and test procedure. ............................................................................. 15 6.1 Test conditions ....................................................................................................... 15 6.2 Radiated Emission requirements ........................................................................... 16 6.3 Test results 30 MHz – 1000 MHz ........................................................................... 17 6.4 Test results 1 GHz – 20 GHz ................................................................................. 20 6.5 7 RF output power ............................................................................................................... 22 Test set-up and test procedure. ............................................................................. 22 7.1 Test conditions ....................................................................................................... 22 7.2 RF output power requirements:.............................................................................. 22 7.3 Test results ............................................................................................................. 23 7.4 8 Test equipment ................................................................................................................. 24 9 Measurement uncertainty ................................................................................................. 24 10 Test set up and EUT photos ............................................................................................. 24 Test report No. 1507865STO-001, Ed. 1 Page 4 (24) 1 CLIENT INFORMATION The EUT has been tested by request of Company Oy LM Ericsson AB Elektroniikkatie 10 90590 OULU FINLAND Name of contact Mika Savilakso Phone +358 442654000 Client observer Esko Korhonen 2 EQUIPMENT UNDER TEST (EUT) Identification of the EUT 2.1 Equipment: Radio base station Tested Model: AS9010602 Additional models: AS9010601, AS9010607 Brand name: Ericsson Serial number: C829414382 / C829278266 Manufacturer: Oy LM Ericsson AB Transmitter frequency range: FDD Band 2 1930 – 1990 MHz Receiver frequency range: FDD Band 2 1850 – 1910 MHz Antenna: Internal antennas External antenna Antenna gain: 4.6 dBi max Rating RF output power: 13 – 24 dBm to antenna Type of modulation: LTE (QPSK, 16-QAM, 64-QAM) Channel BW: 5, 10, 15, 20 MHz Transmitter standby mode supported: Yes No Test report No. 1507865STO-001, Ed. 1 Page 5 (24) FCC ID, IC and IC model number 2.2 Function Designation Product nr. FCC ID: IC: IC MODEL NO: RBS 6402;B2/25 B4 B7 KRD 901 060/1 TA8AKRD901060 287AB-AS901060 AS9010601 RBS 6402;2x B2/25 B4 B7 KRD 901 060/2 TA8AKRD901060 287AB-AS901060 AS9010602 RBS 6402;B2/25 KRD 901 060/7 TA8AKRD901060 287AB-AS901060 AS9010607 EUT description 2.3 RBS 6402 is a modular dual band indoor product for 3GPP LTE and WCDMA with Wi-Fi module. The main characteristics of the product are: • Full modularity • Dual band, FDD • IBW 20/40 MHz • Ericsson DFE algorithms (CFR, DPD, X-talk) to enable FPGA replacement by eASIC • Wi-Fi as a separate module • LTE 20+20 w/ CA over the bands (option) • WCDMA 20 MHz (supported later) • Wi-Fi with integrated internal antennas as a separate module (option) RBS 6402 eNodeB product’s maximum configurable output…

Text truncated - open the document above for the full version.

Test report No. 1507865STO-003, Ed. 1 Page 2 (23) Revision History Edition Date Description Changes 1 2015-03-30 First release Test report No. 1507865STO-003, Ed. 1 Page 3 (23) CONTENTS Page 1 Client Information ............................................................................................................... 4 2 Equipment under test (EUT) ............................................................................................... 4 2.1 Identification of the EUT ........................................................................................... 4 2.2 FCC ID, IC and IC model number ............................................................................ 4 2.3 EUT description ........................................................................................................ 5 2.4 Additional information about the EUT ...................................................................... 6 2.5 Peripheral equipment ............................................................................................... 7 2.6 Modifications made to improve EMC-characteristics ............................................... 7 3 Test Specifications ............................................................................................................. 8 3.1 Standards ................................................................................................................. 8 3.2 Additions, deviations and exclusions from standards and accreditation ................. 8 3.3 Test site .................................................................................................................... 8 3.4 Mode of operation during the test ............................................................................ 8 3.5 Test setup block diagram ......................................................................................... 9 4 Test Summary .................................................................................................................. 11 5 Conducted continuous disturbances ................................................................................ 12 5.1 Test set-up and test procedure .............................................................................. 12 5.2 Conducted emission requirements: ....................................................................... 12 5.3 Test results: AC Power input port on AC/DC adapter ............................................ 13 5.4 Test results: AC Power input port on PoE injector ................................................. 14 6 Out of band spurious emissions the frequency-range 30 MHz to 22 GHz ....................... 15 6.1 Test set-up and test procedure. ............................................................................. 15 6.2 Test conditions ....................................................................................................... 15 6.3 Radiated Emission requirements ........................................................................... 16 6.4 Test results 30 MHz – 1000 MHz ........................................................................... 17 6.5 Test results 1 GHz – 20 GHz ................................................................................. 19 7 RF output power ............................................................................................................... 21 7.1 Test set-up and test procedure. ............................................................................. 21 7.2 Test conditions ....................................................................................................... 21 7.3 RF output power requirements:.............................................................................. 21 7.4 Test results ............................................................................................................. 22 8 Test equipment ................................................................................................................. 23 9 Measurement uncertainty ................................................................................................. 23 10 Test set up and EUT photos ............................................................................................. 23 Test report No. 1507865STO-003, Ed. 1 Page 4 (23) 1 CLIENT INFORMATION The EUT has been tested by request of Company Oy LM Ericsson AB Elektroniikkatie 10 90590 OULU FINLAND Name of contact Mika Savilakso Phone +358 442654000 Client observer Esko Korhonen 2 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of the EUT Equipment: Radio base station Tested model: AS9010608 Additional models: AS9010601, AS9010608 Brand name: Ericsson Serial number: C829414382 / C829278266 Manufacturer: Oy LM Ericsson AB Transmitter frequency range: FDD Band 4 2110 – 2155 MHz Receiver frequency range: FDD Band 4 1710 – 1755 MHz Antenna: Internal antenna External antenna Antenna gain: 4.6 dBi max Rating RF output power: 13 – 24 dBm to antenna Type of modulation: LTE (QPSK, 16-QAM, 64-QAM) Channel BW: 5, 10, 15, 20 MHz Transmitter standby mode supported: Yes No 2.2 FCC ID, IC and IC model number Function Designation Product nr. FCC ID: IC: IC MODEL NO: RBS 6402;B2/25 B4 B7 KRD 901 060/1 TA8AKRD901060 287AB-AS901060 AS9010601 RBS 6402;2x B2/25 B4 B7 KRD 901 060/2 TA8AKRD901060 287AB-AS901060 AS9010602 RBS 6402;B4 KRD 901 060/8 TA8AKRD901060 287AB-AS901060 AS9010608 Test report No. 1507865STO-003, Ed. 1 Page 5 (23) 2.3 EUT description RBS 6402 is a modular dual band indoor product for 3GPP LTE and WCDMA with Wi-Fi module. The main characteristics of the product are: • Full modularity • Dual band, FDD • IBW 20/40 MHz • Ericsson DFE algorithms (CFR, DPD, X-talk) to enable FPGA replacement by eASIC • Wi-Fi as a separate module • LTE 20+20 w/ CA over the bands (option) • WCDMA 20 MHz (supported later) • Wi-Fi with integrated internal antennas as a separate module (option) RBS 6402 eNodeB product’s maximum configurable output pow…

Text truncated - open the document above for the full version.

Document 75928988 Report 01 Issue 1 April 2015 Report On FCC and IC Testing of the Ericsson LTE RBS 6402 B2 (1900 MHz) Base Station in accordance with FCC CFR 47 Part 2 and 24 and Industry Canada RSS-133 and RSS-GEN COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRD901060 IC: 287AB-AS901060 PREPARED BY APPROVED BY DATED 07 April 2015 Nic Forsyth Steve Scarfe Senior Engineer Authorised Signatory Document 75928988 Report 01 Issue 1 Page 1 of 191 CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Configuration Description .............................................................................................................. 5 1.4 Declaration of Build Status ............................................................................................................ 6 1.5 Product Information ....................................................................................................................... 7 1.6 Test Setup ..................................................................................................................................... 8 1.7 Test Conditions .............................................................................................................................. 9 1.8 Deviation From The Standard ....................................................................................................... 9 1.9 Modification Record ....................................................................................................................... 9 1.10 Alternative Test Site ....................................................................................................................... 9 2 TEST DETAILS .......................................................................................................................... 10 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 11 2.2 Occupied Bandwidth .................................................................................................................... 93 2.3 Spurious Emissions at Band Edge ............................................................................................ 131 2.4 Transmitter Spurious Emissions ................................................................................................ 145 2.5 Frequency Stability .................................................................................................................... 183 3 TEST EQUIPMENT USED ....................................................................................................... 186 3.1 Test Equipment Used ................................................................................................................ 187 3.2 Measurement Uncertainty.......................................................................................................... 189 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT .......................................................... 190 4.1 Accreditation, Disclaimers and Copyright .................................................................................. 191 ANNEX A Module Lists ..........................................................................................…
