TA8AKRD901113LTE Radio Base Station

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. RSACGUS TA8AKRD901113 Approved Checked Date Rev Reference EAB/FJB/VA Christer Gustavsson 2014-01-29 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House, Concorde Way Fareham, Hampshire, PO15 5RL United Kingdom January 29, 2014 Subject: Certification for FCC ID: TA8AKRD901113 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station (RBS 6501 B13) is designed for use in LTE cellular telephone system. The transmitter will operate from 746 MHz to 756 MHz. The receiver circuit supports 777 MHz to 787 MHz. It supports Channel Bandwidth of 5 and 10 MHz. This base station supports modulation type QPSK, 16QAM and 64QAM. The base station operates in the Advanced Wireless services band as per 47 CFR Part 27. It meets the requirements of Third Generation Partnership Project (3GPP) for the Universal Mobile Telephone System (UMTS 3G) mobile standard (cellular telephone system) for operation in LTE cellular systems. This base station will in normal mode operates at a nominal power out of maximum 2x5 watts at the output connectors, to feed an integrated wide sector antenna or a Semi-integrated Omni directional antenna alternative external antenna (s). The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". If additional information is needed, please contact me on the below listed number. Christer Gustavsson Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 10 7175949 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. RSACGUS TA8AKRD901113 Approved Checked Date Rev Reference EAB/FJB/VA Christer Gustavsson 2014-01-29 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House, Concorde Way Fareham, Hampshire, PO15 5RL United Kingdom January 29, 2014 Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) compared to the previous BS/RU, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As our BS are generally installed in restricted places, public access is not possible thought some types of our BS under certain circumstances can be installed in an unrestricted place, but the doors on all of our BS’s are key-locked and can be opened only be by authorized personnel. It is therefore individual modules within our BS that should not be revealed to the public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS and the RU, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 9 Internal Photos of Radio Unit EXHIBIT 4 Block Diagrams EXHIBIT 5 Schematic Diagrams EXHIBIT 8 Manuals EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description Ericsson Internal EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. RSACGUS TA8AKRD901113 Approved Checked Date Rev Reference EAB/FJB/VA Christer Gustavsson 2014-01-29 A If additional information is needed, please contact me on the below listed number. Christer Gustavsson Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 10 7175949 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. RSACGUS Approved Checked Date Rev Reference EAB/FJB/VA Christer Gustavsson 2014-01-29 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House, Concorde Way Fareham, Hampshire, PO15 5RL United Kingdom NDA Confidentiality Clause Confidentiality. Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

Exhibit 2 FCC authorization ‐ letter

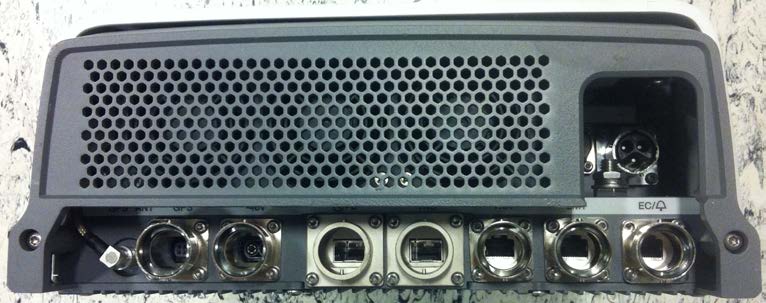

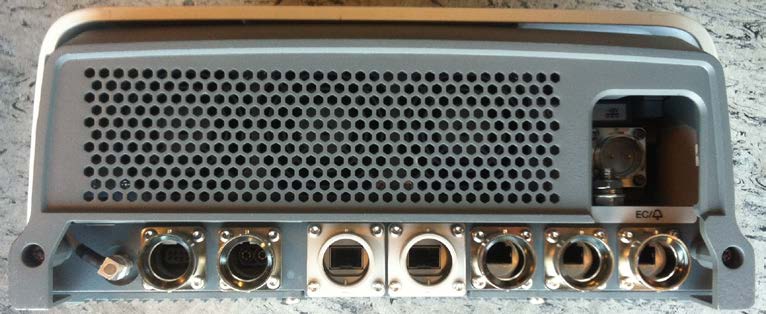

Date Page Exhibit 3 External photos 1/29/2014 1(3) FCC ID: TA8AKRD901113 RBS 6501 B13, KRD 901 113/1, /2, /3 and /4 Front side Rear side Date Page Exhibit 3 External photos 1/29/2014 2(3) FCC ID: TA8AKRD901113 RBS 6501 B13, KRD 901 113/1, /2, /3 and /4 Left side Right side Date Page Exhibit 3 External photos 1/29/2014 3(3) FCC ID: TA8AKRD901113 Top side for RBS 6501 B13, KRD 901 113/1, /2, /3 and /4 Bottom side for RBS 6501 B13, KRD 901 113/1 and /3 Bottom side for RBS 6501 B13, KRD 901 113/2 and /4

Date Page Exhibit 1 ID label and placement 2/8/2014 1( 1) FCC ID: TA8AKRD901113 The ID label is located under the solar shield. Solar shield slide up: ID label for KRD 901 113/1, /3 AC ID label for KRD 901 113/2, /4 DC

Document 75925374 Report 01 Issue 1 February 2014 Report On FCC Testing of the Ericsson AB (700MHz) RBS 6501 B13 KRD 901 113/X* Radio Base Station In accordance with FCC CFR 47 Part 27 * See note on page 4 COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRD901113 PREPARED BY APPROVED BY DATED 14 February 2014 Guangdi Dong Nic Forsyth Project Engineer Authorised Signatory Document 75925374 Report 01 Issue 1 Page 2 of 56 CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 3 1.1 Report Details ................................................................................................................................ 4 1.2 Brief Summary of Results .............................................................................................................. 5 1.3 Configuration Description .............................................................................................................. 6 1.4 Declaration of Build Status ............................................................................................................ 7 1.5 Product Information ....................................................................................................................... 8 1.6 Test Setup ..................................................................................................................................... 9 1.7 Test Conditions ............................................................................................................................ 11 1.8 Deviation From The Standard ..................................................................................................... 11 1.9 Modification Record ..................................................................................................................... 11 1.10 Alternative Test Site ..................................................................................................................... 11 2 TEST DETAILS .......................................................................................................................... 12 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 13 2.2 Maximum Peak Output Power - Radiated ................................................................................... 15 2.3 Occupied Bandwidth .................................................................................................................... 18 2.4 Spurious Emission at Band Edge ................................................................................................ 21 2.5 Radiated Spurious Emissions ...................................................................................................... 30 2.6 Conducted Spurious Emissions ................................................................................................... 35 2.7 Frequency Stability ...................................................................................................................... 49 3 TEST EQUIPMENT USED ......................................................................................................... 51 3.1 Test Equipment Used .................................................................................................................. 52 3.2 Measurement Uncertainty............................................................................................................ 54 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 55 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 56 Document 75925374 Report 01 Issue 1 Page 3 of 56 SECTION 1 REPORT INFORMATION Document 75925374 Report 01 Issue 1 Page 4 of 56 1.1 INTRODUCTION Testing was carried out in support of an application for Grant of RBS 6501 B13 KRD 901 113/X* in LTE mode. Manufacturer Ericsson AB Address Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden Product Name RBS 6501 B13 Product Number KRD 901 113/X* Serial Number(s) CB4S376829 CB4S430808 Software Version CXP 102 051/19 Rev R32AT Hardware Version R1A Test Specification/Issue/Date FCC CFR 47 Part 27: 2013 Start of Test 13 January 2014 Finish of Test 07 February 2014 Name of Engineer(s) Guangdi Dong Related Document(s) ANSI C63.4: 2009 FCC CFR 47 Part 2: 2013 *Note: X can be 1 to 4. RBS 6501 B13 is available in the following four variants with the listed product numbers and descriptions. The differences between them are as follows: Product Number Description KRD 901 113/1 100 - 250 VAC power feed with integrated antenna KRD 901 113/2 -48 VDC power feed with integrated antenna KRD 901 113/3 100 - 250 VAC power feed without integrated antenna KRD 901 113/4 -48 VDC power feed without integrated antenna Document 75925374 Report 01 Issue 1 Page 5 of 56 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2 and Part 27 is shown below. Section Spec Clause Test Description Result Part 2 Part 27 2.1 2.1046 27.50 (b) Maximum Peak Output Power and Peak to Average Ratio – Conducted Pass 2.2 - 27.50 (b) Maximum Peak Output Power – Radiated Pass 2.3 2.1049 27.53 (c) Occupied Bandwidth Pass 2.4 2.1051 27.53 (c) Spurious Emissions at Band Edge Pass 2.5 2.1053 27.53 (c) Radiated Spurious Emissions Pass 2.6 2.1051 27.53 (c) , (f) Conducted Spurious Emissions Pass 2.7 2.1055 27.54 Frequency Stability Pass - - - Receiver Spurious Emissions N/A N/A – Not Applicable Document 75925374 Report 01 Issue 1 Page 6 of 56 1.3 CONFIGURATION DESCRIPTION Configuration Code Carrier(s) Configuration Description L-MIMO-SC 1C LTE MIMO, Single Carrier L-MIMO-MC 1 2C LTE MIMO, Multi Carrier x2 Document 75925374 Report 01 Issue 1 Page 7 of 56 1.4 DECLARATION OF BUILD STATUS MAIN EUT MANUFACTURING DESCRIPTION Radio Base Station MANUFACTURER Ericsson AB PRO…

Text truncated - open the document above for the full version.

FCC ID: TA8AKRD901113 Ericsson AB RBS 6501 B13 / KRD 901 113/X 2014 Not to be reproduced, except in its entirety, Page 1 of 3 without the Permission of TÜV SÜD Product Service Reference: 75925374 PHOTOGRAPHS OF TEST SET UP Radiated Emissions FCC ID: TA8AKRD901113 Ericsson AB RBS 6501 B13 / KRD 901 113/X 2014 Not to be reproduced, except in its entirety, Page 2 of 3 without the Permission of TÜV SÜD Product Service Reference: 75925374 Internal antenna KRE 101 2135/1, upright mounted Internal antenna KRE 101 2135/1, side mounted FCC ID: TA8AKRD901113 Ericsson AB RBS 6501 B13 / KRD 901 113/X 2014 Not to be reproduced, except in its entirety, Page 3 of 3 without the Permission of TÜV SÜD Product Service Reference: 75925374 Semi-integrated Omni antenna KRE 101 2245/1, upright mounted Semi-integrated Omni antenna KRE 101 2245/1, side mounted Maximum PEAK Output Power – Radiated (ERP)
