TA8AKRY901466-1Multi-standard remote radio

Page 1 (1) Attending to this matter, name, telephone Date Rev Our Reference BNEW DNEW RA RPSE1 RA2, Adam Sheng, +46 73 0958256 2020-12-04 K 1/0133-600/FEA2926603/14 Uen Ericsson AB Mail Office address Telephone V.A.T. No. SE556056625801 SE-164 80 Stockholm Torshamnsgatan 23 Nat 010 - 719 00 00 Reg. No: 556056-6258 SWEDEN KISTA Int + 46 10 719 00 00 FCC authorization letter I, the undersigned, hereby entrust Lars Wallin David Bolzon Xiaoying Jiang Linda Grell Denis Lalonde Hua Yang Bertil Johansson Ericsson Canada INC Wei Qun Chen Niklas Roos BNEW DNEW Tinting Wang Audun Helle PDU Radio Ericsson (China) Communications Co.Ltd. Ericsson AB 349 Terry Fox Drive BNEW DNEW BNEW DNEW Ottawa, K2K 2V 6 Canada PDU Radio PDU Radio No.5 Lize East Street, Chaoyang District Torshamnsgatan 23 100102 Beijing, China SE-164 80 Stockholm, Sweden Mihai Simon Xiao Hu Z Ericsson AB Ling Pan L BNEW DNEW Ericsson (China) Communications Co.Ltd. PDU Radio BNEW DNEW Lindholmspiren 11 PDU Radio SE-417 56 Gothenburg No.1366 Tianfu Avenue Sweden 610041 Chengdu, China to act as my representatives in the following: To make the necessary applications for FCC equipment certifications. ....................................... (Signature) Igor Tasevski Head PDU Radio Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm, Sweden DocuSign Envelope ID: B06C5A4E-3F9D-474E-80A3-34C1ADEBFC11 07 december 2020 | 21:19:17 CET

COMMERCIAL IN CONFIDENCE EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. Denis Lalonde EMC NDA 12.08.14 Approved Checked Date Rev Reference 2017-09-21 PA1 16 June 2021 FCC ID: TA8AKRY901466-1 IC: 287AB-AS9014661 NDA Confidentiality Clause used with Ericsson customers Confidentiality: Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law. Denis Lalonde Regulatory Approvals Verification Ericsson Canada Inc. 349 Terry Fox Drive Ottawa, On, K2K 2V6, Canada Phone: +1-613-963-6496 Mobile: +1-613-790-2901

1 (1) Prepared (also subject responsible if other) No. Denis Lalonde TA8AKRY901466-1 Approved Checked Date Rev Reference June 16, 2021 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House Concorde Way, Segensworth North Fareham, Hampshire, PO15 5RL United Kingdom June 15, 2021 Subject: Certification for FCC ID: TA8AKRY901466-1 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above-mentioned FCC Identifier. This Radio Unit (Dot 2272 B5B13) is designed for use in LTE and NR cellular telephone system. The FDD transmitter and receiver will transmit from 869-894 MHz and 746-756 MHz. It supports channel bandwidths of 5 and 10 MHz for LTE. It also supports channel bandwidths of 5, 10, 15, and 20 MHz for NR. The Radio Unit supports modulation types QPSK, 16QAM, 64QAM and 256QAM. The Radio Unit operates in the Cellular Radiotelephone Service as per 47 CFR Part 22 and the B13 band as per 47 CFR Part 27. It meets the requirements of Third Generation Partnership Project (3GPP) for operation in LTE and NR cellular systems. The Dot 2272 B5B13 product will also support NBIoT Guardband and Inband operation for LTE signals >=10MHz. The Dot 2272 B5B13 product uses the same pcb and hardware as the Dot 2282 B5B13 product (FCCID: TA8KRY901466-2). The only difference between the 2 products is the presence of internal/external antennas. All approval tests were done on the external antenna ports variant. This product includes 4 internal antennas. The Radio Unit will in normal mode operate at a nominal power output of 50mW per port. This Radio Unit (Dot 2272 B5B13) will always require a license for transmission. The Exhibit 8 user manuals submitted with this application are generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Denis Lalonde Developer, Regulatory Approval, Ericsson Canada 349 Terry Fox Drive Ottawa, Ontario, Canada, K2K 2V6 Telephone No.: 613-963-6496 e-mail: [email protected]

1 (2) Prepared (also subject responsible if other) No. Denis Lalonde TA8AKRY901466-1 Approved Checked Date Rev Reference June 16, 2021 PA1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House Concorde Way, Segensworth North Fareham, Hampshire, PO15 5RL United Kingdom 16 June 2021 FCC ID: TA8AKRY901466-1 Subject: Request for Confidentiality To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission Rules, We, Ericsson Canada / Ericsson AB, hereby requests the Exhibits/Items listed below be withheld from public inspection or disclosure. This is based on the following reasons: This product is intended for use in an Ericsson Radio Base Station (BS) designed and built to state of the art technical specification and implemented with innovative solutions for a highly competitive market. Competition in this market is very intense and therefore the necessity for confidentiality is essential to protect Ericsson IP and trade secrets. Ericsson AB / Ericsson Canada confidential exhibits / documentation contains Ericsson company proprietary information (or that of our suppliers and contractors), in addition to trade secrets and proprietary information that are not intended for public disclosure. The confidential exhibits in this application are provided exclusively for the radio authorization submission and approval process and therefore need to be protected from public disclosure. Ericsson AB / Ericsson Canada has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology and solutions developed and / or implemented by Ericsson. The Confidential Exhibits listed below contain highly technical and confidential information about our product and are only available to trained and authorized service personnel. This equipment is not available to be sold to the general public, (nor is it a consumer product) and can only be accessed and installed by trained service personnel under NDA (Non-Disclosure Agreement) with Ericsson. In addition, this product is installed in restricted access areas and is only serviceable by the licensee or his designated technicians. Confidential product information can be found in, but not necessarily limited to, internal photos, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. 2 (2) Prepared (also subject responsible if other) No. Denis Lalonde TA8AKRY901466-1 Approved Checked Date Rev Reference June 16, 2021 PA1 KRY 901 466/1 Dot 2272 B5B13 - Request for confidentiality list: • Exhibit 04 Block diagram • Exhibit 05 Schematics • Exhibit 08 User Manuals • Exhibit 08 Operational and Technical Descriptions • Exhibit 09 Internal Photographs • Exhibit 10 Bill of Materials Should additional information be required, please contact the undersigned: ..................................................................... Denis Lalonde Regulatory Approvals Verification FCC Registration Number (FRN) 0024080715 Ericsson Canada Inc. 349 Terry Fox Drive Ottawa, On, K2K 2V6, Canada Phone: +1-613-963-6496 Mobile: +1-613-790-2901 Email: [email protected]

Ericsson Canada Proprietary Information Dot 2272 B5B13 Restricted Use and Duplication FCC ID: TA8AKRY901466-1 IC: 287AB-AS9014661 EMC/LB/F Regulatory Compliance 01/06/2021 Page 1 of 4 Exhibit 3: External Photographs KRY 901 466/1 Photo Submission (External) Dot 2272 B5B13 FCC ID: TA8AKRY901466-1 IC: 287AB-AS9014661 Date: 31 May 2021 Author: Ericsson EMC (Benjamin Beggs) Ericsson Canada Proprietary Information Dot 2272 B5B13 Restricted Use and Duplication FCC ID: TA8AKRY901466-1 IC: 287AB-AS9014661 EMC/LB/F Regulatory Compliance 01/06/2021 Page 2 of 4 CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information Dot 2272 B5B13 Restricted Use and Duplication FCC ID: TA8AKRY901466-1 IC: 287AB-AS9014661 EMC/LB/F Regulatory Compliance 01/06/2021 Page 3 of 4 Figure 1: Dot 2272 B5B13 Top (Radome) View Figure 2: Dot 2272 B5B13 Bottom View Ericsson Canada Proprietary Information Dot 2272 B5B13 Restricted Use and Duplication FCC ID: TA8AKRY901466-1 IC: 287AB-AS9014661 EMC/LB/F Regulatory Compliance 01/06/2021 Page 4 of 4 Figure 3: Dot 2272 B5B13 Side View

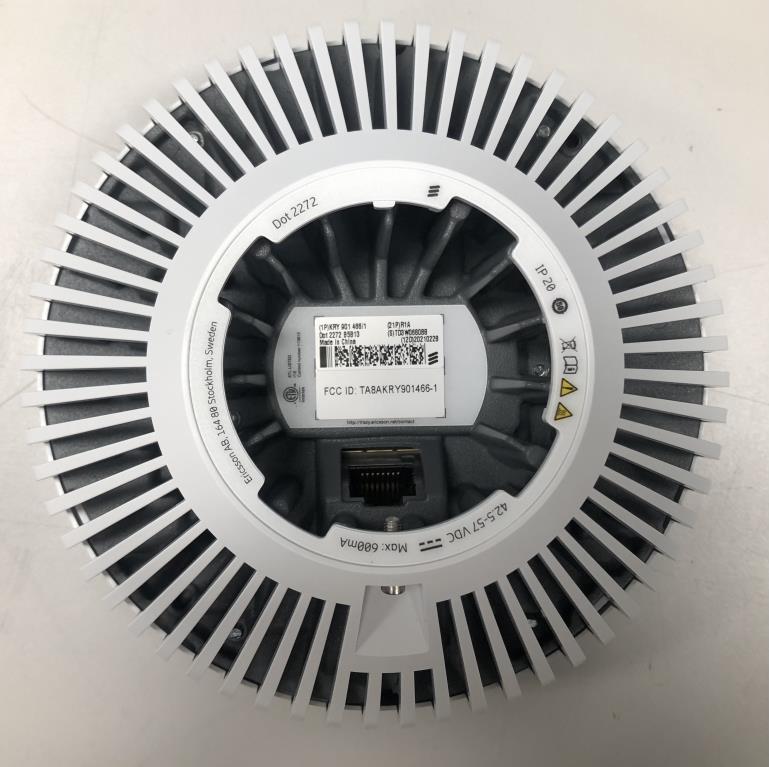

Ericsson Canada Confidential Exhibit 01: Product Identification Label KRY 901 466/1 16 June 2021 Figure 1: Dot 2272 B5B13 Label Detail - The text printed shall be: - FCC ID: TA8AKRY901466-1 - IC: 287AB-AS9014661 IC MODEL NO: AS9014661

1 (9) GFTL-21:000954 Uen, Rev A, 2021-06-17 © Telefonaktiebolaget LM Ericsson AB. This report shall not be reproduced except in full, without written approval of the laboratory. EMF Test Report: Ericsson Dot 2272/2282 B5B13 (FCC) Accred. no. 1761 Testing ISO/IEC 17025 Test report issued by an Accredited Testing Laboratory Document number: GFTL-21:000954 Uen, Rev A Date of report: 2021-06-17 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80 Stockholm Sweden Company/Client: Denis Lalonde Ericsson Canada 349 Terry Fox Drive Ottawa ON K2K 2V6 Canada Tests performed by: Carla Di Paola Dates of tests: 2021-06-16 (Rev A) Manufacturer and market name(s) of device: Ericsson Dot 2272 B5B13 Ericsson Dot 2282 B5B13 Testing has been performed in accordance with: FCC OET Bulletin 65 Test results: Minimum separation distance for which the RF EMF exposure complies with the limits in FCC 47 CFR 1.1310 to be included in the Customer Product Information (CPI) for Ericsson Dot 2272/2282 B5B13. Additional information: Testing was conducted for mobile exposure conditions according to KDB447498 D01. Signature: Test Engineer __________________ Carla Di Paola Experienced Researcher [email protected] Tel: +46724650873 Laboratory and Quality Manager ___________________________ Christer Törnevik Senior Expert – EMF and Health [email protected] Tel: +46705863148 2 (9) GFTL-21:000954 Uen, Rev A, 2021-06-17 1 Summary of EMF Test Report 1 Equipment under test (EUT) Product name Ericsson Dot 2272 B5B13 Ericsson Dot 2282 B5B13 Product number KRY 901 466/1 KRY 901 466/2 Supported bands, Tx frequency range (MHz), and standards B5 869 – 894 LTE, NBIoT, NR B13 746 – 756 LTE, NBIoT, NR Duplexing technology FDD Configuration(s) covered by this report B5 + B13 Exposure environment General public/uncontrolled Results The minimum (test) separation distance required for the equipment under test (EUT) to comply with the mobile device exposure conditions and relevant limits applicable in the USA [1]-[3] is provided in the table below for the general public (uncontrolled exposure). RF exposure assessment results for general public (uncontrolled) exposure as obtained for Dot 2272/2282 B5B13 together with an assumed output power tolerance of 2 dB using procedures applicable for the US market [3]. Band Standard Maximum nominal output power from the radio Test position Separation distance B5 + B13 LTE, NBIoT, NR 2 x 0.050 W + 2 x 0.050 W Direction of maximum gain 20 cm 1 This page contains a summary of the test results. The full report provides a complete description of all test details and results. 3 (9) GFTL-21:000954 Uen, Rev A, 2021-06-17 2 General information The test results reported in this document have been obtained by calculations according to plane-wave equivalent conditions [3]. The purpose of the tests was to verify that the EUT is in compliance with the appropriate RF exposure standards, recommendations and limits [1]-[3]. It should be noted that the test results presented in this test report are valid for the frequency range and for the antenna properties specified in Table 1, in addition to the power level and the power tolerance specified in Table 2. These data were supplied by the client and may affect the validity of the results. The test results were determined for Dot 2272 B5B13 (equipped with internal antennas) and are also applicable for Dot 2282 B5B13 connected to external antennas provided that the antenna gain values are equal to or smaller than 1.4 dBi and 1.7 dBi for B5 and B13, respectively. Proposed EMF health and safety information for inclusion in the Customer Product Information (CPI) is provided in Appendices A and B. 3 Equipment under test Table 1 summarizes the technical data for the EUT. Table 1 Technical data for the EUT. Product name Ericsson Dot 2272 B5B13 Product tested KRY 901 466/1 Supported bands, Tx frequency range (MHz), and standards B5 869 – 894 LTE, NBIoT, NR B13 746 – 756 LTE, NBIoT, NR Duplexing technology FDD Dimensions of Radio head, H x D (mm) 60 × 140 Dimensions of Radio head with bracket, h x D (mm) 132 × 140 Configuration(s) covered by this report B5 + B13 Antenna(s) Four internal antenna branches (two branches per band). Maximum antenna gain for B5: 1.4 dBi Maximum antenna gain for B13: 1.7 dBi Exposure environment General public/uncontrolled In Table 2 output power levels of the EUT are given. The EUT related data in Table 1 and Table 2 were supplied by the client. Table 2 Nominal output power levels. Band Standard Maximum nominal output power [W / dBm] Power tolerance [dB] Transmission loss [dB] Maximum output power 2 [W / dBm] B5 + B13 LTE, NBIoT, NR (2 x 0.050 + 2 x 0.050) W / 23 dBm 2 0 (2 x 0.079 + 2 x 0.079) W / 25 dBm 4 EMF exposure assessments FCC procedures [3] specify exposure assessment methods to verify compliance with EMF exposure limits [1] of mobile devices. A minimum test separation distance of at least 20 cm is required between the device and nearby persons to apply mobile device exposure limits. The minimum test separation distance for which the equipment is shown to comply with the exposure limits must be clearly provided in the operating and installation instructions. 2 Conservative measure of the total maximum possible output power level delivered to the antennas including loss and tolerance. 4 (9) GFTL-21:000954 Uen, Rev A, 2021-06-17 The assessments were conducted for maximum power configurations, i.e., by assuming 100% utilization. Effects of real RBS utilization (time-averaged) is reasonably foreseeable and will significantly reduce the time- averaged power and the RF exposure. This factor was not considered in this assessment, which adds to the conservativeness of the obtained compliance boundaries. 4.1 Field strength calculations Assuming correlated signals and based on the maximum gain of the single antenna for each band (퐺 ant = 1.4 dBi for B5 and 1.7 dBi for B13, see Table 1) the directional gain, 퐺, ma…

Text truncated - open the document above for the full version.

––––––––-–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– © TÜV SÜD Canada Inc This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Radiated Emissions Test Report for Dot 2272 B5B13 (KRY 901 466/1) and Dot 2282 B5B13 (KRY 901 466/2) Tested to: FCC Part 15 Subpart B / ICES 003 (Class B) FCC Part 22 (Section 22.359(a)) FCC Part 27 (Section - 27.53(C)) RSS-Gen (Section 7.3) RSS-130 (Section 4.7) RSS-132 (Section 5.5 & 5.6) Test Result summury FCC/ ICES/ RSS Section Description Specification/Method Pass or Fail Results in section 15.109 / 6.2 Radiated Emissions (RE) FCC Part 15 / ICES 003 / ANSI C63.4 Pass 3.2 15.107 / 6.1 Conducted Emissions (CE) for AC Power FCC Part 15 / ICES 003 / ANSI C63.4 Not Applicable 22.359 (a) Out of band Emissions (RE) FCC Part 22 / ANSI C63.26 Pass 3.2 27.53 (C) Emissions Limits (RE) FCC Part 27 / ANSI C63.26 Pass 3.2 7.3 Receiver Emissions Limits RSS-Gen / ANSI C63.4 Pass 3.2 RSS-130 /4.7 Transmitter unwanted Emissions RSS-130 / ANSI C63.26 Pass 3.2 RSS-132 / 5.5 Transmitter unwanted Emissions RSS-132 / ANSI C63.26 Pass 3.2 RSS-132 / 5.6 Receiver Spurious Emissions RSS-Gen / ANSI C63.4 Pass 3.2 Document number: 7169009760-TR-EMC-01-01-F15 Release date: 15 June 2021 Prepared for: Ericsson Canada Radiated Emissions Test Report for Dot 2272 B5B13 (KRY 901 466/1) and Dot 2282 B5B13 (KRY 901 466/2) 7169009760-TR-EMC-01-01-F15 Prepared for: Ericsson Canada © TÜV SÜD Canada Inc This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Release date: 15 June 2021 Page 2 of 54 About this document This document is written and distributed by TÜV SÜD Canada Inc. Whenever TÜV SÜD is mentioned in this document it shall be taken as referring to TÜV SÜD Canada Inc. This test report does not imply product endorsement by any government, accreditation agency, or TÜV SÜD Canada Inc. Opinions or interpretations expressed in this report, if any, are outside the scope of the accreditations of TÜV SÜD Canada Inc. Any opinions expressed do not necessarily reflect the opinions of TÜV SÜD Canada Inc, unless otherwise stated. Throughout this document: • text in blue font is a clickable link • text in italics is provided as-is from the customer The release control record, document approvals, and laboratory Accreditations are as follows. Release control record This document is based on document template KG000347-TR-EMC-08-03. Issue Reason for change Date released 01 initial release 15 June 2021 Approvals Function Name Job title Signature Technical Reviewer Scott Drysdale Canada Wireless Manager Author Kasi Sivaratnam EMC Test Engineer Radiated Emissions Test Report for Dot 2272 B5B13 (KRY 901 466/1) and Dot 2282 B5B13 (KRY 901 466/2) 7169009760-TR-EMC-01-01-F15 Prepared for: Ericsson Canada © TÜV SÜD Canada Inc This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Release date: 15 June 2021 Page 3 of 54 Accreditations The test facilities of TÜV SÜD Canada Inc are accredited by the American Association for Laboratory Accreditation (A2LA) to ISO/IEC 17025:2017 in accordance with the scope of accreditation outlined at the website portal.a2la.org/scopepdf/2955-19.pdf. A2LA Cert. No. 2955.19 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD Canada with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD Canada. No part of this document may be reproduced without the prior written approval of TÜV SÜD Canada. © TÜV SÜD. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. The Canadian lab registration number associated with the TÜV SÜD test facilities is 24015. Test lab information Lab name TÜV SÜD Canada Inc Company name TÜV SÜD Canada Inc Mailing or shipping address 1280 Teron Road, Ottawa, Ontario, K2K 2C1, Canada Primary technical contact Stephen Tippet Title Lab Manager Phone 613-668-5149 Customer information Company name Ericsson Canada Mailing address 349 Terry Fox Drive, Ottawa, On, K2K 2V6, Canada Primary contact Denis Lalonde Title Team Leader RA Verification Phone 613-790-2901 E-mail [email protected] Radiated Emissions Test Report for Dot 2272 B5B13 (KRY 901 466/1) and Dot 2282 B5B13 (KRY 901 466/2) 7169009760-TR-EMC-01-01-F15 Prepared for: Ericsson Canada © TÜV SÜD Canada Inc This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Release date: 15 June 2021 Page 4 of 54 Table of contents About this document ................................................................................................................................. 2 1. Executive summary ............................................................................................................................ 8 1.1 Compliance summary ..................................................................................................................... 9 2. Details of the equipment under test ................................................................................................ 11 2.1 Assessed hardware ........................................................................................................................ 11 2.2 Product overview .......................................................................................................................... 11 2.3 Product port definition and EUT cable information ..................................................................... 14 2.4 Configurations of the EUT............................................................................................................ 14 2.4.1 Radiated Emissions Single RAT / Single Carrier (LTE & NBIoT)...................................... 15 2.4.2 Radiated Emissions Single RAT / Single Carrier (NR) ..............…

Text truncated - open the document above for the full version.

Document 7169009740 Report 01 Issue 1 June 2021 Report On FCC and ISED Testing of the Ericsson KRY 901 428/2 (Dot 2282 B5 B12A) & KRY 901 466/2 (Dot 2282 B5 B13) LTE (with NBIoT GB), NR, LTE + NR (850 MHz) Base Station in accordance with FCC CFR 47 Part 2: 2019, FCC CFR 47 Part 22: 2019, ISED RSS-GEN: Issue 5: March 2019 Amendment 1, ISED RSS- 132: Issue 3: 2013 COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRY901428-1, TA8AKRY901428-2, TA8AKRY901466-1, & TA8AKRY901466-2 IC ID: 287AB-AS9014281, 287AB-AS9014282, 287AB-AS9014661 & 287AB-AS9014662 Document 7169009740 Report 01 Issue 1 June 2021 PREPARED BY APPROVED BY DATED 10 June 2021 Glen Westwell Scott Drysdale Authorised Signatory Document 7169009740 Report 01 Issue 1 Page 1 of 58 COMMERCIAL – IN - CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Configuration Description .............................................................................................................. 5 1.4 Declaration of Build Status ............................................................................................................ 6 1.5 Product Information ....................................................................................................................... 8 1.6 Test Setup ..................................................................................................................................... 9 1.7 Test Conditions ............................................................................................................................ 10 1.8 Deviation From The Standard ..................................................................................................... 10 1.9 Modification Record ..................................................................................................................... 10 1.10 Additional Information .................................................................................................................. 10 2 TEST DETAILS .......................................................................................................................... 11 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 12 2.2 Occupied bandwidth .................................................................................................................... 29 2.3 Band Edge ................................................................................................................................... 33 2.4 Tranceiver Spurious Emissions ................................................................................................... 44 2.5 Frequency Stability ...................................................................................................................... 54 3 TEST EQUIPMENT USED ......................................................................................................... 56 3.1 Test Equipment Used .................................................................................................................. 57 3.2 Measurement Uncertainty ........................................................................................................... 58 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 59 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 60 ANNEX A Module Lists .............................................................................................................................. A.2 Document 7169009740 Report 01 Issue 1 Page 2 of 58 COMMERCIAL – IN - CONFIDENCE SECTION 1 REPORT INFORMATION Document 7169009740 Report 01 Issue 1 Page 3 of 58 COMMERCIAL – IN - CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name & Product Number Dot 2282 B5B12A & KRY 901 428/2 IC Model Name AS9014281, AS9014282, AS9014661, & AS9014662 Serial Number(s) TD3WD72731 Software Version CXP9013268%17 Revision R82GS Hardware Version R1C Non-Tested Variant (See Section 1.10 Additional Information) Dot 2272 B5B12A, KRY 901 428/1 Dot 2272 B5B13, KRY 901 466/1 Dot 2282 B5B13, KRY 901 466/2 Test Specification/Issue/Date FCC CFR 47 Part 2: 2019 FCC CFR 47 Part 22: 2019 ISED RSS-GEN: Issue 5: March 2019 Amendment 1 ISED RSS-132: Issue 3: 2013 Test Plan Dot 2282 B5B12A_RA_testplan_NR_LTE_NBIoT Start of Test 25 March 2021 Finish of Test 28 March 2021 Name of Engineer(s) Glen Westwell Related Document(s) KDB 971168 D01 v02r02 KDB 662911 D01 v02r01 ANSI C63.26-2015 ICES-003:Issue 7 (2020-10) Glen Westwell ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with FCC CFR 47 Part 2: 2019, FCC CFR 47 Part 22: 2019, ISED RSS-GEN: Issue 5: March 2019 Amendment 1, ISED RSS-132: Issue 3: 2013. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Document 7169009740 Report 01 Issue 1 Page 4 of 58 COMMERCIAL – IN - CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 22, ISED RSS-GEN and ISED RSS-132 is shown below. Section Specification Clause Test Description Result FCC CFR 47 Part 2 FCC CFR 47 Part 22 RSS- GEN ISED RSS-132 2.1 2.1046 22.913 (a) - 5.4 Maximum Peak Output Power and Peak to Average Ratio - Conducted Pass 2…

Text truncated - open the document above for the full version.

Document 7169009740 Repo…

Text truncated - open the document above for the full version.
