Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Ericsson Confidential EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/FJR/VV Christer Hjorth Approved Checked Date Rev Reference 2010-10-05 A TA8BKRC11847-2 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Sveriges Provnings- och ForskningsInstitut Brinellgatan 4 Box 857 S-501 15 Borås Sweden October 5, 2010 Subject: Certification for FCC ID: TA8BKRC11847-2 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This Remote Radio Unit Wideband (RRUW) is designed for use in only in the WCDMA 1900 MHz (band II) cellular telephone system. The transmitter will operate from 1932.4 to 1987.6 MHz with 4.18 MHz Bandwidth. The receiver circuit supports 1852.4 to 1907.6 MHz. The base station operates in the 1900 MHz broadband PCS services as per 47 CFR Part 24 subpart E. It meets the requirements of 3GPP specification for operation in WCDMA cellular systems. This remote radio unit (RRUW) will in normal mode operate at a nominal power out of 20, 40 and 60 watts at the output connector. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". If additional information is needed, please contact me on the below listed number. Christer Hjorth Integration & Verification Engineer Ericsson AB FCC Registration Number (FRN): 0013476155 Ericsson AB, Lindholmspiren 11 417 56 GÖTEBORG Sweden Telephone No.: +46 10 712 3157 Fax No.: +46 10 712 6033 e-mail [email protected]
Ericsson Confidential EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/FJR/VV Chister Hjorth TA8BKRC11847-2/IC 287AB-BW118472 Approved Checked Date Rev Reference 2010-10-05 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Industry Canada Certification and Engineering Bureau 3701 Carling Avenue, Bldg.94 P.O. Box 11490, Station “H” Ottawa, Ontario K2H 8S2 Canada September 30, 2010 Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: Our base station equipment are non-consumer devices thus they are not sold to the general public. They are not serviceable by consumer but by us / our designated technicians. They are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent equipment compared to the previous equipment, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC/IC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As our equipment are generally installed in restricted places, public access is not possible all thought some types of our equipment under certain circumstances can be installed in an unrestricted place, but our equipment are either key-locked or mast mounted and therefore can not be opened except by authorized personnel or inaccessible to general public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of our equipment, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase out BS and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 9 Internal Photos of Radio Unit EXHIBIT 4 Block Diagrams EXHIBIT 5 Schematic Diagrams EXHIBIT 8 Manuals EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description If additional information is needed, please contact me on the below listed number. Regards, Christer Hjorth Integration & Verification Engineer Ericsson AB FCC Registration Number (FRN): 0013476155 Ericsson AB, Lindholmspiren 11 417 56 GÖTEBORG Sweden Telephone No.: +46 10 712 3157 Fax No.: +46 10 712 6033 e-mail [email protected]
Confidentiality. Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

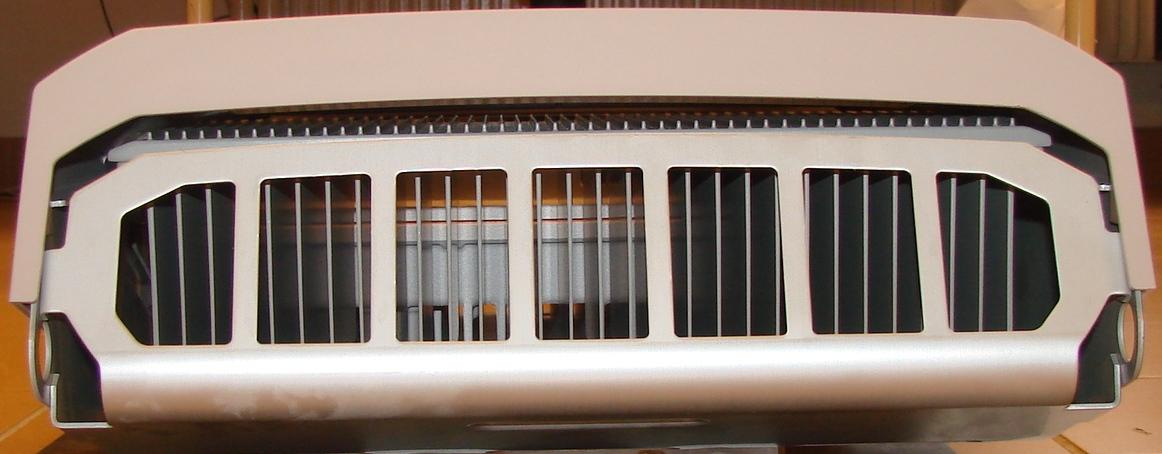

Date Page Exhibit 3 External photos 2010-10-14 1(2) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Front side Rear side Right side Left side Date Page Exhibit 3 External photos 2010-10-14 2(2) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Bottom side Top side
Date Page Exhibit 1 ID label and placement 2010-10-14 1(1) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 The ID label is located under the solar shield. Solar shield removed: FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 IC MODEL NO: BW118472
Date Reference Page REPORT 2010-10-15 FX013704-F24 2 (2) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Table of contents Description of the test object Appendix 1 Operation mode during measurements Appendix 1 Test setups Appendix 1 Purpose of test Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 Receiver spurious emissions Appendix 8 External photos Appendix 9 Date Reference Page REPORT 2010-10-15 FX013704-F24 1 (7) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Appendix 1 Description – Test object Equipment: WCDMA radio equipment (RRUW) 1900 MHz single and multi carrier. Frequency range: TX: 1932.4 – 1987.6 MHz (Downlink) RX: 1852.4 – 1907.6 MHz (Uplink) Modulations: QPSK, 16QAM and 64QAM Maximum output power: Single carrier: 1x 47.8 dBm (1x 60W) Multi carrier: 2x 44.8 dBm (2x 30W) 4x 41.8 dBm (4x15 W) Channel bandwidth: 4.2 to 5 MHz (configurable in steps of 100/200 kHz) Channel spacing: 4.4 to 5 MHz (configurable in steps of 100/200 kHz) Nominal power voltage: -48 VDC Tested channels Downlink Uplink Channel Frequency* UARFCN Frequency* UARFCN B 1932.4 9662 1852.4 9262 B+5 1937.4 9687 1857.4 9287 B+10 1942.4 9712 1862.4 9312 B+15 1947.4 9737 1867.4 9337 M 1957.6 9788 1877.6 9388 M+10 1967.6 9813 1887.6 9413 T-15 1972.6 4863 1892.6 9463 T-10 1977.6 9888 1897.6 9488 T-5 1982.6 9913 1902.6 9513 T 1987.6 9938 1907.6 9538 * Frequency in MHz Operation mode during measurements Measurements were performed with the test object transmitting the Test models which are defined in 3GPP TS 25.141. Test model 1 (TM1) uses the QPSK modulation only, Test model 5 (TM5) includes the 16QAM modulation and Test model 6 (TM6) includes the 64QAM modulation. The settings below were found to be representative for all traffic scenarios when several settings with the different modulations, channel bandwidths and the number of carriers were tested to find the worst case setting. These settings were used for all measurements if not otherwise noted. Single carrier TM1: 64 DPCH:s at 30 ksps (SF=128) Multi carrier TM1: 32 DPCH:s at 30 ksps (SF=128) in each carrier (Two carrier mode) Date Reference Page REPORT 2010-10-15 FX013704-F24 2 (7) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Appendix 1 Conducted measurements The test object was powered with -48 VDC. All RF conducted measurements were performed with the test object configured for maximum transmit power. All TX measurements were done at the RF A connector and the RX measurements were done at the RF B connector. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power. The configuration represents worst case for radiated spurious emission measurements. The RF output power port was via a RF attenuator connected to functional test equipment for supervision. The RRUW unit was allocated to the following channels during radiated spurious emission measurements: Single Carrier: (One carrier configuration) Cell 1 1 1 Channel B M T Multi Carrier: (Two carrier configuration) Cell 1 2 1 2 Channel B B+10 T-10 T Multi Carrier: (Four carrier configuration) Cell 1 2 3 4 Channel B B+5 B+10 B+15 Channel T T-5 T-10 T-15 Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and Industry Canada RSS-133. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2003 ANSI/TIA/EIA-603-B-2002 CFR 47 part 2, October 1 st , 2009 CFR 47 part 22, October 1 st , 2009 3GPP TS 25.141, version 8.9.0 RSS-Gen Issue 2 RSS-133 Issue 5 Date Reference Page REPORT 2010-10-15 FX013704-F24 3 (7) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Appendix 1 Measurement equipment Measurement equipment Calibration Due SP number Test site Tesla 2010-10 503 881 R&S FSIQ 40 2011-07 503 738 R&S FSQ 40 2011-07 504 143 R&S ESI 26 2011-07 503 292 High pass filter 2011-07 504 200 RF attenuator 40 dB 2011-07 504 159 RF step attenuator 2012-07 503 096 Boonton RF Peak power meter/analyzer 2010-10 503 144 Boonton Power sensor 56518-S/4 2012-02 503 146 Chase Bilog antenna CBL 6111A 2011-11 502 181 EMCO Horn Antenna 3115 2011-01 502 175 Std.gain horn mod 20240-20 - 503 674 μComp Nordic, Low Noise Amplifier 2011-07 504 160 MITEQ Low Noise Amplifier 2011-06 503 285 Climate chamber 2 2010-11 501 031 Multimeter Fluke 87 2011-03 502 190 Testo 625, Temperature and humidity meter 2011-08 504 188 Testo 635, Temperature and humidity meter 2011-03 504 203 Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered: 2010-08-24 Test engineers Andreas Johnson, Tomas Lennhager, Jörgen Wassholm and Jonas Bremholt Test participants Christer Hjorth and Ove Nilsson, Ericsson AB Date Reference Page REPORT 2010-10-15 FX013704-F24 4 (7) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Appendix 1 Test set-up conducted measurements TX Test object RRUW 02 B2, KRC 118 47/2 with software CXP 901 6967/3 Rev R1E01 (FCC ID: TA8BKRC11847-2 / IC: 287AB-BW118472) Functional test equipment 1. ERNC SIM 145, BAMS – 1000707989 2. Fast Ethernet switch, Netgear GSM7224, BAMS – 1000838369 3. Fast Ethernet switch, Netgear GSM7212, BAMS – 1000517292 4. Computer, Sunblade Ultra 45, BAMS – 1000655789 5. Main Unit: 2xRBS 6601 with DU 1: DUW 30 01 KDU 127 161/3 Rev R2A S/N (s)C823356397 and DU 2: DUW 30 01 KDU 127 161/3 Rev R3A S/N (s)C823570214, with Software CXP 901 6967/3, rev. R1E01 6. NTP server, Symmetricom SyncServer, BAMS – 1000699484 7. 10 MHz reference, Symmetricom model 8040, BAMS – 1000545314 8. Attenuator SP 504 159 9. Terminator Date Reference Page REPORT 2010-10-15 FX013704-F24 5 (7) FCC ID: TA8BKRC11847-2 IC: 287AB-BW118472 Appendix 1 Test set-up conducted measurements RX Test obje…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 3 | 24E | 1.93 GHz - 1.99 GHz | 60 W | 4M18F9W | 0.05 ppm |
