TA8BKRD901160Remote Radio Unit which supports LTE

Exhibit 2 – FCC authorization letter

Ericsson Internal 1 (1) Prepared (also subject responsible if other) No. EHUUXIO TA8AKRD901160 Approved Checked Date Rev Reference Xiao Hu 2020-01-06 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: TA8AKRD901160 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. The radio operates in the broadband radio service band as per 47 CFR Part 96. This radio (AIR 6488 B48) is designed for use in LTE mobile telephone system. This radio operates in Band 48, the transmitter and the receiver from 3550 MHz to 3700 MHz, It supports channel bandwidths of 10 MHz, 20 MHz. The radio supports modulation types of QPSK, 16QAM, 64QAM and 256QAM for LTE. The radio has the ability to be used in a RBS system configured for 3GPP FD-MIMO and beamforming technologies as an Advanced Antenna System. The radio has 64 TX/RX ports. will work for LTE operates at a maximum power of 50mW for channel bandwidth of 10 MHz, 100mW for 20 MHz per port at the transceiver array boundary (TAB) connector. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Hua Yang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7125 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. EHUUXIO TA8BKRD901160 Approved Checked Date Rev Reference Xiao Hu 2020-01-06 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046, USA Attention: Equipment Authorization Branch Subject: Request for Confidentiality FCC ID: TA8BKRD901160 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules for FCC. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio DoT (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS, RU, RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 12 Technical Circuit Description Ericsson Internal EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. EHUUXIO TA8BKRD901160 Approved Checked Date Rev Reference Xiao Hu 2020-01-06 A Hua Yang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

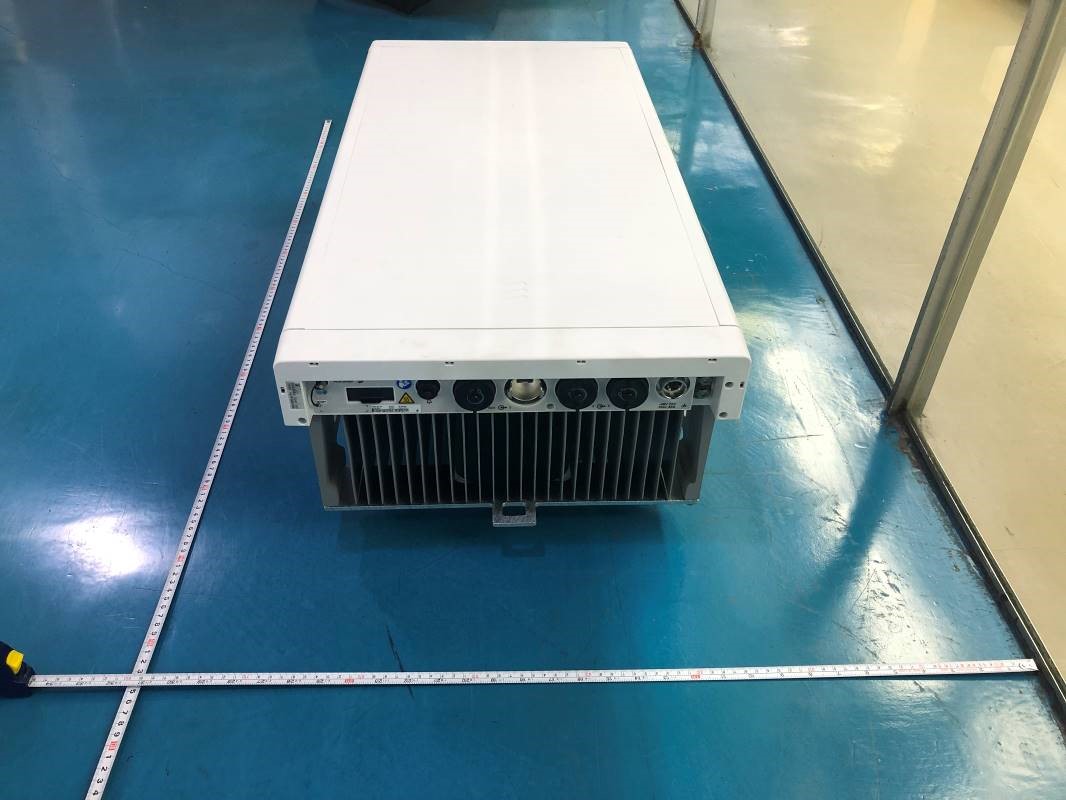

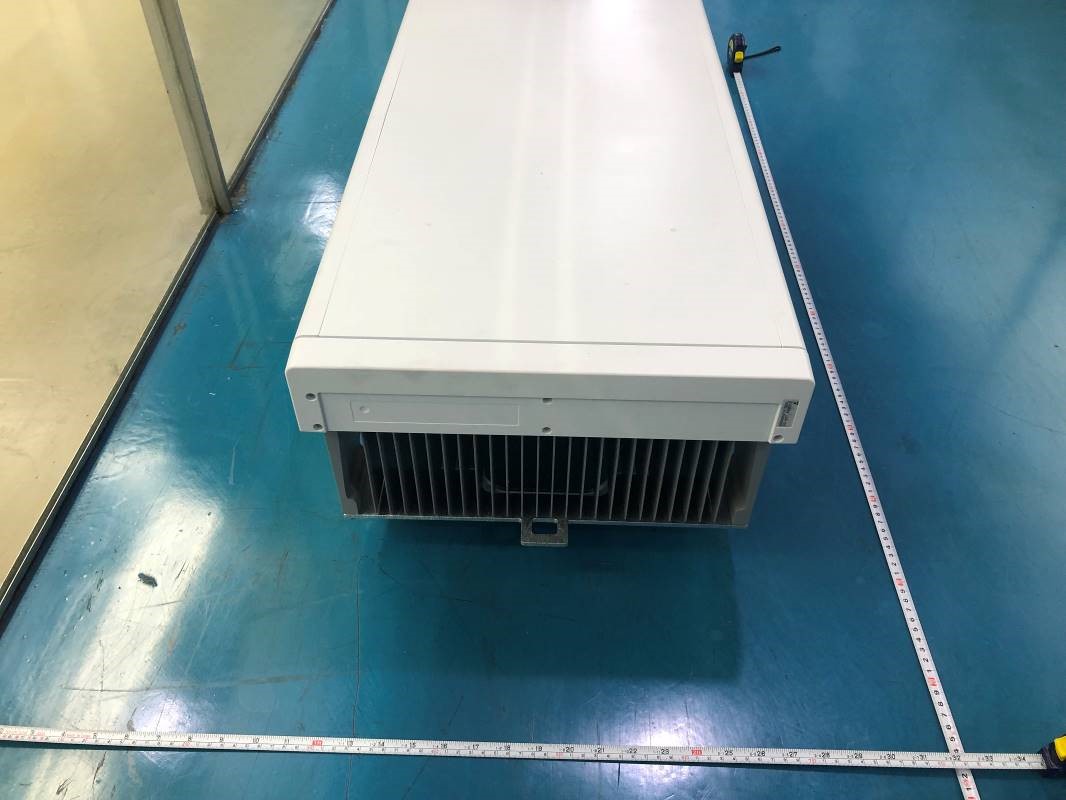

Date Page Exhibit 3 External photos 1/6/2020 1(5) FCC ID: TA8BKRD901160 Front side Date Page Exhibit 3 External photos 1/6/2020 2(5) FCC ID: TA8BKRD901160 Rear side Date Page Exhibit 3 External photos 1/6/2020 3(5) FCC ID: TA8BKRD901160 Left side Right side Date Page Exhibit 3 External photos 1/6/2020 4(5) FCC ID: TA8BKRD901160 Top side Date Page Exhibit 3 External photos 1/6/2020 5(5) FCC ID: TA8BKRD901160 Bottom side

Date Page Exhibit 1 ID label and placement 1/6/2020 1(1) FCC ID: TA8BKRD901160 FCC ID: TA8BKRD901160

1 (10) GFTL-19:000827 Uen, Rev E, 2019-09-20 © Telefonaktiebolaget LM Ericsson AB. This report shall not be reproduced except in full, without written approval of the laboratory. EMF Test Report: Ericsson AIR 6488 B48 LTE (FCC) Ackred. Nr 1761 Provning ISO/IEC 17025 Rapport utfärdad av ackrediterat provningslaboratorium Test report issued by an Accredited Testing Laboratory Document number: GFTL-19:000827 Uen Rev E Date of report: 2019-09-20 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80 Stockholm Sweden Company/Client: Kui Cui CBC - Ericsson (China) Communications Co. Ltd. Bldg 2, No.1366 Tianfu Avenue Middl Tianfu Software Park 610041 Chengdu China Tests performed by: Bo Xu Paramananda Joshi Dates of tests: 2019-07-22 (Rev A) 2019-08-20 (Rev B) 2019-08-28 (Rev C) 2919-09-06 (Rev D and E) Manufacturer and market name(s) of device: Ericsson AIR 6488 B48 Testing has been performed in accordance with: FCC OET Bulletin 65 IEC 62232:2017 Test results: RF exposure compliance boundaries (exclusion zones) related to the limits in FCC 47 CFR 1.1310 to be included in the Customer Product Information (CPI) for Ericsson AIR 6488 B48. Additional information: Signature: Test Engineer _____________________ Bo Xu Experienced Researcher [email protected] Tel: +46 10 713 13 84 Test Engineer __________________ Paramananda Joshi Senior Researcher [email protected] Tel: +46 10 711 00 06 Laboratory and Quality Manager _______________________________ Christer Törnevik Senior Expert – EMF and Health [email protected] Tel: +46 10 714 12 35 2 (10) GFTL-19:000827 Uen, Rev E, 2019-09-20 Summary of EMF Test Report 1 Equipment under test (EUT) Product name AIR 6488 B48 Product number KRD 901 160/1, KRD 901 160/11, KRD 901 160/2, KRD 901 160/21 Supported bands, Tx frequency range (MHz) and standards B48 (3500) 3550–3700 LTE Duplexing technology and fraction of downlink transmission time to total time TDD (75%) Exposure environment General public/uncontrolled, Workers/controlled EIRP 2 (dBm) and IEC 62232 installation class [4] 52.6, 63.8 E+, E+ Results RF exposure compliance boundaries, outside of which the exposure is below the general public (GP) and workers (W) exposure limits, are listed below. Dimensions of the box-shaped compliance boundary for general public (GP) and workers (W) exposure for AIR 6488 B48 applicable in the markets employing the FCC exposure limits for maximum output power with power tolerance and TDD downlink duty cycle included. Mode and output power for AIR 6488 B48 Dimensions of the box-shaped compliance boundary (m) Distance in front of EUT Width Height Distance behind EUT Band Standard Nominal peak output power from the radio Power tolerance TDD DL duty cycle GP W GP W GP W GP W B48 LTE 30.8 dBm 1.5 dB 75 % 1.5 0.7 1.6 0.8 1.3 1.3 0.2 0.2 B48 LTE 42.0 dBm 1.5 dB 75 % 5.3 2.4 5.9 2.7 2.6 1.3 0.2 0.2 For the power levels specified in the table which include tolerances, and the upward rounding of compliance boundary dimensions to the nearest decimeter, the specified results are conservative. 1 This page contains a summary of the test results. The full report provides a complete description of all test details and results. 2 The stated EIRP value is the maximum total EIRP with the TDD downlink duty cycle and without power tolerance included and are obtained using the antenna patterns provided by the client. 3 (10) GFTL-19:000827 Uen, Rev E, 2019-09-20 1 General information The test results presented in this report define compliance boundaries for AIR 6488 B48. Outside of these compliance boundaries, the radio frequency (RF) exposure levels are below the limits specified by the Federal Communications Commission (FCC) [1]. The tests were performed by calculations in accordance with the Ericsson RF exposure calculation procedure for base stations [2], which is in conformity with the FCC OET Bulletin 65 [3] and IEC 62232:2017 [4]. It should be noted that the test results presented in this test report are valid for the frequency range specified in Table 1, for the antenna properties specified in Table 2, and for the power levels, the power tolerance and TDD downlink duty cycle specified in Table 3. These data as well as the applied antenna pattern files were supplied by the client and may affect the validity of the results. Proposed EMF health and safety information for inclusion in the Customer Product Information (CPI) is provided in Appendices A, B and C. 2 Equipment under test Table 1 and Table 2 below summarize the technical data for the equipment under test (EUT) and the properties of the integrated antenna. Table 3 lists the nominal peak output power from the radio unit (total peak power from all antenna branches) and the total time-averaged power delivered to the antenna for two different power configurations. The total time-averaged power delivered to the antenna includes output power tolerance and TDD downlink duty cycle. The EUT related data in Tables 1-3 were supplied by the client. Table 1 Technical data for the EUT. Product name and product number AIR 6488 B48 KRD 901 160/1, KRD 901 160/11, KRD 901 160/2, KRD 901 160/21 Supported bands, Tx frequency range (MHz), and standards B48 (3500) 3550–3700 LTE Antenna KRE 105 261 Dimensions, H × W × D (mm) 819 × 400 × 256 Duplexing technology and fraction of downlink transmission time to total time TDD (75%) Exposure environment General public/uncontrolled, Workers/controlled EIRP 2 (dBm) and IEC 62232 installation class [4] 52.6, 63.8 E+, E+ Table 2 Properties of the antenna. Product number KRE 105 261 Type Internal AAS Number of polarizations 2 Gain 3 (dBi) 24.0 Horizontal HPBW 4 (degrees) 22° Vertical HPBW 4 (degrees) 10° Number of antenna elements (푵 퐇 ,푵 퐕 ) (8, 8) Element separation distance (횫 퐇 ,횫 퐕 ) (mm) (44, 58) Maximum scan range in horizontal plane (degrees) ±60° Maximum scan range in vertical plane (degrees) 73°–113° 3 The stated gain value is the maximum gain of the antenna w…

Text truncated - open the document above for the full version.

Testing Laboratory Certificate #2955.19 Page 1 of 84Report Issued: 12/20/2019Report File #: 7169007158-CBRS-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc Test Report As per FCC Part 96 SAS requirements (CBRS Test Plan) on the Ericsson Remote Radio Air 6488 B48 KRD901160 (3550-3700MHz) FCC ID(s): TA8AKRD901160 TA8BKRD901160 Issued by: TÜV SÜD Canada Inc. 1280 Teron Rd, Ottawa, ON K2K 2C1 Canada Testing produced for Ericcson Canada See Appendix A for full client & EUT details. Scott Drysdale. Test Personnel Glen Westwell Report Reviewer Client Ericsson Product Ericsson Remote Radio Air 6488 B48 KRD 901160 Standard(s) FCC Part 96 SAS requirements (CBRS Test Plan) Page 2 of 84Report Issued: 12/20/2019Report File #:7169007158-CBRS-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Table of Contents Table of Contents ............................................................................................................................ 2 Report Scope ................................................................................................................................... 3 Summary ......................................................................................................................................... 4 Test Results Summary ................................................................................................................ 5 Notes, Justifications, or Deviations .......................................................................................... 14 Applicable Standards, Specifications and Methods...................................................................... 15 Document Revision Status ............................................................................................................ 16 Definitions and Acronyms ............................................................................................................ 17 Testing Facility ............................................................................................................................. 18 Calibrations and Accreditations ................................................................................................ 18 Testing Environmental Conditions and Dates .......................................................................... 19 Detailed Test Results Section ....................................................................................................... 20 Authorization transmit after it receives authorization from a SAS........................................... 21 Check the device registration and authorization with the SAS................................................. 30 Confirm that the device changes its operating power and/or channel in response to a command from the SAS and Confirm that the device correctly configures based on the different license classes. ...................................................................................................................................... 30 Confirm that the device transmits at a power level less than or equal to the maximum power level approved by the SAS........................................................................................................ 45 WINNF Security Test Case Analysis ........................................................................................... 52 WINNF.FT.C.SCS.1 ................................................................................................................. 52 WINNF.FT.C.SCS.2 ................................................................................................................. 56 WINNF.FT.C.SCS.3 ................................................................................................................. 60 WINNF.FT.C.SCS.4 ................................................................................................................. 63 WINNF.FT.C.SCS.5 ................................................................................................................. 66 Appendix A – EUT & Client Provided Details ............................................................................ 70 Technical Description ............................................................................................................... 72 Appendix B – EUT, Peripherals, and Test Setup Photos.............................................................. 74 Appendix C – Additional Test Information .................................................................................. 76 Confirm that the device transmits at a power level less than or equal to the maximum power level approved by the SAS........................................................................................................ 77 Client Ericsson Product Ericsson Remote Radio Air 6488 B48 KRD 901160 Standard(s) FCC Part 96 SAS requirements (CBRS Test Plan) Page 3 of 84Report Issued: 12/20/2019Report File #:7169007158-CBRS-000 © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. Report Scope This report addresses the EMC verification testing and test results of theEricsson Remote Radio Air 6488 B48 KRD 901160 (3550-3700 MHz)herein referred to as EUT (Equipment Under Test). The EUT was tested for compliance against the following standards: FCC Part 96 SAS requirements (CBRS Test Plan) Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. For a more detailed list of the standards and the revision used, see the "Applicable Standards, Specifications and Methods" section of this report. This report does not imply product endorsement by any government, accreditation agency, or TÜV SÜD Canada Inc. Opinions or interpretations expressed in this report, if any, are outside th…

Text truncated - open the document above for the full version.

Ericsson AB RF TEST REPORT Report Type: FCC Part 96 RF report PRODUCT NAME: AIR 6488 B48 REPORT NUMBER: 200100100SHA-001 ISSUE DATE: January 6, 2020 DOCUMENT CONTROL NUMBER: TTRFFCC Part 96_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCC Part 96_V1 © 2018 Intertek Page 2 of 128 Report no.: 200100100SHA-001 Applicant: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden Manufacturer: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden FCC ID: TA8BKRD901160 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC CFR 47 Part 96: CITIZENS BROADBAND RADIO SERVICE PREPARED BY: REVIEWED BY: Project Engineer Nemo Li Reviewer Daniel Zhao Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 3 of 128 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY...................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 RELATED DOCUMENTS .......................................................................................................................................... 9 2.2 PRODUCT INFORMATION ....................................................................................................................................... 9 2.3 CONFIGURATION DESCRIPTION ............................................................................................................................. 10 2.4 TEST SETUP ...................................................................................................................................................... 11 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 13 2.6 INSTRUMENT LIST .............................................................................................................................................. 14 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 16 3 POWER, PSD AND PEAK TO AVERAGE POWER RATIO ................................................................................. 17 3.1 LIMIT .............................................................................................................................................................. 17 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 17 3.3 TEST NOTES ..................................................................................................................................................... 18 3.4 MEASUREMENT RESULT ...................................................................................................................................... 19 4 OCCUPIED BANDWIDTH............................................................................................................................. 46 4.1 MEASUREMENT PROCEDURE ............................................................................................................................... 46 4.2 MEASUREMENT RESULT ...................................................................................................................................... 47 5 UNWANTED EMISSIONS AT BAND EDGE .................................................................................................... 55 5.1 LIMIT .............................................................................................................................................................. 55 5.2 MEASUREMENT PROCEDURE ............................................................................................................................... 55 5.3 MEASUREMENT RESULT ...................................................................................................................................... 56 6 COND…

Text truncated - open the document above for the full version.

Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 63 of 128 LTE-MIMO-2C-20-2: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) 26 T 16QAM 20 Channel Position T Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 64 of 128 LTE-MIMO-3C-10-1: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) 26 T 16QAM 10 Channel Position T Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 65 of 128 LTE-MIMO-3C-10-2: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) 26 T 16QAM 10 Channel Position T Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 66 of 128 LTE-MIMO-3C-20-1: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) 26 T 16QAM 20 Channel Position T Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 67 of 128 LTE-MIMO-3C-20-2: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) 26 T 16QAM 20 Channel Position T Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 68 of 128 6 Conducted Unwanted Emission Test result: Pass 6.1 Limit The conducted power of any emissions below 3530 MHz or above 3720 MHz shall not exceed −40dBm/MHz. 6.2 Measurement Procedure All measurements were made according with KDB 971168 D01. For MIMO mode configurations, the limit was adjusted with a correction of -18.06dB [10Log(1/64)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports . The detector of the Spectrum analyzer was set as RMS, the RBW was set as 1MHz, the VBW was set as 3MHz. Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 69 of 128 6.3 Measurement result LTE-MIMO-1C-10: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) 26 B 16QAM 10 1000 -58.06 26 M 16QAM 10 1000 -58.06 26 T 16QAM 10 1000 -58.06 Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 70 of 128 Channel Position B Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 71 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 72 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 73 of 128 Channel Position M Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 74 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 75 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 76 of 128 Channel Position T Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 77 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 78 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 79 of 128 LTE-MIMO-1C-20: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) 26 B 16QAM 20 1000 -58.06 26 M 16QAM 20 1000 -58.06 26 T 16QAM 20 1000 -58.06 Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 80 of 128 Channel Position B Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 81 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 82 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 83 of 128 Channel Position M Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 84 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 85 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 86 of 128 Channel Position T Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 87 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 88 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 89 of 128 LTE-MIMO-2C-10-1: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) 26 T 16QAM 10 1000 -58.06 Channel Position T Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 90 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 91 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz

Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 92 of 128 LTE-MIMO-2C-20-1: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) 26 T 16QAM 20 1000 -58.06 Channel Position T Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 93 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 94 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 95 of 128 LTE-MIMO-3C-10-1: Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) 26 T 16QAM 10 1000 -58.06 Channel Position T Range 9kHz to 3530MHz Range 3720MHz to 6GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 96 of 128 Range 6GHz to 12.75GHz Range 12.75GHz to 16GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part 96_V1 © 2018 Intertek Page 97 of 128 Range 16GHz to 26GHz Range 26GHz to 40GHz Report No.: 200100100SHA-001 TEST REPORT TTRFFCC Part…
