TA8BKRY901326-1LTE Radio Equipment

1 (1) Prepared (also subject responsible if other) No. ERAWALA EXHIBIT 13 Approved Checked Date Rev Reference EAB/FJB/KA 2014-12-03 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 S-501 15 Borås Sweden Subject: Certification for FCC ID: TA8BKRY901326-1 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This Radio Unit, Radio Dot – RD 2242 B17 (RD) is designed for use in LTE cellular telephone system. The transmitter will operate from 734 MHz to 745 MHz. The receiver circuit supports 704 MHz to 715 MHz. It supports channel bandwidths of 5, 10 MHz for LTE. RD supports modulation type QPSK, 16QAM and 64QAM for LTE. This RD operates in the WCS services as per 47 CFR Part 27 subpart C. RD has the ability to be used in a RBS system configured for 3GPP MIMO/Spatial multiplexing technologies for LTE. RD will in normal mode operate at a nominal power out of 50 mW per port at the output connecto rs (2 connectors with up to 50 mW in each connector connected to build in antennas). The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". Lars Wallin Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 SE-164 80 Stockholm, Sweden Telephone No.: +46 107134390 e-mail: [email protected]

Date Page Exhibit 3 External photos 2014-12-19 1( 1) FCC ID: TA8BKRY901326-1 IC: 287AB-AS9013261 Top side Bottom side Side Label

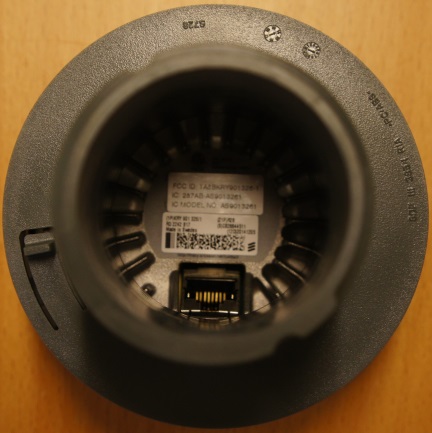

Date Page Exhibit 1 ID label and placement 2014-12-19 1( 1) FCC ID: TA8BKRY901326-1 IC: 287AB-AS9013261 Test object front side

REPORT 1002 ISO/IEC 17025 Issued by an FCC listed Laboratory Reg. no. 93866. The test site complies with RSS-Gen, IC file no. 3482A-1 Contact person Date Reference Page Tomas Lennhager 2015-01-23 4P08235-F27 1 (2) Electronics +46 10 516 54 09 [email protected] Ericsson AB Niklas Warnström PDU HW Torshamnsgatan 21 164 83 Stockholm Radio measurements on RD 2242 B17 with FCC ID: TA8BKRY901326-1 and IC: 287AB-AS9013261 (9 appendices) SP Technical Research Institute of Sweden Postal address Office location Phone / Fax / E-mail Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. SP Box 857 SE-501 15 BORÅS Sweden Västeråsen Brinellgatan 4 SE-504 62 BORÅS +46 10 516 50 00 +46 33 13 55 02 [email protected] Test object Product name: RD 2242 B17 Product number: KRY 901 326/1, see appendix 1 for details. Summary Standard Compliant Appendix FCC CFR 47 part 2 and 27 / IC RSS-130 ISSUE 1 2.1046 / RSS-130 4.4 RF power output Yes 2 2.1046 / RSS-130 4.4 RF power output, radiated Yes 3 2.1049 / RSS-Gen 6.6 Occupied bandwidth Yes 4 2.1051 / RSS-130 4.6 Band edge Yes 5 2.1051 / RSS-130 4.6 Spurious emission at antenna terminals Yes 6 2.1053 / RSS-130 4.6 Field strength of spurious radiation Yes 7 2.1055 / RSS-130 4.3 Frequency stability Yes 8 SP Technical Research Institute of Sweden Electronics - EMC Performed by Examined by Tomas Lennhager Jan Carlsson REPORT Date Reference Page 2015-01-23 4P08235-F27 2 (2) SP Technical Research Institute of Sweden Table of contents Description of the test object Appendix 1 Operation mode during measurements Appendix 1 Test setups Appendix 1 Purpose of test Appendix 1 RF power output conducted Appendix 2 RF power output radiated Appendix 3 Occupied bandwidth Appendix 4 Band edge Appendix 5 Spurious emission at antenna terminals Appendix 6 Field strength of spurious radiation Appendix 7 Frequency stability Appendix 8 External photos Appendix 9 REPORT Date Reference Page 2015-01-23 4P08235-F27 1 (9) Appendix 1 SP Technical Research Institute of Sweden Description of the test object Radio equipment: RD 2242 B17 Product number: KRY 901 326/1 FCC ID: TA8BKRY901326-1 IC 287AB-AS9013261 IC MODEL NO : AS9013261 Hardware revision state: R2B Tested configuration: LTE single RAT Frequency bands: TX: 734 – 745 MHz RX: 704 – 715 MHz Antenna ports: 2 TX/RX ports, (internally connected to integrated Omni directional antenna elements) RF configuration: Single carrier, multi carrier,TX-diversity and MIMO 2x2 RF power Tolerance: +2.0 dB, -2.7 dB Nominal output power per antenna port: Single carrier: 1 x 17 dBm (1 x 50mW) Multi carrier: 2 x 14 dBm (2 x 25mW) Antenna type: Omni directional antenna Antenna gain: -2.6 dBi Channel bandwidths: Singel carrier: 5 MHz, 10 MHz Multi carrier: 5 MHz Modulations: QPSK, 16QAM and 64QAM Nominal supply voltage: -48 VDC (associated equipment) REPORT Date Reference Page 2015-01-23 4P08235-F27 2 (9) Appendix 1 SP Technical Research Institute of Sweden Operation mode during measurements Measurements were performed with the test object transmitting test models as defined in 3GPP TS 36.141. Test model E-TM1.1 represent QPSK modulation, test model E-TM3.2 represent 16QAM modulation and test model E-TM3.1 represent 64QAM modulation. The settings below were deemed representative for all traffic scenarios when settings with different modulations, channel bandwidths, number of carriers and RF configurations has been tested to find the worst case setting. All measurements were performed with the test object configured for maximum transmit power. The settings below were used for all measurements if not otherwise noted. MIMO mode, single carrier: E-TM1.1 MIMO mode, multi carrier: 2 carriers E-TM1.1 Cable configurations between RD and IRU The cables, used during tests, correspond to minimum and maximum length, according to clause 2.9 in Exhibit 12 – Technical Circuit Description. The following cable configurations has been used: RDI Cable 20m: total cabel length 20m patch cables included. RDI Cable 92m: total cabel length 92m patch cables included. RDI Cable 200m: total cabel length 200m patch cables included. Patch cable Cat 6a Schneider Electric Actassi CL-MNC6A RDI cable Cat 6a Schneider Electric Actassi CL-MXC6A Conducted measurements The conducted measurements were performed on RD 2242 B17 with product number KRY 901 326/1. The test object was mounted in a fixture and powered by the RBS Main Unit via the RDI LAN cable. All TX parameters were measured at port RF B with port RF A terminated into 50 ohm. Complete measurements were made on RF B with additional measurements on RF A to verify that the ports are identical. Radiated measurements The test object was mounted in a fixture and powered by the RDI LAN cable. In field strength of spurios radition both RF ports were terminated into 50 ohm. For RF power output measurement the internal antenna was used. REPORT Date Reference Page 2015-01-23 4P08235-F27 3 (9) Appendix 1 SP Technical Research Institute of Sweden Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and IC RSS-130 and IC RSS-Gen. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2009 ANSI/TIA/-603-C-2004 3GPP TS 36.141, version 11.4.0 CFR 47 part 2, December 16th , 2013 CFR 47 part 27, December 16th, 2013 RSS-Gen Issue 4, November 2014 RSS-130 Issue 1, October 2013 REPORT Date Reference Page 2015-01-23 4P08235-F27 4 (9) Appendix 1 SP Technical Research Institute of Sweden Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP-QD 10885”. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). Compliance evaluation is based…

Text truncated - open the document above for the full version.

1 (1) EAB-14:071432 Uen, Rev B, 2015-01-08 © Telefonaktiebolaget LM Ericsson AB. This report shall not be reproduced except in full, without written approval of the laboratory. Rapport utfärdad av ackrediterat provningslaboratorium Test report issued by an Accredited Testing Laboratory EMF Test Report: Ericsson RDS LTE B17 R2B Document number: Rev B Date of report: 2015-01-08 Testing laboratory: Ericsson EMF Research Laboratory Ericsson AB SE-164 80Stockholm Sweden Company/Client: FJB/RICPeter Wedin Ericsson AB SE-164 80 Stockholm Sweden Tests performed by: Jaroslav Kazejev Dates of tests: 2014-11-03 Manufacturer and market name(s) of device: Ericsson RD 2242 B17 Testing has been performed in accordance with: FCC CFR title 47, part 1.1310, FCC OET Bulletin 65, FCC KDB447498 D01, Industry Canada RSS 102 Test results: The tested device complies with the requirements in respect of all parameters subject to the test. Additional information: Testing was conducted for mobile exposure conditions Signature: Test engineer _______________________________ Jaroslav Kazejev ExperiencedResearcher [email protected] Tel: +46 10713 4344 Quality Manager ________________________________ Björn Thors Senior Specialist - RF Exposure Assessment [email protected] Tel: +46 10717 1824 2 (2) EAB-14:071432 Uen, Rev B, 2015-01-08 1Summary of EMF Test Report 1 Frequency Band [MHz]B17a Modes LTE Supported  Covered by report  Exposure environmentGeneral public 1.1Results RF exposure assessment results for general public (uncontrolled) exposure applicable in USA and Canada [1] - [4] are given in the table below. The equipment under test (EUT) conforms to the requirements of the relevant standards when the combined exposure ratio is less than one. RF exposure assessment results for general public (uncontrolled) exposure as obtained for the RDS together with an assumed output power tolerance of 2 dB and a transmission loss of 0.5 dB usingprocedures applicable for the US and Canadian markets [3], [4]. 3GPP bandStandard Nominal output power from the radio Test position Test separation distance Exposure ratio Result B17a (700)L2 x 0.05 W Direction of maximum gain 20 cm0.06 PASSED 1 This page contains a summary of the test results. The full report provides a complete description of all test details and results. 3 (3) EAB-14:071432 Uen, Rev B, 2015-01-08 2General information The test results reported in this document have been obtained by simple calculations according to plane-wave equivalent conditions [4]. The purpose of the tests was to verify that the EUT is in compliance with the appropriate RF exposure standards, recommendations and limits [1] - [4] . 3Equipment under test Table 1 summarizes the technical data for the EUT. Photographs of the EUT are presentedin Appendix A. Table 1 Technical data for the EUT. Product name Ericsson RD 2242 B17 Product tested KRY901 326/1 R2B Dimensions, Thicknessx Diameter(mm) 50 x 109 Configurations(s) covered by this report LTE 700 (B17a) Antenna(s) Internalantennas Product numberMaximum gain (dBi) KRE101 2184/2 R1C-2.6 Transmitter frequency range (MHz) LTE 700 (B17a): 734 - 745 In Table 2 nominal output power levels are given. Table 2 Nominal output power levels. 4EMF exposure assessments FCC procedures [4] specify exposure assessment methods to verify compliance with EMF exposure limits [1] of mobile devices. A minimum test separation distance of at least 20 cm is required between the device and nearby persons to apply mobile device exposure limits. The test separation distance for which the equipment is shown to comply with the exposure limits must be clearly provided in the operating and installation instructions. 4.1Field strength calculations The maximum gain, , of the two antennas used is -2.6 dBi (0.55), see Table 1. Assuming correlated transmit signals, the directional gain, , may be taken as 0.4 dBi (1.1) according to [5]. This is most likely a very conservative assumption given the used transmission modes and antenna topology. The total effective radiated power for the omni-directional antennas is 0.1 W. As a consequence, the categorical exclusion provision of FCC CFR title 47, § 2.1091(c) applies [6] and the minimum test separation distance may be estimated by simple calculations according to plane-wave equivalent conditions [4]. The exposure ratio, , may be conservatively estimated as 2 Nominal output powerper port. 3 Conservative measure of the total maximum possible output power level delivered to the antennas including losses and tolerances. Band / Mode Nominal output power 2 (dBm) Tolerance, upper limit (dB) Transmission loss (dB) Maximum output power 3 (dBm) LTE B17a (700), 2x50mW1720.521.5 4 (4) EAB-14:071432 Uen, Rev B, 2015-01-08 = = 4 , where : Total conducted power for the cellular bands (21.5 dBm), : Separation distancefrom antenna(0.2 m), : Power density exposure limit of 4.89 W/m 2 . The result for a 20 cm test separation distanceis given in Table 3. Table 3 RF exposure assessment results for general public (uncontrolled) exposure as obtained for the RDS using procedures applicable for the US and Canadian markets [3], [4]. 3GPP bandStandard Nominal output power from the radio Test position 4 Test separation distance 5 Exposure ratio Result B17a (700)L2 x 0.05 W Direction of maximum gain 20 cm0.06 PASSED The exposure ratio is well below one. Hence, the RF EMF exposure is below the relevant exposure limits [1] for the 20 cm test separation distance. 5Conclusion The results in Section 4 show that the plane-wave equivalent power density, estimated according to the requirements of FCC [4] and Industry Canada [3], is below the relevant MPE limits [1] at a separation distance of 20 cm between the equipment and any nearby person. Consequently, the EUT is in compliance with the appropriate RF exposure standards and recommendations. 6References [1]FCC, Code of Federal Regulations CFR title 47, pa…

Text truncated - open the document above for the full version.
