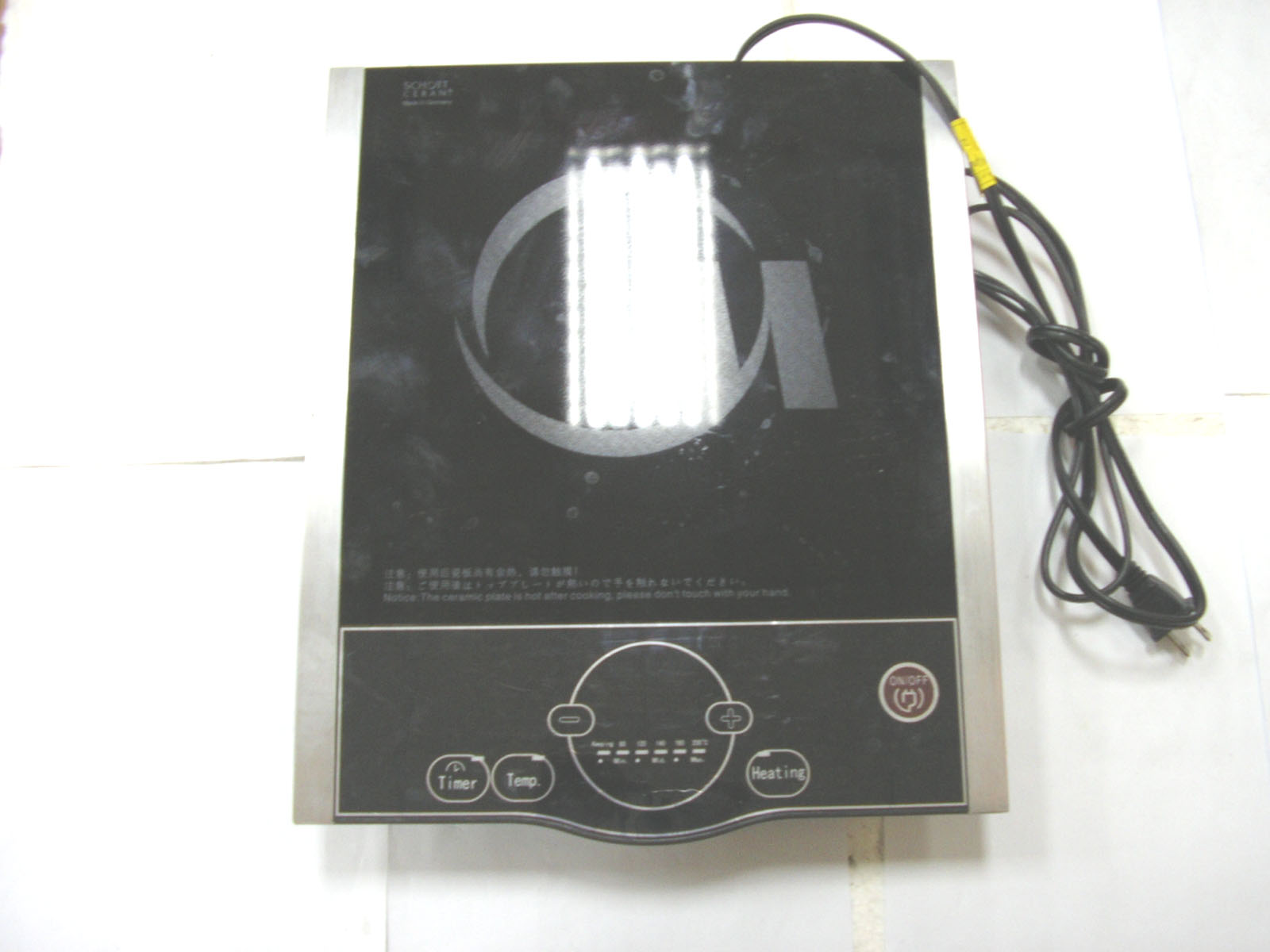

TAPMC-SF137Induction cooker

美的电磁炉功能模块示意图 EMC Filter Rectifier Module Power Control Module IGBT Power Module IGBT Tamp. Detector Driving Module 5V 18V DC Supply Voltage detector Current detector Control and Display Unit Holloware Tamp. Detector Fan Micro-processor Control Unit 120V/60Hz IGBT L C Oscillator

The IGBT is driven by the driving module which is contolled by the micro processor. The micro-processor unit get the control signal from the control unit, and check the cooking status from hollowing temperature detector, then generate the corresponding control signal to the driving module. The input voltage, working current and temperature were monitored for error working protection and power control. Control signal is input from control unit and send to the micro processor, and the work status of the induction cooker will be displayed.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 2-Feb-2005 Sheet of File: E:\myworkpcb\ \sy137\sy137.Ddb 杨传全 Drawn By: SF137-POWER-V01 C130805-471 RT275C +5V Q1 D667/sot23 18V R5 0805-5.1K* 12 CN2EH-2A 123 CN1 XH-3A R4 0805-10K* R20805-680 +5V VCC C10 471 R25 0805-8.2K* C12 0805-101 R28 0805-2.7K* R270805-10K* C342N2 ) 插件 R33 0805-56 +5V R22 0805-5.1K* R30 0805-10K* C14 0805-223 R350805-82K* R37 0805-0 R10 12K* C170805-471 EC6 2.2U/16V +5V R39 0805-4.7K R3 0805-20k* EC4 47uF/16V R24 0805-2K* R36 0805-100K* R32 0805-1K* R29 0805-200* R31 0805-1K* R41 0805-62K R42 0805-3.3K VCC Q3 8050/SOT23 Q4 8550/SOT23 R1510/1W/ 插件 R23 0805-4.3k* R34 0805-51K FUSE 15A/125V L 250# N250# CNR 10D221 AC 2 AC 3 + 1 - 4 DB1RS2006 L1 T131-52-44-1.4mH CT1 1:3000 IGBT1 G60N100B R26 0805-51K* R19 240K*/2W/ 插件 C3 0.4UF/800VAC C7 8UF/275VAC R140805-4.7K OUT2 四脚接线柱 OUT1四脚接线柱 R20 470K*/2W/ 插件 C4 0805-104 R13750 * EC5 2.2U/16V VCC D6 IN4007/ 贴片 D5IN4007/ 贴片 R9 330K*/2W 插件 R7 100K*/1/4W/ 插件 DEVICE CUR PWM INT K PAN C20 0805-221 DEVICE Z4 18V/0.5W/SOT23 浪涌 振荡 同步 电压 TMAIN VOL TIGBT BUZ15240 R1 0805-330 +5V FAN FAN LN +5V +5V t RT1 3450-100K R18 100K*/1/4W/ 插件 12 CN3 VR 500 R44 0805-10K Q5 8050/SOT23 R43 0805-4.7K C2 0805-221/50V VOLCURTMAINTIGBTPWMKPANINT C5 6.8UF/275VAC 98 14 U2C LM339/ 贴片 76 1 U2B LM339/ 贴片 1110 13 U2DLM339/ 贴片 54 2 312 U2A LM339/ 贴片 D154148/SOT23 D19 4148/SOT23 D11 4148/SOT23 D13 4148/SOT23 D12 4148/SOT23 D10 4148/SOT23 D234148/SOT23 D7 4148/SOT23 D84148/SOT23 OUT1 OUT2 FAN 123456789 101112 CN4 EC9 100U/25V C6 0805-104 EC3 100U/16V C11 0805-104 +5V Vin 1 GND 2 Vout 3 U1 7805(ST) 贴片 EC10 100U/16V R46 22R/2W /绕线电阻插件 D26 IN4007/ 贴片 EC11 22U/450V D29 HER203/BYV26C/ 插件 D28 UF4007/ 贴片 D27 UF4007/ 贴片 D25 IN4007/ 贴片 R47 100K/2W/ 插件 C36 103/500V/插件 1 2 97106 45 8 T1 TL-TB0408003 WHT16098/ 代用 插件 gnd 1 gnd 2 gnd 3 fvb 4 vcc 5 drain 7 vstr 8 U3 FSD200/ 插件 Q6 8050/SOT23 C37 0805-473/35V EC12 47U/16V R490805-330 Ω EC13 470U/25V Z1 18V/0.5W/SOT23 EC14 100U/16V L2 LGA0410 4R7K/ 插件 接风扇 此脚直接接电容 接风扇地 34 5 R50 100/1/2W/ 插件 18V VCC R48 0805-680K R16 220K/1W/ 插件 Q11 8050/SOT R8 0805-2K Q10 8050/SOT R11 0805-1K R12 0805-10K VCC R17390/1/2W/ 插件 I1 I2 +15V :1. , , 注 除电解电容 功率电阻和功率器件外其余均基本采用贴片器件 R21 470K*/2W/ 插件 C9 101 C150805-104 C18 0805-104/50V R38 0805-1K JP10805-0JP30805-0JP20805-0 R170805-1K D4 4148/SOT23 INT C1 8UF275VAC CF202/SF207 散热片同 BUZ+5VGND R510805-4.7k EC24.7U/16V L2 340uH 1234 A B C D 4 321 D C B A Title Nu mb erRe vi si o nSize B Da t e:2 9-Ap r-20 05She et o f File: C:\Documents and Settings\Administrator\\MC-SF1~1.DDBDra wn By : s18/int0/p3.3 1 tout/int1/p3.4 2 tack/int2/p3.5 3 tacap/int3/p3.6 4 Vd d 5 Vss 6 Xo uo t 7 Xi n 8 test 9 XTin/p0.0 10 XTout/p0.1 11 p0.2/resetb 12 p0.3/adc8 13 p0.4/com7/adc7 14 AVre f 15 p0.5/com6/adc6 16 p0.6/com5/adc5 17 p0.7/com4/adc4 18 p1.0/adc3/tbpwm 19 p1.1/adc2/buz 20 p1.2/adc1 21 p1.3/adc0 22 p1.4/com3 23 p1.5/com2 24 p1.6/com1 25 p1.7/com0 26 p4.0/s0 27 p4.1/s1 28 p4.2/s2 29 p2.0/s3 30 p2.1/s4 31 p2.2/s5 32 p2.3/s6 33 s7 / p2 . 4 34 s8 / p2 . 5 35 s9 / p2 . 6 36 s1 0/ p 2. 7 37 s1 1/ p 4. 3 38 s1 2/ p 4. 4 39 s1 3/ p 4. 5 40 s1 4/ p 4. 6 41 s1 5/ p 3. 0 42 s1 6/ rx d/ p 3. 1 43 s17/txd/p3.2 44 44-QFP44-QFP IC1 S3F9488-QFP EC1 100u/ 16u C8 104-0805 XTAL 8M R1 10K±5%(0805)*4 +5 S5S6 1 2 3 4 5 6 CN4 XH-6 A +5V GND TEST RESET PAN HV_ INT R9 1K±1%(0805) C3 1 04 / 50 V-08 05 *4 1 2 3 4 5 6 7 8 9 10 11 12 CN1 12 R2 R3 R4 I_AD V_ AD GND HV_ INT PWM PAN IGBT_EN FAN T_IGBT T_MAIN C4 C5 C6 +5 +5 TEST D1 R5R6R7R8 1K±5%*4 I_AD V_ AD T_IGBT T_MAIN 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 CN2 CON8 I_AD V_ AD T_IGBT T_MAIN HV_ INT PWM PAN IGBT_EN FAN R27 0805-470*8 R23 R24 R22 R21 Q1 8050-s ot23 R30 3. 3k(0805) RESET R26 R20 R25 C2 6 D 3 C 4 C4 2 NC 1 E 7 C1 8 G 9 F 10 C3 5 B 13 A 12 H 11 LED LED D2 D3 D4 1 N41 48 *4 Q2 8050-s ot23 R31 3. 3k(0805) Q3 8050-s ot23 R32 3. 3k(0805) Q4 8050-s ot23 R33 3. 3k(0805) Q5 8050-s ot23 R34 3. 3k(0805) Q6 8050-s ot23 R35 3. 3k(0805) L13 4 L16 4 L15 4 L14 3 L12 4 L8 4 L7 4 L6 3 L4 4

SGS-CSTC Standards Technical Services Co., Ltd . 1/F., Building No. 1, Agriculture Machinery Materials Co., Wushan Road, Shipai, Tianhe District, Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] Report No.: GLEMO050401185HSF Page: 1 of 10 FCC ID: TAPMC-SF137 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) FCC Test Report Application No.: GLEMO050401185HS Applicant: Guangdong MD Consumer Electric Electric Manufacturing Co., Ltd. Equipment Under Test (EUT): EUT Name: Induction Cooker Item No.: MC-SF137 Serial No.: Not supplied by client Standards: FCC PART 18: 2004 Date of Receipt: 29 April 2005 Date of Test: 30 April 2005 to 14 May 2005 Date of Issue: 20 May 2005 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMO050401185HSF Page: 2 of 10 FCC ID: TAPMC-SF137 2 Test Summary Test Test RequirementTest Method Class / SeverityResult Radiated Emission (9KHz to 30MHz) FCC PART 18: 2004 FCC / OST MP-5 : 198618.305 PASS Conducted Emission (9KHz to 30MHz) FCC PART 18: 2004 FCC / OST MP-5 : 198618.307 (a) PASS SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMO050401185HSF Page: 3 of 10 FCC ID: TAPMC-SF137 3 Contents Page 1 COVER PAGE ............................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T. .................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................4 4.6 TEST LOCATION......................................................................................................................................................4 4.7 TEST FACILITY........................................................................................................................................................5 4.8 DEVIATION FROM STANDARDS...............................................................................................................................5 4.9 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................................5 5 EQUIPMENTS USED DURING TEST.................................................................................................................6 6 TEST RESULTS......................................................................................................................................................7 6.1 CONDUCTED EMISSIONS MAINS TERMINALS, 9KHZ TO 30MHZ.............................................................................7 6.1.1 E.U.T. Operation........................................................................................................................................7 6.1.2 Test Setup..................................................................................................................................................7 6.1.3 Measurement Data....................................................................................................................................8 6.2 RADIATED EMISSIONS, 9KHZ TO 30MHZ...............................................................................................................9 6.2.1 E.U.T. Operation........................................................................................................................................9 6.2.2 Test Setup.....................................................................................…
