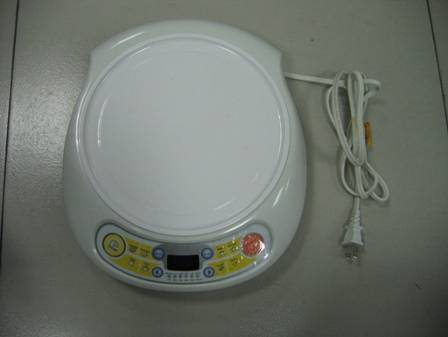

TAPMC-USQ13AInduction Cooker

Instruction Manual of Multi-function lnduction Cooker Model: MC-USQ13A Thank you for purchasing the Midea induction cooker, please read this instructions manual carefully before using and keep it cautiously after reading for your future reference. IMPORTANT SAFEGUARDS Save These Instructions. HOUSEHOLD USE ONLY. When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions before use the induction cooker. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock of the product or unit do not immerse cord, plugs in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors. 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 12. Do not use appliance for other than intended use. 13. WARNING – To prevent electric shock, unplug before cleaning. 14.This appliance has polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician, Do not attempt to modify the plug in any way. 15. Do Not cook on broken-Top –If cook-top should break, cleaning solution and spillovers may penetrate the broken cook-top and create a risk electric shock. 16. Clean Cook-Top with Caution – if a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface. 17. Any other servicing should be performed by an authorized services representative. 18. To disconnect, turn any control to "Off", then remove plug from wall outlet. 1 Ceramic plate Air entry Power Cord Air vent Designations of Parts Product Introduction Control panel MC-USQ13A Midea MC-USQ13A induction cooker comes with micro-computerized control and complete functions, is able to meet various kinds of cuisine demands by electromagnetic heating. It is the optimal choice. Midea induction cooker is made from imported material and advanced process for reliable performance, making cooking an enjoyable part of your life. 6 levels of power Control panel 2 Micro-computerized control, multiple functions Simple operation interface: personalized man-machine conversation interface, easy for operation. Multiple heating power choice: 6 levels of heating power choice, making your different cuisine demands come true. Flexible timing function: the timer can be set from 1 minutes to 180 minutes. Auto alarm function: relying on its internal detecting system, it is able to identify whether a pot is put on or whether the pot material satisfies the requirement. MC-USQ13A 1300W 343*300*68 120W-1300W 120V~50/60Hz Model Performance parameters Applied voltage/frequency 2.48 Power adjustment range Appearance dimension(mm) Weight (Kg) Performance Characteristics Rated power 2 3 3 High efficiency, saving time and electricity. Strong heating level with high heat efficiency makes cooking time-saving & convenient.Several protection functions make it safe & reliable. Over-heat protection: The induction cooker will shut down automatically when the temperature of the pot body is too high or the temperature inside the cooker is too high. Over current or voltage abnormality protection: In case voltage is abnormal or current changes suddenly, the induction cooker will shut down automatically. Having the function of detecting small articles: When the pot is less than 80 mm in diameter or small articles (knife, fork, nipper, forceps, key, etc.) exist or non- magnetic pots (such as aluminum pot) are detected, the buzzer will give out an alarm lasting for about 1 minute. In case the user has not put a proper pot in time, the induction cooker will shut down automatically. 1 minute automatic shut down protection: when the pot is removed, the induction cooker will shut down 1 minute later. Hot pot Press the "Hot pot" button to enter the hot pot working mode. Press the "+" or "-" button to adjust power level 1-6. Braise Press the "Braise" button to enter the braise working mode. Fry Press the "Fry" button to enter the fry working mode. Press the "+" or "-" button to adjust power level 1-6. Roast Press the "Roast" button to enter the roast working mode. Press the "+" or "-" button to adjust power level 1-6. Rice Press the "Rice" button to enter the cooking rice working mode. Porridge Press the "Porridge" button to enter the porridge working mode. After the working process is end, the cooker will enter into the 2 hours keep warm mode and then shut down automatically. Boil Press the "Boil" button to enter the boil working mode. After the water is boiled away for a while, the cooker will shut down automatically. Operation Instructions 4 5 4 Free from any dangerous accidents such as leakage, explosion, flame burn that commonly happen to gas cookers. During the cooking, it does not generate any flame or smoke and facilitates the improvement of household environment and personal health, making cooking easy and safe. Advanced ceramic plate, resistant to high temperature and easy to clean and maintain. After the power supply is connected, the buzzer will sound and the cooker is in the state of …

Text truncated - open the document above for the full version.

- Permanent Confidentiality Letter Example- 2007-10-16 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mils Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: TAPMC-USQ13A To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, 2007-10-16

Applicant letterhead AUTHORIZATION LETTER To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: FCC ID:TAPMC-USQ13A We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by SGS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, 2007-10-16 -------------------------------------- Name & Title, Date: IAN PAN(Certificate Administrator) Applicant:Guangdong Midea Consumer Electric Manufacturing Co.,Ltd Tel: +86-757-2633-4263 Fax: +86-757-2633-4195 Email:[email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 26, 2007 RE: ATCB005547 FCC ID: UH5M06565 I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. Block diagram: What is the oscillating frequency value operated in the oscillate module on the block diagram. Please show the oscillating frequency value into the oscillate module. 2. Test report: The limit for radiated emission on section 6.1 and for conducted emission on section 6.2 did not follow FCC part 18. Please refer to FCC part18.305 for radiated emission limit and part 18.307 for conducted emission limit. 3. User manual: Please indicate where I may see information to the user (a) and (c) shown in your user manual according to § 18.213. Please refer to “FCC Part 18.213 Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of ISM equipment: (a) The interference potential of the device or system (b) Maintenance of the system (c) Simple measures that can be taken by the user to correct interference.” I The following corrected test report is supplied on behalf applicant. ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Sorry. The unit in page 8/9 of report showing dBμA/m is wrong copy of other template, have revised to dBμV/m as below. QP Level Limit (dBμV/m) (dBμV/m) We calculated as below. Limit@10m = 1500*30/10 = 4500μV/m => 40log(4500) = 40 x 3.653 = 146.1 dBμV/m The revised report has been uploaded to website.

1. Block diagram: What is the oscillating frequency value operated in the oscillate module shown on the block diagram. Please show the oscillating frequency value into the oscillate module. The revised block diagram has been uploaded to website. 2. Test report: The limit for radiated emission on section 6.1 and for conducted emission on section 6.2 did not follow FCC part 18. Please refer to FCC part18.305 for radiated emission limit and part 18.307 for conducted emission limit. For Conductive limit, we did find any deviation between both: In standard 18.307 table a) in report For radiated limit, same: in report, all are 146.1 dBμV/m @ 10m, in table of standard 18.305 b), limit is 1500 dBμV/m @ 30m, according to 15.31 f), they shall be equivalent. 3. User manual: Please indicate where I may see information to the user (a) and (c) shown in your user manual according to § 18.213. Please refer to “FCC Part 18.213 Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of ISM equipment: ٛ.(a) The interference potential of the device or system ٛ.(b) Maintenance of the system ٛ.(c) Simple measures that can be taken by the user to correct interference.” The client added below information to user manual. The revised user manual has been uploaded to website.

美的电磁炉关键元器件清单 第 1 页 共 4 页 PART LIST PRODUCT : Induction cooker MODEL : MC-USQ13A RATING :120V/60Hz, 1300W Item Parts name Manufacturer Specification/ material Approval( 认 证 ) Remark( 备注 ) Power cord 电源线 UNIRISE ELECTRONICS CO HPN 16AWG/2C 105 °C ,300V E176069 Alternate SHUNDE HUASHENG ELECTRICAL INDUSTRIAL CO LTD HPN 16AWG/2C 105°C ,300V E230919 1 Alternate Chau’s electrical co.,ltd HPN 16AWG/2C 105 °C ,300V UL E114235 Plug 插头 UNIRISE ELECTRONICS CO 125V/15A UE-221 E206144 Alternate SHUNDE HUASHENG ELECTRICAL INDUSTRIAL CO LTD 125V/15A E230920 2 Alternate Chau’s electrical co.,ltd 125V/15A E124163 3 Enclosure 外壳（面盖） ZHONGSHAN NAPU ENGINEERING PLASTIC CO., LTD 94V-0 ABS-FR E238086 4 Cover 底座 ZHONGSHAN NAPU ENGINEERING PLASTIC CO., LTD 94V-0 ABS-FR E238086 5 Ceramic 陶瓷板 NEG. Co Min 4mm thick Test with the appliance 6 Silicone adhesive 电子硅酮 胶 GUANGZHOU BAIYUN CHEMICAL INDUSTRY CO LTD SKF323 UL E252101 7 Control Panel pad 控制面 板 SKC Co., Ltd SH71S 94VTM-2 105 °C UL E 74359 NITTO DENKO CORP 5015U 80 °C UL MH13557 8 Bushing 线扣 HEAVY POWER CO LTD 5N-4 75 °C UL E107293 美的电磁炉关键元器件清单 第 2 页 共 4 页 9 Inductive Coil Supporting 线圈盘材料 JIANG YIN YONGTONG CHEMICAL CO., PBT-4308G30/94V-0 UL E139063 GUANGZHOU KINGFA SCIENCE & TECHNOLOGY CO LTD 金发 PBT-RG301 UL E171666 10 绝缘套管 SHUNDE BEIJIAO LIANDA CO LTD UL E218446 11 电源线端子 Quick-connect Terminals GEM TERMINAL IND CO LTD 99798L UL E135745 保护器 CHANGZHOU CITY CHANGLIAN RADIO CO LTD KW AC250V 130 °C UL E206737 12 Alternate DONGYANG HENGDIAN THERMAL PROTECTOR FACTORY KSD-II AC250V 130 °C UL E213246 13 IGBT 上的热敏电阻 Thermo-resistance holder ( 硅 胶座 ) Dong Jue Fine Chemicals (Nanjing) Co., Ltd NE-Z160 94V-0, 150 °C UL E236040 14 NTC SHIBAURA ELECTRONICS CO LTD PTN-51F Tmax (C) 300 UL E225177 15 Mica sheet SHENZHEN MICA ELECTRIC MATERIAL LTD HP5 94V-0 200 °C E 129729 16 Fan 风机 SHENZHONG XU HONG ELECTRONICS CO. ， LTD TD1225MS UL E239037 Alternate YUHONG MICROMOTOR CO LTD YHWF-118 UL E254836 17 PCB 胶片 SKC Co., Ltd SH71S 94VTM-2 105 °C UL E 74359 Alternate SP PACIFIC LTD FR7 （ V-0 ） UL E141248 18 PWB FOSHAN SHUNDE HAIYA PCB 2, 94V-0 UL E198946 Alternate SHUNDE JUNDA ELECTRONIC CO LTD JD-D, 94V-0 UL 173873 美的电磁炉关键元器件清单 第 3 页 共 4 页 Alternate ZHUHAI FOREWIN FLEXTRONICS 0886Y4S0, 94V-0 UL E308304 19 Tubing 热缩套管 SHENZHEN WOER HEAT-SHRINKABLE MATERIAL CO LTD RSFR-x 600V 125 °C UL E203950 20 扎带 Cable Tie CHANGHONG PLASTIC CO LTD CHS-30X80 E203148 21 排线线扣 ASAHI KASEI CHEMICALS CORP PA66 94V-2 1300S E48285 22 电源线端子绝缘套管 FOSHAN FANGPU PVC DIPPING CO LTD Series FP 600V 105 °C E185697 23 Switch Transformer Dongguan Dazhong Elect ric Co., Ltd MD-EE16E Test with the appliance 24 Current Transformer Dongguan Dazhong Electric Co., Ltd DZ1930006B Test with the appliance 25 Bridge rectifier RECTRON LTD VRRM 700V I=25A Tj=-55 °C to 150 °C E94233 26 Power dynatron IGBT FAIRCHILD 仙童 FGL60N100B FUSE 保险管 SUN ELECTRIC CO., 15A 125V/250V E166522 27 Alternate HOLLYLAND CO LTD 15A 125V/250V UL E156471 28 Varistor 压敏电阻 CENTRA SCIENCE CORP. CNR 10D241K UL E150709 29 Coil Choke ( L3) 电感 Dongguan Dazhong Electric Co., Ltd 塑料厂家： E I DUPONT DE NEMOURS & CO INC 250V 4.4 mH 塑料件材料 型号： S650FR 94V-0 130 °C UL E41938 30 Coil Choke L4 Dongguan Dazhong Electric Co., Ltd 250V 220uH 31 X capacitor 电容 FOSHAN SHUNDE FONGMING ELECTRONIC TECH CO LTD CBB61 275VAC. 5-6.8uF T90 UL E215893 美的电磁炉关键元器件清单 第 4 页 共 4 页 SHUNDE CHUANGGE ELECTRONIC INDUSTIAL CO.,LTD CBB61 275VAC. 5-6.8uF T90 UL E228621 FOSHAN SHUNDE DAHUA ELECTRIC CO.,LTD CBB6-1 275VAC. 5-6.8uF T90 UL E162459 32 连接端子 FAMFULL ELECTRONICS CO LTD SM UL E241222 33 端子 JOINT TECH ELECTRONICS INDUSTRIAL CO LTD C2505 UL E179987

SGS-CSTC Standards Technical Services Co., Ltd . No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GLEMR070902950HST Page: 1 of 12 FCC ID: TAPMC-USQ13A Authorized Signature: Jerry Chen Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. Test Report Application No.: GLEMR070902950HS Applicant: Guangdong MD Consumer Electric Manufacturing Co., Ltd FCC ID: TAPMC-USQ13A Equipment Under Test (EUT): EUT Name: INDUCTION COOKER Item No.: MC-USQ13A Serial No.: Not supplied by client Standards: FCC PART 18: 2006 Date of Receipt: 26 September 2007 Date of Test: 11 and 12 October 2007 Date of Issue: 16 October 2007 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMR070902950HST Page: 2 of 12 FCC ID: TAPMC-USQ13A 2 Test Summary Test Test RequirementTest Method Class / SeverityResult Radiated Emission (9KHz to 30MHz) FCC PART 18: 2006 FCC OST/ MP-5:1986 18.305 PASS Conducted Emission (9KHz to 30MHz) FCC PART 18: 2006 FCC OST/ MP-5:1986 18.307(a) PASS SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMR070902950HST Page: 3 of 12 FCC ID: TAPMC-USQ13A 3 Contents Page 1 COVER PAGE ............................................................................................................................................1 2 TEST SUMMARY .......................................................................................................................................2 3 CONTENTS ................................................................................................................................................3 4 GENERAL INFORMATION........................................................................................................................4 4.1 CLIENT INFORMATION................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................4 4.3 DETAILS OF E.U.T. ...................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS.............................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING......................................................................................................4 4.6 TEST LOCATION........................................................................................................................................4 4.7 TEST FACILITY..........................................................................................................................................5 4.8 DEVIATION FROM STANDARDS...................................................................................................................5 4.9 ABNORMALITIES FROM STANDARD CONDITIONS..........................................................................................5 5 EQUIPMENTS USED DURING TEST .......................................................................................................6 6 TEST RESULTS .........................................................................................................................................7 6.1 RADIATED EMISSION, 9KHZ TO 30MHZ......................................................................................................7 6.1.1 E.U.T. Operation ............................................................................................................................7 6.1.2 Test Setup......................................................................................................................................7 6.1.3 Measurement Data ........................................................................................................................8 6.2 CONDUCTED EMISSIONS, 9KHZ TO 30MHZ..............................................................................................10 6.2.1 E.U.T. Operation ..........................................................................................................................10 6.2.2 Plan View of Test Setup ..............................................................................................................10 6.2.3 Measurement Data ................................................................................................................ 11-12 SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMR070902950HST Page: 4 of 12 FCC ID: TAPMC-USQ13A 4 General Information 4.1 Client Information Applicant: Guangdong MD Consumer Electric Manufacturing Co., Ltd Address of Applicant: 19 Sanle Road, Beijiao, Shunde, Foshan, Guangdong, P.R. China 4.2 General Description o…
