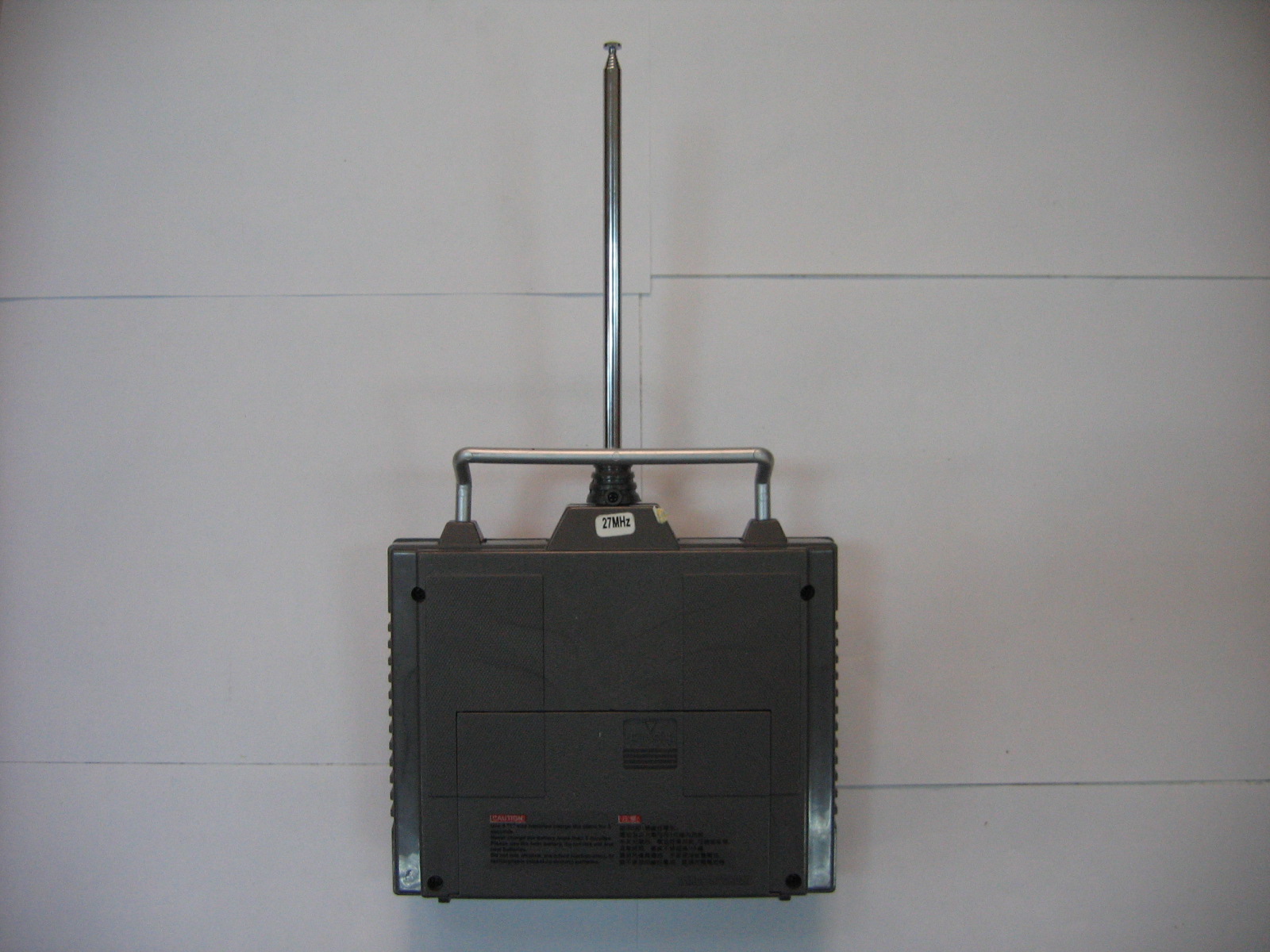

TAX329430Remote Control Toy Transmitter

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

FCC ID Location FCC ID Label Sample F C C I D : TAX 329430 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Receiver Part: 1. System power supply:7.2-Volt 2. Antenna and receiving diagram receive the controlling signal which matched the receivable frequency. 3. Decoded by IC RX-2, control the corresponding part: Enlarge, the decipher. After the decipher circuit will receive the signal decipher , if advance the signal, then the foot exports the high level, Leading every open triode separately, the electrical machinery is rotating, the plane advances , and so on and so forth other functions! 6 - 7 - 10 - 11 of RX-2,, 12 foot respectively for turn right , turn left , go backwards , advance output end of function of accelerating etc Transmitter part: 1.System power supply:12-volt 2.Press the Forward, Backward, Leftward, Right-ward, Turbo key to control Forward, Backward, Left or Right Quicken up function of Hovercraft. 3.IC1 TX-2B send out encode signal, enlarged by circuitry and carrier wave, transmitted by antenna and transmit circuitry.

Report No.: GLEMO050401179RFF(I) Page: 1 of 13 FCC ID: TAX329430 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMO050401179RF Applicant: KAYA TOYS ENTERPRISES LIMITED Buyer: JC PENNEY FCC ID: TAX329430 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: FLY SKY BAT Model No.: 222, 198, 215, 221, 228, 231, 235, 236, 240, 241♣ ♣ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standards: FCC PART 15, SUBPART C : 2004 Section 15.227 Date of Receipt: 28 April 2005 Date of Test: 13 to 20 May 2005 Date of Issue: 30 May 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: TAX329430 Report No.: GLEMO050401179RFF(I) Page: 2 of 13 SGS-CSTC Standards echnical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.227 PASS * Occupied Bandwidth FCC PART 15 :2004 Section 15.227 PASS Remark: ♣ Model No.: 222, 198, 215, 221, 228, 231, 235, 236, 240, 241 Only the Model 222 was tested, since the electrical circuit design, PCB layout, Electrical components used were identical for the above models. * The EUT passed Radiated Emission test after the modification as shown as the below 1. Added one resistor and three capacitors as the below: R101: 1kΩ, C101: 82pF, C102: 820pF, C103: 0.1μF. . Please refer the section 6 of this report and circuit diagram for the detail. FCC ID: TAX329430 Report No.: GLEMO050401179RFF(I) Page: 3 of 13 SGS-CSTC Standards echnical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 DETAILS OF E.U.T............................................................................................................................................ 4 4.3 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 4 4.4 TEST LOCATION................................................................................................................................................ 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 4 4.6 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS.......................................................................................................................................... 6 5.2 E.U.T. OPERATION........................................................................................................................................... 6 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 6 5.3.1 Radiated Emissions...................................................................................................................................6 5.3.2 Occupied Bandwidth.................................................................................................................................9 5.3.3 Photographs - Radiated Emission Test Setup in Chamber...............................................................10 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS................................................................…
