TAXKY251RC Helicopter Control

FCC ID：TAXKY251 MADE IN CHINA This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and(2) this device mustaccept any interference received,including interference that may cause undesired operation.

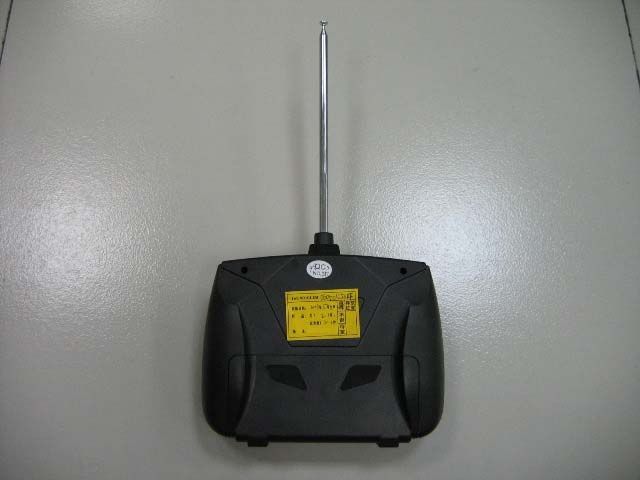

Receiver part : 1. System power supply:7.2-Volt 2. Antenna and receiving diagram receive the controlling signal which matched the receivable frequency. 3. IC RX-2 drive the decode and control related component:Q3.Q4.Q5.Q9.F1 Transmitter part: 1.System power supply:12-volt 2.Press the TURBO, BACK, FRONT ,LEFT, RIGHT key to control Forward, Backward, Left or Right function of Helicopter. 3.IC TX-2 send out encode signal, enlarged by circuitry and carrier wave, transmitted by antenna and transmit circuitry.

Material detailed list Customer goods number:251# airplane shoots the plank frequency:27 MHZs NO. A name Model number specificationUse to anticipate the position Dosage 1 Scaleboard CC0655A 1 2 Light plank CC0655C 1 3 IC TX-2B U1 1 4 Crystal 27.145 Y1 1 5 The electricity feels 0410-4.7μH L2.L3 2 6 0410-10μH L1 1 7 It is steady to press 3.6V D1 1 8 Triode transistor 945 Q1 1 9 8050中B Q4 1 10 8550中B Q3 1 11 9014 Q2 1 12 The porcelain lies 47P C4.C16 2 13 10NF C7.C8.C9.C10.C11.C12.C13.C15 8 14 100NF C1.C5 2 15 Electric resistance 1/6W 22Ω R8 1 16 560Ω R9 1 17 220Ω R1 1 18 33K R5 1 19 10K R3.R4.R6.R7 4 20 180K R2 1 21 2.2K R10.R11 2 22 Electrolysis 6.3×7 220Μf/10V C2 1 23 LED Red and short feet in a red in Φ D2 1 24 Green and short feet in a green haiD3 1 25 Turn a switch 48#5MM SW1 1

Report No.: GLEMO060401053RFI Page: 1 of 11 FCC ID: TAXKY251 Authorized Signature: Jerry Chen Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMO060401053RF Applicant: KAYA TOYS ENTERPRISES LIMITED FCC ID: TAXKY251 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: DRAGON FLY Model No.: 251 、 252 、 249 、 262 、 265 、 266 、 263 、 271 、 272 、 276 Standards: FCC PART 15, SUBPART C : 2004 Section 15.227 Date of Receipt: 12 May 2006 Date of Test: 19 May to 05 June 2006 Date of Issue: 06 June 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: TAXKY251 Report No.: GLEMO060401053RFI Page: 2 of 11 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.227 PASS① Occupied Bandwidth FCC PART 15 :2004 Section 15.215 PASS② Remark: ① ② The EUT passed the Radiated Emission test and Occupied Bandwidth after modification, please refer to the following information for further details. Changed the circuit diagram as the following figure shown: C1: 150pF; C2, C3, C4: 47 pF; C5: 0.1μF; L1: 5.6μH, L2, L3: 2.2μH; R1: 10kΩ; R2: 100Ω; R3: 47 kΩ; Q1: C9016 NPN; Q2: C945 NPN. Item No.: 251、252、249、262、265、266、263、271、272、276 Only the item 251 was tested, since the circuit design, PCB layout, electrical parts and internal wiring of items 252、249、262、265、266、263、271、272、276 were identical to the basic item 251. FCC ID: TAXKY251 Report No.: GLEMO060401053RFI Page: 3 of 11 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 DETAILS OF E.U.T............................................................................................................................................ 4 4.3 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 4 4.4 TEST LOCATION................................................................................................................................................ 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 4 4.6 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS.......................................................................................................................................... 6 5.2 E.U.T. OPERATION........................................................................................................................................... 7 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth..........................................................................................................................10-11 FCC ID: TAXKY251 Report No.: GLEMO060401053RFI Page: 4 of 11 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant Name: KAYA TOYS ENTERPRISES LIMITED Applicant Address: 7/F., Kin On Commercial Building, 49-51 Jervois Street, Sheung Wan, Hong Kong. 4.2 Details of E.U.T. Name: DRAGON FLY Model No.: 251 、 252 、 249 、 262 、 265 、 …
