TAXJY0329My First Car

Kaya Toys Enterprises Limited
My First Car - FCC ID TAXJY0329 - Kaya Toys Enterprises Limited
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Aug 17, 2010
Application Purpose
Original Equipment
Date of Application
Aug 17, 2010
Equipment Note
My First Car
Frequency Range
27.14500000 - 27.14500000
Company
Kaya Toys Enterprises Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

Cover Letter(s)

β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Operational Description

β†—

Schematics

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ITEM# 5088R MY FIRST CAR INSTRUCTION MANUAL Illustrations are representative only, design and style may vary. KAYA TOYS ENT., LTD LIMITED WARRANTY This product is warranted against defects in materials and workmanship for a period of 90 days from date of original purchase.Service will be accepted against purchase invoice only. Keep your receipt from the original purchase in case of any warranty claims and service. Warranty does not cover failures that result from misuse or abuse. Any questions, help or need for service during warranty period please contact us: P.O. Box address: KAYA Toys P.O. Box 320,Manteno, Illinois 60950 Email.: [email protected] (Easy,correctly and directly to manufacturer to handle service) or call tollfree: 866-781- 2266 Kaya Toys Service Centre *********************************************************** Do not return any items to distributor, store, or any sellers or Service center without a pre - approved authorization. They will not accept any returns or reimburse any cost incured. All returns must be sent pre - paid and customer is responsible for all other related shipping and handling charges. ************************************************************ Please carefully read this manual before use and keep for future reference. WARNING: Assembly should be done by adults only. Never allow children to play with the small parts or the plastic bag the vehicle is placed in. Injury may occur. Small parts could be a choking hazard! Polybags could be a suffocation hazard to small children. Dispose of these bags in appropriate refuse container. Speed: 2MPH, 2.5 km/hr Battery: One 6V4.5AH sealed dry cell battery Time for charging: 8 – 12 hours after each use Ages: 2 – 5 Load Max capacity: 55 pounds/ 25kgs. Charger: Input 120 Volt, depending on local voltage; Output – DC 6V500mA Life of Battery: Approximately 200 hours, 300 times. Depending on usage. Working time: About 40 miniutes to 90 minutes, depending on rider,road surfce and whether battery was fully charged. Function: Forward,backward,stop, horn sound and engine sound. IMPORTANT: ASSEMBLY INSTRUCTIONS TECHNICAL DATA PARTS LIST To prolong battery life, you must recharge the battery after each use. You must also charge your battery if it has not been used for 30 days or more. 1 Vehicle Body Controller Steering Wheel Rear Mirror Roll Bar with nut and bolt W WARNING: ADULT ASSEMBLY REQUIRED! Charger ASSEMBLY OF VEHICLE Tools Needed: 1 Phillips head screwdriver ( not included). 2 1. Remove the bolt and nut from the steering wheel with screwdriver. 2. Place the steering wheel on the steering rod, align the hole of the steering wheel with the hole of the steering rod. Insert the bolt. Tighten the bolt and tighten the nut securely with a screwdriver. 2 2 3 1 STEP 2 STEP 1 1. Insert the rear mirrors into the holes of the car body until they click into the position. Make sure the rear mirrors can’t be drawn out easily. STEP 3 1. Insert the roll bar into the holes of the car body until they click into the position. Make sure the roll bar can’t be drawn out easily. 3 CONNECTING THE VEHICLE BATTERY 1. Use a phillips head screwdriver to remove the screw at the front of the seat. 2. Remove the seat. 3. Plug the wire connector into the battery connector. 4. Insert the tabs on the back of the seat into the slots in the vehicle. 5. Use a philips head screwdriver to screw and secure the seat to the vehicle body. CHARGING THE BATTERY 1. The vehicle charging input socket is under the front of the seat,plug the charger port into the input socket. 2. 3. After 8 -10 hours fully charged, unplug the charger plug from the wall outlet and unplug the charger port from the input socket on the vehicle. 1 2 Plug the charger plug into the the wall outlet as shown. 1. The battery compartment is located unde the seat. The seat is installed in factory. For first use,unscrew the seat and lift it away from the vehicle to expose the battery compartment to connect battery. 2. The factory connected and secured all the wires to the battery terminals so they can’t be easily removed. The factory connected the red wire to the red battery terminal and the black wire to the black terminal. Please note never try to connect Red to Black or Black to Red or a short circuit will occur! 3. Make sure the battery is connected for use before you install the seat! 1. The charger is not a toy. The battery should be charged by adults only. 2. Do not allow children to play with the charger or to recharge the battery. 3. Before the first use, you should fully charge the battery for 8-12 hours. Do not recharge the battery for more than 15 hours to avoid overheating the charger. 4. To recharge the battery, plug the charger into household wall outlet,the battery will begin charging. After the battery are fully charged, unplug the charger from the battery and wall outlet. 5. It is normal for the charger to feel warm during charging, but if the charger feels very hot, stop charging and check the battery and charger for damage. 6. When the vehicle begins to run slowly, recharge the battery. 7. To lengthen the life of the battery, always recharge the battery before storing and at least every three months thereafter. 8. Use only battery of same type as recommended by the manufacturer. 9. Do not connect the battery terminals directly or the vehicle will short circuit. 10. Charger should be examined regularly for damage to the cord, plug, and other parts. Any damage is found,charger should be repaired or replaced immediately. 11. Do not use a damaged charger. IMPORTANT: To prolong battery life, you must recharge the battery after each use.You must also charge your battery if it has not been used for 30 days or more. RECHARGING PRECAUTIONS AND WARNING CAUTION: 4 INSTALLING THE CONTROLLER BATTERIES In order to use the vehicle remote control function, first install the batteries for controller. 1. Open the battery compartment by unscrewing the cover on the back of the controller. Note…

Text truncated - open the document above for the full version.

Block Diagram

Control Key K1-K4 IC1 TX-2B 27.145 MHz VT1-2 XTAL 27.145 MHz 3V

Cover Letter(s)

 1 "I, an officer of KAYA TOYS ENTERPRISES LIMITED do hereby authorize Intertek Testing Services (Mr. Ben Ho) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in Β§1.2002(b) of CFR 47, 2006) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 10 day of JULY 28 2010 By SUNMY LEE Signature Printed Title SALES MANAGER Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

External Photos

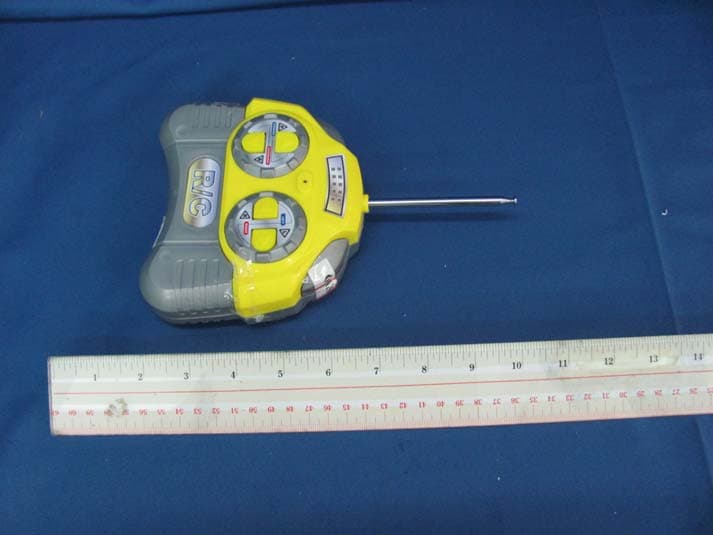

FCC ID: TAXJY0329 Ophoto1 Ophoto2 FCC ID: TAXJY0329 Ophoto3 Ophoto4

Internal Photos

FCC ID: TAXJY0329 Iphoto1 Iphoto2 FCC ID: TAXJY0329 Iphoto3 Iphoto4

Operational Description

FCC ID: TAXJY0329 Technical Description : The brief circuit description is listed as follows : - IC1(TX-2B) and associated circuit act as Encoder - XTAL, VT1 and associated circuit act as 27.145MHz Oscillator - VT2 and associated circuit act as RF Modulator and Amplifier - K1 – K4 and associated circuit act as Control stick Antenna Used : Telescope-type antenna with unique antenna connector.

Schematics

27.145MHz

Test Report

INTERTEK TESTING SERVICES Report No.:HK10070233-1 Sample No.:1/2 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

Test Report

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10070233-1 Kaya Toys Enterprises Limited Application For Certification (Original Grant) (FCC ID: TAXJY0329) Transmitter Prepared and Checked by: Approved by: Signed On File Cheung Hung Ngai, Mark Lead Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: August 16, 2010 INTERTEK TESTING SERVICES Report No.: HK10070233-1 FCC ID: TAXJY0329 i GENERAL INFORMATION Kaya Toys Enterprises Limited MODEL: 5088R FCC ID: TAXJY0329 Grantee: Kaya Toys Enterprises Limited Grantee Address: 7/F., Kin On Commercial Building, 49-51 Jervois Street, Sheung Wan, Hong Kong. Contact Person: Sunmy Lee Tel: 86 769 8282719 Fax: 86 769 82827192 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 5088R Additional Model: B16R, 5068R, 001R, 002R, 003R, 005R, 8008R, 8009R, and 8007R Additional Model: Transmitter Description of EUT: My First Car Serial Number: N/A FCC ID: TAXJY0329 Date of Sample Submitted: July 05, 2010 Date of Test: July 17, 2010 Report No.: HK10070233-1 Report Date: August 16, 2010 Environmental Conidtions: Temperature: +10 to 40Β°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10070233-1 FCC ID: TAXJY0329 ii SUMMARY OF TEST RESULT Kaya Toys Enterprises Limited MODEL: 5088R FCC ID: TAXJY0329 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10070233-1 FCC ID: TAXJY0329 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results .........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICES Front View Back View Radiated Model No.: 5088R Job No.: HK09070233-1 A ; B Β† Radiated Model No.: 5088R Job No.: HK09070233-1 A Β† B ;

Contact Information

Applicant

Lee Sunmy(Manager)
[email protected]+852-28516020Fax: +852-28542875

Technical Contact

Intertek Testing Services Hong Kong LtdBen Ho
[email protected]852-2173 8505

2/F Garment Centre Β· Kowloon Β· Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong LtdBen Ho
[email protected]852-21738505

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
115C27.145 MHz - 27.145 MHz-
