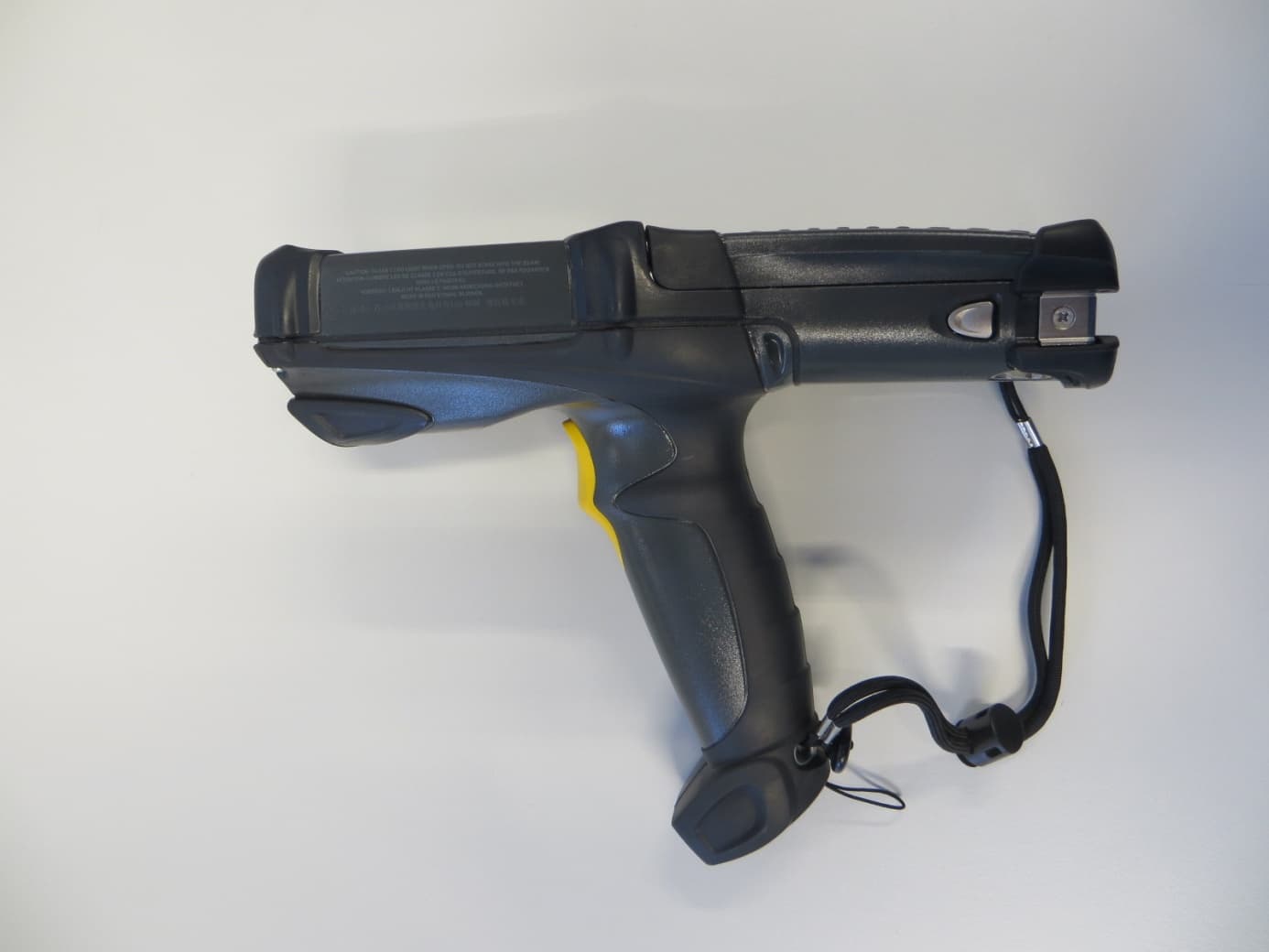

TBUHFG3RFID Reader

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Deutschland Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Management: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg Long/Short term Confidentiality Request 2015-01-15 FCC ID: TBUHFG3 To whom it may concern: Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Integration Manual Operational Description (End users may not be provided with this module installation instructions) In addition we hereby request the following exhibits contained in this application to be tempo- rarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and pro- vide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this applica- tion. Thank you for your attention in this matter. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Germany Handelsregister München HRB 85742 Id.-Nr.: DE 129484267 Bankverbindung: HypoVereinsbank München Kto. 48 852 211 • BLZ 700 202 70 Aufsichtsratsvorsitzender: Dirk Eilers Geschäftsführer: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Deutschland PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL 2015-10-05 To Whom It May Concern: We, on behalf of the applicant Bartec GmbH, Max-Eyth-Strasse 16, 97980 Bad Mergentheim, Germany, hereby request for part 15 unlicensed limited single modular transmitter approval of our device, described as follows: Brand name: Bartec Model name: MC92N0ex RFID-HF RFID-HF INTERNAL FCC ID: TBUHFG3 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered require- ments that our device complies with: 1. The modular transmitter must have its own shielding. The transmitter has no shielding and therefore it was tested in host configuration. 2. The modular transmitter must have buffered modulation/data inputs Compliant, see schematic diagram HF Reader internal, drawing number 11-A1A2-610028-SCH (component U3) 3. The modular transmitter must have its own power supply regulation Compliant, see schematic diagram HF Reader internal, drawing number 11-A1A2-610028-SCH (component U5, U6) 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The antenna is mounted solely by the applicant and is fully installed in the host device. Any change from others than responsible party is excluded and comply with 15.203 and 15.204c. Seite 2 von 2 Handelsregister München HRB 85742 Id.-Nr.: DE 129484267 Bankverbindung: HypoVereinsbank München Kto. 48 852 211 • BLZ 700 202 70 Aufsichtsratsvorsitzender: Dirk Eilers Geschäftsführer: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Deutschland 5. The modular transmitter must be tested in a stand-alone configuration The transmitter was tested in host configuration, because the RF module hasn ́t its own shield- ing. 6. The modular transmitter must be labelled with its own FCC ID number Compliant, the module is labelled with its own FCC ID. In addition the host device is labelled with “contains FCC ID TBUHFG3”. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Compliant, the module complies with the appropriate FCC regulations as documented in the test report 8. The modular transmitter must comply with any applicable RF exposure requirements. RF Exposure/SAR on Host Device with maximum hardware mounted. The RF module is exempted from SAR, because it will be used with outstretched hands (>20cm). The RF module functionality will be triggered manually by hand. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

Host Device with FCC ID TBUMC92N0EX / IC: 5736C-MC92N0EX Host Device with FCC ID TBUMC92N0EX / IC: 5736C-MC92N0EX Host Device with FCC ID TBUMC92N0EX / IC: 5736C-MC92N0EX

 FCC ID TBUHFG3  IC: 5736C-HFG3 Model: MC92N0ex RFID-HF INTERNAL Bartec GmbH

FCC ID TBUHFG3 IC: 5736C-HFG3 FCC ID TBUHFG3 IC: 5736C-HFG3 FCC ID TBUHFG3 IC: 5736C-HFG3 FCC ID TBUHFG3 IC: 5736C-HFG3

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 20820838-50305-04 (Edition 7) „Transmit Simultaneously“ Applicant: Bartec GmbH Type of equipment: Mobile Computer with Bartec HF Reader Type designation: MC92N0ex RFID-HF INTERNAL Order No.: 100-6381640 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-GEN Issue 4, Sections 8.8, 8.9 and 8.10 (Category I Equipment) October 5, 2015 Page 1 of 51 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-04 (Edition 7) Page 2 of 51 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 6 3 Identification of the Test Laboratory ............................................................................... 7 4 Summary ........................................................................................................................ 8 5 Operation Mode and Configuration of EUT .................................................................... 9 6 Measurement Procedures ............................................................................................ 11 6.1 Conducted AC Powerline Emission ....................................................................... 11 6.2 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 13 6.3 Radiated Emission in Fully or Semi Anechoic Room ............................................. 15 6.4 Radiated Emission at Alternative Test Site ............................................................ 17 7 Photographs Taken During Testing .............................................................................. 19 8 Test Results ................................................................................................................. 23 8.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 24 8.2 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 26 8.3 Radiated Emission Measurement 30 MHz to 40 GHz ........................................... 30 9 Referenced Regulations ............................................................................................... 47 10 Test Equipment List with Calibration Data .................................................................... 49 11 Revision History ........................................................................................................... 51 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-04 (Edition 7) Page 3 of 51 Pages 1 Description of the Equipment Under Test (EUT) General data of Mobile Computer: Type designation 1 : Mobile Computer Type of equipment: MC92N0 Manufacturer: Motorola Solutions, Inc. FCC ID: TBUMC92N0EX Comment: Including WLAN 2.4GHz & 5 GHz & BT (see details below) Data of the RFID Part: Type designation 2 : MC92N0ex RFID-HF INTERNAL Type of equipment: Mobile Computer with Bartec HF Reader Manufacturer: Bartec GmbH Serial number(s): 1415600501068 Version: As delivered FCC ID: TBUHFG3 Industry Canada ID: 3736C-HFG3 1 Type designation of the system if EUT consists of more than one part. 2 Type designation of the system if EUT consists of more than one part. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-04 (Edition 7) Page 4 of 51 Pages Power supply of the EUT Type of power supply: Battery supply Specifications for battery supply: nominal voltage: 7.4 V minimum voltage: 7.0 V maximum voltage: 8.4 V nominal frequency: DC Brand: SYMBOL Part No.: 82-111734-01 Specifications for power adapter: nominal voltage: 115 V minimum voltage: -- V maximum voltage: -- V nominal frequency: AC 50/60Hz Brand: HIPRO P/N: PWRS-14000-148R S/N: F33351144023415 Technical data of EUT Power Supply DC 7.4 V from battery, DC 12 V to cradle or DC 12 V to connection adapter Modulation Type For RFID: AM For WLAN: CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM For Bluetooth: GFSK, π/4-DQPSK, 8DPSK Modulation Technology For RFID: ASK For WLAN: DSSS, OFDM For Bluetooth: FHSS Transfer Rate For WLAN: 802.11b: up to11Mbps 802.11g / a: up to 54Mbps 802.11n (20MHz, 800ns GI): up to 65Mbps 802.11n (20MHz, 400ns GI): up to 72.2Mbps For BT Up to 3Mbps TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-04 (Edition 7) Page 5 of 51 Pages Frequency Range For RFID: 13.110 ~ 14.010MHz For WLAN(15.407) 5.18 ~ 5.24GHz, 5.26 ~ 5.32GHz, 5.5~5.58GHz & 5.66~5.7GHz For WLAN(15.247) 2.4GHz: 2.412 ~ 2.472GHz 5GHz: 5.745 ~ 5.825GHz For BT 2402MHz ~ 2480MHz Number of Channels For RFID: 1 For WLAN(15.407) 16 for 802.11a, 802.11n (20MHz) For WLAN(15.247, 2.4GHz) 13 for 802.11b, 802.11g, 802.11n (20MHz) For WLAN(15.247, 5GHz) 5 for 802.11a, 802.11n (20MHz) For BT 79 Channel Spacing WLAN: 802.11b/g: 5 MHz …

Text truncated - open the document above for the full version.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 20820838-50305-03 (Edition 4) Applicant: Bartec GmbH Type of equipment: HF Reader Type designation: MC92N0ex RFID-HF INTERNAL Order No.: 100-6381640 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 4, Sections 8.10, 8.8 and 8.9 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) October 5, 2015 Page 1 of 57 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 4) Page 2 of 57 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements ....................................................................................... 9 6.2 Conducted AC Powerline Emission ....................................................................... 11 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 13 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 15 6.5 Radiated Emission at Alternative Test Site ............................................................ 17 6.6 Carrier Frequency Stability ..................................................................................... 19 7 Photographs Taken During Testing .............................................................................. 21 8 Test Results ................................................................................................................. 27 8.1 Occupied Bandwidth .............................................................................................. 29 8.2 Bandwidth of the Emission..................................................................................... 33 8.3 Designation of Emissions ....................................................................................... 35 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 36 8.5 Spectrum Mask ...................................................................................................... 38 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 40 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 43 8.8 Carrier Frequency Stability ..................................................................................... 46 8.9 Exposure of Humans to RF Fields ......................................................................... 49 8.10 Exposure of Humans to RF Fields - MPE .............................................................. 53 9 Referenced Regulations ............................................................................................... 54 10 Test Equipment List with Calibration Data ................................................................... 56 11 Revision History ........................................................................................................... 57 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 4) Page 3 of 57 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Description of EUT The EUT is the RFID HF module and was tested in the Host “Mobile Computer MC92N0ex”. Type designation: HF Reader Tested system: Mobile Computer with RFID Reader fix attached Docking Cradle: SYMBOL Technologies INC. – Part: CRD9000- 1001SR, S/N 1202400505358 AC Adapter: HIPRO – P/N: PWRS-14000-148R, S/N: F33351144023415 Serial number(s): 1415600501068 Manufacturer: Bartec GmbH Type of equipment: MC92N0ex RFID-HF INTERNAL Version: As delivered FCC ID: TBUHFG3 Industry Canada ID: 5736C-HFG3 Additional parts/accessories: Accumulator: BARTEC – Type: 17-A1Z0-0002 Charging cradle: SYMBOL TECHNOLOGIES INC. – Part: CRD9000- 1001SR, Model: CRD9000-1000, S/N: 12153000500777 Power supply: HIPRO – P/N: PWRS-14000-148R Rev. C, Model: HP-A0502R3D, S/N: F33351234012660 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 4) Page 4 of 57 Pages Technical data of EUT Application frequency range: N/A Frequency range: Operating frequency: 13.56 MHz Designation of emissions 1 : 19k2A1D Type of antenna: Integrated, inductive loop antenna Size/length of antenna: N/A Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power suppl…

Text truncated - open the document above for the full version.

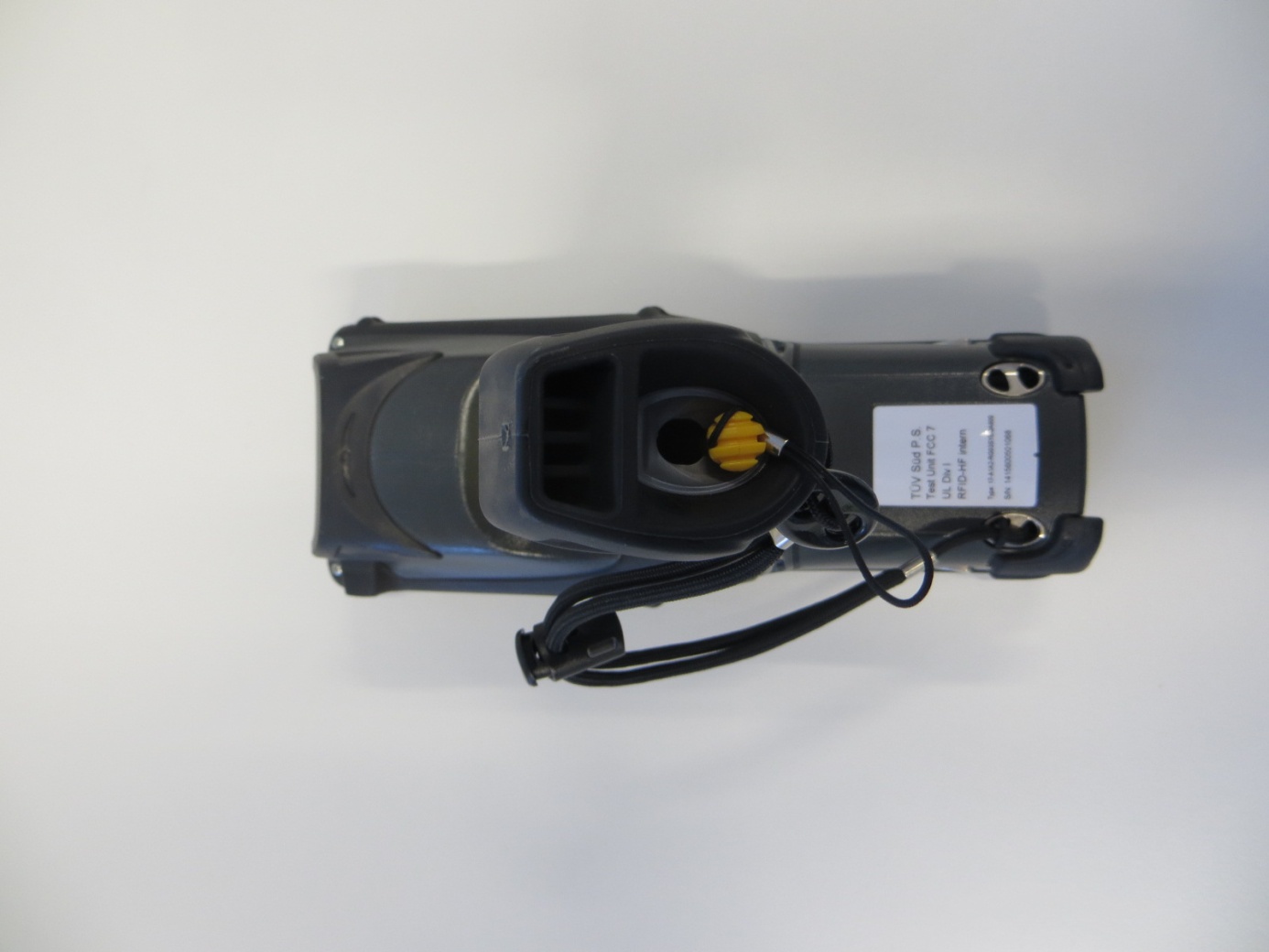

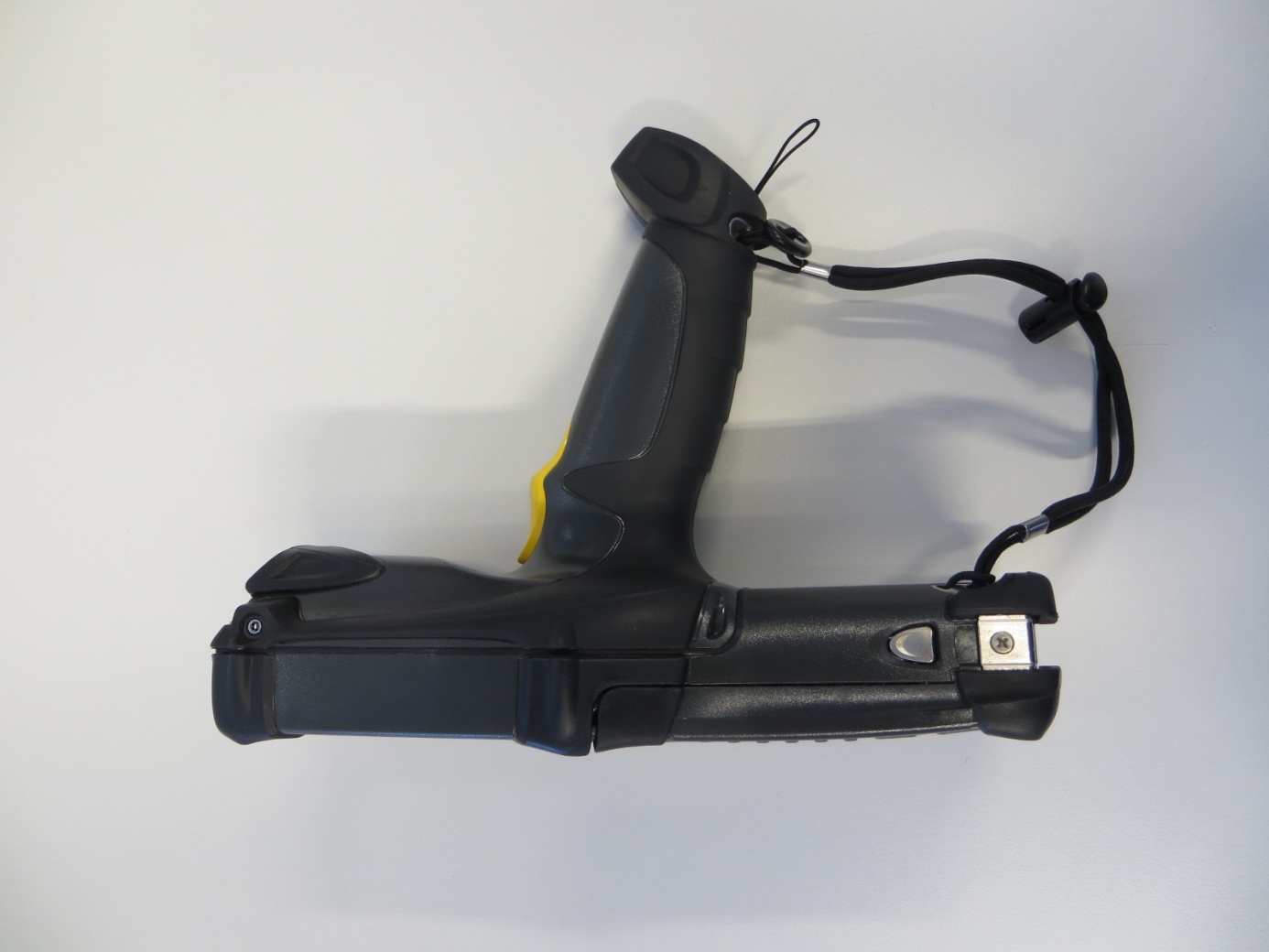

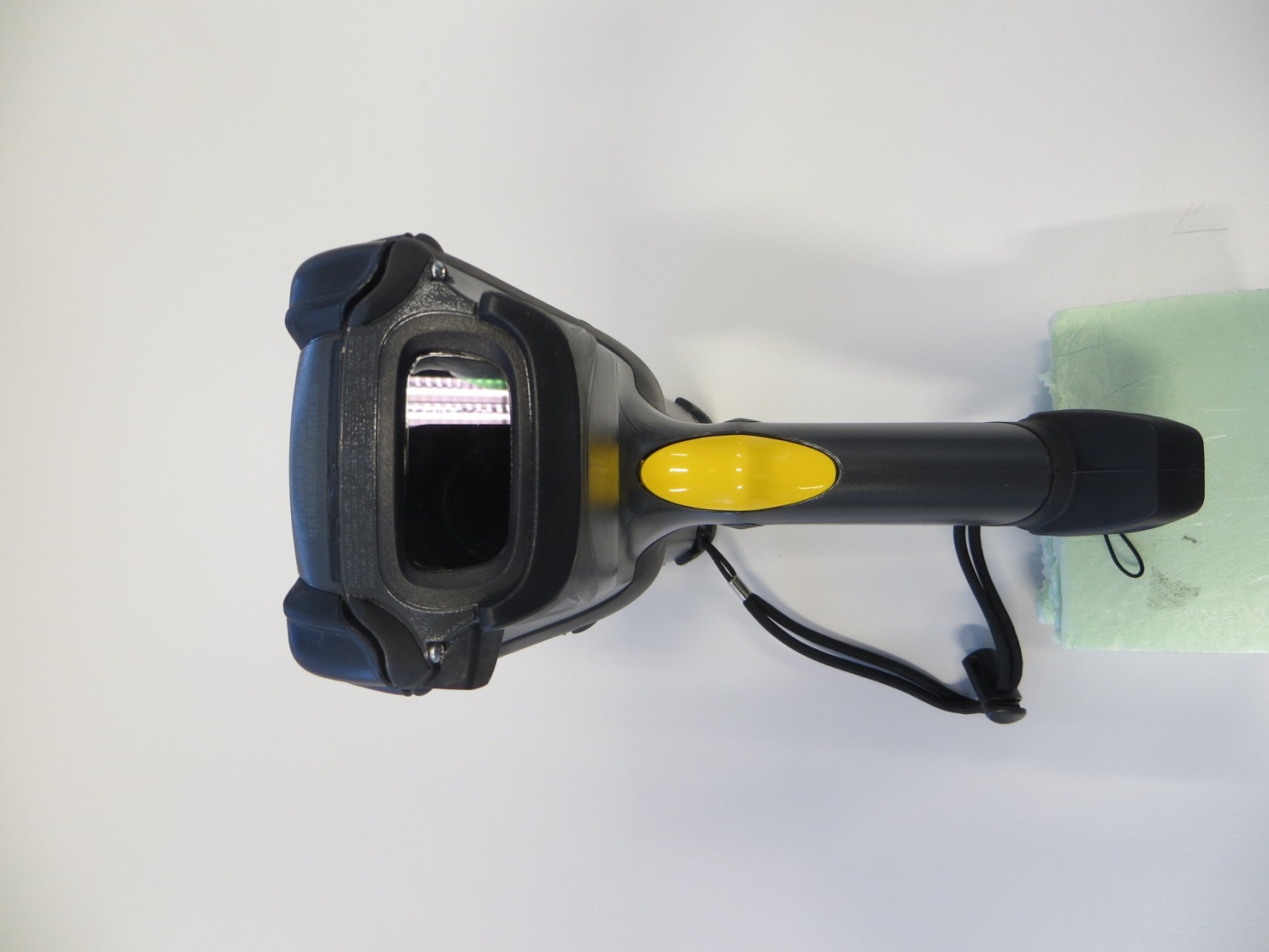

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 3) Page 21 of 57 Pages 7 Photographs Taken During Testing TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 3) Page 22 of 57 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 3) Page 23 of 57 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 3) Page 24 of 57 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-50305-03 (Edition 3) Page 25 of 57 Pages Test setup for radiated emission measurement (alternate test site)
