TBULFG1RFID Reader

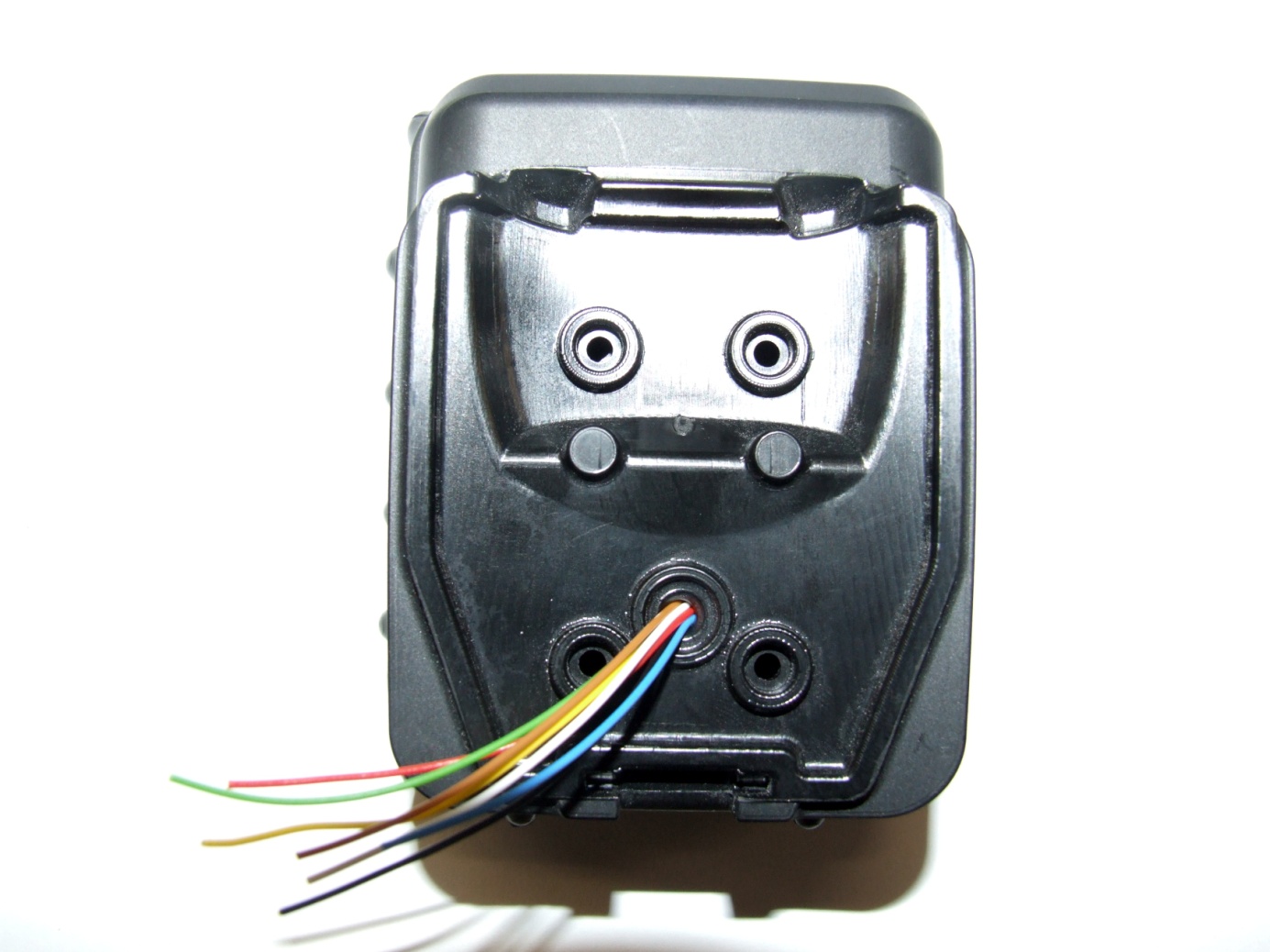

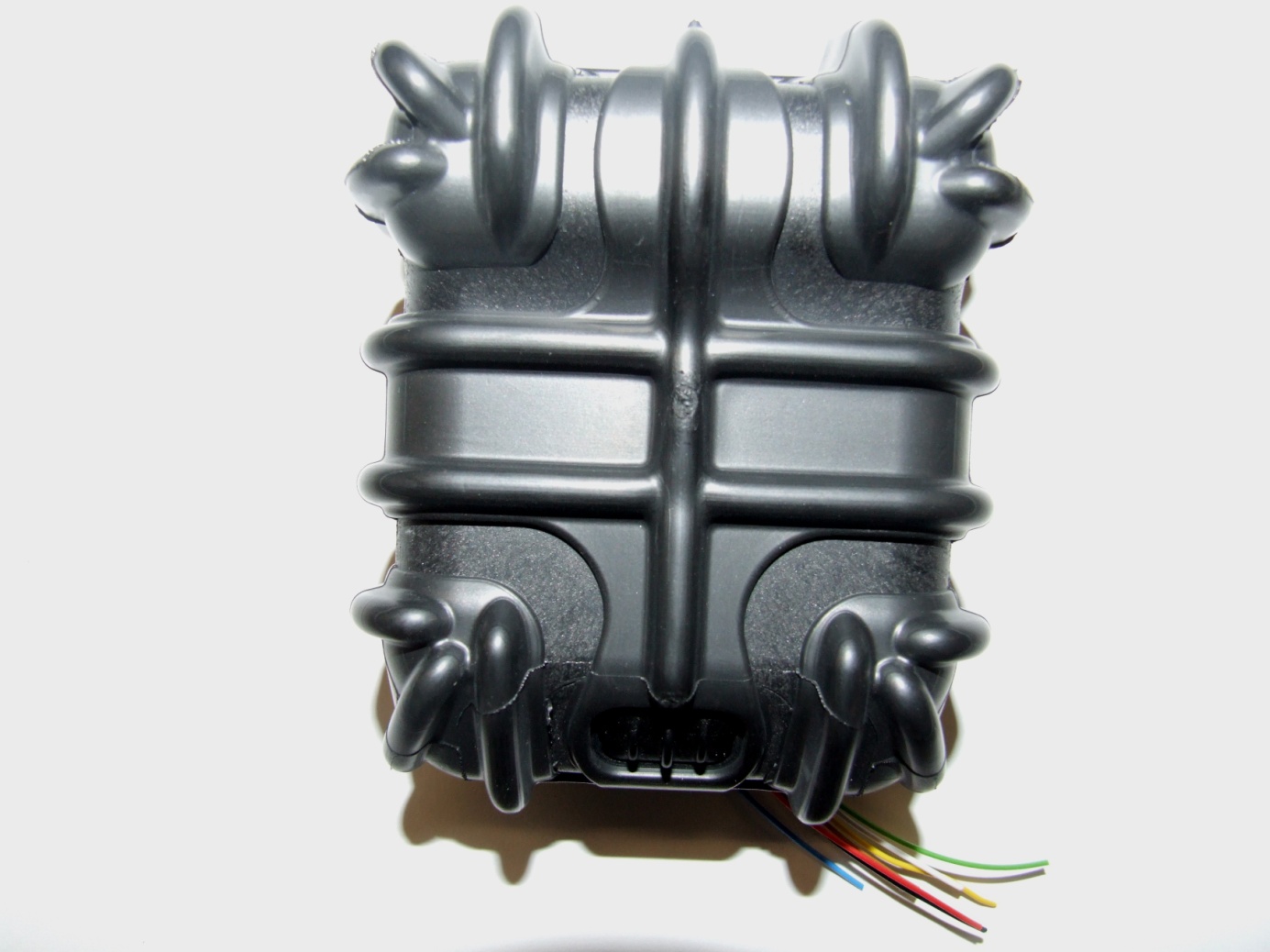

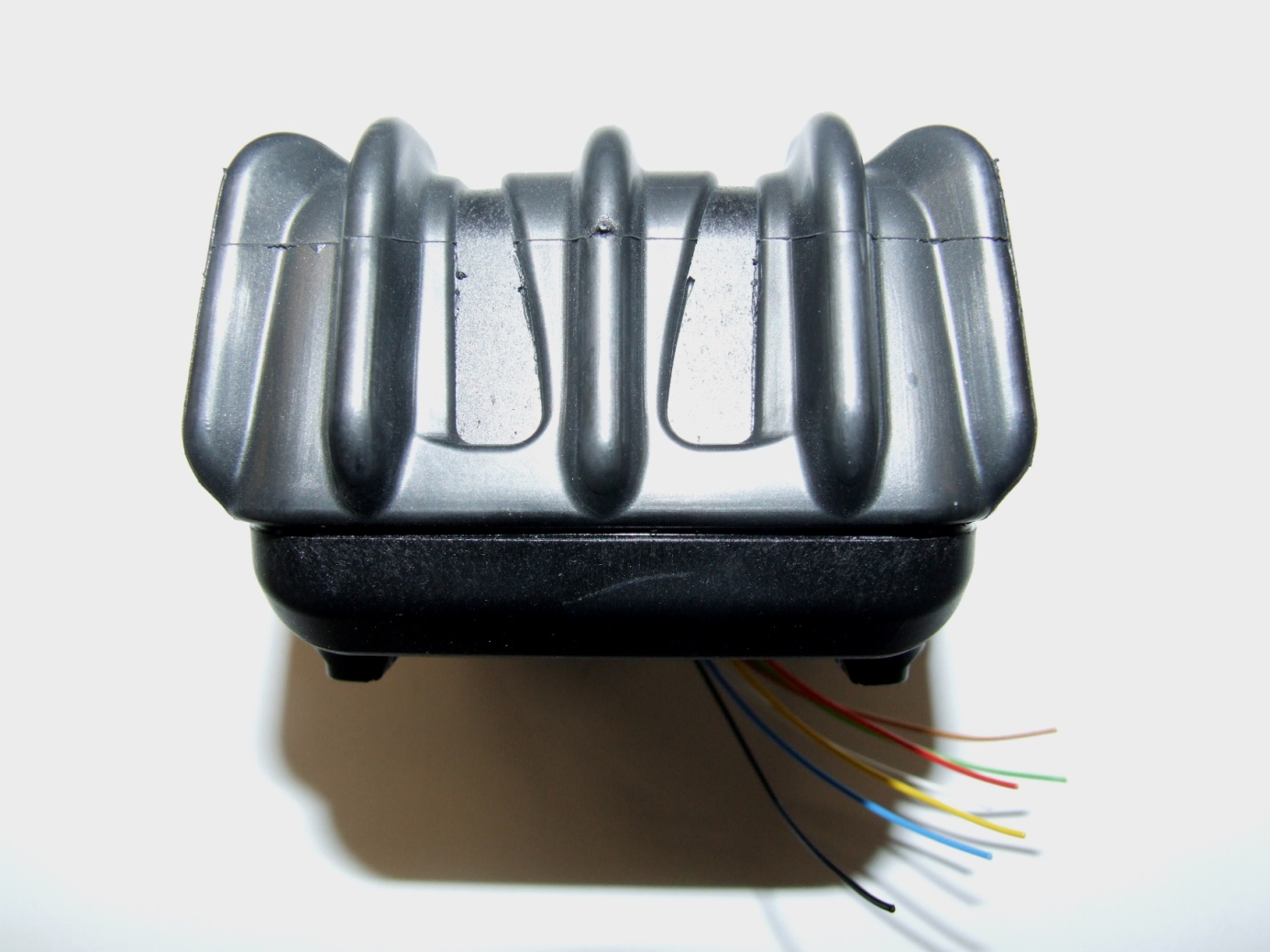

Integration Manual BARTEC Blatt 1/9 MC9000ex – Series Mobile Computer MC92NOex RFID Integration Manual BARTEC Blatt 2/9 1. Assembly Housing 1.1 BRICK 1) Drill 7 holes (1,0mm ) and 4 holes (5,5mm) with the fixture in the lower housing. Press 4 inserts into the big holes. 2) Lead the 7 wires (each with different colour) through the drillings. (LiY 0.08mm², d iso > 0.2mm) 3) Fill the RFID upper housing with Sikaflex as shown in the picture. 4) Fix the RFID lower housing with 4 screws and 4 washers on the housing. 5) Seal the screw heads and the wire openings with Sikaflex. Integration Manual BARTEC Blatt 3/9 1.2 GUN 1) Drill 7 holes (1,0mm ) and 4 holes (5,5mm) with the fixture in the lower housing. Press 4 inserts into the big holes. Lead the 7 wires (each with different colour) through the drillings. (LiY 0.08mm², d iso > 0.2mm) 2) Fill the RFID upper housing with Sikaflex as shown in the picture. 3) Fix the RFID lower housing with 4 screws and 4 washers on the top housing. 4) Seal the screw heads and the wire openings with Sikaflex. Integration Manual BARTEC Blatt 4/9 2. Installation RFID Reader (GUN/BRICK) 2.1 LF-Reader 1) Insert the LF reader into the upper housing. Solder appropriate wires on the LF board as shown in the picture and fix them with UV-glue. Apply Sikaflex in the sealing area of the housing. 2) Put the RFID lower housing on the upper housing and press them together. 3) Apply the opening of the lower housing with Sikaflex. 4) Lock the opening with the according cover. Integration Manual BARTEC Blatt 5/9 2.2 HF-Reader 1) Insert the HF reader (HF board, HF antenna and HF UHF interface) into the upper housing. Solder appropriate wires on the HF board as shown in the picture and fix them with UV-glue. Apply Sikaflex in the sealing area of the housing. 2) Put the RFID lower housing on the upper housing and press them together. 3) Fill the resin into the RFID housing (without empty space) and apply the opening of the lower housing with Sikaflex 4) Lock the opening with the according cover. Integration Manual BARTEC Blatt 6/9 2.3 UHF-Reader 1) Insert the UHF reader into the upper housing. Solder appropriate wires on the UHF board as shown in the picture and fix them with UV-glue. Apply Sikaflex in the sealing area of the housing. 2) Put the RFID lower housing on the upper housing and press them together. 3) Fill the resin into the RFID housing (without empty space) and apply the opening of the lower housing with Sikaflex 4) Lock the opening with the according cover. Integration Manual BARTEC Blatt 7/9 2.4 UHF-Reader with external antenna 1) Apply the appropriate plate on the RFID lower housing. 2) Lead cable of the external antenna through the opening of the RFID lower housing. 3) Fix the RFID lower housing and external antenna with 4 washers and 4 screws. 4) Seal the screw heads and antenna cable passage with Sikaflex. 5) Position the UHF Reader on the according pins and fix it with Sikaflex. Apply Sikaflex in the sealing area of the housing. Integration Manual BARTEC Blatt 8/9 6) Connect the antenna connector with the UHF reader as shown in the picture and fix it with UV-glue.Secure the connector with Sikaflex. 7) Put the RFID lower housing on the upper housing and press them together. 8) Fill the resin into the RFID housing (without empty space) and apply the opening of the lower housing with Sikaflex 9) Lock the opening with the according cover. Integration Manual BARTEC Blatt 9/9 3. Close Housing 3.1 BRICK 1) Lay the top housing on the bottom housing and slide it in the way of the arrow. 2) Also for the external antenna versions! 3.2 GUN 1) Lay the top housing on the bottom housing and slide it in the way of the arrow. 2) Also for the external antenna versions!

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Deutschland Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Management: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg Long/Short term Confidentiality Request 2013-10-18 FCC ID: TBULFG1 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be tempo- rarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and pro- vide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this applica- tion. Thank you for your attention in this matter. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Germany Handelsregister München HRB 85742 Id.-Nr.: DE 129484267 Bankverbindung: HypoVereinsbank München Kto. 48 852 211 • BLZ 700 202 70 Aufsichtsratsvorsitzender: Dirk Eilers Geschäftsführer: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Deutschland PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL 2013-10-18 To Whom It May Concern: We, on behalf of the applicant Bartec GmbH, Max-Eyth-Strasse 16, 97980 Bad Mergentheim, Germany, hereby request for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name: Bartec Model name: MC92N0ex RFID-LF external FCC ID: TBULFG1 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered require- ments that our device complies with: 1. The modular transmitter must have its own shielding. the transmitter was tested in host configuration since the applicant requested host specific modular approval 2. The modular transmitter must have buffered modulation/data inputs compliant 3. The modular transmitter must have its own power supply regulation compliant 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c the module is mounted solely by the applicant and only with this antenna, so additional adher- ence has been abandoned 5. The modular transmitter must be tested in a stand-alone configuration the transmitter was tested in host configuration since the applicant requested host specific modular approval Seite 2 von 2 Handelsregister München HRB 85742 Id.-Nr.: DE 129484267 Bankverbindung: HypoVereinsbank München Kto. 48 852 211 • BLZ 700 202 70 Aufsichtsratsvorsitzender: Dirk Eilers Geschäftsführer: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Deutschland 6. The modular transmitter must be labelled with its own FCC ID number compliant, the module is labelled with its own FCC ID. In addition the host device is labelled with “contains FCC ID TBUHFG1”. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. compliant, the module complies with the appropriate FCC regulations as documented in the test report 8. The modular transmitter must comply with any applicable RF exposure requirements. N/A, the module subject to § 15.225 is exempted from the RF Exposure requirements TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

IC: 5736C-LFG1

FCC ID TBULFG1 IC: 5736C-LFG1 FCC ID TBULFG1 IC: 5736C-LFG1 FCC ID TBULFG1 IC: 5736C-LFG1

TBURFIDLF FCC ID TBULFG1 Lable Location Info IC: 5736C-RFIDLF2 Model: MC9090 RFID-LF extern IC:5736C-RFIDLF2 MC9090 RFID-LF extern Label information/location: IC: 5736C-LFG1 Model: MC92N0ex RFID-LF external Bartec GmbH external EXTERNAL

FCC ID TBULFG1 IC: 5736C-LFG1 FCC ID TBULFG1 IC: 5736C-LFG1 FCC ID TBULFG1 IC: 5736C-LFG1

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 20820838-26357-1 (Edition 1) Applicant: Bartec GmbH Type of equipment: LF-Reader Type designation: MC92NCex RFID-LF INTERNAL Order No.: 100-6279480 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5(Category I Equipment) July 28, 2013 Page 1 of 49 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-1 (Edition 1) Page 2 of 49 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements........................................................................................ 9 6.2 Conducted AC Powerline Emission ....................................................................... 11 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 13 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 15 6.5 Radiated Emission at Alternative Test Site ............................................................ 17 7 Photographs Taken During Testing .............................................................................. 19 8 Test Results ................................................................................................................. 22 8.1 Occupied Bandwidth .............................................................................................. 23 8.2 Bandwidth of the Emission ..................................................................................... 27 8.3 Designation of Emissions ....................................................................................... 29 8.4 Restricted Bands of Operation ............................................................................... 30 8.5 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 33 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 35 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 39 9.1 Exposure of Humans to RF Fields ......................................................................... 43 10 Referenced Regulations ............................................................................................... 46 11 Test Equipment List with Calibration Data .................................................................... 48 12 Revision History ........................................................................................................... 49 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-1 (Edition 1) Page 3 of 49 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : MC92NCex RFID-LF INTERNAL Parts 2 : Mobile Computer with RFID Reader fix attached Docking Cradle: SYMBOL Technologies INC. – Part: CRD9000- 1001SR, S/N 12153000500777 AC Adapter: HIPRO – P/N: PWRS-14000-148R, S/N: F33351234012660 Serial number(s): 1314100505444 Manufacturer: Bartec GmbH Type of equipment: MC92NCex RFID-LF internal Version: As received FCC ID: TBULFG1 Industry Canada ID: 5736C-LFG1 Additional parts/accessories: Accumulator: BARTEC – Type: 17-A1Z0-0002, S/N: 09883/2312 Charging cradle: SYMBOL TECHNOLOGIES INC. – Part: CRD9000- 1001SR, Model: CRD9000-1000, S/N: 12153000500777 Power supply: HIPRO – P/N: PWRS-14000-148R Rev. C, Model: HP-A0502R3D, S/N: F33351234012660 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-1 (Edition 1) Page 4 of 49 Pages Technical data of EUT Application frequency range: < 1.705 MHz Frequency range: N/A Operating frequency: 125 kHz, 134.2 kHz Type of modulation: ASK Number of RF-channels: 2 Channel spacing: N/A Designation of emissions 3 : 19K2A1D Type of antenna: Integrated Size/length of antenna: N/A Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power supply: nominal voltage: 7.4 V V minimum voltage: -- V maximum voltage: -- V nominal frequency: DC Type of power supply of cradle: AC supply Specifications for power supply of the cradle: nominal voltage: 115 V V minimum voltage: -- V maximum voltage: -- V nominal frequency:…

Text truncated - open the document above for the full version.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 20820838-26357-2 (Edition 1) „Transmit Simultaneously“ Applicant: Bartec GmbH Type of equipment: MC92N0ex IS RFID-LF INTERNAL Type designation: Mobile Computer with Bartec LF Reader Order No.: -- Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5(Category I Equipment) August 2, 2013 Page 1 of 68 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-2 (Edition 1) Page 2 of 68 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures ............................................................................................ 11 6.1 Conducted AC Powerline Emission ....................................................................... 11 6.2 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 13 6.3 Radiated Emission in Fully or Semi Anechoic Room ............................................. 15 6.4 Radiated Emission at Alternative Test Site ............................................................ 17 7 Photographs Taken During Testing .............................................................................. 19 8 Test Results ................................................................................................................. 23 8.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 24 8.2 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 27 8.3 Radiated Emission Measurement 30 MHz to 25 GHz ........................................... 34 9 Referenced Regulations ............................................................................................... 65 10 Test Equipment List with Calibration Data .................................................................... 67 11 Revision History ........................................................................................................... 68 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-2 (Edition 1) Page 3 of 68 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : Mobile Computer with Bartec LF Reader Parts 2 : Mobile Computer with RFID Reader fix attached Docking Cradle: SYMBOL Technologies INC. – Part: CRD9000- 1001SR, S/N 12153000500777 AC Adapter: HIPRO – P/N: PWRS-14000-148R, S/N: F33351234012660 Serial number(s): 1314100505444 Manufacturer: Bartec GmbH Type of equipment: MC92N0ex IS RFID-LF INTERNAL Version: As delivered FCC ID: TBULFG1 Industry Canada ID: 5736C-LFG1 Additional parts/accessories: Accumulator: BARTEC – Type: 17-A1Z0-0002, S/N: 09883/2312 Charging cradle: SYMBOL TECHNOLOGIES INC. – Part: CRD9000- 1001SR, Model: CRD9000-1000, S/N: 12153000500777 Power supply: HIPRO – P/N: PWRS-14000-148R Rev. C, Model: HP-A0502R3D, S/N: F33351234012660 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-2 (Edition 1) Page 4 of 68 Pages Technical data of EUT Application frequency range: N/A Frequency range: Operating frequency: 125 kHz & 134.2 kHz Designation of emissions 3 : Type of antenna: Integrated, inductive loop antenna Size/length of antenna: N/A Connection of antenna: detachable not detachable Type of power supply: AC supply Specifications for power supply: nominal voltage: 115 V via Cradle and AC Adapter minimum voltage: N/A V maximum voltage: N/A V nominal frequency: 50/60 Hz 3 Also known as "Class of Emission". TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-2 (Edition 1) Page 5 of 68 Pages 2 Administrative Data Application details Applicant (full address): Bartec GmbH Max-Eyth-Strasse 16 DE-97980 Bad Mergentheim Contact person: Ralph Lanig Order number: -- Receipt of EUT: 5 July 2013 Date(s) of test: July, August 2013 Note(s): Report details Report number: 20820838-26357-2 Edition: 1 Issue date: August 2, 2013 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-2 (Edition 1) Page 6 of 68 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Compan…

Text truncated - open the document above for the full version.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 20820838-26357-3 (Edition 1) Applicant: Bartec GmbH Type of equipment: LF Reader Type designation: MC92N0ex RFID-LF external Order No.: 100-6279480 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5(Category I Equipment) July 28, 2013 Page 1 of 50 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-3 (Edition 1) Page 2 of 50 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements........................................................................................ 9 6.2 Conducted AC Powerline Emission ....................................................................... 11 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 13 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 15 6.5 Radiated Emission at Alternative Test Site ............................................................ 18 7 Photographs Taken During Testing .............................................................................. 20 8 Test Results ................................................................................................................. 23 8.1 Occupied Bandwidth .............................................................................................. 24 8.2 Bandwidth of the Emission ..................................................................................... 28 8.3 Designation of Emissions ....................................................................................... 30 8.4 Restricted Bands of Operation ............................................................................... 31 8.5 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 34 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 36 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 40 8.8 Exposure of Humans to RF Fields ......................................................................... 44 9 Referenced Regulations ............................................................................................... 47 10 Test Equipment List with Calibration Data .................................................................... 49 11 Revision History ........................................................................................................... 50 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-3 (Edition 1) Page 3 of 50 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation: MC92N0ex RFID-LF external Tested system: Mobile Computer with RFID Reader fix attached Docking Cradle: SYMBOL Technologies INC. – Part: CRD9000- 1001SR, S/N 12153000500777 AC Adapter: HIPRO – P/N: PWRS-14000-148R, S/N: F33351234012660 Serial number(s): 1314100505422 Manufacturer: Bartec GmbH Type of equipment: LF Reader Version: As received FCC ID: TBULFG1 Industry Canada ID: 5736C-LFG1 Additional parts/accessories: Accumulator: BARTEC – Type: 17-A1Z0-0002 Charging cradle: SYMBOL TECHNOLOGIES INC. – Part: CRD9000- 1001SR, Model: CRD9000-1000, S/N: 12153000500777 Power supply: HIPRO – P/N: PWRS-14000-148R Rev. C, Model: HP-A0502R3D, S/N: F33351234012660 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-3 (Edition 1) Page 4 of 50 Pages Technical data of EUT Application frequency range: < 1.705 MHz Frequency range: N/A Operating frequency: 125 kHz, 134.2 kHz Type of modulation: ASK Number of RF-channels: 2 Channel spacing: N/A Designation of emissions 1 : 19K2A1D Type of antenna: Integrated Size/length of antenna: N/A Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power supply: nominal voltage: 7.4 V V minimum voltage: -- V maximum voltage: -- V nominal frequency: DC Type of power supply of cradle: AC supply Specifications for power supply of the cradle: nominal voltage: 115 V V minimum voltage: -- V maximum voltage: -- V nominal frequency: AC 50/60Hz 1 Also known as "Class of Emission". TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 552…

Text truncated - open the document above for the full version.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 20820838-26357-4 (Edition 1) „Transmit Simultaneously“ Applicant: Bartec GmbH Type of equipment: MC92N0ex IS RFID-LF EXTERNAL Type designation: Mobile Computer with Bartec LF Reader Order No.: -- Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5(Category I Equipment) August 2, 2013 Page 1 of 68 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 20820838-26357-4 (Edition 1) Page 2 of 68 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures ............................................................................................ 11 6.1 Conducted AC Powerline Emission ....................................................................... 11 6.2 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 13 6.3 Radiated Emission in Fully or Semi Anechoic Room ............................................. 15 6.4 Radiated Emission at Alternative Test Site ............................................................ 17 7 Photographs Taken During Testing .............................................................................. 19 8 Test Results ................................................................................................................. 23 8.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 24 8.2 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 27 8.3 Radiated Emission Measurement 30 MHz to 25 GHz ........................................... 34 9 Referenced Regulations ............................................................................................... 65 10 Test Equipment List with Calibration Data ............................…

Text truncated - open the document above for the full version.
