TBYHPTPS-BT02CBluetooth Adapter

Confidential Version1.0 Released Date: 2004.10.01 1 BT Dongle-IS1002N Horus Module USB Bluetooth Adapte r Bluetooth Adapter (TPS-BT02) USER’S GUIDE Version: Rev 1.2 Nov 01, 2004 Copyright Copyright © 2004, Integrated System Solution Corp., All rights reserved. Confidential Version1.0 Released Date: 2004.10.01 2 BT Dongle-IS1002N Horus Module USB Bluetooth Adapte r Table of Contents INTRODUCTION .................................................................................................................................. 4 CHAPTER 1: INSTALLATION ........................................................................................................... 5 1.1 SYSTEM REQUIRE................................................................................................................... 5 1.2 INSTALL BLUETOOTH SOFTWARE WINDOWS 98/2000............................................................. 6 1.3 INSTALL BLUETOOTH SOFTWARE ON WINDOWS XP ............................................................. 10 1.4 HARDWARE INSTALLATION................................................................................................... 16 1.5 START THE BLUETOOTH DEVICE........................................................................................... 17 1.6 STOP THE BLUETOOTH DEVICE............................................................................................ 18 CHAPTER 2: BLUESOLEIL.............................................................................................................. 19 2.1 ABOUT BLUESOLEIL: ........................................................................................................... 19 2.2 EXPLORER BLUESOLEIL....................................................................................................... 24 2.3 FILE...................................................................................................................................... 24 2.4 VIEW.................................................................................................................................... 25 2.4.1 Local Service Status........................................................................................................ 27 2.4.2 Local Service List ........................................................................................................... 28 2.5 MY BLUETOOTH................................................................................................................... 29 2.6 MY SERVICES MENU............................................................................................................ 30 2.7 TOOLS MENU....................................................................................................................... 31 2.8 HELP MENU.......................................................................................................................... 35 CHAPTER 3: BLUETOOTH OPERATION ..................................................................................... 36 3.1 STA RT BLUETOOTH.............................................................................................................. 36 3.1.1 Establish Bluetooth Connection...................................................................................... 36 3.1.2 Terminate Bluetooth Connection .................................................................................... 37 3.2 BLUETOOTH SECURITY........................................................................................................ 37 3.3 PERSONAL AREA NETWORKING........................................................................................... 38 3.4 SERIAL PORT........................................................................................................................ 42 3.5 OBJECT PUSH....................................................................................................................... 43 3.6 FILE TRANSFER.................................................................................................................... 47 3.7 BLUETOOTH SYNCHRONIZATION.......................................................................................... 49 3.8 LAN ACCESS....................................................................................................................... 51 3.9 AV HEADPHONE................................................................................................................... 55 3.10 BASIC IMAGING.................................................................................................................... 55 3.11 HEADSET.............................................................................................................................. 57 Confidential Version1.0 Released Date: 2004.10.01 3 BT Dongle-IS1002N Horus Module USB Bluetooth Adapte r CHAPTER 4: BLUETOOTH CONNECTION MANAGEMENT................................................... 58 4.1 FIND REMOTE DEVICES................................................................................................................ 58 4.2 CONNECT AND DISCONNECT......................................................................................................... 59 4.2.1 Connect........................................................................................................................... 59 4.2.2 Disconnect ......................................................................................................................59 4.3 CONNECT VIA SHORTCUTS............................................................................................................ 60 4.4 REMOTE DEVICE STAT U S.............................................................................................................. 60 4.5 REMOTE DEVICE PROPERTIES....................................................................................................... 62 4.6 HARDWARE DEVICE CONFIGURATION.....................................................…

Text truncated - open the document above for the full version.

3. Block Diagram C

Mike Kuo From: amanda.wu [[email protected]] on behalf of application [[email protected]] Sent: Wednesday, July 06, 2005 12:50 AM To: Mike Kuo Subject: Re ： Re ： FW: Request for information TBYHPTS-BT02C Attachments: TPS-BT02C Test Rpt Revised 0706.pdf 7/11/2005 Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Monday, June 27, 2005 3:52 PM To: [email protected] Cc: Mike Kuo; Robert F. Martin Subject: Request for information TBYHPTS-BT02C I have started the review of the subject application. Following, please find my questions with regard to the documentation that you have submitted. Internal photos - does not show chip antenna; documentation indicates that a chip antenna is used; the photo shows a PIFA; Please explain Ans: The exact antenna applied for this device is PIFA. It's our mistake, the revised the Test report and antenna spec. are attached. test report - The schematic shows an optional configuration (sheet 2) - what configuration was actually tested? Ans: U3(AT24C04) is applied and tested for this case. - There are no setup photos for conducted spurious - (doesn't help show how it was done); "Mike Kuo" <[email protected]> 2005/06/29 12:30 AM 收件人： <[email protected]> 副本抄送： 主旨： FW: Request for information TBYHPTS-BT02C provide setup photos for all tests performed - PPSD again refers to disconnecting the antenna - the EUT has an integral antenna Ans: Setup photos are attached. - 7.8.1 says spurious is measured conducted; how was this done on a dongle with integral antenna? - How is peak power measured - integral antenna Ans: L1 was removed and measured the conducted power before matching circuit with a 50ohm SMA cable. Please refer to attached setup photos for detail. block diagram - there is insufficient detail in the block diagram, in particular for frequency generation and crystal frequencies, etc. - provide more detail on block diagram showing frequency generation components and frequencies - the antenna should be shown in more detail on the block diagram; there is conflicting documentation on what antenna is used - chip or PFIA; block diagram should show what antenna is used and it must be consistent with product documentation and schematics Ans: Please refer the Blk Dia. schematic - specification for a chip antenna was submitted as exhibit TPS-BT02C Ant.spec.pdf; but the schematic and photos show a PIFA; was the chip antenna used, or was the PIFA used? - make schematic, block diagram, photos and description consistent; if the antenna specification is not valid for this application, please confirm in your response that it should be withdrawn. Ans: The exact antenna applied for this device is PIFA. It's our mistake, the revised the Test report and antenna spec. are attached. Thank you in advance for your assistance. Regards Bob Martin The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 7/11/2005

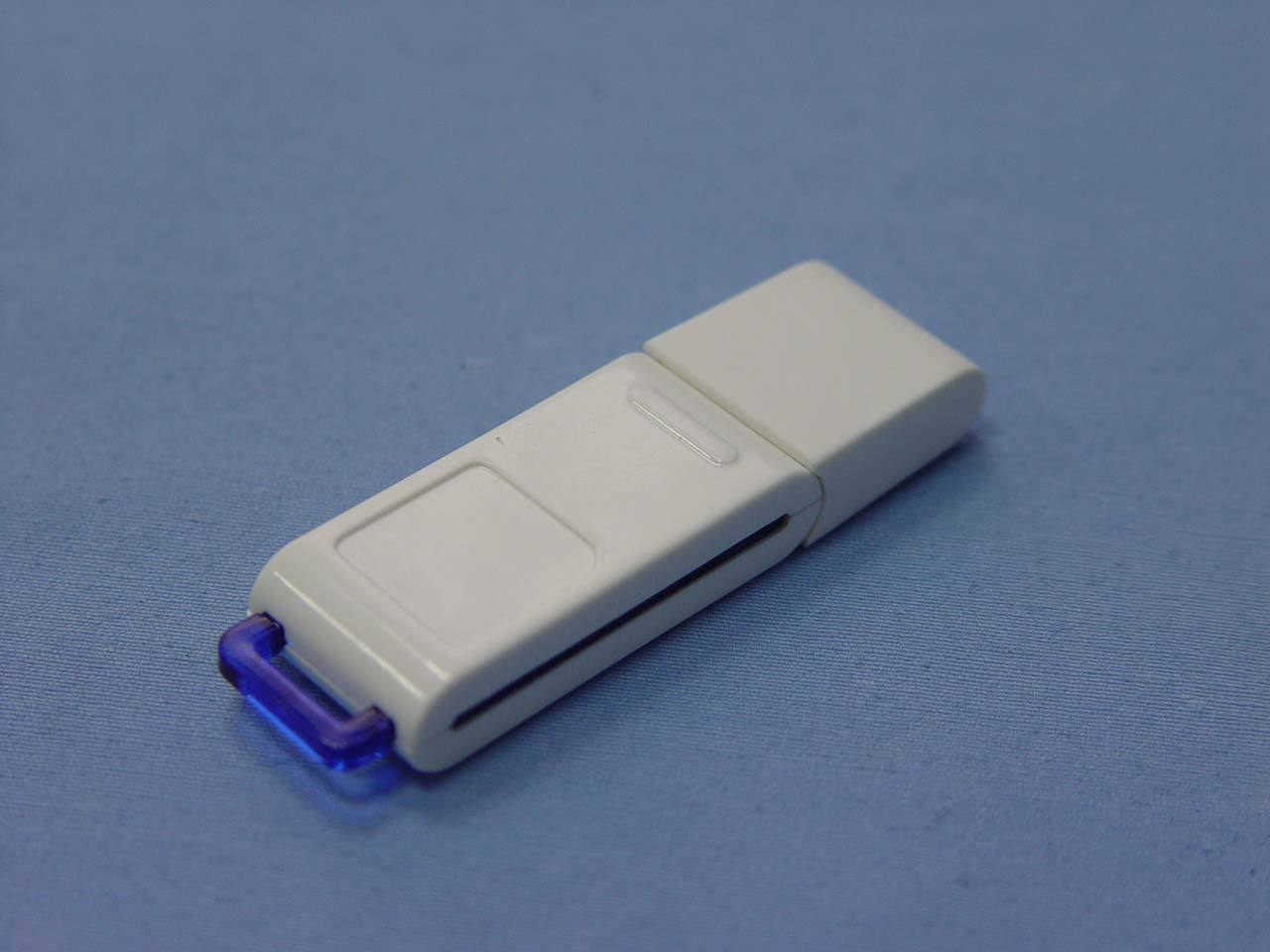

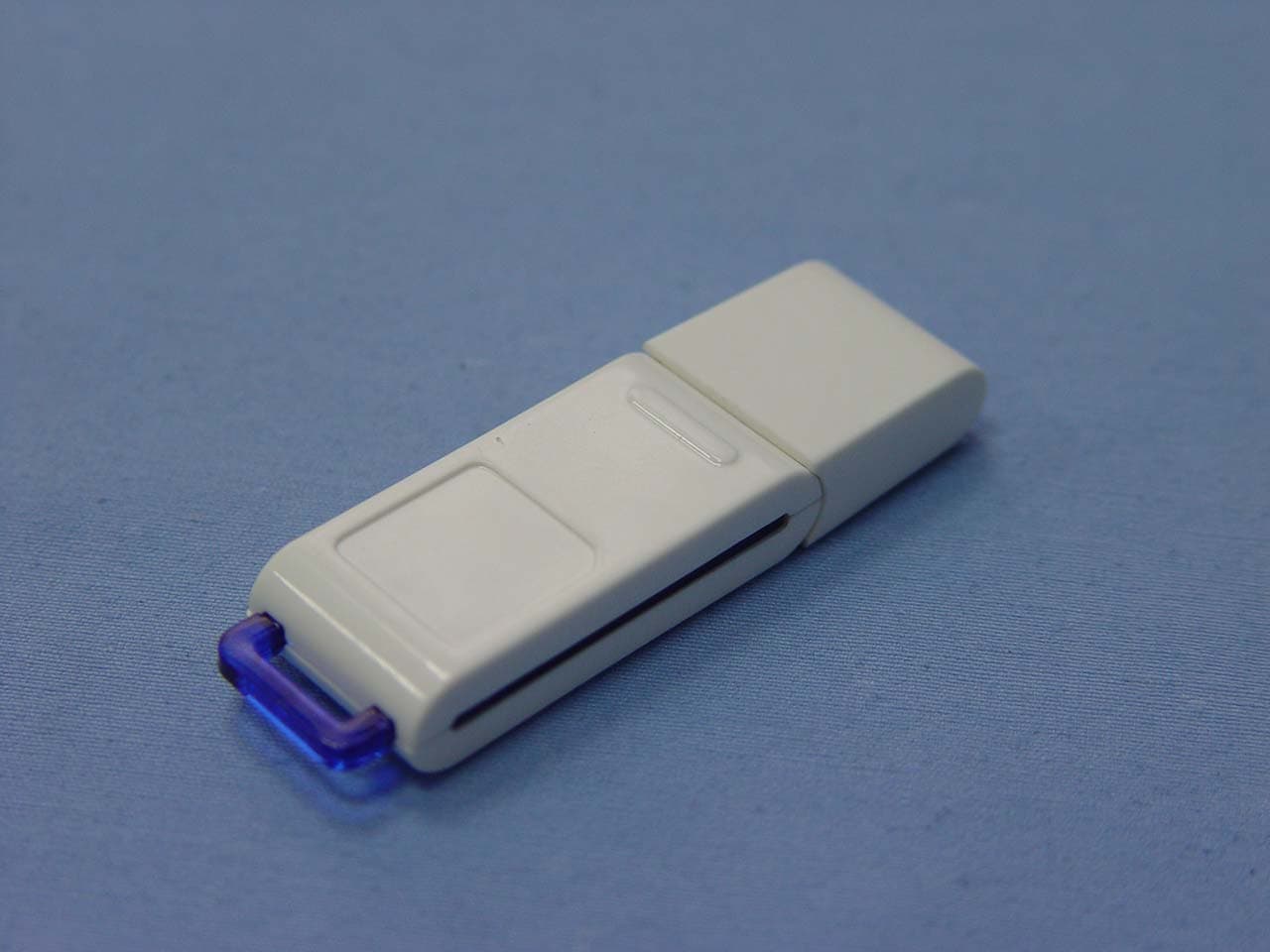

Compliance Certification Services Inc. Report No: 50519203 Date of Issue: June 8, 2005 Page 1 Total Page: 2 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No: 50519203 Date of Issue: June 8, 2005 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT

Specification of Antenna Antenna Type： PIFA Antenna Length Closed： 24mm Length Open： N/A Diameter： 1mm No. of element： N/A Antenna Gain： 1 dBi Total Resistance： 50 Ω Te mpera ture： -20°C ~ 70°C

Compliance Certification Services Inc. Report No.: 50519203-RP1 FCC ID: TBYHPTPS-BT02C Date of Issue: June 8, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 46 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For BLUETOOTH ADAPTER Model: TPS-BT02C Trade Name: N/A Issued to Hong Puu Technology Co., Ltd. 2FL. NO.49.LU HSIN ST., LU CHU SHIANG, TAOYUAN SHIEN, 338.TAIWAN. R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50519203-RP1 FCC ID: TBYHPTPS-BT02C Date of Issue: June 8, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION.....................................................................................................7 5. FACILITIES AND ACCREDITATIONS .......................................................................................8 5.1 FACILITIES ......................................................................................................................................8 5.2 EQUIPMENT.....................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS..........................................................................................11 7.1 PEAK POWER.................................................................................................................................11 7.2 BAND EDGES MEASUREMENT .............................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................17 7.4 FREQUENCY SEPARATION....................................................................................................20 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................22 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................24 7.7 RADIO FREQUENCY EXPOSURE.....................................................................................................31 7.8 SPURIOUS EMISSIONS .............................................................................................................32 7.9 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ...........................................................................45 Compliance Certification Services Inc. Report No.: 50519203-RP1 FCC ID: TBYHPTPS-BT02C Date of Issue: June 8, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product BLUETOOTH ADAPTER Trade Name N/A Model Number TPS-BT02C Model Discrepancy N/A. Power Supply Powered from host device Frequency Range 2402 ~ 2480 MHz Transmit Power 3.40 dBm Modulation Technique Bluetooth: FHSS (GFSK) Transmit Data Rate 1Mbps Number of Channels 79 Channels Antenna Specification PIFA Antenna / Gain: 1 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: TBYHPTPS-BT02C filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 50519203-RP1 FCC ID: TBYHPTPS-BT02C Date of Issue: June 8, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4: 2003 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EU…
