TC2-N10011 x 2 Wi-Fi Module

Roku, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 09, 2014
Application Purpose: Original Equipment
Date of Application: Mar 09, 2014
Equipment Note: 1 x 2 Wi-Fi Module
Frequency Range: 2412.00000000 - 2462.00000000
Company: Roku, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PRODUCT SPECIFICATION 1 X 2 WI-FI MODULE Roku WM01 Version 1.0 Liteon PN: AAZ200001G This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Change History: Revision Date Author Change List Version 1.0 2014/01/27 Kaysa Lee Preliminary Author: Kaysa Lee Approved by: Sunny Hsieh Editor: Kaysa Lee Project Leader: Sunny Hsieh CONTENT PRODUCT FEATURES .................................................................................................................... 3 PRODUCT SPECIFICATIONS ........................................................................................................ 3 MAIN CHIPSET........................................................................................................................................ 3 FUNCTIONAL SPECIFICATIONS............................................................................................................... 3 MECHANICAL......................................................................................................................................... 4 PRODUCT PICTURE................................................................................................................................. 4 PIN DEFINITION...................................................................................................................................... 5 BLOCK DIAGRAM................................................................................................................................... 5 EEPROM INFORMATION ..............................................................................................................5 ENVIRONMENTAL .......................................................................................................................... 5 PRODUCT FEATURES • Operate at 2.4GHz band • 150Mbps PHY Rate Support • 1T1R Modes • USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed • IEEE standards support: IEEE 802.11b/g and 802.11n • 802.11i- WEP 64/128, AES, TKIP • Support Wi-Fi Direct • RoHS compliance • Low Halogen compliance Product specifications Main chipset MAC/Baseband/RF: Broadcom BCM43143 Functional Specifications Standard IEEE802.11b; IEEE 802.11g; IEEE802.11n Bus Interface Universal Serial Bus (USB2.0) Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz Media Access Control CSMA/CA with ACK Radio Technology 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16 QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network architecture Infrastructure mode Wi-Fi Direct Miracast Operating Channel 2.4-2.483 GHz:IEEE Channels 1-11 (USA) Transmit Output Power (Tolerance: +1.5dBm/-1.5dBm) 802.11b 17.5dBm 802.11g 15.5dBm@54Mbps 802.11n 15dBm Receiver Sensitivity 802.11b: Less than -76dBm 802.11g: Less than -82dBm @ 6Mpbs Less than -65dBm @54Mbps 802.11n: Less than -82dBm @ MCS0 Less than -64dBm @ MCS7 Security 64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS IEEE 802.11i Operating Voltage 3.3V ±9% I/O supply voltage Power Consumption 299.62mA/381.89mA (Mean/Max) 988.746mW/1260.237mW(3.3V) Antenna Type Antenna 1: On-board metal PIFA-type antenna Antenna 2: Stand-alone metal PIFA with soldered mini-coaxial cable using male U.FL. connector *Environmental factors dependent Mechanical Product Picture Top Bottom Pin definition Pin Number Pin Name 1 VCC(3V3) 2 D- 3 D+ 4 GND 5 NC 6 RESETn Block Diagram EEPROM INFORMATION Vendor ID 0x0A5C Product ID 0xBD1E E NVIRONMENTAL Operating Operating Temperature: 0 to 40C Relative Humidity: 5-90% (non-condensing) Storage Temperature: -40 to 80C Relevant Humidity: 5-80% (non-condensing) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to part 15 of the FCC rules. These limits are designed to provide r easonable protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio co mmunications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measu res: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the recei ver is connected. Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party r esponsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an unco ntrolled environment. This equipment should be installed and operated with a minimu m distance of 20 centimeters between the radiator and your body. Information to OEM integrator The OEM integrator has to be aware not to provide information to the end user regard ing how to install or remove this RF module in the user manual of the end product. Th e user manual which is provided by OEM integrators for end users must include the fo llowing information in a prominent l…

Text truncated - open the document above for the full version.

Users Manual

PRODUCT SPECIFICATION 1 X 2 WI-FI MODULE ROKU WM02 Version 1.0 Liteon PN: AAZ200007G This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Change History: Revision Date Author Change List Version 1.0 2014/01/27 Kaysa Lee Preliminary Author: Kaysa Lee Approved by: Sunny Hsieh Editor: Kaysa Lee Project Leader: Sunny Hsieh CONTENT PRODUCT FEATURES .................................................................................................................... 3 PRODUCT SPECIFICATIONS ........................................................................................................ 3 MAIN CHIPSET........................................................................................................................................ 3 FUNCTIONAL SPECIFICATIONS............................................................................................................... 3 MECHANICAL......................................................................................................................................... 4 LABEL DRAWING................................................................................................................................... 4 PRODUCT PICTURE................................................................................................................................. 5 PIN DEFINITION...................................................................................................................................... 5 BLOCK DIAGRAM................................................................................................................................... 5 EEPROM INFORMATION ..............................................................................................................6 ENVIRONMENTAL .......................................................................................................................... 6 PACKING SPEC ................................................................................................................................ 6 PRODUCT FEATURES • Operate at 2.4GHz band • 150Mbps PHY Rate Support • 1T1R Modes • USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed • IEEE standards support: IEEE 802.11b/g and 802.11n • 802.11i- WEP 64/128, AES, TKIP • Support Wi-Fi Direct • RoHS compliance • Low Halogen compliance Product specifications Main chipset MAC/Baseband/RF: Broadcom BCM43143 Functional Specifications Standard IEEE802.11b; IEEE 802.11g; IEEE802.11n Bus Interface Universal Serial Bus (USB2.0) Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz Media Access Control CSMA/CA with ACK Radio Technology 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16 QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network architecture Infrastructure mode Wi-Fi Direct Miracast Operating Channel 2.4-2.483 GHz:IEEE Channels 1-11 (USA) Transmit Output Power (Tolerance: +1.5dBm/-1.5dBm) 802.11b 17.5dBm 802.11g 15.5dBm@54Mbps 802.11n 15dBm Receiver Sensitivity 802.11b: Less than -76dBm 802.11g: Less than -82dBm @ 6Mpbs Less than -65dBm @54Mbps 802.11n: Less than -82dBm @ MCS0 Less than -64dBm @ MCS7 Security 64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS IEEE 802.11i Operating Voltage 3.3V ±9% I/O supply voltage Power Consumption 299.62mA/381.89mA (Mean/Max) 988.746mW/1260.237mW(3.3V) Antenna Type Antenna 1: On-board metal PIFA-type antenna Antenna 2: Stand-alone metal PIFA with soldered mini-coaxial cable using male U.FL. connector *Environmental factors dependent Mechanical Label Drawing Product Picture Top Bottom Pin definition Pin Number Pin Name 1 VCC(3V3) 2 D- 3 D+ 4 GND 5 NC 6 RESETn Block Diagram EEPROM INFORMATION Vendor ID 0x0A5C Product ID 0xBD1E E NVIRONMENTAL Operating Operating Temperature: 0 to 40C Relative Humidity: 5-90% (non-condensing) Storage Temperature: -40 to 80C Relevant Humidity: 5-80% (non-condensing) P ACKING SPEC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to part 15 of the FCC rules. These limits are designed to provide r easonable protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio co mmunications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measu res: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the recei ver is connected. Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party r esponsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an unco ntrolled environment. This equipment should be installed and operated with a minimu m distance of 20 centimeters between the radiator and your body. Inf…

Text truncated - open the document above for the full version.

Attestation Statements

Roku, Inc. BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Model Difference To whom it may concern, Due to the business consideration, we hereby declare that our product of Model:; have as following difference Model Description: Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, Sincerely, Name/Title: Greg Garner/ Director of Hardware Engineering Company Name: Roku, Inc. Address: 12980 Saratoga Avenue Suite #D Saratoga California United States 95070 TEL: 1-479-871-1148 FAX: 1-479-446-1735 Email: [email protected] Date: Feb. 21, 2014

Attestation Statements

Applicant/Grantee FCC ID: Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval RequirementsEUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular have RF own shielding Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter have buffered modulation/data inputs Y 3 The modular transmitter must have its own power supply regulation. The EUT needs an extern al host regulated power supply regulation, and therefore the device is limited to installation by Roku, In c. or the OEM integrators in devices that provide the necessary reg ulated power supply to the module. N 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular must to built-in PIFA applicant together and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length The EUT module can’t be operated by its own due to its power-less characteristic and hence needs external power supply to make it function. Under testing condition, no matter in pure verification or manufacturing stage, the specified test fixture must be provided to help testing the function and performance of the EUT sample. Y X typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The FCC identification number can put on the modular with either a permanently affixed label Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with The modular have specific rules or operating requirements Y the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained suc…

Text truncated - open the document above for the full version.

Cover Letter(s)

Roku, Inc. 12980 Saratoga Avenue Suite #D Saratoga California United States 95070 DateMarch 6, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/02/21 Your Sincerely, Name/Title: Greg Garner/ Director of Hardware Engineering Company Name: Roku, Inc. Address: 12980 Saratoga Avenue Suite #D Saratoga California United States 95070 TEL: 1-479-871-1148 FAX: 1-479-446-1735 Email: [email protected] Date: Feb. 21, 2014

Cover Letter(s)

Roku, Inc. 12980 Saratoga Avenue Suite #D Saratoga California United States 95070 DateMarch 6, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Name/Title: Greg Garner/ Director of Hardware Engineering Company Name: Roku, Inc. Address: 12980 Saratoga Avenue Suite #D Saratoga California United States 95070 TEL: 1-479-871-1148 FAX: 1-479-446-1735 Email: [email protected] Date: Feb. 21, 2014

External Photos

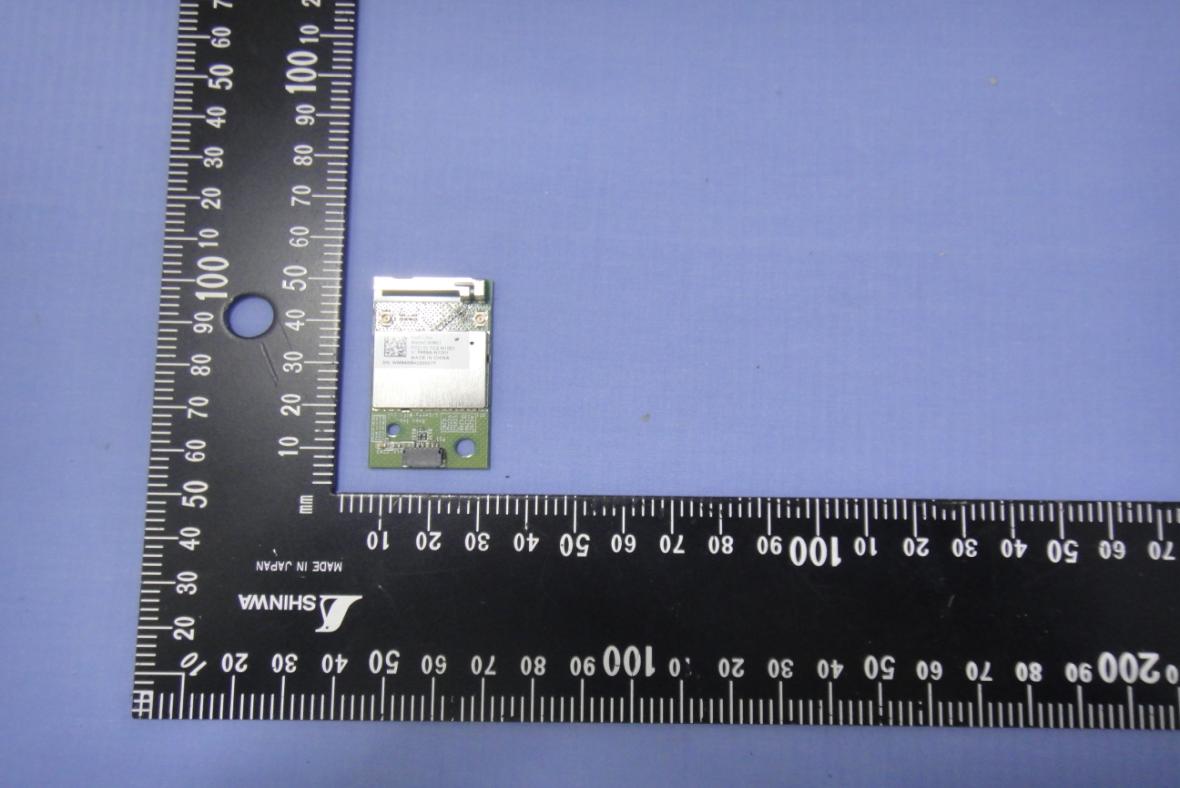

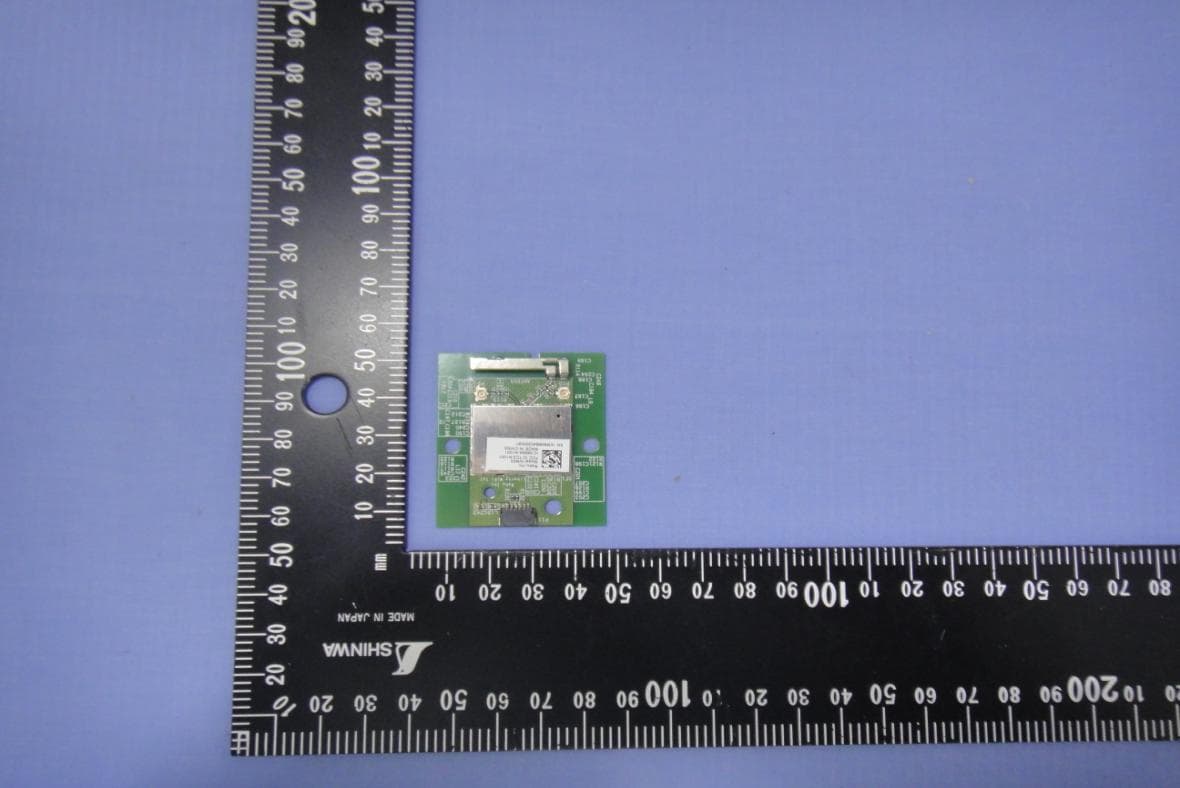

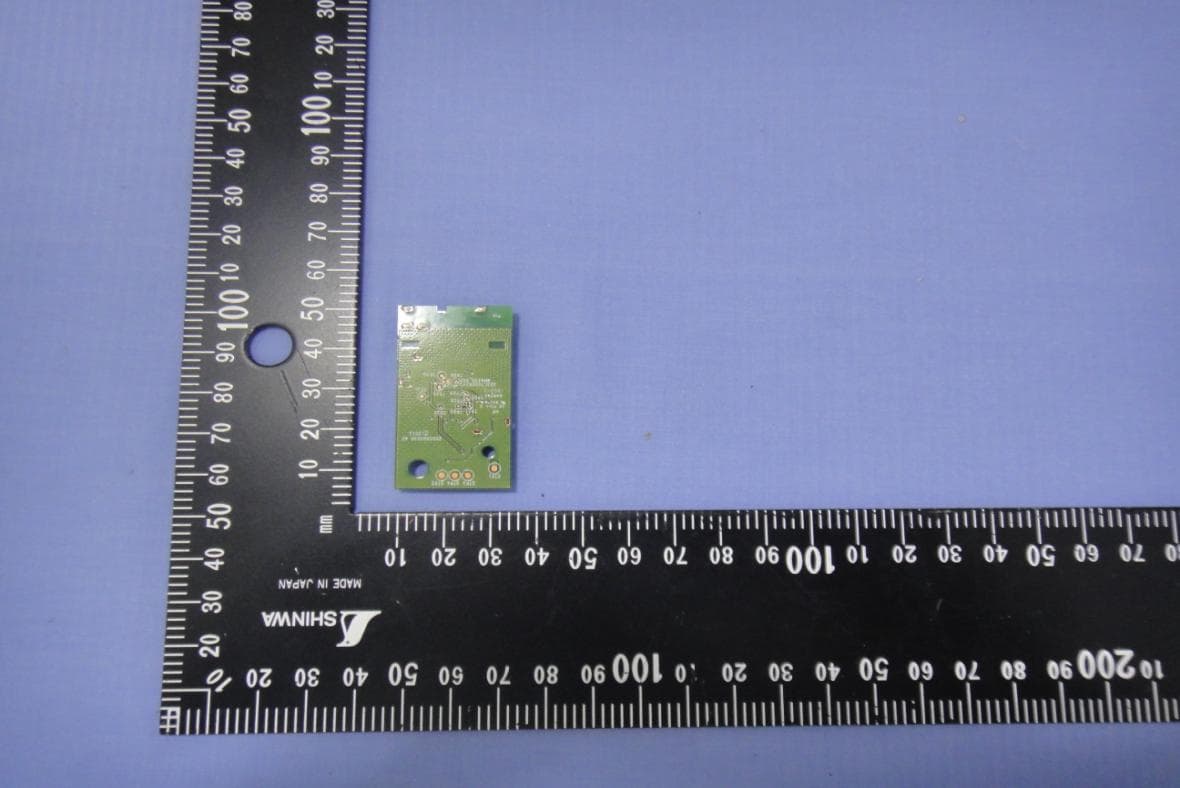

Compliance Certification Services Inc. Report No.: T140205W02 Date of Issue: February 20, 2014 A1 - 1 / 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For WM01 Compliance Certification Services Inc. Report No.: T140205W02 Date of Issue: February 20, 2014 A1 - 2 / 5 Rev. 00 For WM02

Internal Photos

Compliance Certification Services Inc. Report No.: T140205W02 Date of Issue: February 20, 2014 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140205W02 Date of Issue: February 20, 2014 A1 - 4 Rev. 00 PIFA Antenna Compliance Certification Services Inc. Report No.: T140205W02 Date of Issue: February 20, 2014 A1 - 5 Rev. 00

RF Exposure Info

Compliance Certification Services Inc. Report No.: T140205W02 - MF Date of Issue: February 19,2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 1 x 2 Wi-Fi Module Trade Name Roku Model Number WM01; WM02 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification WM945B(WM01) Antenna 1 Antenna Gain 2.4GHz4.12 dBi (Numeric gain: 2.58) WM948B(WM02) Antenna 1 Antenna Gain 2.4GHz4.02 dBi (Numeric gain: 2.52) Maximum Average output power IEEE 802.11b Mode: 17.95 dBm(62.373 mW) IEEE 802.11g Mode: 16.05 dBm(40.272 mW) IEEE 802.11n HT 20 Mode: 16.05 dBm(40.272 mW) Maximum Tune-Up Power IEEE 802.11b Mode: 18.50 dBm(70.795 mW) IEEE 802.11g Mode: 17.00 dBm(50.119 mW) IEEE 802.11n HT20 Mode: 16.50 dBm(44.668 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140205W02 - MF Date of Issue: February 19,2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/2/19 Initial Issue All Scott Hsu Compliance Certification Services Inc. Report No.: T140205W02 - MF Date of Issue: February 19,2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140205W02 - MF Date of Issue: February 19,2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 1241270.7952.58200.03631 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 6243750.1192.58200.02571 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 6243744.6682.58200.02291

Test Report

Compliance Certification Services Inc. FCC ID: TC2-N1001 IC: 5959A-N1001 Report No.: T140205W02-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 104 Rev.00 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For 1 x 2 Wi-Fi Module Model: WM01, WM02 Trade Name: Roku Issued to Roku, Inc. 12980 Saratoga Avenue Suite #D Saratoga California United States 95070 Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: February 20, 2014 Compliance Certification Services Inc. FCC ID: TC2-N1001 IC: 5959A-N1001 Report No.: T140205W02-RP Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 20, 2014 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: TC2-N1001 IC: 5959A-N1001 Report No.: T140205W02-RP Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 LABORATORY ACCREDITATIONS AND LISTING ................................................................................ 11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. APPLICABLE RULES FOR INDUSTRY CANADA RSS-210 ..................................................... 14 8. FCC PART 15.247 REQUIREMENTS & RSS-210 REQUIREMENTS ....................................... 22 8.1 99% BANDWIDTH ............................................................................................................................ 22 8.2 6DB BANDWIDTH ............................................................................................................................. 29 8.3 PEAK POWER .................................................................................................................................... 40 8.4 AVERAGE POWER ............................................................................................................................ 42 8.5 BAND EDGES MEASUREMENT ................................................................................................ 44 8.6 PEAK POWER SPECTRAL DENSITY .................................................................................................... 64 8.7 SPURIOUS EMISSIONS ................................................................................................................ 75 8.8 RADIATED EMISSIONS .............................................................................................................. 85 8.9 POWERLINE CONDUCTED EMISSIONS ............................................................................................... 9…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Robert Curtis(VP Engineering)

[email protected]707-365-0353Fax: 1-479-446-1735

Test Firm

Compliance Certification Services Inc.Hank Lee

[email protected]886-2-22999720Fax: 886-2-22999721

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	343.60 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Power Output is conducted. Approval is limited to installation only in devices that provide regulated 3.3 VDC to the module to guarantee stable power supply according to the requirements of DA-00-1407. Installation by the end user is expressly prohibited. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application, except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Compliance of this device in all final host configurations is the responsibility of the Grantee.
