FCC Confidential Authorization 2021/03/15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: TC2-R1040 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Roku, Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description As well as short-term confidential (180 days) treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Robert Curtis/ Sr. Director SW Eng Roku, Inc. 1155 Coleman Ave San Jose, CA 95110

DECLARATION OF SIMILARITY March 22, 2021 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We Roku, Inc. hereby declare that product: Set-top-box, model: 3941X (FCC ID: TC2-R1040; IC: 5959A-R1037) is electrically identical with the same electromagnetic emissions and electromagnetic compatibility characteristics as model: 3940X tested by BACL, the results of which are featured in BACL project: R2101064. A description of the differences between the tested model and those that are declared similar are as follows: Model Difference 3940X Test Model 3941X No HW different. SW works with WiFi remote control Please contact me should there be need for any additional clarification or information. Best Regards, Robert Curtis Sr. Director SW Eng [email protected] 1155 Coleman Ave., San Jose, CA 95110, USA

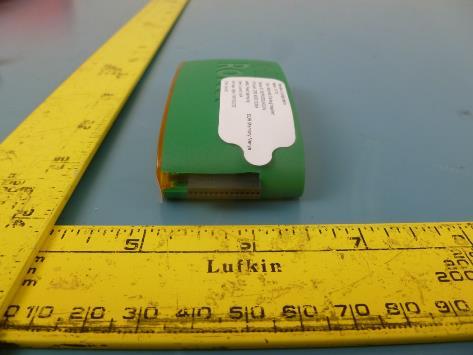

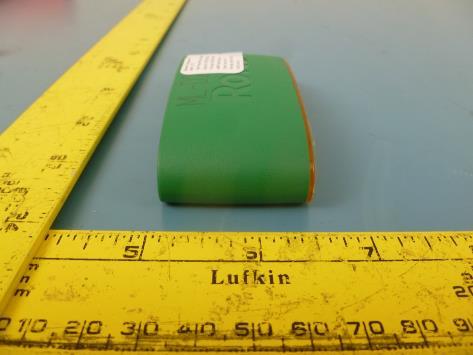

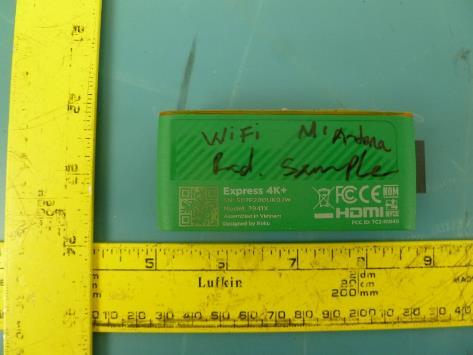

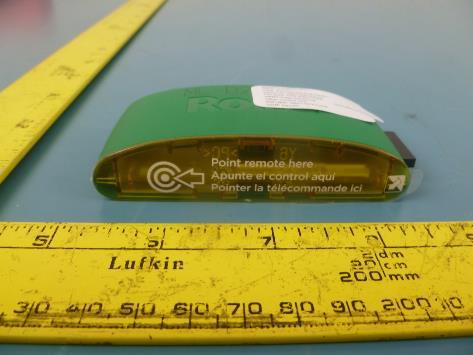

Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 EUT External Photographs 1.1 EUT –Top View 1.2 EUT – Bottom View Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.3 EUT – Front View 1.4 EUT – Rear View Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.5 EUT – Right Side View 1.6 EUT – Left Side View

REV.DRAWN BYCHECKED BYDAT EDAT EDESCRIPTION SHEETS REV’D A1 PENDERY 111620INITIAL RELEASEALL SHEET 1 OF 1 ROKU PNDESCRIPTIONROKU REV. WOLF111620 A2 PENDERY 111720UPDATED PANTONE COLORALL WOLF111720 A3 PENDERY 111920REMOVED IC MARKINGALL WOLF111920 A4 PENDERY 121620REMOVED NOM & NYCE MARKINGSALL WOLF121620 DO NOT SCALE; ARTWORK PLACEMENT 1:1 PRINTED GRAPHIC COLOR: PMS 420 U PRINTING POSITION TOLERANCE ± 0.2MM NOTES UNLESS OTHERWISE SPECIFIED 1 2 3 4 0002004137ARTWORK, MARLIN, NA 121620 A4 13.98mm 1.76mm 22.76mm 55.74mm 420 U REV.DRAWN BYCHECKED BYDAT EDAT EDESCRIPTION SHEETS REV’D A1 PENDERY 092820INITIAL RELEASEALL SHEET 1 OF 1 ROKU PNDESCRIPTIONROKU REV. WOLF092820 A2 PENDERY 092920UPDATED ARTWORK SPACINGALL WOLF092920 A3 PENDERY 111220UPDATED ARTWORK LAYOUTALL WOLF111220 A4 PENDERY 111720UPDATED PANTONE COLORALL WOLF111720 DO NOT SCALE; ARTWORK PLACEMENT 1:1 PRINTED GRAPHIC COLOR: PMS 420 U PRINTING POSITION TOLERANCE ± 0.2MM NOTES UNLESS OTHERWISE SPECIFIED 1 2 3 4 0002003855ARTWORK, MARLIN, NA 111720 A4 13.98mm 1.76mm 27.89mm 55.74mm 420 U SHEET 1 OF 1 ROKU PNDESCRIPTIONROKU REV. 0002003858ARTWORK, LASER ETCH, MARLIN, NA 111220 A4 DO NOT SCALE; ARTWORK PLACEMENT 1:1 LASER-ETCHED MODEL AND SERIAL NUMBER LASER-ETCH POSITION TOLERANCE ± 0.2MM 1 2 3 NOTES UNLESS OTHERWISE SPECIFIED REV.DRAWN BYCHECKED BYDAT EDAT EDESCRIPTION SHEETS REV’D A1 PENDERY 092820INITIAL RELEASEALLWOLF092820 A2 PENDERY 092920UPDATED ARTWORK SPACINGALL WOLF092920 A3 PENDERY 101220UPDATED QR CODEALL WOLF101220 A4 PENDERY 111220UPDATED ARTWORK LAYOUTALL WOLF111220 13.98mm 1.76mm 55.88mm 70.06mm laser-etched qr code, assembled in vietnam, serial number, and model number font: serial number & model number: gotham, medium text size: 5.5pt assembled in vietnam: gotham, medium text size: 4.5pt SHEET 1 OF 1 ROKU PNDESCRIPTIONROKU REV. 0002004136ARTWORK, LASER ETCH, MARLIN, NA 111620 A1 DO NOT SCALE; ARTWORK PLACEMENT 1:1 LASER-ETCHED MODEL AND SERIAL NUMBER LASER-ETCH POSITION TOLERANCE ± 0.2MM 1 2 3 NOTES UNLESS OTHERWISE SPECIFIED REV.DRAWN BYCHECKED BYDAT EDAT EDESCRIPTION SHEETS REV’D A1 PENDERY 111620INITIAL RELEASEALLWOLF111620 13.98mm 1.76mm 55.88mm 70.06mm laser-etched qr code, assembled in vietnam, serial number, and model number font: serial number & model number: gotham, medium text size: 5.5pt assembled in vietnam: gotham, medium text size: 4.5pt

Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 EUT Internal Photographs 1.1 Internal Top View with shielding 1.2 Internal Top View with shielding removed Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.3 Internal Top View (Chip Close Up #1) 1.4 Internal Top View (Chip Close Up #2) Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.5 Internal Top View (Chip Close Up #3) 1.6 Internal Bottom View Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.7 Internal Bottom View (Chip Close Up)

Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 Report Number: R2101064-NII Page 17 of 222 FCC Part 15.407/ISEDC RSS-247 Test Report 4 FCC §2.1091, §15.407(f) & ISEDC RSS-102 - RF Exposure 4.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447 498 Section (7.2), “simultaneous transmission of MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Where: f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF field. Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 Report Number: R2101064-NII Page 18 of 222 FCC Part 15.407/ISEDC RSS-247 Test Report According to ISED RSS-102 Issue 5: 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 Report Number: R2101064-NII Page 19 of 222 FCC Part 15.407/ISEDC RSS-247 Test Report 4.3 MPE Results Worst Case: Antenna B, 802.11n40, 5755 MHz Maximum output power at antenna input terminal (dBm): 18.71 Maximum output power at antenna input terminal (mW): 74.3019 Prediction distance (cm): 20 Prediction frequency (MHz): 5755 Maximum Antenna Gain, typical (dBi): 4 Maximum Antenna Gain (numeric): 2.512 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.037 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.037 mW/cm 2 . Limit is 1.0 mW/cm 2 . 4.4 RF exposure evaluation exemption for IC Worst Case: Antenna B, 802.11n40, 5755 MHz Maximum EIRP power = 18.71 dBm + 4 dBi = 22.71 dBm which is less than 1.31×10 -2 f 0.6834 = 4.86 W = 36.87 dBm Therefore, the RF exposure Evaluation is not required.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.407 ISEDC RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For Roku, Inc. 1155 Coleman Ave., San Jose, CA 95110, USA FCC ID: TC2-R1040 IC: 5959A-R1037 Report Type: Original Report Product Type: Set-top-box Prepared By: Vang Lee Test Technician Report Number: R2101064-NII Report Date: 2021-03-23 Reviewed By: Christian McCaig RF Project Engineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: +1 (408) 732-9162, Fax: +1 (408) 732-9164 Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 Report Number: R2101064-NII Page 2 of 222 FCC Part 15.407/ISEDC RSS-247 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ......................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................. 5 1.2 OBJECTIVE ............................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.4 TEST METHODOLOGY .............................................................................................................................................. 5 1.5 MEASUREMENT UNCERTAINTY ............................................................................................................................... 5 1.6 TEST FACILITY REGISTRATIONS .............................................................................................................................. 6 1.7 TEST FACILITY ACCREDITATIONS ............................................................................................................................ 6 2 EUT TEST CONFIGURATION .................................................................................................................................. 9 2.1 JUSTIFICATION ......................................................................................................................................................... 9 2.2 EUT EXERCISE SOFTWARE ...................................................................................................................................... 9 2.3 DUTY CYCLE CORRECTION FACTOR ...................................................................................................................... 11 2.4 EQUIPMENT MODIFICATIONS ................................................................................................................................. 15 2.5 LOCAL SUPPORT EQUIPMENT ................................................................................................................................ 15 2.6 REMOTE SUPPORT EQUIPMENT .............................................................................................................................. 15 2.7 INTERFACE PORTS AND CABLING .......................................................................................................................... 15 3 SUMMARY OF TEST RESULTS ............................................................................................................................. 16 4 FCC §2.1091, §15.407(F) & ISEDC RSS-102 - RF EXPOSURE ............................................................................. 17 4.1 APPLICABLE STANDARDS ...................................................................................................................................... 17 4.2 MPE PREDICTION .................................................................................................................................................. 18 4.3 MPE RESULTS ....................................................................................................................................................... 19 4.4 RF EXPOSURE EVALUATION EXEMPTION FOR IC .................................................................................................... 19 5 FCC §15.203 & ISEDC RSS-GEN §6.8 - ANTENNA REQUIREMENTS ............................................................. 20 5.1 APPLICABLE STANDARDS ...................................................................................................................................... 20 5.2 ANTENNA LIST ...................................................................................................................................................... 21 6 FCC §15.207 & ISEDC RSS-GEN §8.8 - AC POWER LINE CONDUCTED EMISSIONS ................................ 22 6.1 APPLICABLE STANDARDS ...................................................................................................................................... 22 6.2 TEST SETUP ........................................................................................................................................................... 22 6.3 TEST PROCEDURE .................................................................................................................................................. 22 6.4 TEST SETUP BLOCK DIAGRAM ............................................................................................................................... 23 6.5 CORRECTED AMPLITUDE AND MARGIN CALCULATION .................................................................................…

Text truncated - open the document above for the full version.

Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 Report Number: R2101064-NII Page 143 of 222 FCC Part 15.407/ISEDC RSS-247 Test Report 10 FCC §15.407(a) & ISEDC RSS-247 §6.2 - Power Spectral Density 10.1 Applicable Standards According to FCC §15.407(a): For mobile and portable client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to-point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed, point-to-point operations exclude the use of point-to-multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to-point operations. According to ISEDC RSS-247 §6.2.1 for frequency band 5150-5250 MHz: The maximum e.i.r.p. shall not exceed 200 mW or 10 + 10 log10B, dBm, whichever power is less. B is the 99% emission bandwidth in megahertz. The e.i.r.p. spectral density shall not exceed 10 dBm in any 1.0 MHz band. According to ISEDC RSS-247 §6.2.2 for frequency band 5250-5350 MHz: The maximum conducted output power shall not exceed 250 mW or 11 + 10 log 10 B, dBm, whichever is less. The power spectral density shall not exceed 11 dBm in any 1.0 MHz band. The maximum e.i.r.p. shall not exceed 1.0 W or 17 + 10 log 10 B, dBm, whichever is less. B is the 99% emission bandwidth in megahertz. Note that devices with a maximum e.i.r.p. greater than 500 mW shall implement TPC in order to have the capability to operate at least 6 dB below the maximum permitted e.i.r.p. of 1 W. According to ISEDC RSS-247 §6.2.3 for frequency band 5470-5600 MHz and 5650-5725 MHz: The maximum conducted output power shall not exceed 250 mW or 11 + 10 log 10 B, dBm, whichever is less. The power spectral density shall not exceed 11 dBm in any 1.0 MHz band. The maximum e.i.r.p. shall not exceed 1.0 W or 17 + 10 log 10 B, dBm, whichever is less. B is the 99% emission bandwidth in megahertz. Note that devices with a maximum e.i.r.p. greater than 500 mW shall implement TPC in order to have the capability to operate at least 6 dB below the maximum permitted e.i.r.p. of 1 W. Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 Report Number: R2101064-NII Page 144 of 222 FCC Part 15.407/ISEDC RSS-247 Test Report According to ISEDC RSS-247 §6.2.4 for frequency band 5725-5850 MHz: The maximum conducted output power shall not exceed 1 W. The power spectral density shall not exceed 30 dBm in any 500 kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to-point devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed point-to-point operations exclude the use of point-to-multipoint systems, omnidirectional applications and multiple collocated transmitters transmitting the same information. 10.2 Measurement Procedure (i) Set span to encompass the entire emission bandwidth (EBW) of the signal. (ii) Set RBW = 1 MHz. (iii) Set VBW ≥ 3 MHz. (iv) Number of points in sweep ≥ 2 Span / RBW. (This ensures that bin-to-bin spacing is ≤ RBW/2, so that narrowband signals are not lost between frequency bins.) (v) Sweep time = auto. (vi) Detector = RMS (i.e., power averaging), if available. Otherwise, use sample detector mode. (vii) If transmit duty cycle < 98 percent, use a video trigger with the trigger level set to enable triggering only on full power pulses. Transmitter must operate at maximum power control level for the entire duration of every sweep. If the EUT transmits continuously (i.e., with no off intervals) or at duty cycle ≥ 98 percent, and if each transmission is entirely at the maximum power control level, then the trigger shall be set to “free run”. (viii) Trace average at least 100 traces in power averaging (i.e., RMS) mode. (ix) Compute power by integrating the spectrum across the 26 dB EBW of the signal using the spectrum analyzer’s band power measurement function with band limits set equal to the EBW b…

Text truncated - open the document above for the full version.

Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 EUT Test Setup Photographs 1.1 Radiated Spurious Emissions: 30 MHz – 1 GHz Front View at 3 meters 1.2 Radiated Spurious Emissions: 30 MHz – 1 GHz Rear View at 3 meters Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.3 Radiated Spurious Emissions: 1-18 GHz Front View at 3 meters 1.4 Radiated Spurious Emissions: 1-18 GHz Rear View at 3 meters Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.5 Radiated Spurious Emissions: 1-18 GHz Front View at 1 meter 1.6 Radiated Spurious Emissions: 1-18 GHz Rear View at 1 meter Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.7 Radiated Spurious Emissions: 18-26.5 GHz Front View at 1 meter 1.8 Radiated Spurious Emissions: 18-26.5 GHz Rear View at 1 meter Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.9 Radiated Spurious Emissions: 26.5-40 GHz Front View at 1 meter 1.10 Radiated Spurious Emissions: 26.5-40 GHz Rear View at 1 meter Roku, Inc. FCC ID: TC2-R1040; IC: 5959A-R1037 1.11 AC Line Conducted Emissions: Front View 1.12 AC Line Conducted Emissions: Side View
