Hi! Let’s get started. What’s in the box Roku player Remote control with in-ear headphone jack 2 x AA Alkaline batteries In-ear headphones Power adapter D Get to know your Roku B G F C Front view Back view A E Ethernet port – Connects your Roku player to a wired network with an Ethernet cable (not included). HDMI port – Connects your Roku player to an HDTV with an HDMI cable (not included). Reset button – Resets your Roku player to its original factory settings when pressed and held for 10 seconds (a feature you’ll rarely, if ever, use). Status light – Flashes slowly when the Roku player starts up. Glows when it’s on. Flashes once with each press of the remote control. Storage expansion slot – Lets you increase your storage capacity for Roku channels and games with a microSD card (optional, not included). Power port – Connects your Roku player to a 120V AC power source with the included power adapter. USB port – Plays your home videos, movies, music and photos from supported USB drives. For supported file types, visit roku.com/usb. Did you notice? Your Roku player has no on/off switch. It’s simpler that way and draws very little power—less than a nightlight! Keep it plugged in so that it can download the latest software updates automatically. What you need Roku player HDTV High-speed Internet connection (DSL or cable modem) Router HDMI cable (sold separately) Pssst! Your router can be wireless (any Wi-Fi) or wired. For wired networks, you’ll also need an Ethernet cable (not included). What to do Step 1 Ready for the step-by-step? We’ve only got four... Connect your player Use an HDMI cable (not included) to make the connection depicted in the diagram below: Did you know? Because HDMI outputs digital video and audio, you don’t need a separate audio cable. HDMI also supports up to 7.1 surround sound (where available). Got a receiver? You can also use HDMI to route video and audio directly through your receiver if it supports HDMI video pass-through. •Connect one end to the HDMI port on the back of your Roku player. •Connect the other end to an open HDMI port on your TV. What to do Step 2 Power up key components In this step, we’ll make sure all systems are GO! First, power your Roku remote by inserting the included batteries: •Turn the remote control over and locate the rectangular battery door on the rear of the unit. •Press the latch at the top of the battery door down while simultaneously removing the battery door. •Insert the batteries into their slots, making sure to match the positive (+) and negative (-) signs. •Place the battery door back over the compartment and press it gently down until the latch snaps securely into place. What to do Step 2 (continued) Next, power on your Roku player by connecting it to a wall outlet using the included power adapter, like this: Finally, power on your TV and look for a Roku message to fill the screen. Blank screen? If your TV does not display a Roku screen, make sure your TV input matches the physical connection used to connect your Roku player. Press the Input button (sometimes called Source) on your TV or TV remote to cycle through the various video inputs available until you see a Roku screen. What to do Step 3 Configure your network Step 3 establishes your network connection and brings out your inner geek. You can do it! Just choose either wireless or wired and read on for instructions: Wireless: If you use a wireless network, you can grab that Roku remote and jump right into Guided Setup. When prompted, select “Wireless” as your network connection and have your network name and password ready. Then: •Select your network from the list of available networks. •Enter your network password, if you use one. Remember, network passwords are case sensitive. Dos and don’ts on where to place your Roku player: •DO place your player within range of your wireless network. •DON’T place your player in an enclosed cabinet; it may interfere with the wireless signal. •DON’T place your player beneath anything; it may cause the player to overheat. Eeeeks. What to do Step 3 (continued) Wired: If you use a wired network, this step is a snap. Simply make the two connections depicted in the diagram below, and then use your Roku remote to select “Wired” from the on-screen network options. •Connect one end to the Ethernet port on the back of your Roku player. •Connect the other end to an open Ethernet port on your router. What to do Step 4 Complete Guided Setup It’s the final stretch and hooray—it’s a breeze! Continue following the on-screen instructions and you’ll: •Get the latest software. •Select the video output resolution. •Link the Roku player to your Roku account on your computer. And setup is done...congratulations! Continue using that Roku remote, which you can learn more about on the following pages, to personalize your channel line-up, stream movies or play games. The fun part has just begun, we promise. Your Roku account: During Guided Setup, you’ll be prompted to create your Roku account online at roku.com/link. Your Roku player will generate a unique code that links your player to your new account. Roku accounts are free and secure. And while a valid credit card number is required to create your account, rest assured you will only be charged if you authorize purchases of apps and games from the Roku Channel Store. Get to know your remote! First a couple of fun-facts about your Roku enhanced remote. •It can hush your TV. When you plug headphones into the headphone jack, the TV is automatically muted. Use the Volume UP and DOWN buttons on the side of your remote to control the volume of your headphones to your liking. •It’s sensitive and smart. The Roku 3 remote incorporates motion-sensing technology, allowing more precise and detailed control of gameplay. •It comes with an adjustable wrist strap—for good reason. Since some games make you sweat, sporting the wrist strap is a very good idea. You don’t want to crack the screen of your beautiful TV—or harm an…

Text truncated - open the document above for the full version.

ROKU lnc. Date: October 9,2012. Federal Communications Commission Authorization and Evaluation Division FCC lD: TC2-R1004 ATTESTATION FCC lD: TC2-R1004 Product: rp-srB Model: 42OOX We don't provide any controls or software to allow operation outside the USA frequency band when we seil this product in usA. Greg Garner ROKU Inc. irector of Hardware Engineering

ROKU lnc. Attestation for FCC Declaration of Conformity FCC lD: TC2-R1004 Date: 2012110109 Please be notified that we, the undersigned, ROKU lnc. declares that the product which bears the above FCC lD is also compliant with the FCC requirements for Doc. The test report number supporting the Doc is 129259R-lrusP01v02 Testing in regards to this report was done by euieTek corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou shiang, Taipei County 244,Taiwan, which has been accredited in accordance to all of the requirements ol 47cFR 2.949 (d) and (e) of the FCC rules and KD8349827. Sincerely, Greg Garner/Director of Hardware Engineering ROKU lnc.

ROKU lnc. Declaration of Authorization We Name: ROKU lnc. Address: 12980 Saratoga Ave, Suite D Saratoga, CA 95070 City: . SuiteDSaratoga Country: .. United States Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. RF-l(r0. irsLre ( F1.2, No.345, Xin-hu 2nd Rd., Nei-hu District Taipei Taiwan Address: City: Country is authorized to apply for certification of the following product(s): Product description: lP-STB ...... Type designation: 4200X Trademark: Roku on our behalf. Date:...... 2012110/09. City: Springdale Name: ... .. . Greg Garner . ... (2) Function: ......Director of Hardware Engineering... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code "owner" or the authorized agerrt.

I 2 ) ROKU lnc. Date: October 9,2012 Federal Communications Commission Authorization and Evaluation Division FCC lD: TC2-R1004 Conf identiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidentialtreatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily relei. ;ed to the public. The public disclosure of these matters might be harmfulto the Applicant and provide unjustified benefits to its competitors. ln additionalto above mentioned documents, pursuant to public Notice DA 04-1705 of the commission's policy, in order to comply with the marketing regulations in 47 DFR $ 2.g03 and the importation rules in 47 cFR S 2.1204, while ensuring irrainusiness sensitive informatior remains confidential until the actual marketing of newly authorized devices.. we are requesting the commission to grant ninety days short-term confidentiality request on the following attachments: External Photos Internal Photos Test Setup Photos User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and air accompanying documentation will not be made before the date of the Grant for this applicar,on. Greg Garner/Director of Hardware Engineering ROKU lnc.

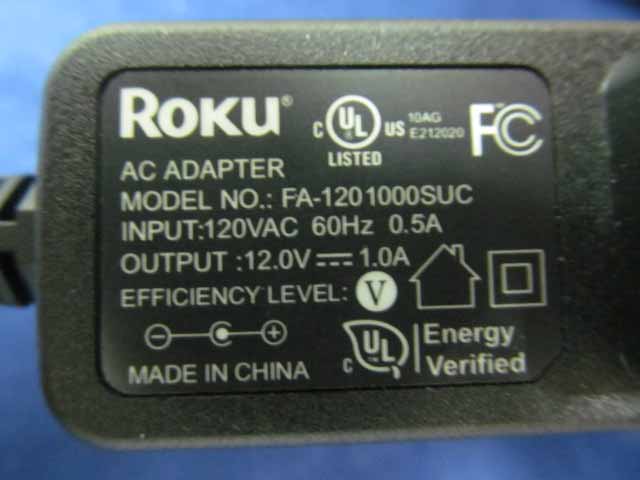

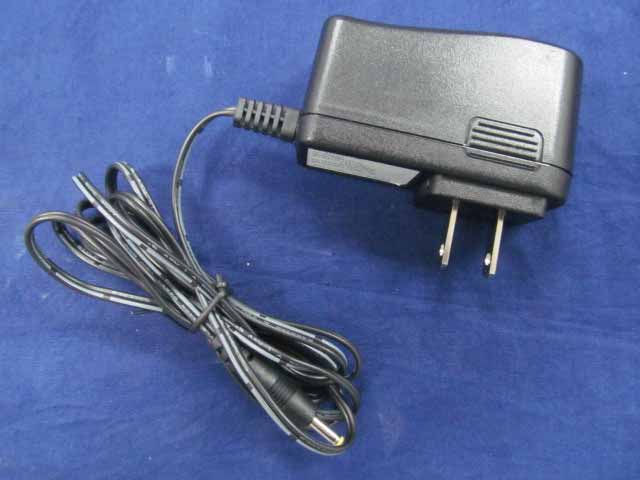

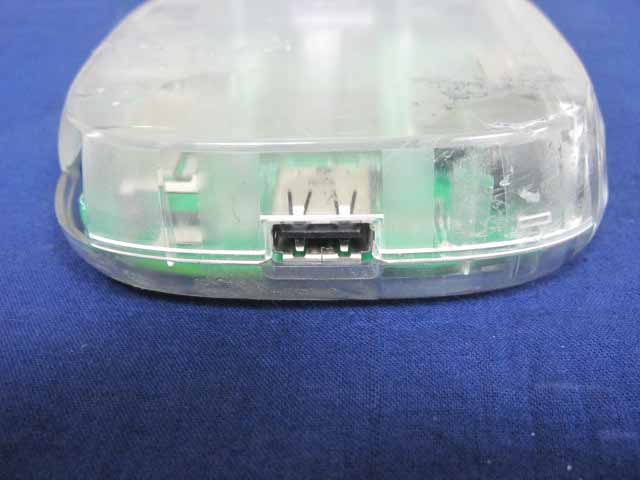

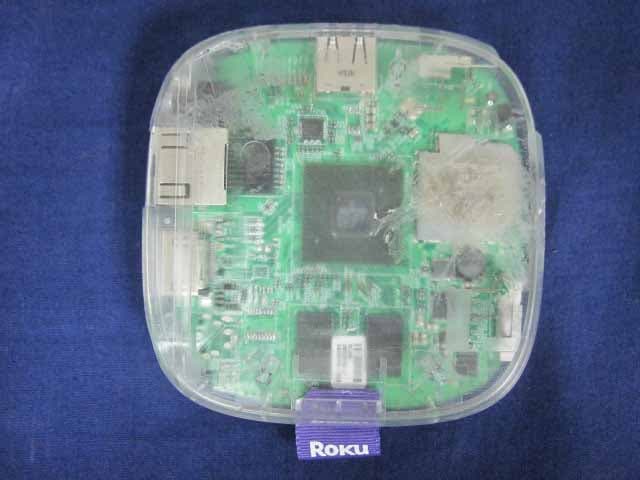

Report No.:129259R-ITUSP01V02 Page: 1 of 9 Appendix 2 – EUT Photograph (1) EUT Photo (2) EUT Photo Report No.:129259R-ITUSP01V02 Page: 2 of 9 (3) EUT Photo (4) EUT Photo Report No.:129259R-ITUSP01V02 Page: 3 of 9 (5) EUT Photo (6) EUT Photo Report No.:129259R-ITUSP01V02 Page: 7 of 9 (13) EUT Photo (Adapter 1#) (14) EUT Photo (Adapter 1#) Report No.:129259R-ITUSP01V02 Page: 8 of 9 (15) EUT Photo (Adapter 2#) (16) EUT Photo (Adapter 2#) Report No.:129259R-ITUSP01V02 Page: 9 of 9 (17) EUT Photo (Adapter 3#) (18) EUT Photo (Adapter 3#)

Report No.:129259R-ITUSP01V02 Page: 4 of 9 (7) EUT Photo (8) EUT Photo Report No.:129259R-ITUSP01V02 Page: 5 of 9 (9) EUT Photo (10) EUT Photo Report No.:129259R-ITUSP01V02 Page: 6 of 9 (11) EUT Photo (12) EUT Photo

RF Exposure Evaluation Declaration Product Name : IP-STB Model No. : 4200X FCC ID : TC2-R1004 Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Date of Receipt : 14/09/2012 Issued Date : 24/09/2012 Report No. : 129S019R-RF-US-P20V01 Report Version : V2.0-draft The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 129S019R-RF-US-P20V01 Page: 2 of 5 Test Report Certification Issued Date : 24/09/2012 Report No. : 129S019R-RF-US-P20V01 Product Name : IP-STB Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Manufacturer : Ambit Mircosystems (Shanghai) LTD. Address : 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China 201613 Model No. : 4200X FCC ID : TC2-R1004 EUT Voltage : 12V Brand Name : Roku Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 129S019R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 129S019R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 129S019R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : IP-STB Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi for 2.4GHz and 1dBi for 5GHz in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n(20MHz) 2412~2462 493.1738 0.155500 802.11n(40MHz) 2422~2452 247.1724 0.077935 802.11a/n(20MHz) 5180~5240 48.9779 0.012267 802.11n(40MHz) 5190~5230 49.2040 0.012323 802.11a/n(20MHz) 5745~5825 119.9499 0.030042 802.11n(40MHz) 5755~5795 145.8814 0.036537 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Test Report Industry Canada RSS-Gen Issue 3/RSS-210 Issue 8 FCC Part15 Subpart C Product Name : IP-STB Model No. : 4200X FCC ID : TC2-R1004 IC : 5959A-R1004 Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Date of Receipt : 14/09/2012 Test Date : 14/09/2012~23/09/2012 Issued Date : 24/09/2012 Report No. : 129S019R-RF-US-P05V01 Report Version : V2.0-draft The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 129S019R-RF-US-P05V01 Page: 2 of 271 Test Report Certification Issued Date : 24/09/2012 Report No. : 129S019R-RF-US-P05V01 Product Name : IP-STB Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Manufacturer : Ambit Mircosystems (Shanghai) LTD. Address : 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China 201613 Model No. : 4200X FCC ID : TC2-R1004 IC : 5959A-R1004 EUT Voltage : 12V Brand Name : Roku Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009; ANSI C63.10: 2009 Industry Canada RSS-Gen Issue 3/RSS-210 Issue 8 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 129S019R-RF-US-P05V01 Page: 3 of 271 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 129S019R-RF-US-P05V01 Page: 4 of 271 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................9 1.3. Tested System Details..............................................................................................10 1.4. Configuration of Tested System ............................................................................... 11 1.5. EUT Exercise Software ............................................................................................12 2. Technical Test ..............................................................................................................13 2.1. Summary of Test Result ...........................................................................................13 2.2. Test Environment.....................................................................................................15 3. Conducted Emission ....................................................................................................16 3.1. Test Equipment ........................................................................................................16 3.2. Test Setup ................................................................................................................16 3.3. Limit..........................................................................................................................17 3.4. Test Procedure.........................................................................................................17 3.5. Uncertainty ...............................................................................................................17 3.6. Test Result...............................................................................................................18 4. Radiated Emission.......................................................................................................20 4.1. Test Equipment ........................................................................................................20 4.2. Test Setup ................................................................................................................21 4.3. Limit..........................................................................................................................22 4.4. Test Procedure.........................................................…
