TC2-R1010IP-STB

Roku Player Important Product Information ® The License Agreement Use of the Roku player (“Player”) requires you to establish an account on Roku’s website and consent to the terms and conditions provided in connection with your account setup. If you do not agree to these terms and conditions and you are within the allowable time period for returns under the applicable return policy, you may return the Player to the place where you obtained it for a refund, subject to the terms of such return policy. You should perform a factory reset on the Player before you return it. For instructions on how to reset your Player, please visit our website. Safety Precautions This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential for causing fire, electrical shock or personal injury. To help ensure accident-free operation, follow these guidelines: • Observe all warnings, precautions & instructions. • Regularly inspect the AC power adapter for damage. • Stop use, unplug the AC power adapter from the electrical outlet and disconnect any other cables immediately if the Player functions in an abnor- mal manner, produces unusual sounds or smells or becomes too hot to touch. • For more information on product safety and troubleshooting, please go to www.roku.com/support. Use and Handling • Do not operate the Roku remote using any vigor- ous motions or gestures. • Keep the Player and accessories, including cable ties and fasteners, out of the reach of small chil- dren. • Do not touch the Player or connected cables during an electrical storm. • Do not allow liquid, small particles or other foreign objects to get into the Player or acces- sories. • Do not expose the Player to smoke or steam. • Do not expose the Player or accessories to high, temperatures, high humidity or direct sunlight. • Do not place the Player or the remote on the floor or in a place where they may cause someone to trip or stumble. • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Place your player within range of your wireless network. • Do not place your player in an enclosed cabinet; it may interfere with the wireless signal. • Do not place anything on top of your player; it may cause the player to overheat. IMPORTANT tips about battery handling! Inserting batteries: When inserting batteries, be sure to insert each battery negative (-) side first, pushing it into the coil and then into the compart- ment. Never insert batteries positive (+) side first. Replacing batteries: Always replace dead batter- ies with two brand-new batteries from the same manufacturer. Never use damaged batteries. Disposal of batteries: Always dispose of batteries following federal guidelines or local ordinances. Do not dispose of used batteries in an open fire. Warning signs: If your remote gets warm/hot during use, discontinue use and contact Roku Customer Support immediately at roku.com/ support. There is a risk of explosion if battery is replaced by an incorrect type. Limited Hardware Warranty Subject to the additional terms and conditions set forth below, Roku provides this Limited Warranty: • Only to the person or entity that originally purchased the Player from Roku or from one of its authorized resellers or distributors; and • One (1) year limited hardware warranty for Players purchased and delivered to the end user within the United States. Limited Warranty Roku warrants the Player hardware against defects in materials and workmanship under normal use for a period of one (1) year from the date of purchase (“Warranty Period”). If Roku determines that the Player’s hardware is defective, Roku will either repair the unit or replace the unit with either a new or rebuilt Player, at its option. If the Warranty Period has expired or is otherwise not applicable (see Scope and Limitation on Warranty below), we will return the Player to you at your cost and expense. More information about this warranty can be found at www.roku.com/support. THE FOREGO- ING SETS FORTH ROKU’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY IN THE EVENT OF ANY BREACH OF THIS LIMITED WARRANTY. Return and Warranty Service Process Please access and review Roku’s online help resources at support.roku.com before seeking warranty service. Returns for your new Player must be within the 30-day return period (if purchased directly from Roku’s website) or in accordance with the return policy period of the applicable retailer from which you purchased the Player. Warranty service requests for your new Player must be within the original product warranty period. You must first obtain a Return Merchandise Authorization (RMA) number from Roku Customer Support by visiting our website or contacting 888-600-7658. RMA numbers expire 30 days from issuance. Roku may attempt to troubleshoot a warranty-related problem prior to issuing a RMA number. Please be prepared to provide additional information upon request. Once a RMA number is obtained, you must ship your Player, freight prepaid, together with proof of purchase and all accessories, in either the original packaging or packaging aiording an equal degree of protection, to the Roku authorized distribution facility identi- fied by Roku Customer Support. Failure to return any of the accessories could result in a delay and/ or result in an invoice to you or credit to Roku for the missing accessories. Important: When submitting a RMA, please provide the following information with your request: (a) model number, (b) serial number, (c) problem description, (d) software version (located in the Settings menu), (e) date of purchase, (f) place of purchase (reseller or online place of purchase), and (g) return shipping address (P.O. boxes are not accepted). Scope of and Limitation on Warranty The warranty on the Player is limited to the repair or replacement of defective units as described in the Limited Warranty section above. This warranty does not c…

Text truncated - open the document above for the full version.

(2):Required for IC application

Roku Inc. 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Attestation for FCC Declaration of Conformity FCC ID: TC2-R1010 Date: 2015/09/11 Please be notified that we, the undersigned, Roku Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 1590118R-RF-US-P01V01Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, __________________ Greg Garner / Principal Engineer Roku Inc.

Authority to Act as Agent Date: 2015-09-11 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____ Roku Inc.______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____2016-09-11_____ By: __________________________ _____ Greg Garner ________ (Signature 1 ) (Print name) Title: ______ Principal Engineer ____________________ On behalf of: ______ Roku Inc.____________________ (Company Name) Telephone: ______479-871-1148_ ___________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Roku Inc. Data: Sept. 25, 2015 Office of Engineering and Technology Federal Communication Commission 7435 Oakland Mills Road Columbia, MID 21046-1609 Subject : SHORT-TERM Confidentiality request for FCC ID: TC2-R1010 To Whom It May Concern, ______Roku Inc.____________________(the applicant) attests that none of the products certified under FCC ID: TC2-R1010 has been marketed in the U.S. since the certification was granted on Sept. 25, 2015 and acknowledges that the requested exhibits for SHORT-TERM Confidentiality below have been viewable to the public since Sept. 25, 2015. Pursuant to Section 0.457 (d)(1)(ii) and 0.459 of 47CFR, the applicant requests the following documents contained in this application be temporarily withheld from public disclosure for a period of 180 days: Type of Confidentiality Requested Exhibit Short Term External Photos Short Term Internal Photos Short Term Test Setup Photos Short Term User’s Manual ______ Roku Inc.__________(the applicant) also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) If the applicatnt requires aditional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – or b) Immediately notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents above for public disclosure pursuant to the FCC Public Notice.

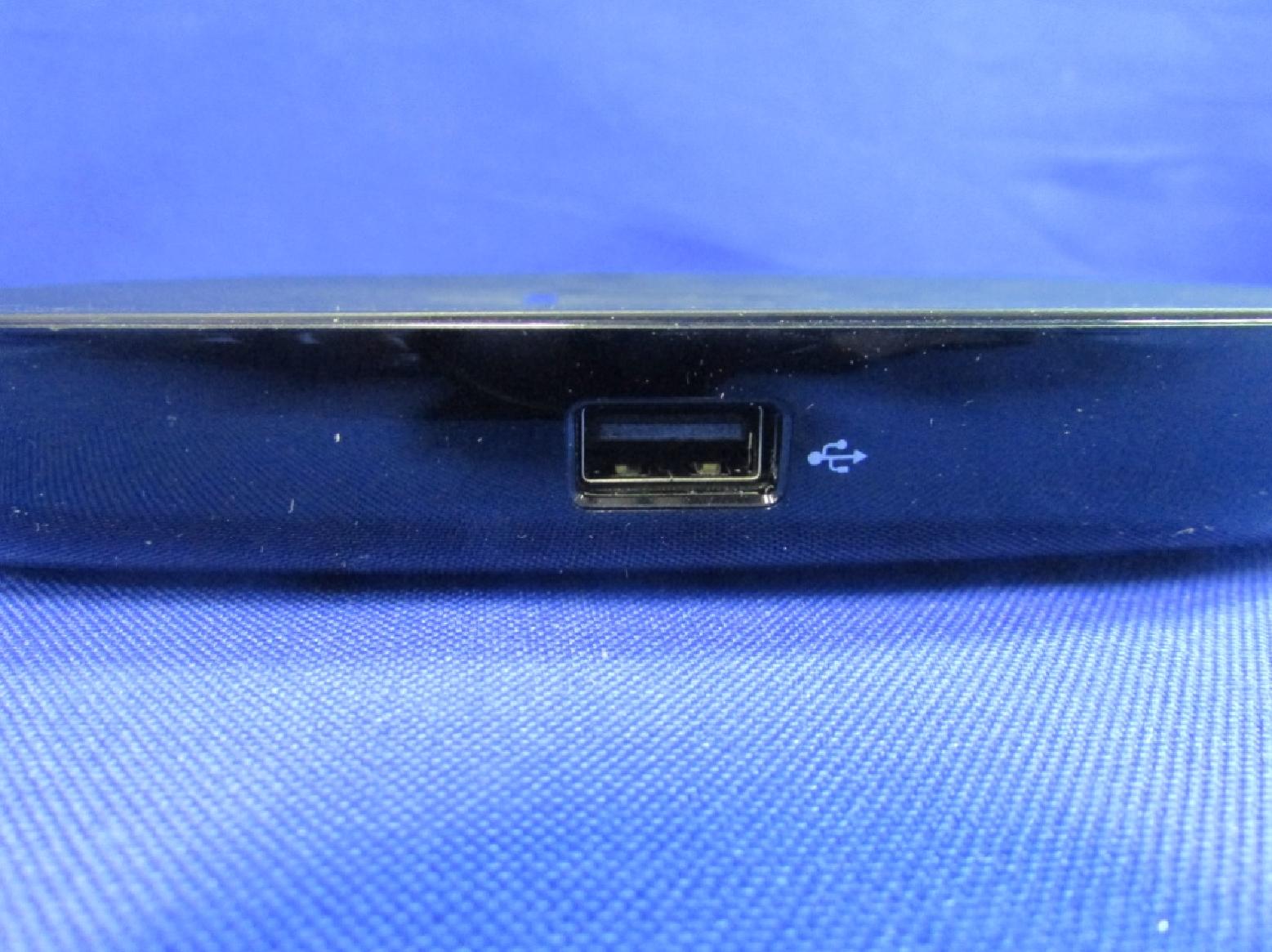

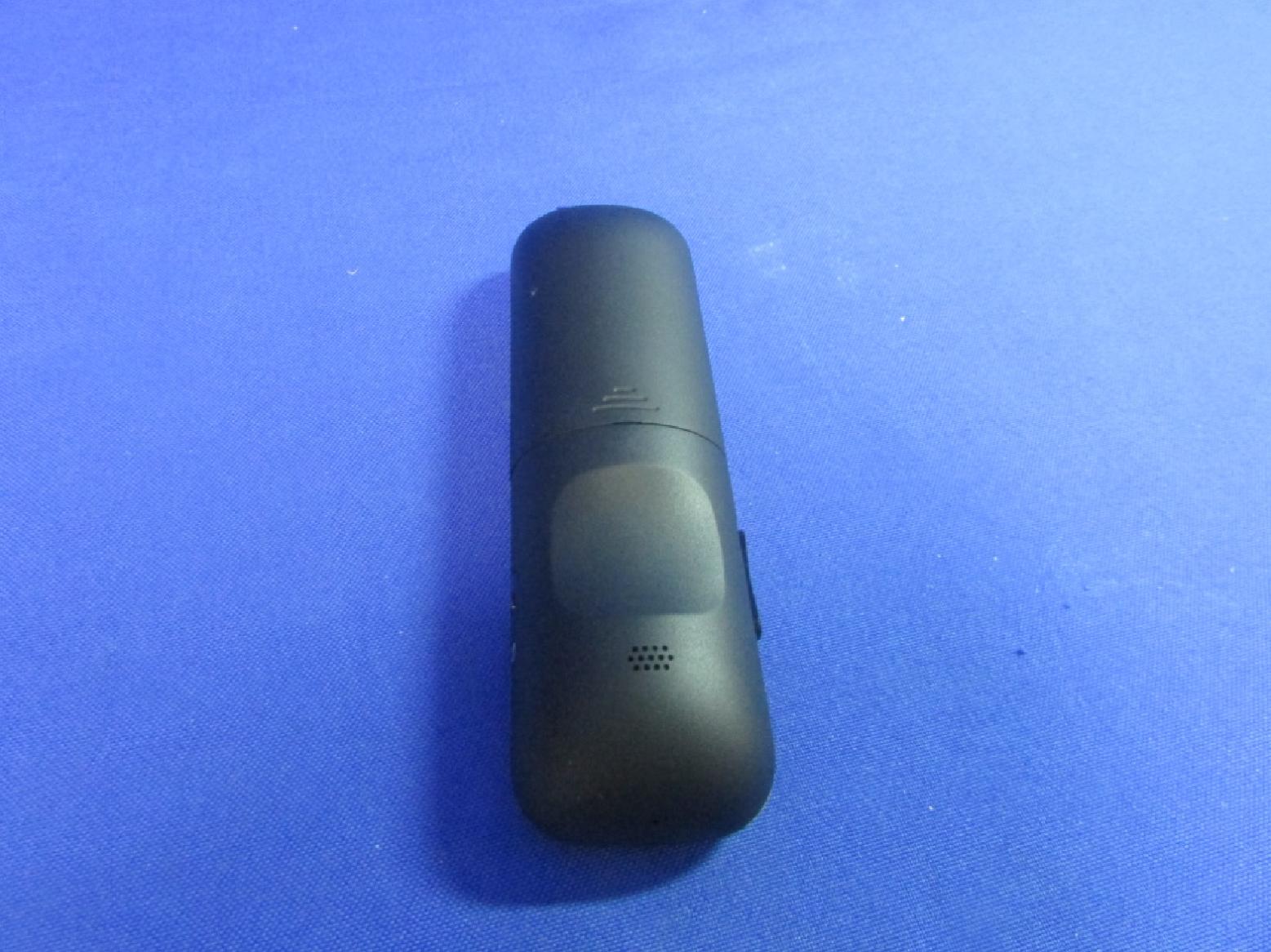

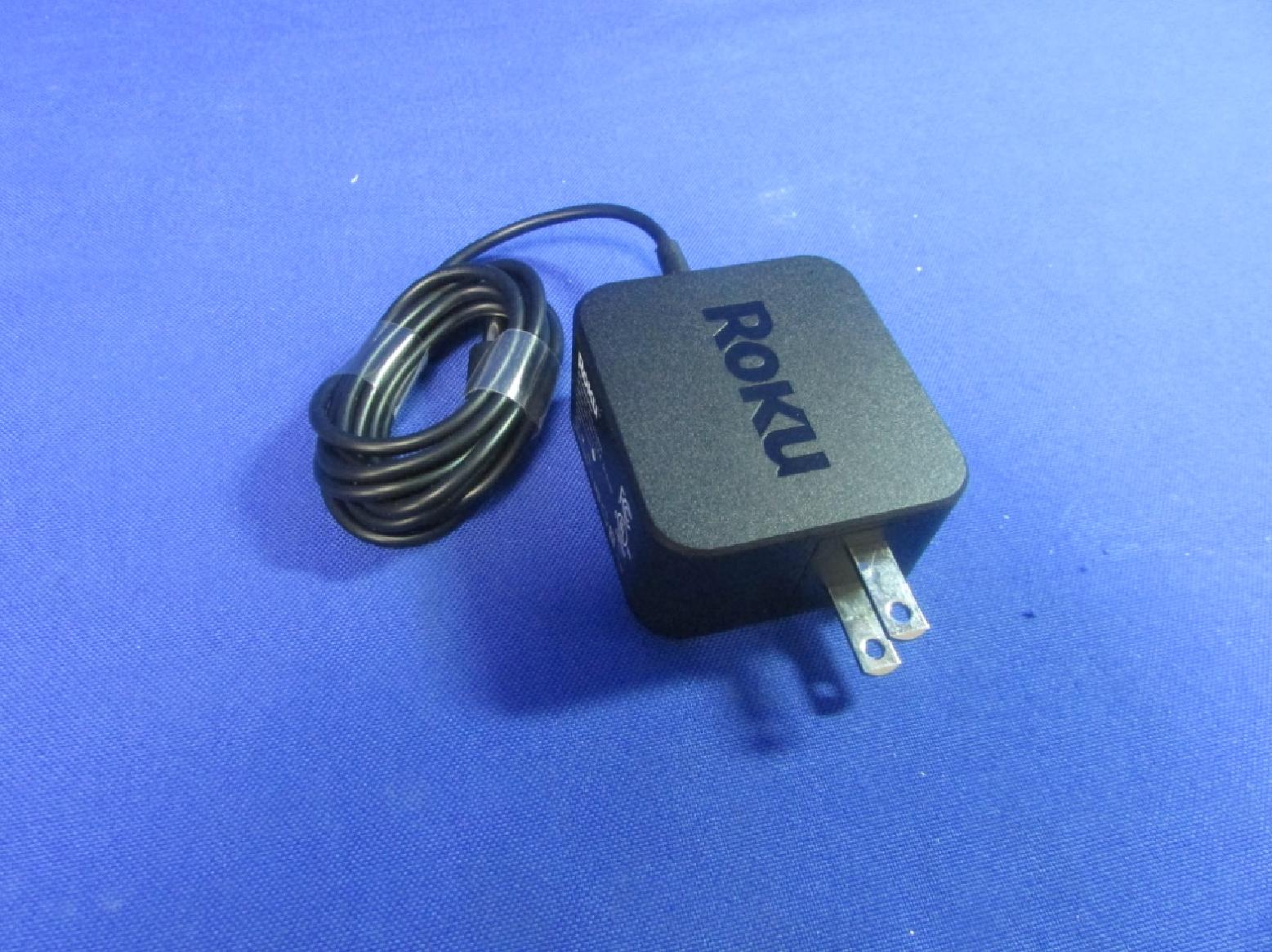

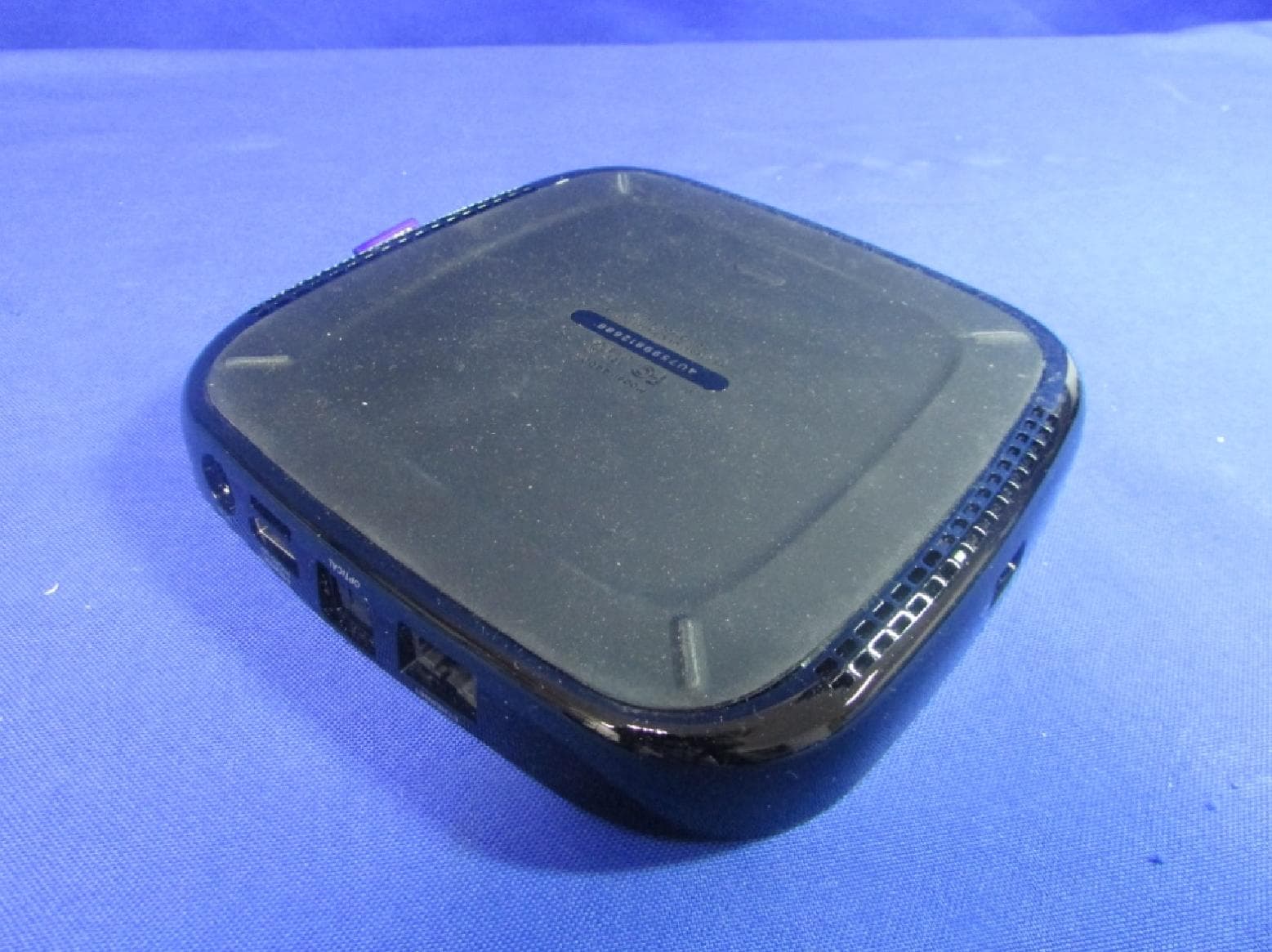

 EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

 EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo

RF Exposure Evaluation Declaration Product Name : IP-STB Model No. : 4400X FCC ID : TC2-R1010 IC : 5959A-R1010 Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Date of Receipt : Aug.31, 2015 Issued Date : Sept. 22, 2015 Report No. : 1590118R-RF-US-P20V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No: 1590118R-RF-US-P20V01 Page: 2 of 8 Test Report Certification Issued Date : Sept. 22, 2015 Report No. : 1590118R-RF-US-P20V01 Product Name : IP-STB Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Manufacturer : Ambit Mircosystems (Shanghai) LTD. Address : 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China 201613 Model No. : 4400X FCC ID : TC2-R1010 IC 5959A-R1010 EUT Voltage : DC 12V Brand Name : Roku Applicable Standard : KDB 447498D01V05V02 FCC Part1.1310(b) Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1590118R-RF-US-P20V01 Page: 3 of 8 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF USA :FCC Japan :VCCI China :CNAS Report No: 1590118R-RF-US-P20V01 Page: 4 of 8 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE 1590118R-RF-US-P20V01 V1.0 Initial Issued Report Sept. 22, 2015 Report No: 1590118R-RF-US-P20V01 Page: 5 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 1590118R-RF-US-P20V01 Page: 6 of 8 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : IP-STB Test Item : RF Exposure Evaluation Test Site : AC-6 z Antenna Gain: No. Peak Gain WIFI ANT 2.4GHz band: 2.39dBi 5GHz Band: 3.6dBi BT ANT 0.7dBi Report No: 1590118R-RF-US-P20V01 Page: 7 of 8 1.3.1 Standalone transmission of RF Exposure Evaluation z Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n(20MHz) 2412~2462MHz 411.150 0.142 802.11n(40MHz) 2422~2452MHz 232.274 0.080 802.11a/n(20MHz)/ac(20MHz) 5180~5240MHz 5745~5825MHz 55.081 0.025 802.11n(40MHz)/ac(40MHz) 5190~5230MHz 5755~5795MHz 49.317 0.022 802.11ac(80MHz) 5210MHz 5775 MHz 10.593 0.005 Bluetooth 2402~2480MHz 4.370 0.001 Note: The standalone power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is below the limit of 1 mW/cm2. Report No: 1590118R-RF-US-P20V01 Page: 8 of 8 1.3.2 Simultaneous transmission of RF Exposure Evaluation Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power…

Text truncated - open the document above for the full version.

Test Report FCC Part15 Subpart C Product Name : IP-STB Model No. : 4400X FCC ID : TC2-R1010 IC : 5959A-R1010 Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Date of Receipt : Aug. 31, 2015 Test Date : Aug. 31, 2015~ Sept. 17, 2015 Issued Date : Sept. 22, 2015 Report No. : 1590118R-RF-US-P06V02 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1590118R-RF-US-P06V02 Page: 2 of 104 Test Report Certification Issued Date : Sept. 22, 2015 Report No. : 1590118R-RF-US-P06V02 Product Name : IP-STB Applicant : Roku Inc. Address : 12980 Saratoga Ave, Suite D Saratoga, CA 95070 Manufacturer : Ambit Mircosystems (Shanghai) LTD. Address : 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China 201613 Model No. : 4400X FCC ID : TC2-R1010 IC : 5959A-R1010 EUT Voltage : DC 12V Brand Name : Roku Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2015 ANSI C63.4:2014; ANSI C63.10:2013; KDB 558074 D01v03r03 Industry Canada RSS-Gen Issue 4 Industry Canada RSS-247 Issue 1 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : Reviewed By : Approved By : Report No.: 1590118R-RF-US-P06V02 Page: 3 of 104 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu,China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC,TAF USA : FCC Japan : VCCI China : CNAS Report No.: 1590118R-RF-US-P06V02 Page: 4 of 104 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................................ 8 1.1. EUT Description ...................................................................................................................... 8 1.1. Mode of Operation ................................................................................................................ 12 1.2. Tested System Details ........................................................................................................... 13 1.3. Configuration of Tested System ............................................................................................ 14 1.4. EUT Exercise Software ......................................................................................................... 15 2. Technical Test ........................................................................................................................ 16 2.1. Summary of Test Result ........................................................................................................ 16 2.2. Test Environment .................................................................................................................. 18 3. Conducted Emission ............................................................................................................. 19 3.1. Test Equipment ..................................................................................................................... 19 3.2. Test Setup ............................................................................................................................. 19 3.3. Limit ....................................................................................................................................... 20 3.4. Test Procedure ...................................................................................................................... 20 3.5. Uncertainty ............................................................................................................................ 20 3.6. Test Result ............................................................................................................................ 21 4. Radiated Emission ................................................................................................................ 23 4.1. Test Equipment ..................................................................................................................... 23 4.2. Test Setup ............................................................................................................................. 24 4.3. Limit ..............................................................................................................................…

Text truncated - open the document above for the full version.

Test Photograph Test Mode : Mode 1: Normal Operation Description : Front View of Conducted Test Test Mode : Mode 1: Normal Operation Description : Back View of Conducted Test Test Mode : Mode 1: Normal Operation Description : Front View of Radiated Test Test Mode : Mode 1: Normal Operation Description : Front View of High Frequency Radiated Test
