TC22000CIP Set Top Box

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This devicemay not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipmentshould be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Roku, LLC 19352 Hilton Rd Springdale, AR 72764. Date: 2010/08/17 GENERAL DECLARATION We, Roku, LLC. declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: TC22000C If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Signature: Greg Garner Director of Hardware Engineering Roku, LLC TEL: 4797561148 FAX: 4797563917 E-mail: [email protected]

Roku, LLC 19352 Hilton Rd Springdale, AR 72764. AGENCY AUTHORIZATION LETTER Date: 2010/08/16 To whom it may concern: We, the undersigned, Roku, LLC. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Greg Garner Director of Hardware Engineering Roku, LLC TEL: 4797561148 FAX: 4797563917 E-mail: [email protected]

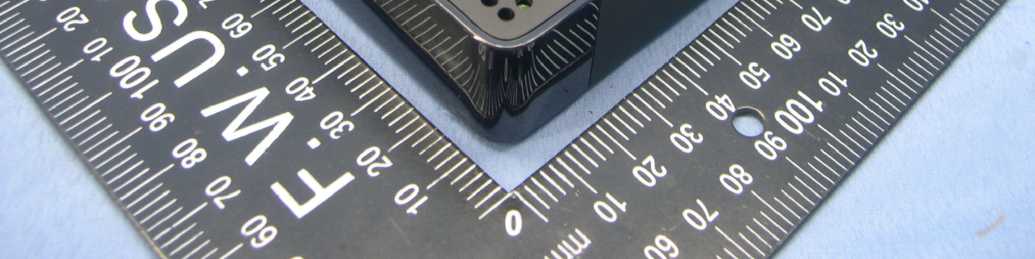

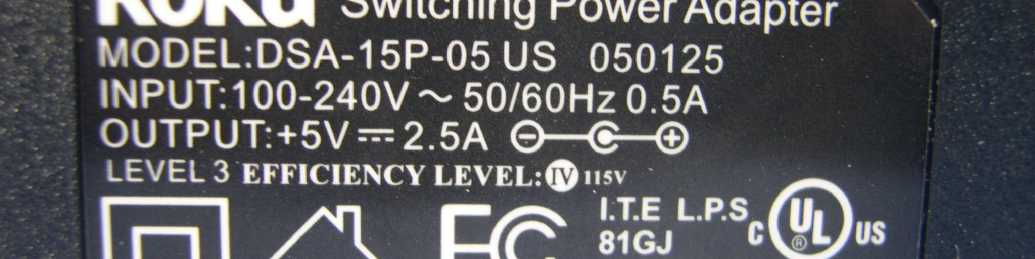

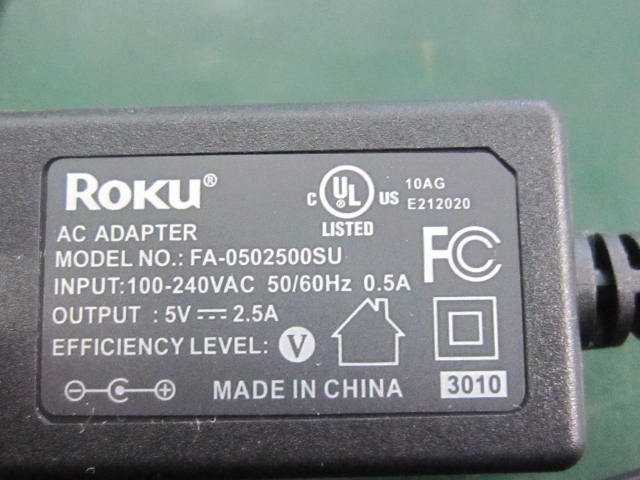

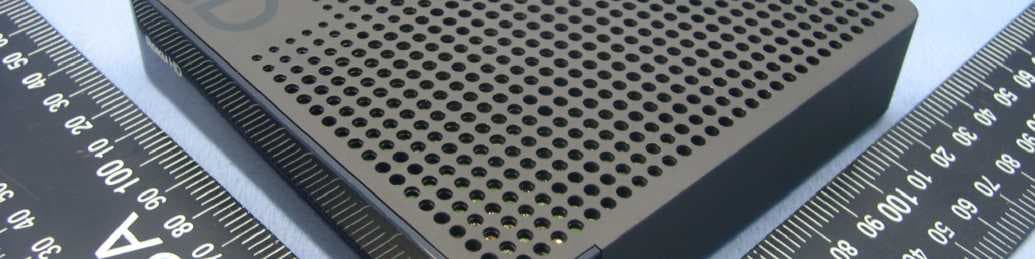

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Model No.: DSA-15P-05 US 050125 Page 4 Model No.: FA-0502500SU Page 5 Page 6

00 Annie Huang U89X011.04 Annie Huang Sunny Wu 10.07.10 50# Mylar(哑白) * Belly label 500.01112.005 1.WIRELESS # = ETHERNET # +1, Barcodes contain“：”, Barcode type:128 code. 2.SERIAL NO refer to page 5 to page 7, Barcode type:39 code. 3.Font:Gotham Medium,5.1 pt. 1 2 54.5mm 43.5mm 00 Annie Huang U89X011.04 Annie Huang Sunny Wu 10.07..10 Art paper * giftbox label 504.00691.005 1.MODEL Name 2.LOT # follow foxconn’s standard. 3.Serial Number refer to page 5 to page 7 4.UPC Value = 8-29610-88001-3, Barcode type:UPC-A 5.Font:OCR-B 6.Barcode type:all of the barcodes is 39 code except the UPC barcode. 2000C-00 82.5mm PRRYMCXXXXXX LOT# 5200058933 55 mm 1 2 3 4 U89X01 1.04 503.00695.005 Annie Huang Annie Huang 10.07.10 00 first design Sunny Wu Carton label ROKU ® 2000C-00 PN: QTY: *14* Assembled in China Carton: xxxxxx Lot: xxxxxx *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* 101.6mm 190.5mm UCC: Notes: 1.Serial Number refer to page 5 to page 7. 2.UCC # is fixed,Barcode type:code 128,Barcoede must contain”-” . 3.Carton ID & Lot # follow foxconn’s standard. 4.Font:Arial Bold. 5.Barcode type:all of the barcodes is code 39 except the UCC barcode. *PRRYMCXXXXXX* *PRRYMCXXXXXX* 1-08-29610-88001-0 4. Pallet Label(503.00089.005)110mm*36mm 1)Font: Arial 2)Height:7.79mm3)Width: 90%4)Format: Code 395)Height:11.98mm6)Narrow Bar Width: 6 D ots 7)Ratio: 2.78)Space correction:0 Label U89X001.00 REV:06 Page: 4 of 4 Chan ge: 1. Change REV from N/A to 05 Roku Pico HD Classic Roku Pico Slimline HD Roku Pico S limline HD-XR H J K (U89X002.01) (U89X002.02) (U89X002.03) (U89X002.05) (U89X004.00) (U89X002.04) (U89X005.01) (U89X005.00) (U89X005.02) (U89X005.03)

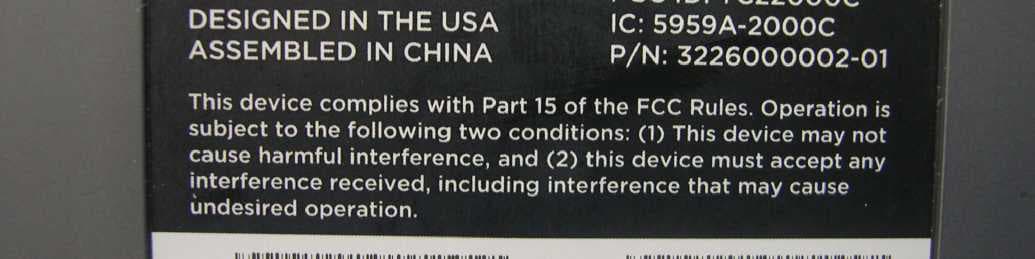

(Fig. 1) FCC ID: TC22000C FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 7 Page 8 Page 9

FCC ID: TC22000C Report No.: RF990810E05 Operational Description This device is an IP Set Top Box, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the power adapter. The antennas are PCB printed antennas without any antenna connectors. The other instruction, please have a look at the users manual.

Report No.: SA990810E05 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990810E05 MODEL NO.: 2000C FCC ID: TC22000C ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Roku, LLC ADDRESS: 19352 Hilton Rd Springdale, AR 72764. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990810E05 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990810E05 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device Report No.: SA990810E05 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Chain Antenna Type Antenna Connector Antenna Gain (dBi) Chain (0) PCB Printed NA 3 Chain (1) PCB Printed NA 3 Report No.: SA990810E05 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 229.1 0.091 1.0 6 2437 363.1 0.144 1.0 11 2462 204.2 0.081 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 260.8 0.104 1.0 6 2437 622.2 0.247 1.0 11 2462 279.3 0.111 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 216.8 0.086 1.0 6 2437 628.6 0.250 1.0 11 2462 240.5 0.095 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 202.3 0.080 1.0 4 2437 590.4 0.234 1.0 7 2452 221.9 0.088 1.0 --- END ---

Report No.: RF990810E05 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990810E05 MODEL NO.: 2000C FCC ID: TC22000C RECEIVED: Aug. 11, 2010 TESTED: Aug. 16 to 27, 2010 ISSUED: Aug. 30, 2010 APPLICANT: Roku, LLC ADDRESS: 19352 Hilton Rd Springdale, AR 72764. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 82 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990810E05 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION................................................................................................4 2. SUMMARY OF TEST RESULTS.........................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3. GENERAL INFORMATION..................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................7 3.2 DESCRIPTION OF TEST MODES......................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.......................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................13 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................16 4. TEST TYPES AND RESULTS...........................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT......................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................18 4.1.2 TEST INSTRUMENTS......................................................................................18 4.1.3 TEST PROCEDURES.......................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD..............................................................19 4.1.5 TEST SETUP...................................................................................................20 4.1.6 EUT OPERATING CONDITIONS......................................................................20 4.1.7 TEST RESULTS...............................................................................................21 4.2 RADIATED EMISSION MEASUREMENT..........................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................25 4.2.2 TEST INSTRUMENTS......................................................................................26 4.2.3 TEST PROCEDURES.......................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD..............................................................28 4.2.5 TEST SETUP...................................................................................................29 4.2.6 EUT OPERATING CONDITIONS......................................................................29 4.2.7 TEST RESULTS...............................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT.................................................................59 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................59 4.3.2 TEST INSTRUMENTS......................................................................................59 4.3.3 TEST PROCEDURE.........................................................................................59 4.3.4 DEVIATION FROM TEST STANDARD..............................................................59 4.3.5 TEST SETUP...................................................................................................59 4.3.6 EUT OPERATING CONDITIONS......................................................................59 4.3.7 TEST RESULTS...............................................................................................60 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................64 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................64 4.4.2 INSTRUMENTS................................................................................................64 4.4.3 TEST PROCEDURES.......................................................................................64 4.4.4 DEVIATION FROM TEST STANDARD..............................................................64 Report No.: RF990810E05 3 Report Format Version 3.0.1 4.4.5 TEST SETUP...................................................................................................64 4.4.6 EUT OPERATING CONDITIONS......................................................................64 4.4.7 TEST RESULTS...............................................................................................65 4.5 POWER SPECTRAL DENSITY MEASUREMENT..............................................67 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................67 4.5.2 TEST INSTRUMENTS......................................................................................67 4.5.3 TEST PROCEDURE....................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
