TC22100XIP Set Top Box

Roku XD S XD Roku XD S

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 o f the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tryto correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This devicemay not cause harmful interference, and (2) this device must accept any interference received, including interferencethat may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could voidthe user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipmentshould be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device Caution: (i) the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co- channel mobile satellite systems; (ii) the maximum antenna gain 3.88dBi permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to comply with the e.i.r.p. limit; and (iii) the maximum antenna gain 3.88dBi permitted (for devices in the band 5725-5825 MHz) to comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3). In addition, users should also be cautioned to take note that high-power radars are allocated as primary users (meaning they have priority) of the bands 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Roku, LLC 19352 Hilton Rd Springdale, AR 72764. Date: 2010/08/17 GENERAL DECLARATION We, Roku, LLC. declares that device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the follow product.the client software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes FCC ID: TC22100X If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Signature: Greg Garner Director of Hardware Engineering Roku, LLC TEL: 4797561148 FAX: 4797563917 E-mail: [email protected]

Roku, LLC 19352 Hilton Rd Springdale, AR 72764. AGENCY AUTHORIZATION LETTER Date: 2010/08/16 To whom it may concern: We, the undersigned, Roku, LLC. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Greg Garner Director of Hardware Engineering Roku, LLC TEL: 4797561148 FAX: 4797563917 E-mail: [email protected]

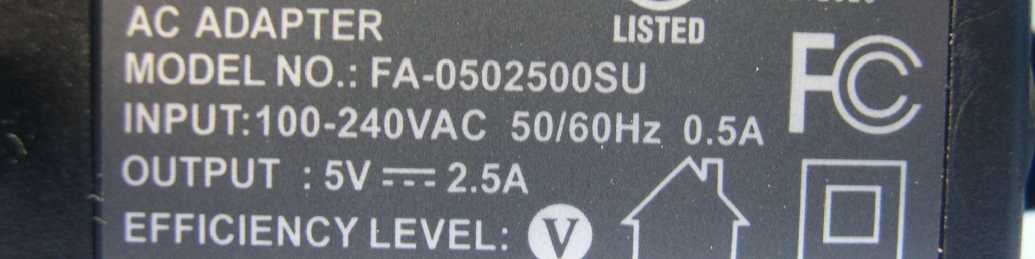

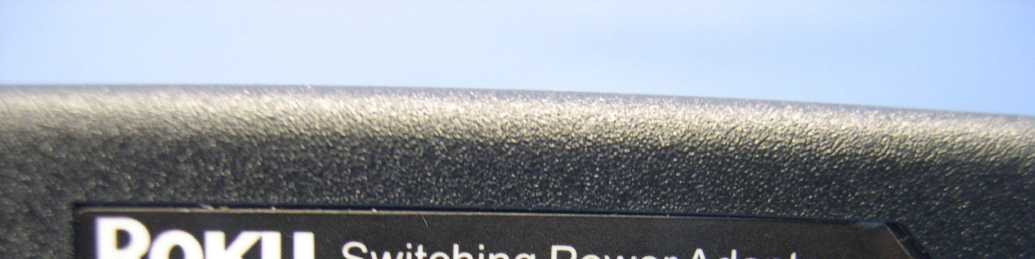

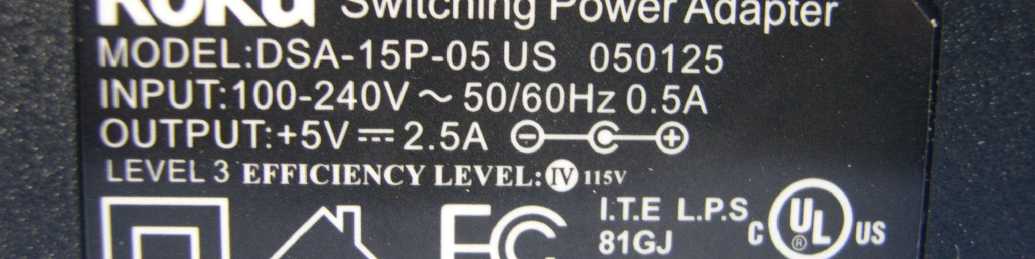

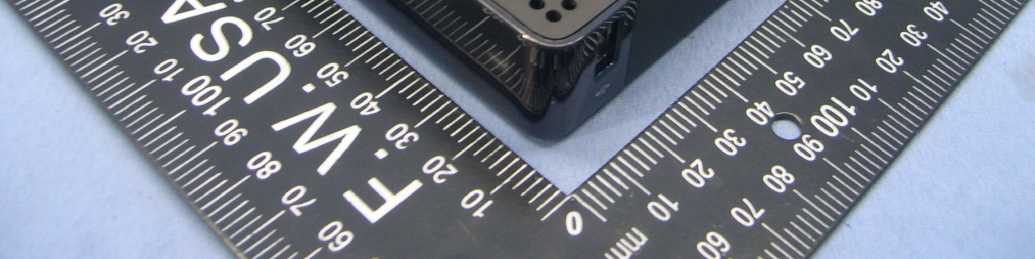

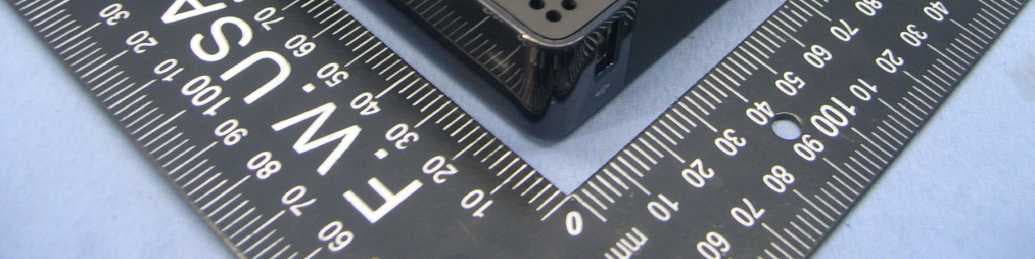

Page 1 CONSTRUCTION PHOTOS OF EUT Page 5 Page 6 Adapter: DSA-15P-05 US 050125 Page 7 Page 8 Adapter: FA-0502500SU Page 9

00 Annie Huang Annie Huang Sunny Wu 10.06.01 50# Mylar(哑白) * Belly label 500.01115.005 U89X011.03 1.WIRELESS # = ETHERNET # +1, Barcodes contain“：” Barcode type:128 code. 2.SERIAL NO refer to page 5 to page 7， Barcode type:39 code. 3.Font:Gotham Medium,5.1 pt. 1 2 01 Annie Huang 10.06.17update label content 54.5mm 43.5mm 02 Annie Huang 10.06.30 02 Mark 02 change the font size to 5.1 pt and change the P/N to 500.01115.005 00 Annie Huang U89X011.03 Annie Huang Sunny Wu 10.06.12 50# Mylar(哑白) * giftbox label 504.00691.005 1.MODEL Name. 2.LOT # follow foxconn’s standard. 3.Serial Number refer to page 5 to page 7 4.UPC Value = 8-29610-88003-7, Barcode type:UPC-A 5.Font:OCR-B 6.Barcode type:all of the barcodes is 39 code except the UPC barcode. 01 Annie Huang 10.06.17update label content 2100X-00 82.5mm PRRYMCXXXXXX LOT# 5200058933 55 mm 1 2 3 4 02 Annie Huang 10.07.10add UPC Barcode U89X011.03 503.00655.005 Annie Huang Annie Huang 10.06.1500 first design Sunny Wu Carton label ROKU ® 2100X-00 PN: QTY: *14* Assembled in China Carton: xxxxxx Lot: xxxxxx *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* *PRRYMCXXXXXX* 101.6mm 190.5mm UCC: Notes: 1.Serial Number refer to page 5 to page 7. 2.UCC # is fixed,Barcode type:code 128,Barcoede must contain”-”. 3.Carton ID & Lot # follow foxconn’s standard. 4.Font:Arial Bold. 5.Barcode type:all of the barcodes is code 39 except the UCC barcode. *PRRYMCXXXXXX* *PRRYMCXXXXXX* 1-08-29610-88003-4 Annie Huang 10.06.1801 update label content Annie Huang 10.07.1402 change label P/N to 503.00655.005 4. Pallet Label(503.00089.005)110mm*36mm 1)Font: Arial 2)Height:7.79mm3)Width: 90%4)Format: Code 395)Height:11.98mm6)Narrow Bar Width: 6 D ots 7)Ratio: 2.78)Space correction:0 Label U89X001.00 REV:06 Page: 4 of 4 Chan ge: 1. Change REV from N/A to 05 Roku Pico HD Classic Roku Pico Slimline HD Roku Pico S limline HD-XR H J K (U89X002.01) (U89X002.02) (U89X002.03) (U89X002.05) (U89X004.00) (U89X002.04) (U89X005.01) (U89X005.00) (U89X005.02) (U89X005.03)

(Fig. 1) FCC ID: TC22100X FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4

FCC ID: TC22100X Report No.: RF990810E06 Operational Description This device is an IP Set Top Box, which operates in both of the 2.4GHz and 5GHz bands and can’t transmitting simultaneously, the maximum data rate could be up to 270Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the power adapter. The antennas are PCB printed antennas without any antenna connectors. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA990810E06 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990810E06 MODEL NO.: 2100X FCC ID: TC22100X ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Roku, LLC ADDRESS: 19352 Hilton Rd Springdale, AR 72764 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990810E06 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990810E06 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA990810E06 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Chain Antenna Type Antenna Connector Antenna Gain (dBi) Frequency range (MHz to MHz) PCB Printed(Main) NA -1.51 2400 to 2483.5 Chain (0) PCB Printed(Main) NA 3.88 5150 to 5750 PCB Printed(Aux) NA 0.34 2400 to 2483.5 Chain (1) PCB Printed(Aux) NA 3.03 5150 to 5750 Report No.: SA990810E06 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 15.247(2.4GHz): 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 91.2 0.020 1.0 6 2437 234.4 0.050 1.0 11 2462 75.9 0.016 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 450.7 0.097 1.0 6 2437 883.7 0.190 1.0 11 2462 221.9 0.048 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 247.7 0.053 1.0 6 2437 873.3 0.188 1.0 11 2462 203.0 0.044 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 127.7 0.027 1.0 4 2437 317.1 0.068 1.0 7 2452 132.2 0.028 1.0 Report No.: SA990810E06 Report Format Version 3.0.1 6 For 15.247(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 199.5 0.097 1.0 157 5785 177.8 0.086 1.0 165 5825 173.8 0.084 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 413.1 0.201 1.0 157 5785 381.2 0.185 1.0 165 5825 343.8 0.167 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151 5755 376.8 0.183 1.0 159 5795 372.5 0.181 1.0 Report No.: SA990810E06 Report Format Version 3.0.1 7 For 15.407(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 28.8 0.014 1.0 40 5200 28.8 0.014 1.0 48 5240 29.5 0.014 1.0 52 5260 147.9 0.072 1.0 60 5300 147.9 0.072 1.0 64 5320 67.6 0.033 1.0 100 5500 41.7 0.020 1.0 120 5600 138.0 0.067 1.0 140 5700 28.2 0.014 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 29.4 0.014 1.0 40 5200 31.6 0.015 1.0 48 5240 31.1 0.015 1.0 52 5260 119.1 0.058 1.0 60 5300 117.8 0.057 1.0 64 5320 109.9 0.053 1.0 100 5500 57.0 0.028 1.0 120 5600 119.1 0.058 1.0 140 5700 44.0 0.021 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 38 5190 31.5 0.015 1.0 46 5230 47.0 0.023 1.0 54 5270 188.8 0.092 1.0 62 5310 41.9 0.020 1.0 102 5510 32.1 0.016 1.0 118 5590 178.4 0.087 1.0 …
