Hi! Let’s get started. What’s in the Box Roku player enhanced remote control 2 x aa batteries for remote a/V cable RCa to 3.5mm Power adapter G F Get to knoW youR roKu B C D h Front view Back view a e Power port – Connects your Roku player to a 120V aC power source with the included power adapter. h e a/V port – Connects your Roku player to a tV with the included a/V cable (3.5mm to RCa). Provides standard definition quality only. Reset button – Resets your Roku player to its original factory settings when pressed and held for 10 seconds (a feature you’ll rarely, if ever, use). G F ethernet port – Connects your Roku player to a wired network with an ethernet cable (not included). hDMi port – Connects your Roku player to an hDtV with an hDMi cable (not included). D a status light – Flashes slowly when the Roku player starts up. Glows when it’s on. Flashes once with each press of the remote control. storage expansion slot – Lets you increase your storage capacity for Roku apps with a microsD card (optional, not included). C B usB port – Plays your home videos, movies, music and photos from supported usB drives. For supported file types, visit roku.com/usb. DiD you notice? your Roku player has no on/off switch. it’s simpler that way and draws very little power—less than a nightlight! keep it plugged in so that it can download the latest software updates automatically. What you neeD Roku player tV (hD or standard definition) high-speed internet connection (DsL or cable modem) Router a/V cable (included) hDMi cable (sold separately) or Pssst! your router can be wireless (any Wi-Fi) or wired. For wired networks, you’ll also need an ethernet cable (not included). What to Do steP 1 Ready for the step-by-step? We’ve only got four... connect your PLAyer Connect your Roku player to your tV in one of two ways: HiGH DeFinition: if you have an hDtV and want the best picture quality, use an hDMi cable (not included) to make the connection depicted in the diagram below: DiD you Know? Because hDMi outputs digital video and audio, you don’t need a separate audio cable. hDMi also supports 5.1 surround sound (where available). Got A receiVer? you can also use hDMi to route video and audio directly through your receiver if it supports hDMi video pass-through. • Connect one end to the hDMi port on the back of your Roku player. • Connect the other end to an open hDMi port on your tV. What to Do steP 1 (ContinueD) stAnDArD DeFinition: if you have a standard-definition tV, do not have an hDMi cable or do not have a free hDMi port on your tV, use the included a/V cable to make the connection depicted in the diagram below: • Connect one end to the composite video and analog audio ports on the back of your tV (look for Video in, then match the yellow/Red/White ports). • Connect the other end to the a/V port on the back of your Roku player. it’s sPeciAL. the a/V cable included with your Roku player was custom-built for Roku. Because the Roku 2 Xs is so small, we use a single connector into the Roku player to carry video and stereo audio. What to Do steP 2 Power uP Key coMPonents in this step, we’ll make sure all systems are Go! First, power your Roku remote by inserting the included batteries: • turn the remote control over and locate the rectangular battery door on the rear of the unit. • Press the latch at the top of the battery door down while simultaneously removing the battery door. • insert the batteries into their slots, making sure to match the positive (+) and negative (-) signs. • Place the battery door back over the compartment and press it gently down until the latch snaps securely into place. What to Do steP 2 (ContinueD) next, power on your Roku player by connecting it to a wall outlet using the included power adapter, like this: Finally, power on your tV and look for a Roku message to fill the screen. BLAnK screen? if your tV does not display a Roku screen, make sure your tV input matches the physical connection used to connect your Roku player. Press the input button (also called source) on your tV or tV remote to cycle through the various video inputs available until you see a Roku screen. What to Do steP 3 conFiGure your networK step 3 establishes your network connection and brings out your inner geek. you can do it! Just choose either wireless or wired and read on for instructions: wireLess: if you use a wireless network, you can grab that Roku remote and jump right into Guided setup. When prompted, select “Wireless” as your network connection and have your network name and password ready to do the following: • select your network from the list of available networks. • enter your network password, if you use one. Remember, network passwords are case sensitive. Dos AnD Don’ts on wHere to PLAce your roKu PLAyer: • Do place your player within range of your wireless network. • Don’t place your player in an enclosed cabinet; it may interfere with the wireless signal. • Don’t place your player beneath anything; it may cause the player to overheat. eeeeks. What to Do steP 3 (ContinueD) wireD: if you use a wired network, this step is a snap. simply make the two connections depicted in the diagram below, and then use your Roku remote to select “Wired” from the on-screen network options. • Connect one end to the ethernet port on the back of your Roku player. • Connect the other end to an open ethernet port on your router. What to Do steP 4 coMPLete GuiDeD setuP it’s the final stretch and hooray—it’s a breeze! Continue following the on-screen instructions and you’ll: • Get the latest software. • select the video output resolution. • Link the Roku player to your Roku account on your computer. and setup is done...congratulations! Continue using that Roku remote, which you can learn more about on the following pages, to personalize your channel line-up, stream movies or play games. the fun part has just begun, we promise. your roKu Account: During Guided setup, you’ll be prompted to create your Roku account onl…

Text truncated - open the document above for the full version.

Safety Precautions This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential for causing fire, electrical shock or personal injury. To help ensure accident-free operation, follow these guidelines: • Observe all warnings, precautions and instructions. • Regularly inspect the AC power adapter for damage. • Stop use, unplug the AC power adapter from the electrical outlet and disconnect any other cables immediately if the Player functions in an abnormal manner, produces unusual sounds or smells or becomes too hot to touch. • For more information on product safety and troubleshooting, please go to www.roku.com/support. Use and Handling • When playing video games, use in a well-lit area and stand or sit as far away from the television screen as possible. • Take a 10-15 minute break every hour if playing video games and avoid prolonged use of the remote. • Stop using the Player immediately if you begin to feel tired or if you experience discomfort or pain in your hands or arms while operating the wireless remote; if the condition persists, consult a doctor. • If you experience any of the following health problems, discontinue use of the Player immediately: — Dizziness, nausea, fatigue or symptoms similar to motion sickness. — Discomfort or pain in a part of the body, such as eyes, ears, hands, or arms. If symptoms persist, consult your physician. • Keep the Player and accessories, including cable ties and fasteners, out of the reach of small children. • Do not touch the Player or connected cables during an electrical storm. • Do not allow liquid, small particles or other foreign objects to get into the Player or accessories. • Do not expose the Player to smoke or steam. • Do not expose the Player or accessories to high, temperatures, high humidity or direct sunlight. • Do not place the Player or the remote on the floor or in a place where they may cause someone to trip or stumble. www.roku.com Copyright © 2011 Roku, Inc. All rights reserved. Roku and the Roku logo are trademarks or registered trademarks of Roku, Inc. 4100000016 - 04 Roku Player Important Product Information The License Agreement The Roku and third-party software license terms can be found at: www.roku.com/license. Use of the Roku player constitutes acceptance of as well as agreement to those license terms. Ninety (90) Day Limited Hardware Warranty Subject to the additional terms and conditions set forth below, Roku provides this Limited Warranty: • Only to the person or entity that originally purchased the Player from Roku or from one of its authorized resellers or distributors; and • Only for Players purchased and delivered to the end user within the United States and Canada. Limited Warranty Roku warrants the Roku Player (“Player”) hardware against defects in materials and workmanship under normal use for a period of ninety (90) days from the date of purchase (“Warranty Period”). If Roku determines that the Player’s hardware is defective, Roku will either repair the unit or replace the unit with either a new or rebuilt Player, at its option. If the Warranty Period has expired or is otherwise not applicable (see Scope and Limitation on Warranty below), we will return the Player to you. More information about this warranty can be found at www.roku.com/support. THE FOREGOING SETS FORTH ROKU’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY IN THE EVENT OF ANY BREACH OF THIS LIMITED WARRANTY. Return and Warranty Service Process Please access and review the online help resources at www.roku.com/support before seeking warranty service. To return or obtain warranty service for a Player, you must first obtain a Return Merchandise Authorization (RMA) number from a Customer Support Representative (CSR) at Roku. Customer Support contact information can be found by visiting www.roku.com/support. RMA numbers expire thirty days from issuance. Roku may attempt to troubleshoot a warranty-related problem prior to issuing a RMA number. Please be prepared to provide additional information upon request. Once a RMA number is obtained, you must ship your Player, freight prepaid, together with proof of purchase and all accessories, in either the original packaging or packaging affording an equal degree of protection, to the Roku authorized distribution facility identified by the CSR. Failure to return any of the accessories could result in a delay and/or result in an invoice to you or credit to Roku for the missing accessories. Important: When emailing for a RMA number, please provide the following information with your request: (a) model number, (b) serial number, (c) problem description, (d) software version (located in the System Configuration menu), (e) date of purchase, (f) place of purchase (reseller or online place of purchase), and (g) return shipping address (P.O. boxes are not accepted). Scope of and Limitation on Warranty The warranty on the Player is limited to the repair or replacement of defective units as described in the Limited Warranty section above. This warranty does not cover customer training or education, installation, set up adjustments, or signal reception problems. This warranty also does not cover any issue related to the service provided by your Service Provider, including but not limited to service disruption, changes in service terms, changes in offerings, changes in format, or technical problems. This warranty does not cover damage due to acts of God, accident, misuse, abuse, negligence, commercial use or modification of, or to any part of, your Player. This warranty does not cover damage due to improper operation or maintenance, connection to improper voltage supply or attempted repair by anyone other than a facility authorized by Roku to service your Player. This warranty does not cover consumables (such as fuses and batteries). Legal Notices Federal Communication Commission Interference Statement This equipment has been tested and found to co…

Text truncated - open the document above for the full version.

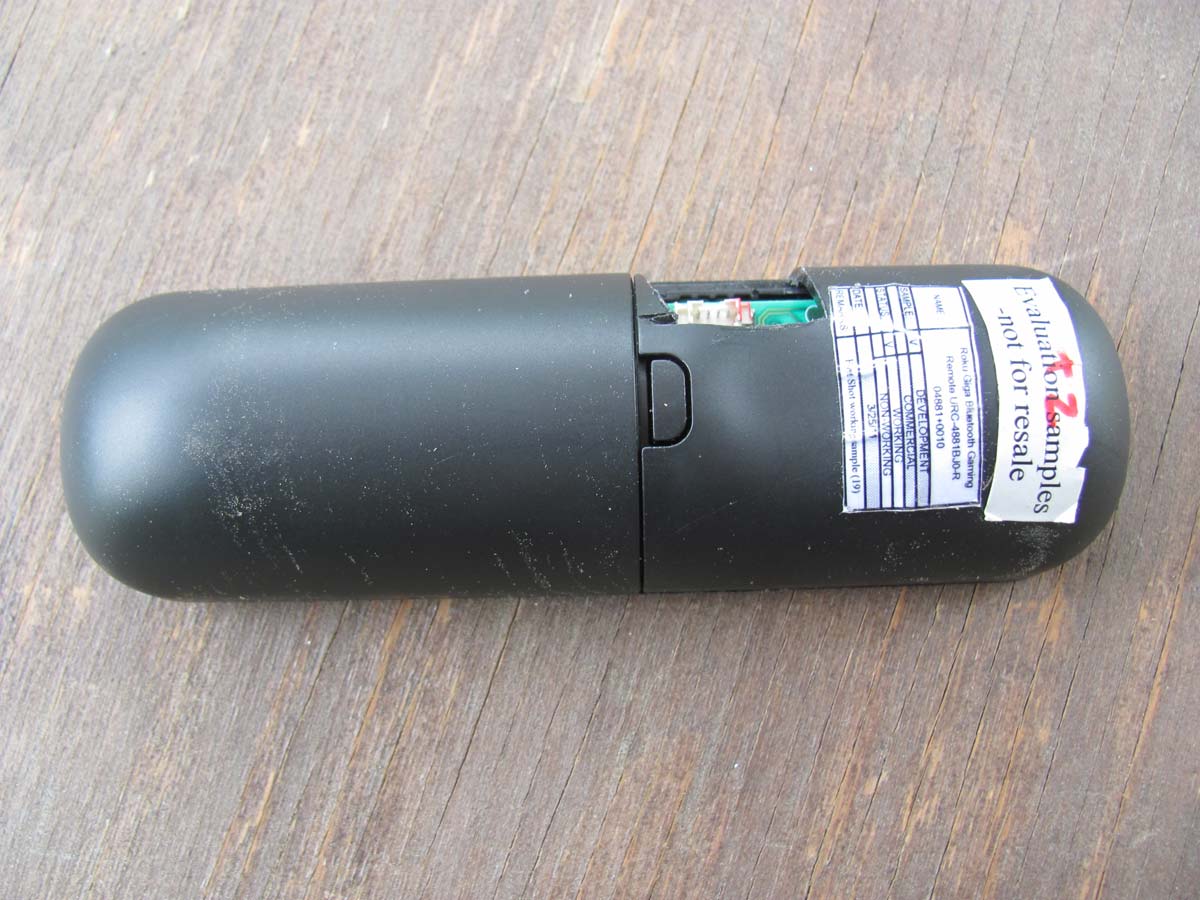

Report Number: B10505D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Roku Remote Model: GR-14 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for ROKU REMOTE MODEL: GR-14 Prepared for ROKU, INC. 12980 SARATOGA AVENUE, SUITE #D SARATOGA, CALIFORNIA 95070 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MAY 27, 2011 REPORTAPPENDICESTOTAL BODYA B C D E PAGES 17 2 2 2 13 32 68 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B10505D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Roku Remote Model: GR-14 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 RF Emissions Test Results 16 8. CONCLUSIONS 17 Report Number: B10505D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Roku Remote Model: GR-14 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B10505D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Roku Remote Model: GR-14 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Roku Remote Model: GR-14 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Jetta Company Limited 19 On Kui Street On Lok Tsuen, Fanling, Hong Kong Customer: Roku, Inc. 12980 Saratoga Avenue, Suite #D Saratoga, California 95070 Test Date(s): May 5 and 25, 2011 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power only. 2 Radiated RF Emissions 10 kHz – 25000 MHz (Transmitter, Receive, and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Highest reading in relation to spec limit: 45.79 dBuV @ 2483.50 MHz (*U = 5.27 dB) *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B10505D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Roku Remote Model: GR-14 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Roku Remote, Model: GR-14. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B spe…

Text truncated - open the document above for the full version.

RBW 1 MHz VBW 1 MHz A IN1 Unit dB  V RF Att 20 dB Ref Lvl 112 dB  V Ref Lvl 112 dB  V SGL 1AP P0 TDS SWT 100 ms Center 2.441 GHz10 ms/ 20 30 40 50 60 70 80 90 100 12 112 1 1 Delta 1 [T1] -0.22 dB 3.406814 ms 1 [T1] 47.45 dB  V 204.008016 ms 1 [T1] -0.22 dB 3.406814 ms D2 54 dB  V D1 74 dB  V Date: 12.APR.2011 09:13:58 Duty Cycle – Worst Case – The duty cycle is less than 10% so that maximum 20 dB peak to average ratio can be used
