TC2N1000802.11b/g USB module

Ver 0.3 ZyDAS WLAN Solution ZyDAS WLAN Solution ZDWlan_1211 User Guide Version 0.3 ZyDAS ZyDAS Technology Corporation Doc. No.WLANUS1211 ZyDAS Confidential Information 1 2005/10/25 Ver 0.3 ZyDAS WLAN Solution ZDWlan_1211 User Guide 1. How to Install ZD1211 driver and ZDWlan Utility: 1.1 Install: Phase 1 1.1.1 Copy the driver package (ex: 1211USB_Install_4214.exe) to any directory of NoteBooK (or PC). The 1211USB_Install_4214.exe can be used at ZD1211 Chip Set Only. It can be run on the Win98, WinME, Win2000 or WinXP OS. Figure 1-1 Doc. No.WLANUS1211 ZyDAS Confidential Information 2 2005/10/25 1.1.2 Click the package “1211USB_Install_4116.exe” then appear the installation page shown as “Figure 1-1”. Ver 0.3 ZyDAS WLAN Solution Figure 1-2 Doc. No.WLANUS1211 ZyDAS Confidential Information 3 2005/10/25 1.1.3 Press the “next” icon of Figure 1-1, then the page shown as “Figure 1-2”. Select “ZD1211 Config Tool” or “ZD1211 Diver” or all of them to install by checking the items. Ver 0.3 ZyDAS WLAN Solution Figure 1-3 1.1.4 Press the “next ” icon of Figure 1-2, then the page shown as “Figure 1-3”. Press the “Continue Anyway ” button of Figure 1-3, to finish the first phase installation. Doc. No.WLANUS1211 ZyDAS Confidential Information 4 2005/10/25 1.1.5 After finishing the phase 1 installation of the driver, the NoteBooK (or PC) with Win98 or WinME OS shall be restarted, but Win2000 or WinXP OS doesn’t need to be restarted. Ver 0.3 ZyDAS WLAN Solution 1.2 Install: Phase 2 Figure 1-4 1.2.1 Insert the Wireless Card to slot of NB, then appear the installation page shown as “Figure 1-4”. For installing the driver automatically, please check the automation item. Doc. No.WLANUS1211 ZyDAS Confidential Information 5 2005/10/25 Ver 0.3 ZyDAS WLAN Solution Figure 1-5 Doc. No.WLANUS1211 ZyDAS Confidential Information 6 2005/10/25 1.2.2 When the automation item of “Figure 1-4” is selected, press “Next” button of the page, then the “Hardware Installation” page shown as “Figure 1-5”. Ver 0.3 ZyDAS WLAN Solution Figure 1-6 Doc. No.WLANUS1211 ZyDAS Confidential Information 7 2005/10/25 1.2.3 Press the “Continue Anyway ” button of Figure 1-5, then the page “Found New Hardware Wizard” shown as “Figure 1-6”. - Press the “Finish” button of “Figure 1-6” to finish the package installation. Ver 0.3 ZyDAS WLAN Solution 2. How to use the ZDWlan Utility: ( Station) 2.1 If you use the WinXP OS , the “Zero Configuration” of WinXP will be disable first , then ZDWlan Utility can be used. Figure 2-1 2.2 Open the ZDWlan Utility from “ Start menu bar \Program List \ ZyDAS 1211 Tool “. The Window is shown as “Figure 2-1”. The adapter can be set at “Station” or “Access Point” Mode from the Mode drop down menu. Station mode is selected for the item. - You can site survey the neighboring SSID site by pressing the “Refresh”, then sites name and signals strength of available SSID sites are shown on the “Available Network” field. - Double click the SSID site from “Available Network” field, and the SSID can be connected directly. Doc. No.WLANUS1211 ZyDAS Confidential Information 8 2005/10/25 - The information of the SSID is shown on the “ Current Network Ver 0.3 ZyDAS WLAN Solution Information”. - Show the BSSID of connecting AP on the “Link Status” filed. - “Signal Strength” and “Link Quality” shown on diagrammatic curve, and described with percentage. - Record the number of Tx frames on the filed of “Tx Frame”. Doc. No.WLANUS1211 ZyDAS Confidential Information 9 2005/10/25 - Record the number of Rx frames on the filed of “Rx Frame”. Ver 0.3 ZyDAS WLAN Solution . Figure 2-2 2.3 Click “ More Setting “ icon of Figure 2-1 to enter “More setting “ window. The window is shown as “ Figure 2-2 ”. Doc. No.WLANUS1211 ZyDAS Confidential Information 10 2005/10/25 2.3.1 “General Connection Setting” group: - Read the current status from the group if the “Change” button is not pressed. - Press “Change” button for modifying the status, when the modification is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. - Modify the SSID name from the “SSID” field. When use the item, the “any “will be unchecked previously. - Change the channel by drop down menu “ Channel”. When use the item, the Ad_Hoc Mode will be set previously. . - Select the transmission rate by “ Tx Rate” drop down menu. Ver 0.3 ZyDAS WLAN Solution - Select the “Ad_Hoc” or “Infrastructure” Mode by the “Network Type” drop down menu. - Select the “Enable WEP” or “Disable WEP” by the “Encryption” drop down menu. - Select the “Open System” , “Shared Key” mode or “Auto” from the “Authentication Mode” drop down menu. Doc. No.WLANUS1211 ZyDAS Confidential Information 11 2005/10/25 Figure 2-3 Ver 0.3 ZyDAS WLAN Solution Figure 2-4 2.3.2 Encryption Setting : Doc. No.WLANUS1211 ZyDAS Confidential Information 12 2005/10/25 2.3.2.1 Press “WEP Encryption Setting” to enter the “WEP Key Setting” page shown as Figure 2-3. - Select the “Open System” , “Shared Key” mode or “Auto” from the “authentication Mode” drop down menu. - Press the “Change” button to modify the contents of “WEP Key setting”, when it is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. - Select which key length 64,128 or 256 bits will be modified or used by “Key Length” item. - Select which key set will be use by the field of “Default Key ID” Modify the 4 sets key depending on the selected key length on the field of “Key Value”. The key value is used the hexadecimal format. Ver 0.3 ZyDAS WLAN Solution - Select which key format “hexadecimal” or “ASCII” will be used from the “Key Format” . 2.3.2.2 Press “WPA Encryption Setting” to enter the “WPA Setting” page shown as Figure 2-4. - You can select the WPA authentication protocol “TLS” , “PEAP” or “TTLS” from “Protocol” filed. - “TLS” Setting: you don’t fill out the User name and Password field, but the Certificate need to be used. When apply the setting, the “WPA Setti…

Text truncated - open the document above for the full version.

FCC ID: TC2N1000 ADT No. 961221H03 Modular Approval Request Letter Advance Data Technology Jan. 29, 2008 Dear Application Examiner, Roku Inc.’s 802.11 b/g USB module, FCC ID: TC2N1000, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2524. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8V DC powered. Input power provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is RT9166-18PVL 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TC2N1000 ADT No. 961221H03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, May Chen Deputy Manager of Hsinchu Certification Service Div. Advance Data Technology

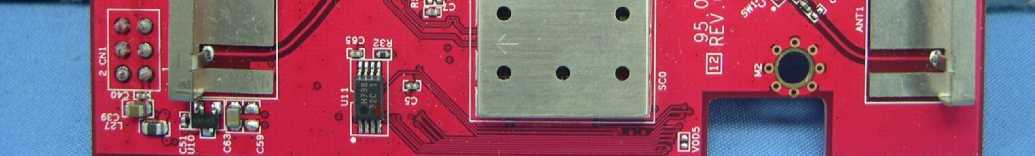

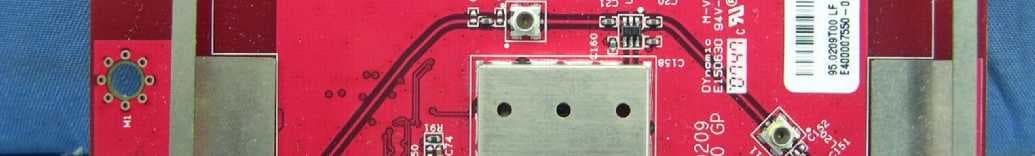

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: TC2N1000 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3

Report No.: SA961221H03 1 RF EXPOSURE REPORT REPORT NO.: SA961221H03 MODEL NO.: 95.0209T00 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 PREPARED BY: Roku Inc. ADDRESS: 100 Winchester Circle Los Gatos, CA 95032 USA. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA961221H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA961221H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA961221H03 4 6. Test Results 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Antenna Type Antenna Connector Gain(dBi) Note PIFA switch SWD type 2 With TX/RX function PIFA switch SWD type 3 With RX function 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 61.235 0.019 1.0 6 2437 100.000 0.032 1.0 11 2462 64.863 0.020 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 97.051 0.031 1.0 6 2437 144.544 0.046 1.0 11 2462 81.658 0.026 1.0
