TC2R1000SoundBridge Radio Wi-Fi Music System

12/12/2005 sb_radio_draft_jmc 1 Welcome Thanks for purchasing Roku Soundbridge Radio! We hope you enjoy using it as much as we’ve enjoyed creating it. Both the Soundbridge Radio alarms are equipped to awake you gradually while the alarm starts out softly and progresses to a louder sound. You can hit the snooze button with either alarm. You can start your day with either one of the three alarm buzzers or your favorite movie from your PC or Mac at home. Once awake, you can listen to AM/FM stations, play music you have stored on your PC or Mac, or access many of the thousands of Internet radio stations that broadcast on the web without turning on your computer. Enjoy! Register Your Soundbridge Radio! It’s quick, easy and allows you to receive the latest software updates for the Soundbridge Radio. Of course, we won’t share your personal information with anyone else. Visit www.rokulabs.com/support to register your Soundbridge Radio. Run the Latest Software! Roku’s media players are designed to be upgradeable in the field, and we are always working on improving the software for our products. Your Soundbridge Radio has a menu option to check for, and automatically install, software updates. We recommend that you install the latest software updates once your system is set up. You can easily do this from the comfort of your couch, using the Soundbridge Radio remote control. See “Checking for the Latest Software” on page ___ for details. Download the Latest User Guide! When our software changes, so does our user guide. Visit www.rokulabs.com/support to download the latest PDF version and learn about the latest features. FCC important Note ROKU LLC declares that R1000 ( FCC ID: TC2R1000 ) is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A. 12/12/2005 sb_radio_draft_jmc 2 Welcome.............................................................................................................................1 Register Your Soundbridge Radio!.....................................................................................1 Run the Latest Software!.....................................................................................................1 Download the Latest User Guide!.......................................................................................1 Introduction.........................................................................................................................6 Before You Begin...............................................................................................................6 Package Contents............................................................................................................6 Important Safety Information..........................................................................................7 Music Servers..................................................................................................................7 Music Servers & SoundBridge Radio Features..............................................................8 Getting Started....................................................................................................................9 Radio Components..............................................................................................................9 Radio Buttons................................................................................................................10 Radio Display Icons......................................................................................................10 Remote Control.............................................................................................................11 Antennas........................................................................................................................13 SD Card Slot.................................................................................................................13 Headphone Jack............................................................................................................14 Configuring Your Radio...................................................................................................14 Select a Language.....................................................................................................14 Select Time Zone......................................................................................................14 Select Geographic Region.........................................................................................15 Confirm Settings.......................................................................................................15 Changing Language, Time Zone, or Geographic Location......................................15 Standby Mode...........................................................................................................15 Reconfiguring Factory Defaults................................................................................16 Checking for the Latest Software......................................................................................16 Establishing a Wireless Network Connection...................................................................17 Identifying your Wireless Network...............................................................................17 Multiple Wireless Networks.........................................................................................18 Entering a Security Key................................................................................................19 Troubleshooting Wi-Fi Setup.......................................................................................19 12/12/2005 sb_radio_draft_jmc 3 Personal Firewall (iTunes Users)......................................................................................19 Installing a Compatible Music Server...............................................................................21 Instruct…

Text truncated - open the document above for the full version.

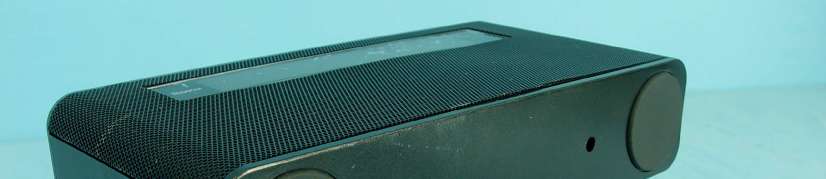

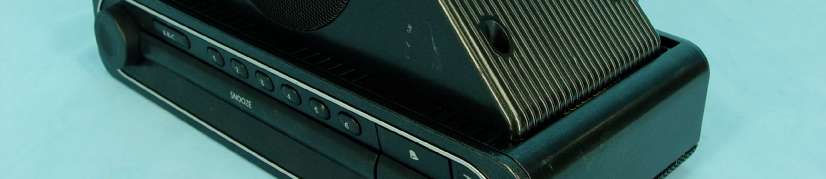

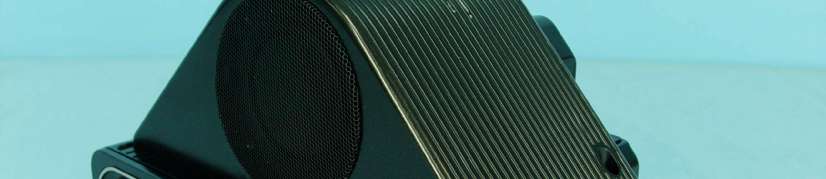

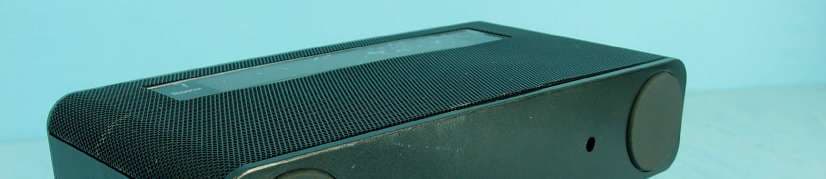

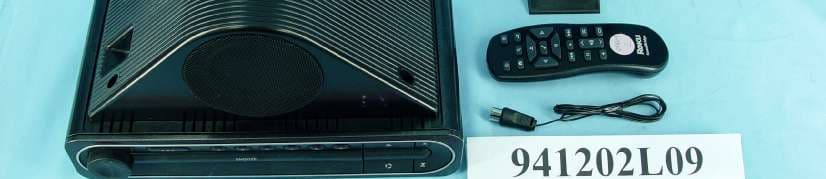

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

TAR-1006 U01 MARK *S cale : 1:1 ( 39.7mm X 29.7mm / R1.8mmX3 & C1.8mm ) *Mat erial : White Pol yester with Back Adhesive *printing color: Background: Black Text and symbol: White ( Raw material color ) Label location:Bottomside recess of Subwoofer 1:1 Artwork MARK 1. 1:1 ( 39.7m X 29.7 mm / R1.8mmX3 & C1.8mm ) 2.: 3.: 4. 39.7 29 .7 Final Printing R1000XE5D000001 S100XE5D000001 C US Audio / Video Apparatus LISTED 25EJ E199648 R Model # : R1000 Input : 100-240V~ 50/60Hz 1.5A Canada ICES-003 class B N1594 Made in China WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN FCC ID : TC2R1000 IC ID : 5959A-R1000 C US Audio / Video Apparatus LISTED 25EJ E199648 R Model # : R1000 Input : 100-240V~ 50/60Hz 1.5A Canada ICES-003 class B N1594 Made in China WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN FCC ID : TC2R1000 IC ID : 5959A-R1000

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24

FCC ID: TC2R1000 Report No.RF941202L09 Operational Description This device is a SoundBridge Radio Wi-Fi Music System which operates in the 2.4GHz frequency spectrum with throughput of up to 11Mbps which DSSS technique will be applied. The transmitter of the EUT is powered by Power Supply. The antenna is PCB antenna with UFL antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID.: TC2R1000 Report No: SA941202L09 1 RF EXPOSURE REPORT REPORT NO.: SA941202L09 MODEL NO.: R1000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ROKU LLC ADDRESS: 399 Sherman Ave. #12, Palo Alto, CA 94306 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID.: TC2R1000 Report No: SA941202L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID.: TC2R1000 Report No: SA941202L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in Wireless Internet Radio which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID.: TC2R1000 Report No: SA941202L09 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162 (numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.6460.0141.0 6243722.4390.0141.0 11246222.7510.0141.0

FCC ID: TC2R1000 Report No.: RF941202L091Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941202L09 MODEL NO.: R1000 RECEIVED: Dec. 08, 2005 TESTED: Dec. 08 ~ Dec. 15, 2005 ISSUED: Dec. 19, 2005 APPLICANT: ROKU LLC ADDRESS: 399 Sherman Ave. #12, Palo Alto, CA 94306 USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: TC2R1000 Report No.: RF941202L092Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION ........................................................................................................4 2.SUMMARY OF TEST RESULTS ................................................................................5 2.1MEASUREMENT UNCERTAINTY .............................................................................6 3.GENERAL INFORMATION.........................................................................................7 3.1 GENERAL DESCRIPTION OF EUT...........................................................................7 3.2 DESCRIPTION OF TEST MODES.............................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................9 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................... 11 3.2.4 DESCRIPTION OF SUPPORT UNITS ..................................................................... 11 4. TEST TYPES AND RESULTS ..................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT ...........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................12 4.1.2 TEST INSTRUMENTS .............................................................................................12 4.1.3 TEST PROCEDURES ..............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................13 4.1.5 TEST SETUP ...........................................................................................................14 4.1.6 EUT OPERATING CONDITIONS .............................................................................14 4.1.7 TEST RESULTS .......................................................................................................15 4.2 RADIATED EMISSION MEASUREMENT ................................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .............................................21 4.2.2 TEST INSTRUMENTS .............................................................................................22 4.2.3 TEST PROCEDURES ..............................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................24 4.2.5 TEST SETUP ...........................................................................................................24 4.2.6 EUT OPERATING CONDITIONS .............................................................................24 4.2.7 TEST RESULTS .......................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................29 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.....................................................29 4.3.2 TEST INSTRUMENTS .............................................................................................29 4.3.3 TEST PROCEDURE ................................................................................................30 4.3.4 DEVIATION FROM TEST STANDARD ....................................................................30 4.3.5 TEST SETUP ...........................................................................................................30 4.3.6 EUT OPERATING CONDITIONS .............................................................................30 4.3.7 TEST RESULTS .......................................................................................................31 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................................34 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........................34 FCC ID: TC2R1000 Report No.: RF941202L093Report Format Version 2.0.4 4.4.2 INSTRUMENTS .......................................................................................................34 4.4.3 TEST PROCEDURES ..............................................................................................35 4.4.4 DEVIATION FROM TEST STANDARD ....................................................................35 4.4.5 TEST SETUP ...........................................................................................................35 4.4.6 EUT OPERATING CONDITIONS .............................................................................35 4.4.7 TEST RESULTS .......................................................................................................36 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................................37 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREME…

Text truncated - open the document above for the full version.

FCC ID: TC2R1000 Report No.: RF941202L0948Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: TC2R1000 Report No.: RF941202L0949Report Format Version 2.0.4 RADIATED EMISSION TEST FCC ID: TC2R1000 Report No.: RF941202L0950Report Format Version 2.0.4 6. INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025. USA FCC, NVLAP, UL, A2LA Germany TUV Rheinland Japan VCCI Norway NEMKO Canada INDUSTRY CANADA , CSA R.O.C. CNLA, BSMI, DGT Netherlands Telefication Singapore PSB , GOST-ASIA(MOU) Russia CERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety Telecom Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Linko RF Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also FCC ID: TC2R1000 Report No.: RF941202L09A-1Report Format Version 2.0.4 APPENDIX-A MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB No any modifications are made to the EUT by the lab during the test.
