TDB-MAG2MAG2/GR Sensor

1608 4th Street Suite 200 Berkeley CA 94710| [email protected] | P 510.548.4620 F 510.548.8264 1608 4th Street Suite 200 Berkeley CA 94710 | [email protected] | P 510.548.4620 F 510.548.8264 Functions / Features Lower power consumption 3-axis magnetometer for vehicle detection • 128 Hz sampling rate • Count and presence detection modes • Modes for bicycle and motorcycle detection Flush mount or up to 7" depth in-pavement installation with no wires or lead-in cabling Fast and simple installation • Installs in less than 10 minutes in small hole using a hammer or core drill – 4” (10 cm) diameter; a maximum of 7” (17.8 cm) deep – Covered with fast-drying epoxy • Minimal lane closure time • No saw cuts Expected 10 year battery life • Rugged mechanical design • Auto-calibration Reliable 2-way radio communications with access point • Uniquely addressable and configurable • Firmware can be upgraded over-the-air Readily deployed where other systems cannot be used • Split roadways • High water tables • Damaged pavement MAG2/Grind Resistant (GR) Sensor The Sensys Networks VDS240 Wireless Vehicle Detection System uses wireless magneto-resistive sensors to detect the presence and movement of vehicles. The sensors – installed in holes cored in the roadway and covered with epoxy – transmit detection data in real-time via low-power radio technology to a nearby Sensys Networks access point. Vehicle detections are further relayed to a traffic signal controller, remote traffic management center, or other system. The new MAG2/GR sensor developed by Sensys Networks utilizes the next generation of RF chipsets and circuitry. The MAG2 sensors are installed flush with the roadway surface in plastic shells. The plastic shells enable the removal and replacement of sensors during roadway milling operations. The GR sensors are installed at depth of up to 7 inches below the top of the roadway surface without plastic shells. Sensors installed at these depths do not have to be removed and replaced during most roadway milling operations. In typical traffic management applications, a sensor is placed in the middle of a traffic lane to detect the presence and passage of vehicles. Vehicle speeds and length are measured by two sensors installed in the same lane with the exact distance between them configured in software. The recommended distance between sensors depends on the range of expected speeds to be measured: for typical freeway applications, a separation of 20 to 24 feet (6.1 to 7.3 meters) is recommended; for typical arterial applications, a separation of 10 to 12 feet (3.1 to 3.7 meters) is preferred. Advanced Magnetometer-Based Vehicle Detection. The state-of-the-art magneto-resistive sensing devices in each wireless sensor measure the x-, y-, and z-axis components of the Earth’s magnetic field at a 128 Hz sampling rate. As vehicles come within range, changes in the x, y, or z axes of the measured magnetic field become apparent. When no vehicles are present, sensors continually measure the background magnetic field to estimate a reference. Each sensor automatically self-calibrates to the local environment, and to any long-term variations of the local magnetic field, by allowing this reference value to change over time. Types of MAG2/GR Sensors: VSN240-F-2 • Flush-mount wireless sensor for in-pavement installation • For all freeway, arterial, and signal control applications VSN240-T-2 • Flush-mount wireless sensor for in-pavement installation • For signal control applications only VSN240-F-GR • For up to 7" depth in-pavement installation • For all freeway, arterial, and signal control applications VSN240-T-GR • For up to 7" depth in-pavement installation • For signal control applications only Sensys Networks and the Sensys Networks logo are trademarks of Sensys Networks, Inc. All other trademarks are the property of their respective owners. Information contained herein is believed to be reliable, but Sensys Networks makes no warranties as to its accuracy or completeness. Copyright © 2014 Sensys Networks, Inc. • ALL RIGHTS RESERVED • P/N 153-240-100-008 Rev C Local Distributor MAG2/GR Sensor Functional Specifications detection technique 3-axis magnetic field sensing sampling rate 128 Hz programmable vehicle detection parameters (mode B only) • Z-axis detect threshold (mG) • Z-axis undetect threshold (mG) • X-axis undetect threshold (mG) • onset filter (ms) • holdover (ms) • auto-recalibration timeout (secs) over-the-air protocol Sensys Networks NanoPower (SNP) protocol (TDMA) physical layer protocol EEE 802.15.4 PHY modulation Direct Sequence Spread Spectrum Offset Quadrature Phase-Shift Keying (DSSS O-QPSK) transmit/receive bit rate 250 kbps frequency band 2405 to 2480 MHz (ISM unlicensed band) frequency channels 16 channel bandwidth 2 MHz antenna type microstrip patch antenna (mounted below top surface of sensor) antenna field of view ±60° (azimuth & elevation) nominal output power +3 dBm spurious emissions • 30 - 1000 MHz: < -36 dBm • 1 - 12.75 GHz: < -30 dBm • 1.8 - 1.9 GHz: < -44 dBm • 5.15 - 5.3 GHz: < -47dBm typical receive sensitivity -101 dBm (PER = 1%) saturation (max input level) ≥ 10 dBm Sensor Modes modeapplicationdescription B (event) count stations; advance detection • sends timestamped ON and OFF detection events using configurable detection parameters • not supported by VSN240-T E (idle) status reporting disables magnetometer and sends sensor hardware and software version information STOPBAR-# (presence detection) stop bar detection; ramp management sends timestamped ON and OFF detection events using pre-configured detection parameters • 16 different stop bar detection modes can be selected • recommended stop bar detection modes for specific applications: STOPBAR-0bicycles/scooters STOPBAR-2motorcycles STOPBAR-5 passenger vehicles (normal recalibration) STOPBAR-7 passenger vehicles (fast recalibration) STOPBAR-14light rail Power, Physical, & Environment power supply • non-replaceable pr…

Text truncated - open the document above for the full version.

SENSYS Networks Inc. Date: 2014-08-12 Federal Communications Commission Authorization and Evaluation Division FCC ID: TDB-MAG2 ATTESTATION FCC ID: TDB-MAG2 Product: MAG2/GR Sensor Model: VSN240-F-2, VSN240-T-2, VSN240-F-GR, VSN240-T-GR We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Robert Kavaler /VP Engineering SENSYS Networks Inc.

SENSYS Networks Inc. DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:___ TDB-MAG2_________ Product Name:____MAG2/GR Sensor _______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Date this 2014-08-12 By: Robert Kavaler Printed Title: VP Engineering On behalf of : SENSYS Networks Inc. (Company Name) Telephone: 5105484620

Sensys Networks, Inc. Family Certification Cover Letter FCC ID: TDB-MAG2 Date: 2014/08/20 Please be notified that we, the undersigned, Sensys Networks, Inc. declares that the product which bears the above FCC ID Contains 4 model numbers: VSN240-F-2, VSN240-T-2, VSN240-F-GR, VSN240-T-GR Note: The only difference of models is shown as below: model Installation Applicable VSN240-F-2 Flush-mount wireless sensor for in-pavement installation For all freeway, arterial, and signal control applications VSN240-T-2 Flush-mount wireless sensor for in-pavement installation For signal control applications only VSN240-F-GR For up to 7" depth in-pavement installation For all freeway, arterial, and signal control applications VSN240-T-GR For up to 7" depth in-pavement installation For signal control applications only The RF specifications of four models are identical. And there is no other difference between these models, layourt, schematic, and Bom list are identical. Your understanding will be highly appreciated. Robert Kavaler / VP Engineering Sensys Networks, Inc.

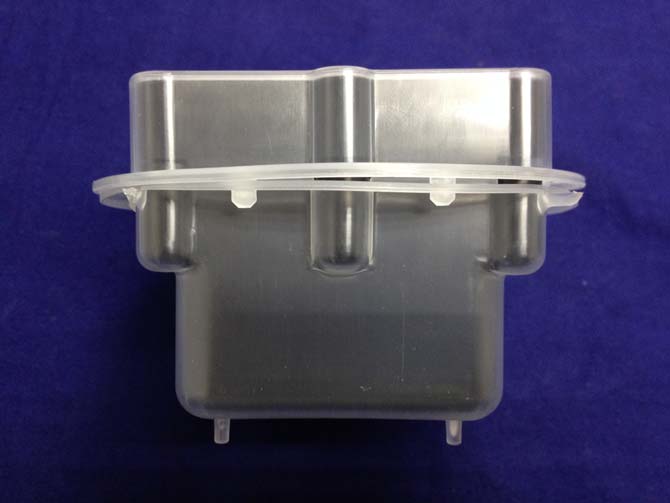

EUT Photograph (1) EUT Photo (Vertical) (2) EUT Photo (Vertical) (3) EUT Photo (Vertical) (4) EUT Photo (Vertical) (5) EUT Photo (Horizontal) (6) EUT Photo (Horizontal) (7) EUT Photo (Horizontal)

LABEL LOCATION

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 99.8 dBuV/m @3m Ant gain 3dBi ;so Ant numeric gain=2 So pt={ [10 ( 99.8 /20) /10 6 x3] 2 /30x2 }x1000 mW = 1.43 mW So (1.43 mW/5mm)x √2.405 GHz = 0.44 <3 Then SAR evaluation is not required

Test Report FCC Part15.249 Product Name : MAG2/GR Sensor Model No. : VSN240-F-2, VSN240-T-2, VSN240-F-GR, VSN240-T-GR FCC ID : TDB-MAG2 Applicant : Sensys Networks, Inc. Address : 1608 Fourth Street, Suite 200 Berkeley, CA 94710, U.S.A Date of Receipt : Jul. 09, 2014 Test Date : Jul. 09, 2014~Aug. 05, 2014 Issued Date : Aug. 12, 2014 Report No. : 1470253R-RF-US-P06V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No: 1470253R-RF-US-P06V01 Page: 2 of 36 Test Report Certification Issued Date : Aug. 12, 2014 Report No. : 1470253R-RF-US-P06V01 Product Name : MAG2/GR Sensor Applicant : Sensys Networks, Inc. Address : 1608 Fourth Street, Suite 200 Berkeley, CA 94710, U.S.A Manufacturer : Sensys Networks, Inc. Address : 1608 Fourth Street, Suite 200 Berkeley, CA 94710, U.S.A Model No. : VSN240-F-2, VSN240-T-2, VSN240-F-GR, VSN240-T-GR FCC ID : TDB-MAG2 Brand Name : SENSYS EUT Voltage : DC: 3.6V Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009, ANSI C63.10:2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1470253R-RF-US-P06V01 Page: 3 of 36 Laboratory Information We,QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan:VCCI China:CNAS Report No: 1470253R-RF-US-P06V01 Page: 4 of 36 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................... 6 1.1.EUT Description ......................................................................................................... 6 1.2.Mode of Operation ..................................................................................................... 8 1.3.Tested System Details ................................................................................................ 9 1.4.Configuration of Tested System ............................................................................... 10 1.5.EUT Exercise Software ............................................................................................ 11 2.Technical Test ........................................................................................................... 12 2.1.Summary of Test Result ........................................................................................... 12 2.2.Test Environment ..................................................................................................... 13 3.Conducted Emission ................................................................................................ 14 3.1.Test Equipment ........................................................................................................ 14 3.2.Test Setup ................................................................................................................ 14 3.3.Limit.......................................................................................................................... 15 3.4.Test Procedure ......................................................................................................... 15 3.5.Uncertainty ............................................................................................................... 15 3.6.Test Result ............................................................................................................... 15 4.20dB Bandwidth ....................................................................................................... 16 4.1.Test Equipment ........................................................................................................ 16 4.2.Test Setup ................................................................................................................ 16 4.3.Limit.......................................................................................................................... 16 4.4.Test Procedure ......................................................................................................... 17 4.5.Uncertainty ....................................…
