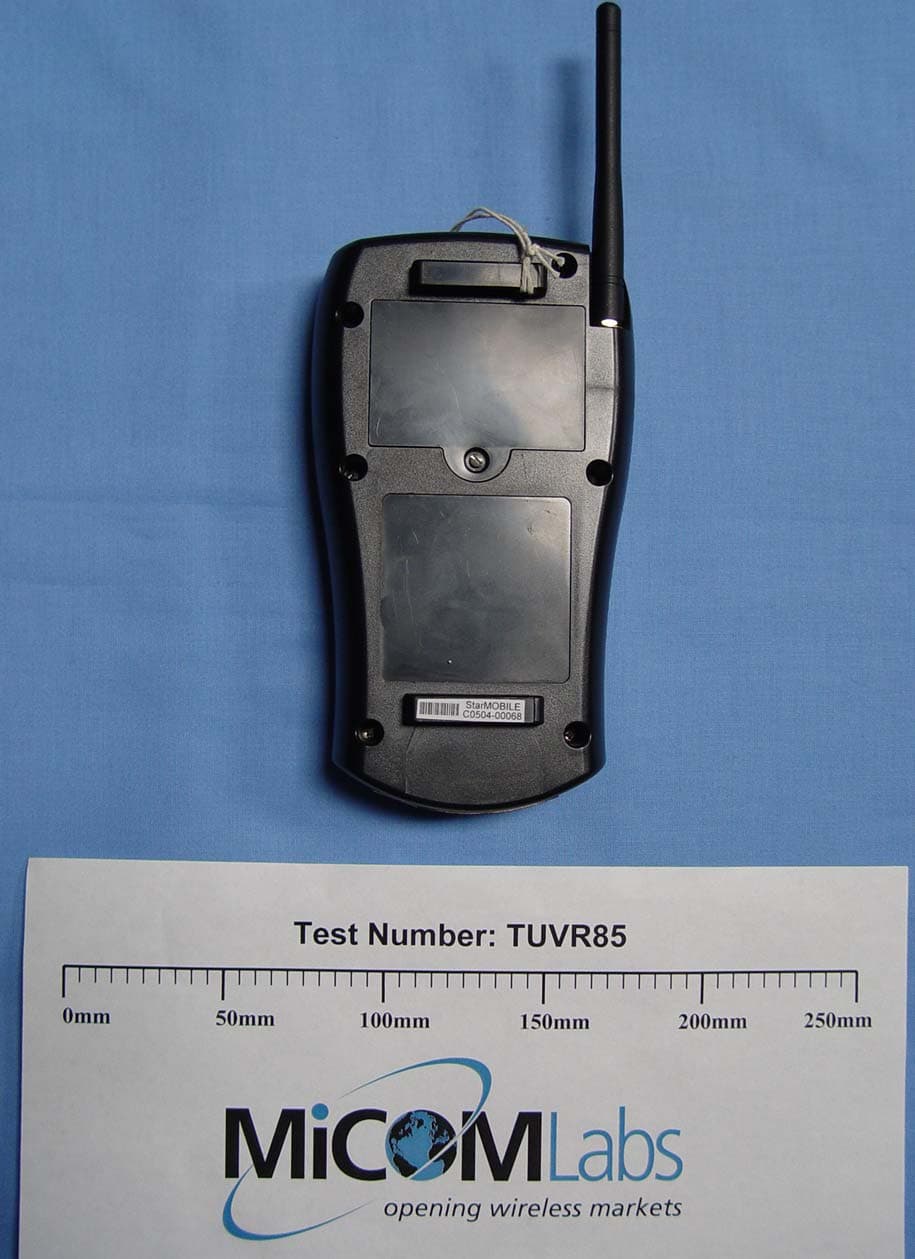

TE4CH9801Automotive Diagnostic Scan Tool

ADDENDUM TO STARMOBILE READ-ME-FIRST FCC Compliance Statements IC Compliance Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system. In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The FCC has granted an equipment authorization for this product with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information for this device can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID TE4CH9801. This is a portable hand held device. The highest reported SAR is 0.79 mW/g The StarMOBILE is a portable handheld device. It is not a device that is worn on the body. It is normally mounted in a vehicle away from the occupants. The closest it ever comes to the body is if end user is in fact using it as a handheld device. This device is not intended to be held to up to the head. This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For Bright Star Engineering, Inc. 150 Presidential Way, Suite 220, Woburn, Massachusetts, 01801 FCC ID: TE4CH9801 This Report Concerns: Original Report Equipment Type: Diagnostic System Test Engineer: Snell Leong Report No.: R0506282S Report Date: 2005-07-01 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 2 of 60 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 & IEEE 1528 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Type: Diagnostic System Model Number: CH9801 Modulation: DSSS TX Frequency Range: 2412-2462MHz Max. Conducted Power Tested: 20.77dBm (802.11b), 18.17dBm (802.11g) Antenna Type(s): External Antenna Body-Worn Accessories: None 0.79 mW/g (1g, 802.11b, 2437MHz, Body-Worn) 0.25 mW/g (1g, 802.11g, 2412MHz, Body-Worn) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in EN 50361:2001 and has been tested in accordance with the measurement procedures specified in ANSI IEEE C95.3:2002 All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Snell Leong Bay Area Compliance Laboratory Corp. Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 3 of 60 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES..........................................................................................................4 SAR LIMITS.....................................................................................................................................................................................5 EUT DESCRIPTION......................................................................................................................................................................6 DESCRIPTION OF TEST SYSTEM.........................................................................................................................................7 MEASUREMENT SYSTEM DIAGRAM.............................................................................................................................................9 SYSTEM COMPONENTS.................................................................................................................................................................11 TESTING EQUIPMENT............................................................................................................................................................20 EQUIPMENTS LIST & CALIBRATION INFO.................................................................................................................................20 SAR MEASUREMENT SYSTEM VERIFICATION.........................................................................................................21 SYSTEM ACCURACY VERIFICATION..........................................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY.............................................................................................................22 SAR EVALUATION PROCEDURE.................................................................................................................................................22 CONCLUSION...............................................................................................................................................................................23 SAR BODY WORST-CASE TEST DATA......................................................................................................................................23 APPENDIX A – MEASUREMENT UNCERTAINTY.......................................................................................................24 APPENDIX B – PROBE CALIBRATION CERTIFICATES..........................................................................................26 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES........................................................................................37 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS..........................................................................................47 LIQUID MEASUREMENT RESULT................................................................................................................................................47 APPENDIX E - EUT SCANS.....................................................................................................................................................49 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT.......................................................................51 PROVISION APPLICABLE..............................................................................................................................................................51 TEST PROCEDURE.................................................................................................................................................…

Text truncated - open the document above for the full version.

Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 31 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 32 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 33 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 34 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 35 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 36 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 37 of 60 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 38 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 39 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 40 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 41 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 42 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 43 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 44 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 45 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 46 of 60 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 47 of 60 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result 2005-06-29 ε r = relative permittivity, σ = conductivity and ρ=1000kg/m 3 Simulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation Limits [%] ε r 22.0 52.7 50.7 -3.79 ±5 σ 22.0 1.95 2.02 3.59 ±5 Body 2450 1g SAR 22.0 56.84 55.9 -1.65 ±10 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 48 of 60 Date/Time: 6/29/2005 9:21:34 AM ; Date/Time: 6/29/2005 9:26:18 AM Test Laboratory: Bay Area Compliance Lab Corp. 050622_ET_1604_SystemValidationCheck_D2437MHz_Body DUT: Dipole 2450 MHz; Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; s = 2.02 mho/m; e r = 50.7; ? = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(4.24, 4.24, 4.24); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 6/1/2004 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=1W/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 72.0 mW/g d=10mm, Pin=1W/Zoom Scan Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 183.9 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 124.4 W/kg SAR(1 g) = 55.9 mW/g; SAR(10 g) = 25.9 mW/g Maximum value of SAR (measured) = 62.4 mW/g 0 dB = 62.4mW/g Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 49 of 60 APPENDIX E - EUT SCANS Date/Time: 6/29/2005 10:38:10 AM ; Date/Time: 6/29/2005 10:49:49 AM Test Laboratory: Bay Area Compliance Lab Corp. Bright Star 802.11B_Body DUT: Bright Star; Type: Sample; Serial: sample# C0504-00075 Communication System: 802.11B; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; s = 2.02 mho/m; e r = 50.7; ? = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(4.24, 4.24, 4.24); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) • Electronics: DAE3 Sn456; Calibrated: 6/1/2004 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 TOUCH Body position - 8.02.11b/Area Scan (101x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.906 mW/g TOUCH Body position - 8.02.11b/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=10mm Maximum value of SAR (interpolated) = 0.354 mW/g TOUCH Body position - 8.02.11b/Zoom Scan(5x5x5): Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.00 V/m; Power Drift = -0.084 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.790 mW/g; SAR(10 g) = 0.401 mW/g Maximum value of SAR (measured) = 0.898 mW/g 0 dB = 0.898mW/g Plot #1 Bright Star Engineering, Inc. FCC ID: TE4CH9801 Report #R0506282S.doc SAR Evaluation Report Page 50 of 60 Date/Time: 6/29/2005 9:47:59 AM ; Date/Time: 6/29/2005 9:58:55 AM Test Laboratory: Bay Area Compliance Lab Corp. Bright Star 802.11G_Body DUT: Bright Star; Type: Sample; Serial: sample#C0504-00075 Communication System: 802.11G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; s = 1.95 mho/m; e r = 50.9; ? = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(4.24, 4.24, 4.24); Calibrated: 3/18/2005 • Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) • Electronics: DAE3 Sn456; Calibrated: 6/1/2004 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 TOUCH Body position - 8.02.11G 2/Area Scan (101x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.299 mW/g TOUCH Body position - 8.02.11G 2/Z Scan 2 (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=10mm Maximum value of SAR (interpolated) = 0.092 mW/g TOUCH Body position - 8.02.11G 2/Zoom Scan(5x5x5): Meas…
