TFTIDL3ID01Mobile Computer

iDL3ID Product User Guide May 2008 PREFACE ABOUT THIS GUIDE Product User Guide 1 Regulatory Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • this device may not cause harmful interference, and • this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. SAR has been evaluated with a Will’tek 4202S Communication Test Set as host and the maximum SAR value reported is 0.342W/kg. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment marketed in USA is restricted by firmware to only operate on 2.4 GHz channels 1-11. P R E F A C E A B O U T T H I S G U I D E Product User Guide 2 How to Use this Manual This Product User Guide contains comprehensive user instructions for the iDL3ID, software, docking station, USB cable and data transfer. This section provides an overview of the manual’s contents and organisation. Document Overview Document Conventions iDL3ID Keys Stylus Actions Document Overview This document contains the following material: This Preface, “About this Guide” provides an overview of the contents for each chapter and describes document style conventions. Chapter 1 – “Getting to know your iDL3ID” provides details on iDL3ID parts, using the iDL3ID, connecting power to the docking station, installing the battery, LED indicators, inserting the battery into the iDL3ID, using the iDL3ID keyboard, charging the iDL3ID on the docking station and switching the iDL3ID on and off. Battery storage, disposal and battery cautions and warnings are also covered. Chapter 2 – “iDL3ID Configurations” covers modules and peripherals, customisation of settings, aligning the touch screen, date and time, power configuration, regional settings and storage properties. Use of control panels for adjustment of calibration settings is also covered. Chapter 3 – “Networks, Communications and Connections” describes installing, setting up and using Microsoft ActiveSync with your iDL3ID to communicate with the host PC. Setup of wireless communication is also covered. Appendix A – “Technical Specifications” provides illustrations, technical environmental, memory, touch screen and detailed specifications for the iDL3ID. Appendix B – “Accessories and Peripherals” provides details and offers guidance in using the USB host cable and provide information on the SD memory card. Appendix C – “Maintenance, Troubleshooting and Technical Support” describes iDL3ID maintenance, provides a troubleshooting table and makes suggestions on how to contact technical support. Appendix D – “Glossary” is a glossary of terms used in this guide that are specific to the iDL3ID and Microsoft Windows®CE.NET. P R E F A C E A B O U T T H I S G U I D E Product User Guide 3 Document Conventions Formatting conventions are utilised throughout this manual to provide a consistent method for representing screenshots, command entries and keyboard characters. This manual also provides special conventions for notes and cautions, information of high interest to the user. Notes contain information necessary for properly diagnosing, repairing and operating the iDL3ID The CAUTION sign indicates actions that could damage equipment or property. A WARNING sign indicates actions that could result in personal injury or the injury of other persons. Document Font styles Monospaced typeface: shows filenames, paths, field selections from a pull-down list and data or keystrokes entered by the user. Windows Controls including command bar sequences, prompts, dialog boxes, fields, pull-down lists, checkboxes and radio- buttons are printed in this bold typeface. IDL3ID Keys Keys on the iDL3ID are bracketed in this document by < and > characters to distinguish them from keys on the PC. To differentiate the ENTER key on the iDL3ID from the ENTER key on the PC keyboard, the iDL3ID’s keys are bracketed as shown: <ENTER>. Stylus Actions The Stylus actions apply to the iDL3ID only. SINGLE TAP OR SELECT: Tap the display screen once with the stylus to activate a specific button or select an item. DOUBLE TAP: Tap the stylus twice rapidly in the same location to open an application. TAP AND HOLD: Tap and hold the stylus to view the context menu (similar results to the ‘right-click’ action with a PC-mouse). C H A P T E R 1 G E T T I N G T O K N O W Y O U R I D L 3 I D Product User Guide 1 Parts of the iDL3ID C H A P T E R 1 G E T T I N G T O K N O W Y O U R I D L 3 I D Product User Guide 2 Using the iDL3ID The Docking Station The Docking Station shown above is used to charge an iDL3ID battery and can charge a battery that is inserted in the iDL3ID. The docking station requires a 12V DC power supply in order to operate. This is supplied by the PSU. Connecting power to the docking station First, the power lead must be connected into the three-prong connector on the PSU. The power lead plug must then be connected to a power source and the power source switched on. When a green LED is present on the PSU, it should light up to indicate power is present and the PSU is functioning. If the green LED does not light up, please check that the power is properly inserted into the PSU and into the power source and the power source is switched on. Connect the functional PSU into the docking station by plugging the DC Jack into the connecter marked “12V D.C.” The green LED’s marked “Power” and “Charged” on the docking station will light up to indicate power is present and that docking station is functional. Inserting a battery The iDL3ID is supplied with 4.2V, 2200mAh batteries. In order to charge a battery it must first be inserted into the slot in the docking station as shown above. C H A P T E R 1 G E T T I N G T O K N O W Y O U R I D L 3 I D Product User Guide 3 Battery Charging & LED Indicators The docking …

Text truncated - open the document above for the full version.

MaxID Limited 3000, Hillswood Business Park, Hillswood Drive, Chertsey, Surrey, KT16 0RS, United Kingdom. Tel: +44 (0) 1932 895 396 Fax: +44 (0) 1932 895 397 Registered 05099590 Vat # 850226647 20 th March 2007 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern AGENCY LETTER This is to certify that MaxID Limited authorises RFI Global Services Limited to act on our behalf for the application of the EUT to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely, Roger Biggs Technical Director

MaxID Limited Hillswood Business Park, 3000 Hillswood Drive, Chertsey, Surrey, KT16 0RS, United Kingdom. Tel: +44 (0) 1932 895 396 Fax: +44 (0) 1932 895 397 Registered 05099590 Vat # 850226647 June 2, 2008 To whom it may concern, Bluetooth fitted but permanently disabled This letter serves to confirm that an OEM Bluetooth module is fitted to our product, FCC ID TFTIDL3ID01, but permanently disabled and not available to the user of the product. The following comprehensive steps have been taken to achieve this: 1. Removing the Bluetooth drivers from the product Operating System. This ensures that an application cannot interface to the module. 2. Removing Bluetooth power up and power management from the Operating System. This ensures that power is not supplied to the module. 3. Removing the Bluetooth selection from the Wireless Manager application. This ensures that a user is not able to manually enable Bluetooth. Sincerely, Roger Biggs Technical Director

MaxID Limited 3000, Hillswood Business Park, Hillswood Drive, Chertsey, Surrey, KT16 0RS, United Kingdom. Tel: +44 (0) 1932 895 396 Fax: +44 (0) 1932 895 397 Registered 05099590 Vat # 850226647 30 th July 2008 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: TFTIDL3ID01 It is requested that the following Internal Photograph exhibits for this application are held temporarily confidential as special request for a period of 45 days. Exhibit Type File Name Number of pages per file iDL3ID Internal Photos iDL3ID Internal Photographs.pdf7 GSM Internal Photos GSM Internal Photos.pdf2 Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Yours sincerely, Roger Biggs Technical Director

MaxID Limited 3000, Hillswood Business Park, Hillswood Drive, Chertsey, Surrey, KT16 0RS, United Kingdom. Tel: +44 (0) 1932 895 396 Fax: +44 (0) 1932 895 397 Registered 05099590 Vat # 850226647 4 th August 2008 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: TFTIDL3ID01 It is requested that the following information is to be held permanently confidential on behalf of Applicants Name. Pursuant to Sections 0.457 and 0.499 of CFR 47: Exhibit Type File Name Number of pages per file ADP5002 sch.pdf1 ANT8610 sch.pdf1 BAT7011 sch.pdf1 KBD8602 sch.pdf4 SEN8631 sch.pdf8 ANT8600 sch.pdf1 BAT5003 sch.pdf1 INF8620 sch.pdf1 Schematics MAN8602 sch. pdf7 Block Diagrams Block Diagram.pdf1 Operational Description Operation Description 01.pdf16 The above materials are company confidential and contain information not customarily available to the public. Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Yours sincerely, Roger Biggs Technical Director

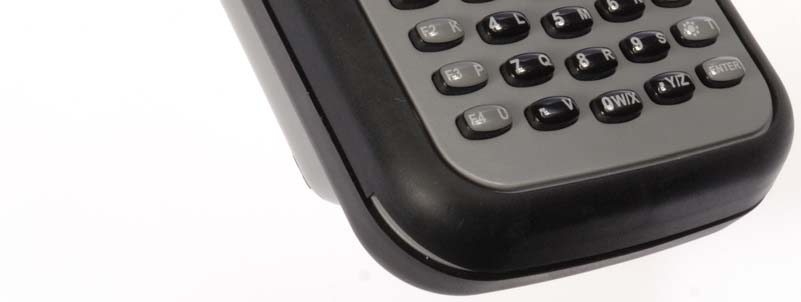

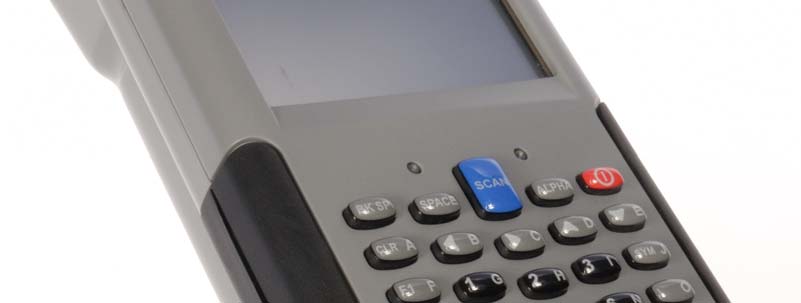

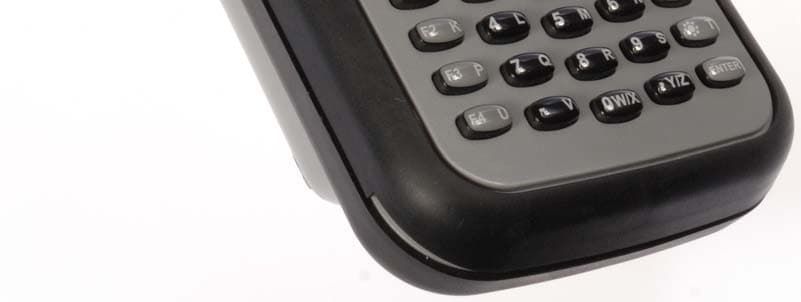

iDL3ID External Photographs Copyright © 2008 MaxID Ltd. All rights reserved. Page 1 of 3 May 29, 2008 iDL3ID External Photographs Copyright © 2008 MaxID Ltd. All rights reserved. Page 2 of 3 May 29, 2008 iDL3ID External Photographs Copyright © 2008 MaxID Ltd. All rights reserved. Page 3 of 3 May 29, 2008

MaxID Limited 3000, Hillswood Business Park, Hillswood Drive, Chertsey, Surrey, KT16 0RS, United Kingdom. Tel: +44 (0) 1932 895 396 Fax: +44 (0) 1932 895 397 Registered 05099590 Vat # 850226647 Exhibit : Label Information Each product will have a label affixed to the recess indicated on the external face of the bottom enclosure of the product: The label affixed in this position to each product will be of the following design:

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE2/RP73402JD03A Supersedes Test Report Serial No: RFI/SARE1/RP73402JD03A This Test Report Is Issued Under The Authority Of Steve Flooks, Radio Performance Service Leader: pp Brian Watson Checked By: Brian Watson Report Copy No: PDF01 Issue Date: 23 June 2008 Test Dates: 25 March 2008 to 09 May 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP73402JD03A Page: 2 of 73 Issue Date: 23 June 2008 Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP73402JD03A Page: 3 of 73 Issue Date: 23 June 2008 Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ........................................................................................................ 4 2. Equipment Under Test (EUT)............................................................................................. 5 3. Test Specification, Methods and Procedures ................................................................. 9 4. Deviations from the Test Specification.......................................................................... 10 5. Operation and Configuration of the EUT during Testing............................................. 11 6. Summary of Test Results ................................................................................................ 13 7. Measurements, Examinations and Derived Results.....................................................14 Appendix 1. Test Equipment Used ..................................................................................... 29 Appendix 2. Measurement Methods ................................................................................... 33 Appendix 3. SAR Distribution Scans.................................................................................. 35 Appendix 4. Photographs .................................................................................................... 51 Appendix 5. Validation of System....................................................................................... 67 Appendix 6. Simulated Tissues........................................................................................... 70 Appendix 7. DASY4 System Details ................................................................................... 71 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP73402JD03A Page: 4 of 73 Issue Date: 23 June 2008 Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: MaxID Ltd Address: Hillswood Business Park 3000 Hillswood Drive Chertsey KT16 0RS UK Contact Name: Roger Biggs RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP73402JD03A Page: 5 of 73 Issue Date: 23 June 2008 Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the customer: 2.1. Description of EUT The equipment under test is a Rugged Multifunctional Mobile Computer with HF RFID, GSM/GPRS, Wireless LAN, GPS, finger sensor and barcode/imager functionality. 2.2. Identification of Equipment Under Test (EUT) Description: Rugged Mobile Computer Brand Name: MaxID Model Name or Number: iDL3ID FCC test unit 1 Serial Number: 505159 IMEI Number: 35 9811000479573 Hardware Version Number: VER 1.0 Software Version Number: 03.0006.13 Hardware Revision of GSM Module: G24 model F6413 Software Revision of GSM Module: G24-G-0C-11-B2R FCC ID Number: TFTIDL3ID01 Country of Manufacture: United States of America Date of Receipt: 05 March 2008 2.3. Modifications Incorporated in the EUT The EUT was sent to the client during test interval. The FPC interface was configured with a connector to the Metrologic imager. The RF elements of the product were untouched and a barcode reader added. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP73402JD03A Page: 6 of 73 Issue Date: 23 June 2008 Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: AC - DC Power Supply Brand Name: Netgear Model Name or Number: DV-1280-3UK Serial Number: 330 - 10102-01 Cable Length and Type: ~2.0m Country of Manufacture: China Connected to Port 12v DC 5mm Port (240 V AC UK plug) Description: Battery Brand Name: None Stated Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port Two Pin port unique to Manufacturer Description: Docking Station Brand Name: MaxID Model Name or Number: iDL-DDN Serial Number: CHN00002 Cable Length and Type: 2.0m Two core power cable Country of Manufacture: None Stated Connected to Port 12v DC 5mm Port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE2/RP73402JD03A Page: 7 of 73 Issue Date: 23 June 2008 Test of: MaxID Ltd iDL3ID To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: USB Cable Brand Name: None Stated Model Name or Number: USB Type A Serial Number: None Stated Cable Length and Type: ~1.5m Connected to Port: USB Description: Serial Cable Brand Name: None Stated Model Name or Number: RS-232 Serial Number: None Stated Cable Length and Type: ~2.0m Co…

Text truncated - open the document above for the full version.

Specific Absorption Rate (SAR) Measurement Requirements in Accordance with KDB447498 D01 Mobile RF Exposure V03 Equipment: MaxID iDL3ID FCC ID: TFTIDL3ID01 SAR Report Number: RFI/SARE2/RP73402JD03A The equipment is a PDA body worn device utilising GSM, WIFI and RFID radio modules with simultaneous transmission. Determining the SAR test procedure was in accordance with KDB447498 v03r01 (Mobile and Portable RF Exposure Procedures and Equipment Authorisation Policies). For this PDA device the following applies: KDB447498 Section 1 d), references procedure KDB248227 for 802.11 a/b/g devices. KDB447498 Section 4 d) references applicability of KDB648474 (Handset SAR procedure). Measured Maximum Transmitter Power of individual modules GSM 850: 21.9dBm PCS 1900: 23.9dBm WiFi: 13.9dBm RF ID (13.5MHz): 28.6dBuV/m @3m Measured 1-g SAR for GSM and WiFi antennas SAR limit 1.6 W/kg GSM maximum SAR level = 0.113 W/kg WiFi maximum SAR level (802.11b) = 0.00151 W/kg (SAR measurements on 802.11g mode was not measured as maximum average output power was less than ¼ dB higher than that measured on the corresponding 802.11b channels, as per KDB 248227). RF ID was not measured as transmitter power is negligible. Sum of GSM + WiFi SAR = 0.11451 W/kg Measured device antenna to antenna separation differences Antenna to Antenna separation X-axis cm Y-axis cm Z-axis (shortest distance) cm GSM to WIFI 13.6 3 13.9 The distance from the GSM antenna to the WiFi antenna is <5cm and the 1-g SAR measured for all simultaneous transmitting antennas was less than the SAR limit stated in OET Bulletin 65 Supplement C 01-01. Therefore as per KDB447498 and KDB648474 simultaneous transmission SAR evaluation is not required.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) Test Report Serial No: RFI/RPTE2/RP73125JD07A Supersedes Test Report Serial No: RFI/RPTE1/RP73125JD07A This Test Report Is Issued Under The Authority Of Steve Flooks, Radio Performance Group Service Leader: pp Brian Watson Checked By: Brian Watson Report Copy No: PDF01 Issue Date: 06 June 2008 Test Dates: 05 March 2008 to 11 March 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73125JD07A Page: 2 of 30 Issue Date: 06 June 2008 Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73125JD07A Page: 3 of 30 Issue Date: 06 June 2008 Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) Table of Contents 1. Client Information............................................................................................................................ 4 2. Equipment Under Test (EUT) ......................................................................................................... 5 3. Test Specification, Methods and Procedures............................................................................... 7 4. Deviations from the Test Specification ......................................................................................... 7 5. Operation of the EUT During Testing ............................................................................................ 8 6. Summary of Test Results ............................................................................................................... 9 7. Measurements, Examinations and Derived Results .................................................................. 10 8. Measurement Uncertainty ............................................................................................................ 25 Appendix 1. Test Equipment Used .................................................................................................. 26 Appendix 2. Test Configuration Drawings ...................................................................................... 28 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73125JD07A Page: 4 of 30 Issue Date: 06 June 2008 Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 1. Client Information Company Name: MaxID Ltd Address: Hillswood Business Park 3000 Hillswood Drive Chertsey Surrey KT16 ORS Contact Name: Mr R Biggs RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73125JD07A Page: 5 of 30 Issue Date: 06 June 2008 Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Rugged Mobile Computer Brand Name: iDL Model Name or Number: iDL3ID FCC test unit 1 Serial Number: 505159 IMEI Number: 359811000479573 Hardware Version Number: VER 1.0 Software Version Number: 03.0006.13 FCC ID Number: TFTIDL3ID01 Country of Manufacture: United States of America Date of Receipt: 05 March 2008 Description: Docking station for Mobile computer Brand Name: iDL Model Name or Number: iDL doc Serial Number: CHN00002 IMEI Number: Not Applicable Hardware Version Number: VER1.0 Software Version Number: Not Applicable FCC ID Number: TFTIDL3ID01 Country of Manufacture: United States of America Date of Receipt: 05 March 2008 Description: AC-DC Adaptor Brand Name: Netgear Model Name or Number: DV-1280-3UK Serial Number: 330-10102-01 Country of Manufacture: United States of America Date of Receipt: 05 March 2008 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73125JD07A Page: 6 of 30 Issue Date: 06 June 2008 Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 2.2. Description of EUT The equipment under test is a Rugged Multifunctional Mobile Computer with HF RFID, GSM/GPRS, Wireless LAN, GPS, finger sensor and barcode/imager functionality. 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. 2.4. Additional Information Related to Testing Power Supply Requirement: Nominal 110 V, 60 Hz AC Mains Supply Internal battery supply of 3.4 V Intended Operating Environment: Commercial, Light Industry, Heavy Industry, Within GSM Coverage Temperature Range: Operating: -20°C to 50°C Storage: -30°C to 70°C Equipment Category: 802.11 (x), GSM/GPRS/EGPRS, HF RFID, GPS Type of Unit: Portable (Standalone battery powered device) Transceiver Transmitter Output Power: RFID:+22dBuA/m maximum @ 3m Transmit Frequency: 13.56 MHz (Single Channel) 2.5. Port Identification Port Description Type/Length 1 Serial (RS-232) interface 9 way d-type female/100mm 2 USB Type A connector/50mm 3 SIM Standard GSM SIM 2.6. Support Equipment No support equipment was used to exercise the EUT during testing. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP73125JD07A Page: 7 of 30 Issue Date: 06 June 2008 Test of: MaxID Ltd iDL3ID To: FCC Part 15 Subpart B: 2007 (Sections 15.225) 3. Test Specification, Methods and Procedures 3.1. Test Specifications Reference: FCC Part 15 Subpart B: 2007 (Sections 15.225). Title: Code of Federal Regulations, Part 15 (47CFR225) Radio Frequency Devices. 3.2. Methods and Procedures The methods and procedures used were as detailed in: ANSI/TIA-603-B-2003 Land Mobile Communications Equipment, Measurements and performance Standards ANSI C63.2 (1987) Title: American National …

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: MaxID Ltd iDL3ID To: Transmitter Spurious Intermodulation Products Test Report Serial No: RFI/RPTE1/RP73402JD05A This Test Report Is Issued Under The Authority Of Steve Flooks, Radio Performance Group Service Leader: pp Checked By: Nigel Davison Report Copy No: PDF01 Issue Date: 24 June 2008 Test Dates: 05 March 2008 to 21 May 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73402JD05A Page: 2 of 17 Issue Date: 24 June 2008 Test of: MaxID Ltd iDL3ID To: Transmitter Spurious Intermodulation Products This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73402JD05A Page: 3 of 17 Issue Date: 24 June 2008 Test of: MaxID Ltd iDL3ID To: Transmitter Spurious Intermodulation Products Table of Contents 1. Client Information ...............................................................................................................................4 2. Equipment Under Test (EUT) .............................................................................................................5 3. Test Specification, Methods and Procedures ..................................................................................8 4. Deviations from the Test Specification ............................................................................................8 5. Operation of the EUT during Testing ................................................................................................9 6. Summary of Test Results...................................................................................................................10 7. Measurements, Examinations and Derived Results........................................................................11 8. Measurement Uncertainty..................................................................................................................14 Appendix 1. Test Equipment Used........................................................................................................15 Appendix 2. Test Configuration Drawing .............................................................................................16 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73402JD05A Page: 4 of 17 Issue Date: 24 June 2008 Test of: MaxID Ltd iDL3ID To: Transmitter Spurious Intermodulation Products 1. Client Information Company Name: MaxID Ltd Address: Hillswood Business Park 3000 Hillswood Drive Chertsey Surrey KT16 ORS Contact Name: Mr R Biggs RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73402JD05A Page: 5 of 17 Issue Date: 24 June 2008 Test of: MaxID Ltd iDL3ID To: Transmitter Spurious Intermodulation Products 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Rugged Mobile Computer Brand Name: iDL Model Name or Number: iDL3ID FCC test unit 1 Serial Number: 505159 FCC ID Number: TFTIDL3ID01 Country of Manufacture: None Stated Date of Receipt: 05 March 2008 2.2. Description of EUT The equipment under test is a Rugged Mobile Computer. 2.3. Accessories The following accessories were supplied with the EUT: Description: Docking station for Mobile computer Brand Name: iDL docking station Model Name or Number: IDL doc Serial Number: CHN00002 Cable Length and Type: Not Applicable Connected to Port: Not Applicable Description: AC-DC adaptor Brand Name: Netgear Model Name or Number: DV-1280-3UK Serial Number: 330-10102-01 Cable Length and Type: 2 meteres / multicore Connected to Port: Docking station charger RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73402JD05A Page: 6 of 17 Issue Date: 24 June 2008 Test of: MaxID Ltd iDL3ID To: Transmitter Spurious Intermodulation Products 2.4. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Laptop Model Name or Number: Dell Latitude 110L Serial Number: (01)07898349890528 Cable Length and Type: Not Applicable Connected to Port: Serial Description: RS-232 extender cable Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: 2 metres 9way male to 9way fem D-type Connected to Port: Serial 2.5. Modifications Incorporated in EUT The EUT was modified by the manufacturer before submission for testing. An external serial and USB cable including connections were fitted and passed though the bottom of the casing. Both cables were approximately 100mm long. One cable was used to control 802.11 functions during testing via the serial port. The USB cable was not used. 2.6. Additional Information Related to Testing Power Supply Requirement: Nominal 110 V, 60 Hz AC Mains Supply Internal battery supply of 3.4 V Intended Operating Environment: Commercial, Light Industry, Heavy Industry, Within GSM Coverage Equipment Category: GSM/GPRS/EGPRS, HF RFID, GPS Type of Unit: Portable (Standalone battery powered device) Transceiver Data Rate: WIFI:variable, HF RFID:424kbaud, GSM: Variable Bandwidth: WIFI:22MHz, HF RFID:tbd GSM: 200…

Text truncated - open the document above for the full version.
