TG6RCS433MDR433.92 MHz Radio Transmitter

RCS-433MDR1 USER MANUAL Thank you for choosing a RCS transmitter. It is recommended that you read this manual carefully before using the transmitter. CONTENTS 1 - TRANSMITTER INTRODUCTION 1A - General Information 1B - Technical Specifications 1C - Main Features 1D - Model Types 2 - CODING 3 - MEMORIZATION 4 - BATTERY AND DIP-SWITCH ACCESS 5 - TROUBLESHOOTING 1 - TRANSMITTER INTRODUCTION 1A - General Information • The radio control, RCS-433MDR1 has been designed for the cont rol of automatic closing systems and anti-burglar systems. The operating frequency is 433.92 MHz. • The transmitter security code is obtained by means of a 10 way three-state dip-switch, which allows up to 19683 codes combinations. • Each transmitter (or its different keys)can be stored into di fferent receivers and hence can do more functions. • The product fully complies with Part 15 of FCC Regulations. 1B - Technical specifications Number of keys: . . . . . . . . . . . . . . . . . . . . . . . . . .1 Battery duration: . . . . . . . . . . . . . . . . . .12 - 24 months Battery type: . . . . . . . . . . . . . . . . . . . . . . . .23A (L1028) Cur rent consumption: . . . . . . . . . . . . . . . . . . . . .25 mA Operating frequency: . . . . . . . . . . . . . . . . .433.92 MHz Security code combinations number: . . . . . . . . .19683 Modulation : . . . . . . . . . . . . . . . . . . . . . . . . . . .AM/ASK E. r.p.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 - 100 uW Range in open space: . . . . . . . . . . .from 100 to 200 m Operating temperature: . . . . . . .from -10 °C to +55 °C Dimensions : . . . . . . . . . . . . . . . . . . . . .1.75 x 1 x .3 in. Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7 oz. 1C - Main Features 1D - Model Types 1 button dip-switch transmitter: Model #: RCS-433MDR1 2 - CODING Using a coin, insert and twist to access to the battery and the dip-switches. The dip-position will give the security code. Warning:Each transmitter is set-in-factory with the same code on the dip-switches; it highly advisable to change this code by moving the dip-switches to any random position ( “+”, “0” , “-”). 3 - MEMORIZATION Each dip-switch setting code has to be stored into the receiver memor y. The memorization can be done by self-learning. The instructions for this operation is given on the receiver installation manual. Your own installer will perform this operation during the installation or will give you the necessary explanation during installation. 4 - BATTERY AND DIP-SWITCH ACCESS To access the battery, Using a coin, insert and twist. Place the 23A alkaline battery between the 2 contacts. Respect the right polarity as indicated on the bottom of the box. NOTE:Please dispose of the battery cor rectly, they are hazardous waste. 5 - TROUBLESHOOTING The radio signal is not verifiableReplace the transmitter battery The transmitter led doesn't switch onReplace the transmitter battery The radio signal is not verifiableCheck the power supply of the receiver The transmitter led switches onReplace the transmitter battery GUARANTEE The guarantee period of all RCS transmitters is 12 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at the discretion of RCS. The guarantee does not cover the plastic container integrity. After-sale service is supplied at the producer's factory. REMOTE CONTROL SOLUTIONS, LLC 1-866-770-0727 ww w.rcsremotes.com RCS-433MDR1 FCC ID: TG6RCS433MDR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interferences; and 2) this device must accept any interference received, including interference that may cause undesired operation Notice:Any changes or modification to RCS equipment not expressly approved by RCS could void the user's authority to operate the equipment. Red LED Button Dip-Switch Battery

October, 23 2007 To: SIEMIC, INC. 2206 Ringwood Ave., San Jose, CA 95131 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Remote Control Solutions, LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): RCS-433MDR1, 433.92MHz radio transmitter w/ Dip-switches We affirm that between SIEMIC and Remote Control Solutions, LLC, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Ben Scanlan, President Remote Control Solutions, LLC 4862 E. Baseline Rd. Suite 104 Mesa, AZ 85206

October 23, 2007 To: Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: TG6RCS433MDR We hereby request confidential treatment of information accompanying this application as outlined below: - operational description - block diagram - schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ben Scanlan, President Remote Control Solutions, LLC 4862 E. Baseline Rd. Suite 104 Mesa, AZ 85206

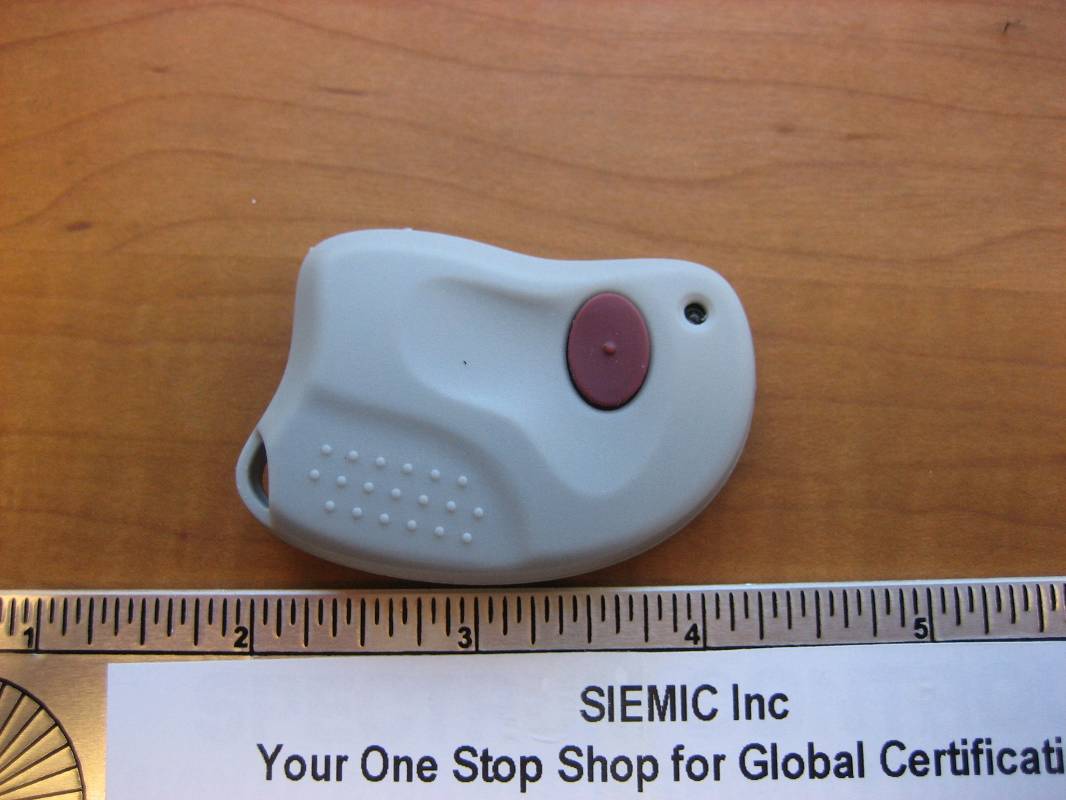

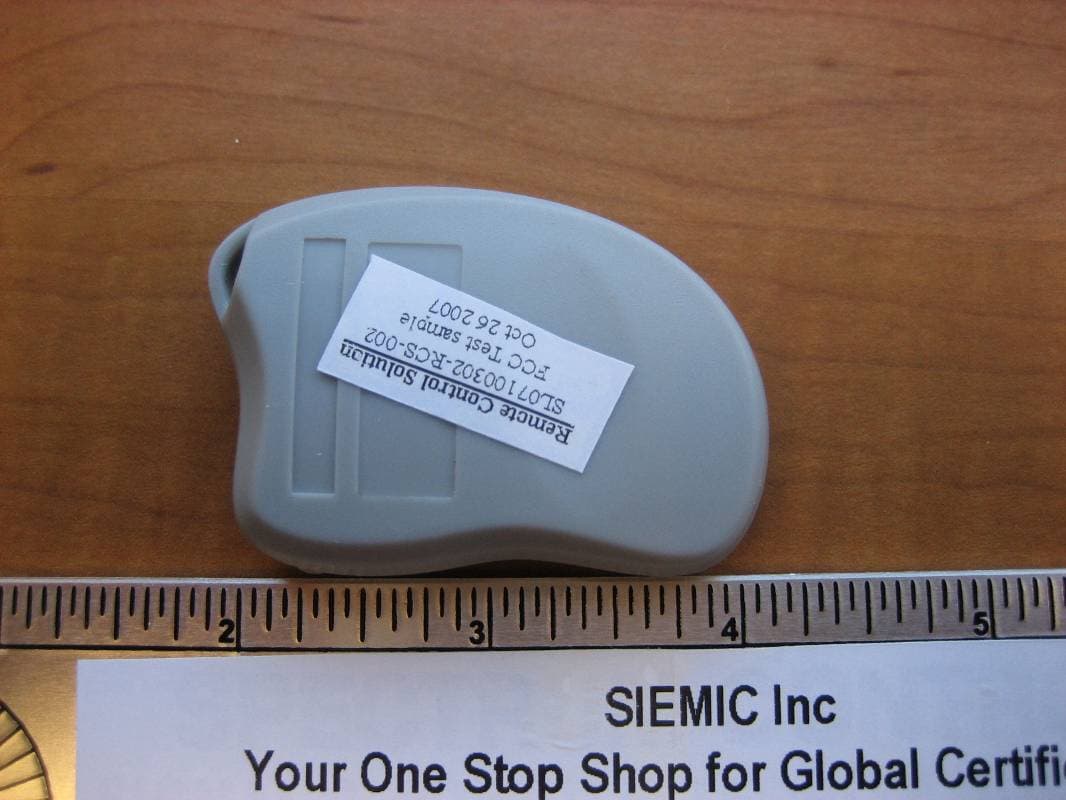

RCS-433MDR1 External Photos. EUT Top View EUT Bottom View

FCC ID: TG6RCS433MDR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Label Drawing FCC ID: TG6RCS433MDR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RCS-433MDR1 Internal Photos Board Top View Board Bottom View

REMOTE CONTROL SOLUTIONS, LLC REMOTE CONTROL TRANSMITTER Model : RCS-433MDR1 06 Nov 2007 Report No.: SL07100302-RCS-002 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Benjamin Jing Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 2 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: NVLAP Lab Code: 200729-0 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 3 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: ISO Guide 65 for US TCB Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 4 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: FCC Registration No. 783147 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 5 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Industry of Canada Registration No. 4842-1 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 6 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan VCCI Registration No. 2195 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 7 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan RF Technologies Accreditation No. MRF050927 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 8 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea MIC Lab Code: KR0032 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 9 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea CAB ID: US0160 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 10 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan BSMI Accreditation No. SL2-IN-E-1130R Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 11 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan NCC CAB ID: US0160 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 12 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Mexico NOM Recognition Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 13 of 38 www.siemic.com SIEMIC ACREDITATION DETAILS: Hong Kong OFTA Recognition No. D23/16V Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 14 of 38 www.siemic.com This page has been left blank intentionally. Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 15 of 38 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION............................................................................................................ 17 2 TECHNICAL DETAILS.................................................................................................................................................. 18 3 MODIFICATION............................................................................................................................................................ 19 4 TEST SUMMARY.......................................................................................................................................................... 20 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS...................................................................................... 21 ANNEX A. TEST INSTRUMENT & METHOD.......................................................................................................................... 29 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS............................................................................................................. 33 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT..................................................................................................... 34 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM.................................................................................................... 38 Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 16 of 38 www.siemic.com This page has been left blank intentionally. Title: FCC RF Test Report of Remote Control Solutions, LLC , Model : RCS-433MDR1 To 47 CFR FCC15.231 : 2007 Serial# SL07100302-RCS-002 Issue Date 06 Nov 2007 Page 17 of 38 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Remote Control Solutions, LLC Remote Control Transmitter, against the current Stipulated Standards. The Remote Control Transmitter have demonstrated compliance with the 47 CFR FCC15.231 : 2007. EUT Information EUT Description…

Text truncated - open the document above for the full version.

RCS-433MDR1 Test Setup Photos Radiated Emission Setup <1GHz Radiated Emission > 1GHz Z-Orientation X-Orientation Y - Orientation
