DIP-SWITCH KEYPAD M AN U A L O F IN S T A LL A TIO N RCS-433CKPD Introduction RCS-433CKPD Keypad is a codified radio keyboard operating at 433,92 MHz. The best use of the product is on applications where a codified radio signal has to be used to control: gates, garage doors, rolling shutters, sun-blinds, anti-burglar appliances, lightings, etc. The code has a very high security coding system (19683 code combinations). The radio transmission is enabled only after the dialing of a security user code. There are up to 6 different channels that can activate up to 6 different receivers or relays. Compatible receivers: RCS-433DSR2LC, RCS-433BR2. The internal memory can store up to 24 different security user codes and 1 Master code. The product fully complies with Part. 15 of FCC Rules. INSTALLATION Technical Specifications Number of keys: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Number of channels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Vdc Battery duration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . about 36 months Battery type: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lithium CR123A Current consumption: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA Operating frequency:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433.92 MHz Modulation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AM/ASK E.r.p.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 mW Security Code combinations number:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19683 User security code number:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24+1 Transmission duration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . until press / 2 sec. Range in open space: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . from 150 to 700 m Operating temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . from 14 °F to 131 °F Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.84*60.84*0.6mm Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 oz IP Protection Grade: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP65 Battery Removal & Replacement Remove the cover and extract the old battery from the bottom site of the electronic card with an upward traction. Insert the new battery on the battery location, respecting the right polarity. Installation of Keypad 1 - Locate the best position for the fixing, avoiding metallic surfaces that could decrease the RF emission; 2 - Mark the location of the fixing holes using the bottom of the box as drilling template; 3 - Drill the fixing holes and insert the plugs; 4 - Remove the protection strip from the seal; 5 - Assemble the seal and the bottom; 6 - Fix the bottom with the screws supplied; 7 - Mount the cover on the fixed bottom; 8 - Fix the cover to the bottom with the 2 screws supplied. NOTES:The keypad uses lithium battery type CR123A-S-3V. The removal and the disposal of the battery must be done before the disposal of the keypad and according to the current Regulations. ATTENTION:Danger of explosion if the battery is not replaced in the correct way! FCC ID: ____________ This device complies with FCC Rules Part 15 Operation is subject to the following two conditions: 1) This device may not cause harmful interferences; 2) this device must accept interference that may cause undesired operation. Password The keypad has a Master Password factory-set to “11111”. It is suggested that the Master Password be changed to avoid miss-use of keypad. The Master Password and the User code can have up to 5 digits. If the chosen code is shorter than 5 digits, then a “#” must be pressed after the last digit, to complete the number, as indicated below: _ Example 1 : User code 123 : Digit 1, 2, 3, #. _ Example 2 : User code 1234 : Digit 1, 2, 3, 4,#. • the master password does not need to be changed to enter programming mode. If the end user would like to keep the password at the factory default they can, although not recommended. • If at any time the user dials a wrong code there will be a distinct LONG beeeeep to let the user know they have pressed something wrong and need to start over. • If the user presses the * key twice it will clear the keys dialed and the user can start over. • When memorizing the dip-switch setting on the receiver this process learns the keypads' specific security code/dip-switch setting and not just the user code. After this process is done all the user codes that are in the keypad will activate the respective relay that the security code/dip-switch setting was learned to. Memorizing Keypad Dip-Switch Setting on Receiver 1Press relay (1, 2, 3 or 4) learn button on receiver until LED is lit on receiver. 2Release receiver button and while the LED is lit on receiver press the user code on keypad and leave last digit of user code press for 2 sec. 3Receiver LED will blink to confirm keypad dip-switch setting memorization. Special Functions The “ * ” key will cancel the last command. WARNING: “Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment”. NOTE:You can mod…

Text truncated - open the document above for the full version.

Date: 02/20/2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Benjaman D. Scanlan (President) Remote Control Solutions, LLC REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

February 20, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: TG6T433CKPD Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Operational Description Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Remote Control Solutions, LLC Benjaman D. Scanlan President.

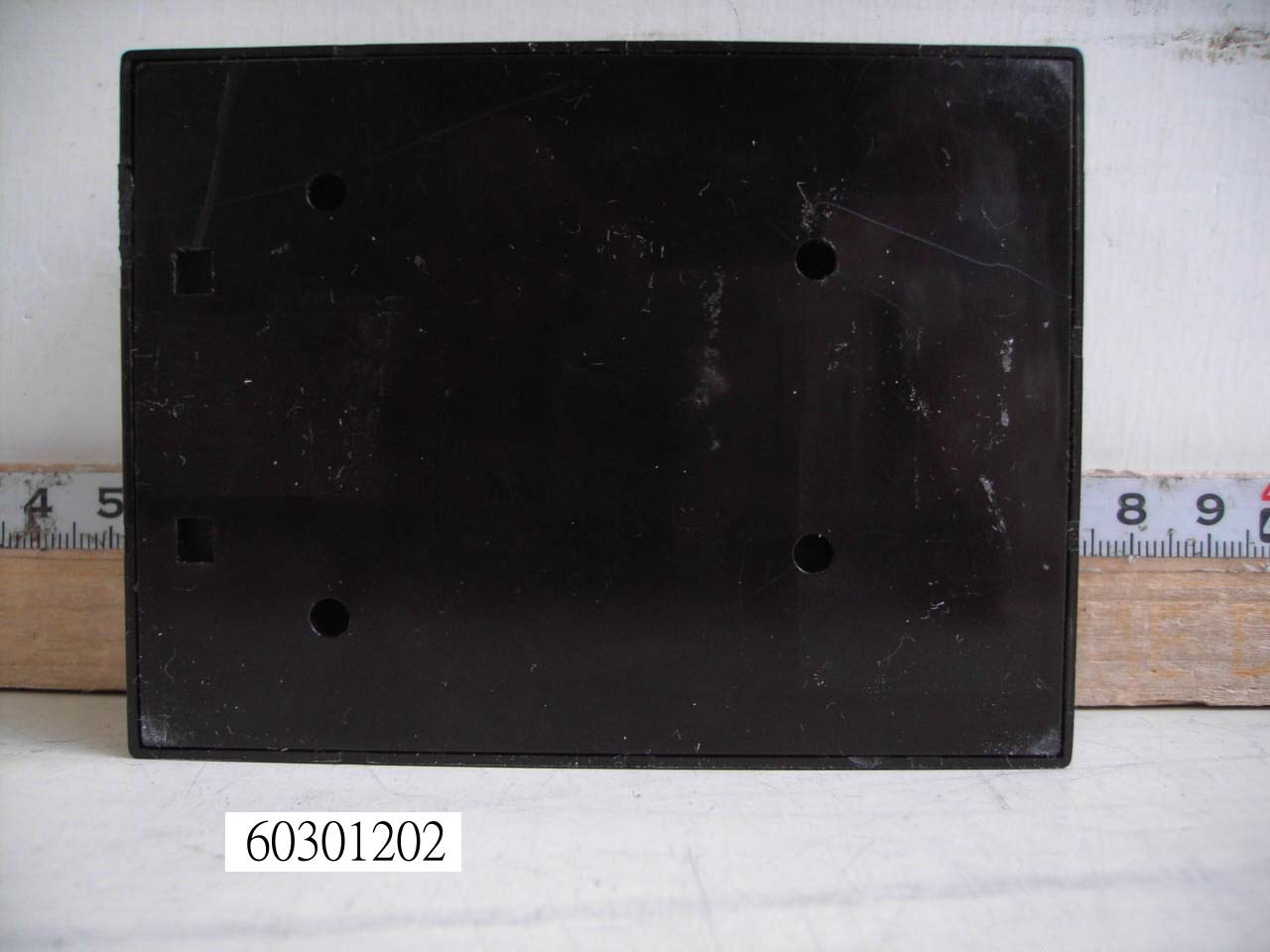

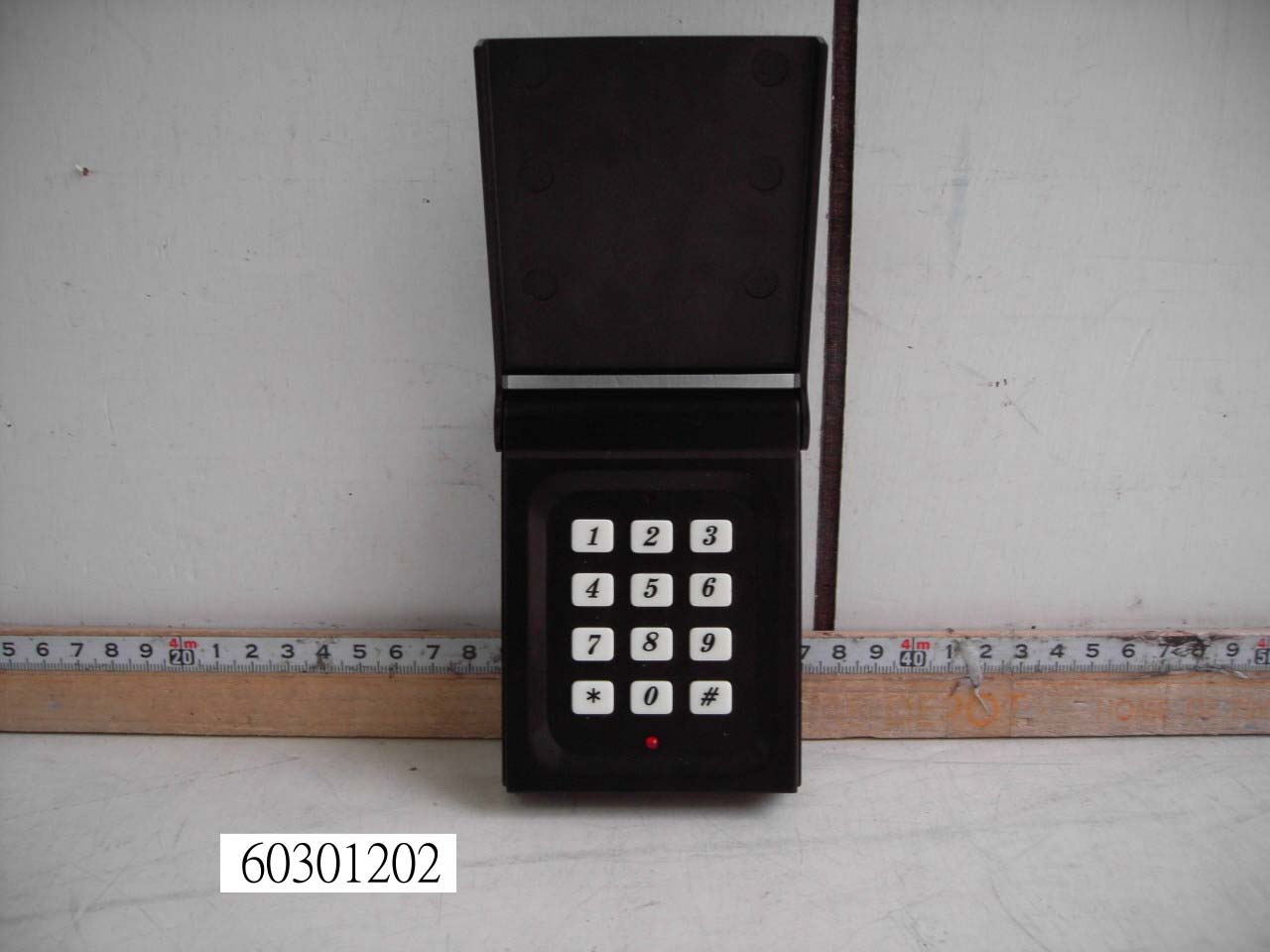

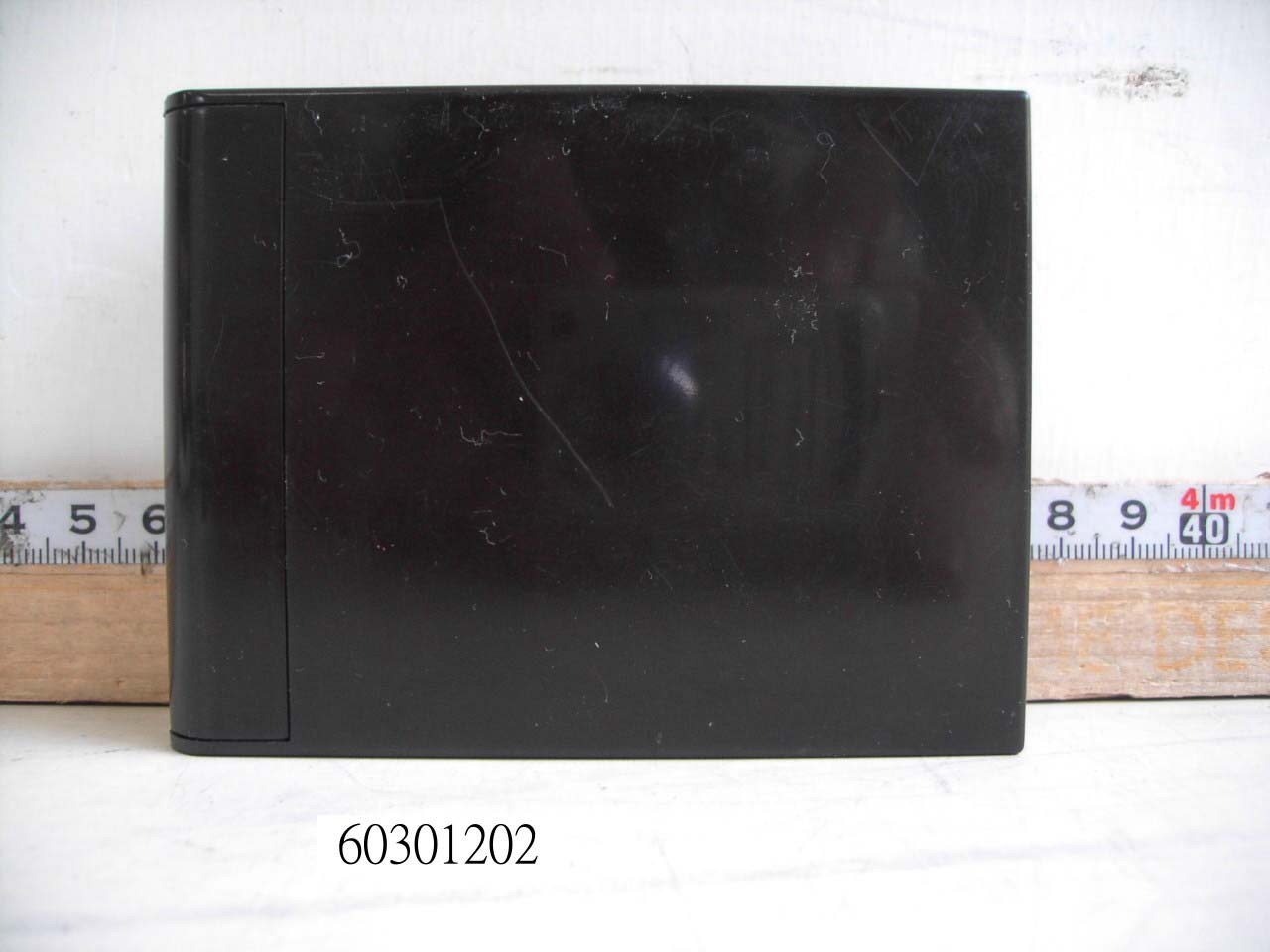

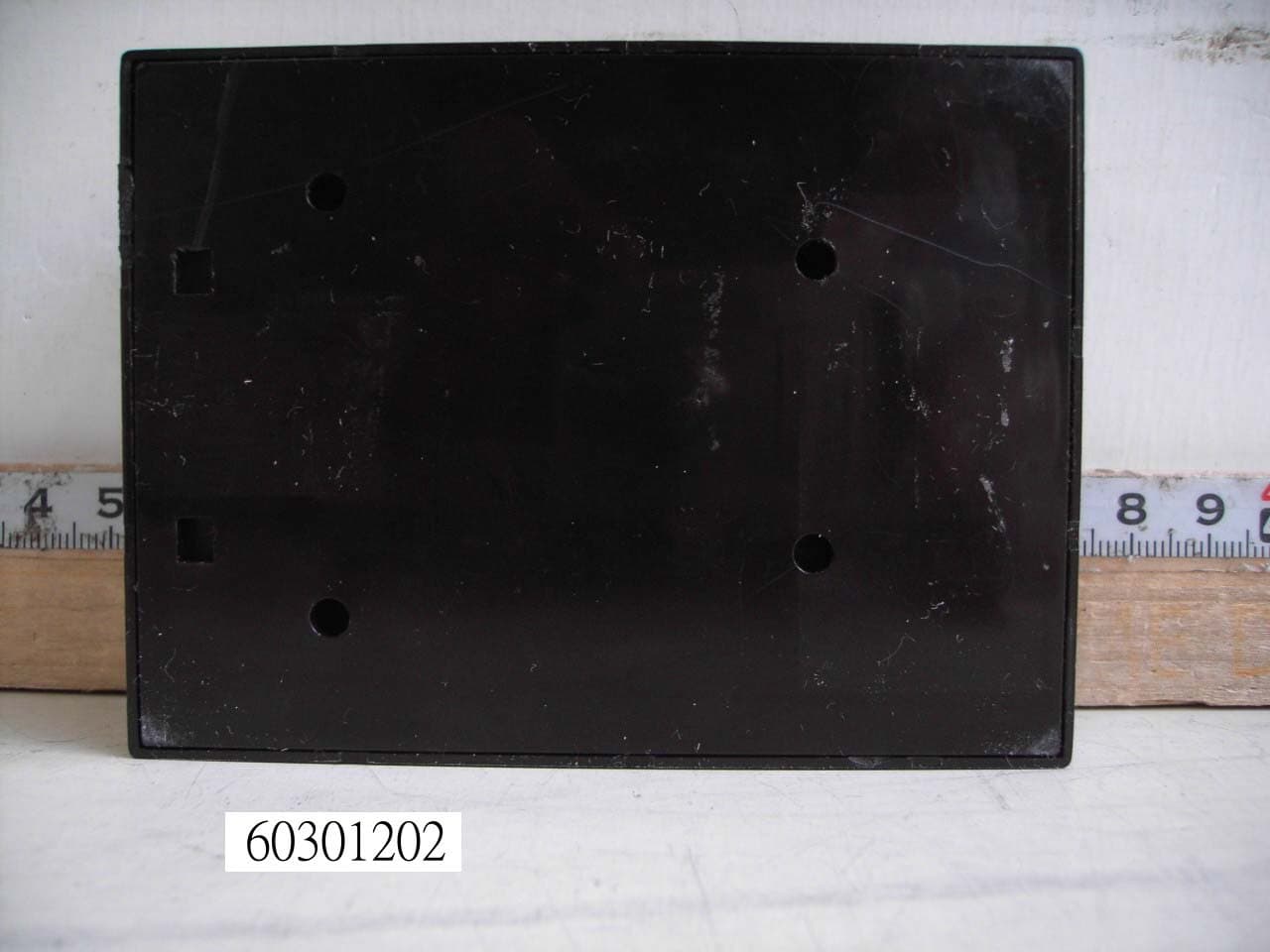

Compliance Certification Services Inc. Report No.: 60301202 Date of Issue: April 10, 2006 Page 1 Total Page: 5 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60301202 Date of Issue: April 10, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60301202 Date of Issue: April 10, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 60301202 Date of Issue: April 10, 2006 Page 4 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Applicant: Remote Control Solutions, LLC FCC ID: TG6T433CKPD FCC ID: TG6T433CKPD This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60301202 Date of Issue: April 10, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 60301202 Date of Issue: April 10, 2006 Page 5 Rev. 00

Compliance Certification Services Inc. Report No.: 60301202-RP1 FCC ID: TG6T433CKPD Date of Issue: April 10, 2006 Page 1 of 52 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of KEYPAD FCC ID Number : TG6T433CKPD Trade Name : RCS Model Number : RCS-433CKPD Agency Series : N/A Report Number : 60301202-RP1 Date : April 10, 2006 Prepared to： Remote Control Solutions, LLC 4862 E. Baseline Rd. Suite #104 Mesa, AZ 85206, USA Prepared by： Compliance Certification Services Inc. No. 165, Chung Sheng Road, Hsin Tien City, Taipei Hsien, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60301202-RP1 FCC ID: TG6T433CKPD Date of Issue: April 10, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE........................................................ 3 2. PRODUCT DESCRIPTION........................................................................ 4 3. TEST FACILITY.......................................................................................... 4 4. MEASUREMENT STANDARDS ............................................................... 4 5. TEST METHODOLOGY............................................................................ 4 6. MEASUREMENT EQUIPMENT USED................................................... 5 7. POWERLINE RFI LIMIT .......................................................................... 5 8. RADIATED EMISSION LIMITS .............................................................. 6 9. SYSTEM TEST CONFIGURATION......................................................... 6 10. TEST PROCEDURE.................................................................................. 7 11. Equipment Modifications .......................................................................... 8 12. TEST RESULT ........................................................................................... 9 12.1 Maximum Modulation Percentage (M%) ............................................... 9 12.2 The Emissions Bandwidth ........................................................................ 9 APPENDIX I ................................................................................................... 10 Compliance Certification Services Inc. Report No.: 60301202-RP1 FCC ID: TG6T433CKPD Date of Issue: April 10, 2006 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Remote Control Solutions, LLC 4862 E. Baseline Rd. Suite #104 Mesa, AZ 85206, USA CONTACT PERSON : Benjaman D. Scanlan / President TELEPHONE NO. : 480-281-1878 EUT DESCRIPTION : KEYPAD MODEL NAME/NUMBER : RCS-433CKPD FCC ID : TG6T433CKPD DATE TESTED : March 26, 2006 ~ April 8, 2006 REPORT NUMBER : 60301202-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE KEYPAD MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60301202-RP1 FCC ID: TG6T433CKPD Date of Issue: April 10, 2006 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: RCS-433DSR2LC (DoC) Model: RCS-433BR2 (DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 60301202-RP1 FCC ID: TG6T433CKPD Date of Issue: April 10, 2006 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # K Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS K Site N/A 10/01/2006 MEASURE RECEIVER R&S ESVS30 828488/004 09/26/2006 SPECTRUM ANALYZER ADVANTEST R3132 120900029 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2846 05/27/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3639 10/08/2006 CABLE SUHNER RG 214 N-TYPE #K2 02/17/2007 THERMO- HYGRO METER TFA N/A NO.4 02/08/2007 Above 1GHz Used EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 00022256 01/12/2007 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/06/2007 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1 02/06/2007 CABLE (1-18GHz) HUBER +SUHNER SUCOFLEX 104 SMA#RS3 02/06/2007 CABLE (1-18GHz) JYEBAO LL142 SMA#C1 02/06/2007 Remark: Each piece of equipment is scheduled for calibration once a year. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYST…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60301202-RP1 FCC ID: TG6T433CKPD Date of Issue: April 10, 2006 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
