Step 1: Set up your TiVo ® Slide remote 1. Insert the supplied AA batteries into the remote. 2. Plug the supplied USB receiver into the USB port on the back of your TiVo box. You must plug in the USB receiver to use the remote’s slide-out keyboard. Note: A USB extension cable is also supplied. If you experience poor reception between the TiVo Slide remote and the USB receiver (not typical), use the cable to position the receiver in a more optimal position for communication with the remote. The best position is usually near the front of the TiVo box. To use the cable, simply connect the USB receiver to one end of the cable, and plug the other end of the cable into the USB port on the back of the TiVo box. 3. Congratulations! Your remote is ready to use. Your remote is now in Bluetooth ® mode. The activity indicator light on the remote control flashes blue with each button press. Step 2: Program your remote You can control your TV’s power, input, volume, and mute functions with the TiVo Slide remote: 1. Press the TiVo button on your remote control to go to the TiVo Central ® screen. 2. Select ‘Messages & Settings,’ then ‘Settings,’ then ‘Remote, CableCARD, & Devices,’ then ‘Remote Control Setup.’ 3. Using the on-screen instructions, program your remote for functions relevant to your setup at home. If you are unable to find a code that works using the on-screen programming procedure described above, the TiVo Slide remote can “learn” how to control your TV‘s power, input, volume, and mute functions directly from other remotes. 1. Press the TiVo button and the SELECT button simultaneously, and hold them for three seconds, until the amber activity indicator light remains lit. The remote is now in “learning mode.” 2. On the TiVo remote, press and release the button you want it to learn (for example, TV PWR). The activity indicator light will flash once to acknowledge the button press, then remain lit. 3. Point the remotes directly at each other, no more than 4 inches apart. 4. Press and hold the corresponding button on the TV or A/V receiver remote (e.g., Power). 5. If learning is successful, the activity indicator light will flash 4 times. If it is not successful, the light will blink 10 times very quickly. 6. Repeat steps 2-5 for any additional buttons (VOL UP, VOL DOWN, INPUT, MUTE). 7. When done, press the TiVo button to exit learning mode and return the remote to normal operation. TV or A/V receiver remoteTiVo Slide remote 4” max. Tips and tricks • To use the integrated QWERTY keyboard, you must be in Bluetooth mode. • When your remote is not in Bluetooth mode (e.g., if the USB receiver is not plugged into your TiVo box), it will still function as a typical TiVo remote using only infrared signals; however, you will not be able to use the slide-out keyboard. In infrared-only mode, the remote’s activity indicator light flashes amber with each button press. • You can tell if your remote is in Bluetooth or infrared mode by looking at the color of activity indicator light at the top of the remote. When you press a button, this light flashes blue in Bluetooth mode or amber in infrared mode. • In rare instances, you may find your remote in infrared-only mode even though the USB receiver is plugged into the TiVo box. In this case, you will need to enable Bluetooth manually. Simply press and hold the TiVo button and the button simultaneously until the remote’s activity indicator light starts blinking blue. Then press and hold the button on the USB receiver until its LED starts blinking. When pairing is successful, the remote’s activity indicator light will blink rapidly five times and then go off. • The TiVo Slide remote lights up in darkened rooms. To turn this feature off, press and hold the TiVo and THUMBS DOWN buttons until the activity light blinks three times. To turn the feature on again, press and hold the TiVo and THUMBS UP buttons until the activity indicator light blinks three times. • If you use a wireless adapter to connect to the TiVo service, leave at least 12” of space between the adapter and the remote’s USB receiver for optimal performance. For more remote control tips, go to www.tivo.com/support. Activity indicator light ETHERNET USB 1 USB 2 HDMI TiVo Inc. EXTERNAL STORAGE DIGITAL AUDIO (OPTICAL) COMPONENT L V R VIDEO A / V OUT AUDIO CableCARD ™ (MULTI-STREAM ONLY) C M Y CM MY CY CMY K Qbert_rectangle_Inside_FINAL_A3.pdf 1 6/24/2010 4:19:07 PM

® WHO IS COVERED? You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase. WHAT IS COVERED? TiVo warrants that the remote (including the dongle or USB thumb stick, if any, provided with the remote) will be free from defects in materials and workmanship during the limited warranty period described herein. The limited warranty coverage begins the day you purchase the product. For 90 days from the purchase date, the remote will be replaced with a repaired, renewed or comparable product (at TiVo’s discretion) if it becomes defective or inoperable. This exchange is done without charge to you for parts and labor (except applicable taxes, if any). You will be responsible for the cost of shipping. Contact Customer Support at 1-877-367-8486 for exchange. All products, including replacement products, are covered only for the original warranty period. When the warranty on the original product expires, the warranty on the replacement product also expires. WHAT IS EXCLUDED? Your warranty does not cover: • Any taxes imposed on TiVo for units replaced or repaired under this warranty. • Product replacement because of misuse, accident, unauthorized repair, or other cause not within TiVo’s control. • Incidental or consequential damages resulting from the use of the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.) • A product that has been modified or adapted to enable it to operate in any country other than the country for which it was designed. • A product used for commercial or institutional purposes. MAKE SURE YOU KEEP... Please keep your sales receipt or other document showing proof of purchase. Also keep the original box and packing material in case you need to return your product. TO GET WARRANTY SERVICE... If you believe the product is defective, contact Customer Support at 1-877-367-8486. A representative will go through a diagnostic checklist with you. If it is determined that the product needs to be exchanged, the representative will give you complete shipping details. All implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights. You may have other rights which vary from state to state (or jurisdiction to jurisdiction). TIVO’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN REMOTE CONTROLS IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN THIS LIMITED WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE REMOTE CONTROL, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND ALL CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER SUCH PERIOD. Some states do not allow limitations on how long an implied warranty lasts, so the above exclusion may not apply to you. TIVO DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT BEING AVAILABLE FOR USE OR FOR LOST DATA. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. TiVo ® Slide Remote Limited Warranty 90 Days Free Parts and Labor C M Y CM MY CY CMY K Qbert_WarrantyRegulatory_Front_A3.pdf 1 7/22/2010 1:45:56 PM FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Safety Notices Do not use this product near water, for example, in a wet basement or near a swimming pool. Do not disassemble this product or expose it to liquid, humidity, or moisture. Model number: C00240 FCC ID: TGN-C00240 (remote); TGN-C00240A (USB dongle) Industry Canada Conformity This device has been tested and found to comply with the limits specified in RSS-210. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This Class [B] digital apparatus complies with Canadian ICES-003. TiVo and the TiVo logo are registered trademarks of TiVo Inc. or its subsidiaries worldwide. © 2010 TiVo Inc. All rights reserved. SDOC-00122-000 Rev A3 ® TiVo ® Slide Remote Regulatory Information C M Y CM MY CY CMY K Qbert_WarrantyRegulatory_Back_A3.pdf 1 7/22/2010 1:45:17 PM

Date: 06/18/2010 Subject: EUT declaration letter To Whom it may concern: We, as the grantee of this project FCC ID: TGN-C00240A , would like to declare that: Although the composite portion categorized as a computer peripheral or peripheral device, but in face it will not be marketed with a specific personal computer, just can be only operated with Set-Top Box. And this device capability is limited in hardware via factory programmed which is settings can not be accessed or changed by end users. Sincerely Yours, Jim Inokuchi Manager, Engineering Design Services TiVo Inc.

Statement of Compliance Letter FCC ID ：TGN-C00240A Product : TiVoSlide Model : C00240A To whom it may concern: We, the undersigned, hereby certify that we responsible to comply with the relevant provisions of the Bluetooth 2.1 specification and certificate program as bellows: a. Comply with the Bluetooth 2.1 technical description of the hopping sequence pseudorandom. b. Comply with the Bluetooth 2.1 technical description of each channel used equally on average. c. Comply with the Bluetooth 2.1 technical description ,the associated system receiver have a compliant input bandwidth, based on the measured 20 dB emission bandwidth. d. Comply with the Bluetooth 2.1 technical description ,the associated system receiver have the ability to hop in synchronization with the transmitter. e. The design of the frequency hopping system allow it to comply with all pertinent requirements when presented with a lengthy data stream. f. The frequency hopping system comply with the non-coordination requirement.

1 Lucy Tsai From: [email protected] Sent: Monday, June 21, 2010 8:36 PM To: Lucy Tsai Cc: [email protected]; [email protected]; [email protected]; application.2010 @ccsrf.com Subject: 回信: TiVo Inc. , FCC ID: TGN-C00240A, Assessment NO.: AN10T0517, Notice#1--> Updated(990622) Attachments: C00240A_FCC Letter of Authorization Letter(990622).pdf; C00240A_FCC Confidentiality Letter(990622).pdf; C00240A_FCC Declaration letter(990622).pdf; C00240A_Qbert_instructions_Final-small(990622).pdf; C00240A_Operational Description(990622).pdf; C00240A_Test Setup Photo(990622).pdf; C00240A_Report(FCC Part 15C-1)990622.pdf; C00240A_Label Drawing(990622).pdf Dear Lucy: Please find the updated files(990622) and see the belowing reply,thank you so much. And if there is ok,the customer is asking for get the cert. today(990622),please help,thank you ~ 寄件人: <[email protected]> 收件人: <[email protected]> 副本抄送: <[email protected]> 日期: 2010/06/18 上午 10:16 主旨: TiVo Inc. , FCC ID: TGN-C00240A, Assessment NO.: AN10T0517, Notice#1 Hi, Daphne, 2 Please address following issues. Q#1: The FCC ID indicated on the application form is TGN-C00240A which is different TGN-C00240 as indicated on the confidentiality request letter, agent authorization letter and operational description. Ans:The correct FCC ID is TGN-C00240A . Please find the updated POA(990622)& confidentiality letter(990622)&label(990622). Q#2: USB dongle can be connected to PC as PC peripheral and it will subject to certification or DOC rule per 15.101. Please clarify which rule is followed. If FCC DOC followed, please include FCC DOC logo onto the product label. Otherwise, please submit anther application with equipment code JBP. Ans:Please find the FCC Declaration letter(990622) which stated no DoC logol attached. And for testing purpose, it was enabled to link with PC during the test. As for the end product, as mentioned in the attestation letter, the dongle is programmed to be limited to use with set top box only. Q#3: User manual shall include 15.19, 15.21, 15.105 and related RF exposure statements. Please provide an updated user manual. Ans:Please find the updated user manual(990622) Q#4: The operational description provided only addresses the requirements of frequency hopping requirements per 15.247 without any description of the circuit functions of the device along with a statement describing how the device operates per 2.1033. Please address. Ans:Please find the updated OpDes(990622) Q#5: Per FCC Public Notice DA 00-705 /KDB 867751, when addressing RF conducted spurious emission at band edge, EUT shall be tested with hopping disabled and tune on low and high channel. Procedure also required to measure with hopping on to measure the band edge requirements. Please submit the test plots with hopping on. As for radiated band edge test with frequency hopping on is not required. Ans:Please find the updated TEST report(990622)& test setup photo(990622) of revised the page 51 which added the conducted measurement band edges, and deleted the restricted band edges frequency hopping. Q#6: Please confirm if EUT photos, test setup photos and user manual will like to be kept for short term confidentiality. If application, please provide a short term confidentiality request letter. Ans:We confirmed that no need for short term confidentiality request. Best Regards, Lucy Tsai/UL CCS The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. ______________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention.

Attestation Date: 07/19/2010 FCC ID: TGN-C00240A Product: TiVoSlide Model: C00240A Statements: We, TiVo Inc. as the grantee of this project FCC ID: TGN-C00240A, would like to apply for replacing the following files as the marketing purpose, the reason as showed below: 1. Replacing the User’s manual with cautions: Base on to provide the consumers and have it more completely information of this product, we revised the user's manual cautions content. 2. Replacing the Photographs: To add a new external cable accessory with EUT. Sincerely Yours, Jim Inokuchi Manager, Engineering Design Services TiVo Inc.

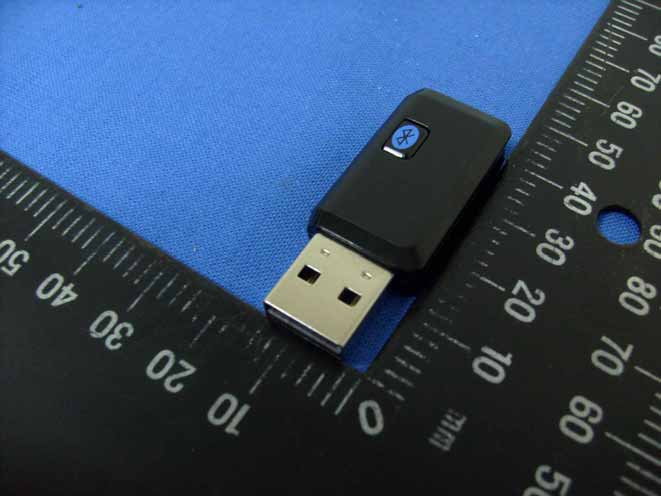

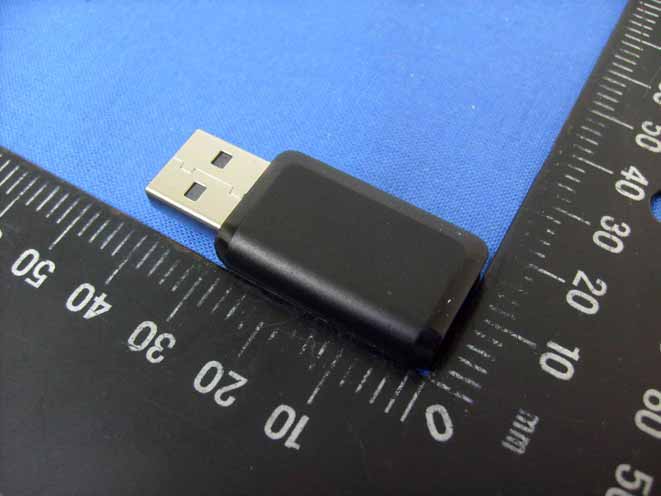

Compliance Certification Services Inc. Report No.T100603306 Page 1 of 5 External Photo Compliance Certification Services Inc. Report No.T100603306 Page 5 of 5 USB Cable Photo

MNX-3252_2070 BT Dongle Jasonbin chen 2010-06-15 5849-53F8-008069 N/A Label 1,Material: , Thickness:0.10mm Jewels paper V0 2,Label color: Background: black, need match plastic color V0 3,RoHS Requirement Yeliee wang Jason chen Yeliee wang Sonia tang 1 New Notes: Scale: 3:1 R1.5 Text and graphic: white FCC ID:TGN-C00240A 5 m m 25 mm FCC ID:TGN-C00240A F C C I D : T G N - C 0 0 2 4 0 A Scale: 2:1

Compliance Certification Services Inc. Report No.T100603306 Page 2 of 4 Internal Photo Compliance Certification Services Inc. Report No.T100603306 Page 3 of 4 Compliance Certification Services Inc. Report No.T100603306 Page 4 of 4

Compliance Certification Services Inc. FCC IDTGN-C00240A Report No.T100603306-RP1 Page 1 of 82 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For TiVoSlide Model : C00240A Trade Name : TiVo Issued for TiVo Inc. 2160 Gold St., Alviso, CA 95002 USA Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. FCC IDTGN-C00240A Report No.T100603306-RP1 Page 2 of 82 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/11/2010 Initial Issue All Page 89 Winnie Chen 01 06/21/2010 Add Conducted Measurement Band Edges and Delete Restricted Band Edges Frequency Hopping. All Page 82 Winnie Chen Compliance Certification Services Inc. FCC IDTGN-C00240A Report No.T100603306-RP1 Page 3 of 82 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ....................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 10 7.1 20dB BANDWIDTH FOR HOPPING...................................................................... 10-15 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 16-21 7.3 HOPPING CHANNEL SEPARATION..................................................................... 22-27 7.4 NUMBER OF HOPPING FREQUENCY USED ...................................................... 28-30 7.5 DWELL TIME ON EACH CHANNEL ...................................................................... 31-45 7.6 CONDUCTED SPURIOUS EMISSION .................................................................. 46-51 7.7 RADIATED EMISSION........................................................................................... 52-71 7.8 CONDUCTED EMISSION ...................................................................................... 72-76 APPENDIX I SETUP PHOTOS ........................................................................................ 77-82 Compliance Certification Services Inc. FCC IDTGN-C00240A Report No.T100603306-RP1 Page 4 of 82 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant TiVo Inc. Address 2160 Gold St., Alviso, CA 95002 USA Equipment Under Test TiVoSlide Model C00240A Trade Name TiVo Tested Date June 03 ~ 10, 2010 ; June 21, 2010 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Compliance Certification Services Inc. FCC IDTGN-C00240A Report No.T100603306-RP1 Page 5 of 82 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name TiVoSlide Model Number C00240A Received Date June 03, 2010 Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Transmit Power 7.49 dBm (0.0056W) Channel Spacing 1MHz Channel Number 79 Channels Transmit Data Rate GFSK (1Mbps), π/4-DQPSK (2Mbps), 8-DPSK (3Mbps) Type of Modulation Frequency Hopping Spread Spectrum Frequency Selection by software / firmware Transmitter Classification portable device Antenna Type PCB Antenna, Antenna Gain : 2.57dBi Power Source 5.0VDC (From Notebook PC, Powered From Host Device) RF Exposure Evaluation Since the EUT is classed portable device, and the maximum peak power is 7.49 dBm (<13.6dBm), the MPE evaluation is not required and no SAR consideration applied. I/O Port USB port × 1 Remark : 1. The sample selected for test was engineering sample tha…
