THCFS-L2401DLCD Monitor

MEDIC MEDIC AL LCD MONIT AL LCD MONIT OR OR USER'S GUIDE FS-L2401D( FS-L2401D( 24" ) 24" ) English - 1 Symbol Definitions 2 Safety Instructions 4 Caution 7 FCC Information 10 Parts 12 Connector 13 Mechanical Product Drawing 14 Control 15 Power mangement 18 Adjust OSD Menu 19 Stansard Signal table 22 Signal connector Pin Assignments 23 Specification 26 Table of Contents English - 3 2 - English Symbol Definitions The following symbols appear on the product. its labeling, or theproduct packing. Each symbol carries a special definition, asdefined below Dangerous : High Voltage. Consult accompanying documents. Direct Current. lndicates protective earth ground. DC Power control switch. Serial Number. Top-Bottom. Fragile. Maximum Stacking. Indicats proof of conformity to applicable EuropeanEconmic Community Council directives and to har-monzed standards published in the official journal of theEuropean Communities. Medical Equipment is in accordance with UL 60601-1and CAN/CSA C22.2 No.601.1 in regards to electricshock, fire hazards, and mechanical hazards. Tested to comply with FCC Class B standards. Degrees of protection against the ingress of water.This symbol indicates that the waste of electronic equipment must not be disposed as unsorted municipalwaste and must be collected separately. Please contactthe manufacturer or other authorized disposal companyto decommission your equipement. Do not get wet. Tested to comply with VCCI Class B standards. Tested to comply with CCC standards. English - 5 4 - English Safety Instructions On Safety1.Before connecting the AC power cord to the DC adapter outlet make sure the voltage designation of the DC adapter correspondsto the local electrical supply. 2.Never insert anything metallic into the cabinet openings of the Liquid Crystal Display(LCD) monitor. doing so may create the danger of electric shock. 3.To reduce the risk of electric shock, do not remove cover. No user-serviceable parts inside. Only a qualified technician should open the case of the LCD monitor. 4.Never use your LCD monitor if the power cord has been damaged. Do not allow anything to rst on the power cord, and keep the cord away from areas where people can trip over it. 5.Be sure to hold the plug, not the cord,when disconnecting the LCD monitor from am electric socket. 6.Unplug your LCD monitor when it is going to be left unused for an extended period of time. 7.Unplug your LCD monitor from the AC outlet before any service.8.if your LCD monitor does not operate normally-in particular, if there are any unusual sounds or smells coming from it-unplug it immediately am authorized dealer or service center. Warning Do not to touch signal input,signal output or other connectors, andthe patient simultaneously. Warning Extrnal equipment intended for connection to signal input, signaloutput or other connectors, shall comply with relevant IEC stan-dard(e.g.,IEC60950 for IT equipment and IEC60601 series for med-ical electrical equipment).In addition, all such combination-system-shall comply with the stan-dard IEC 60601-1-1, safety requirements for medical electrical sys-tems. Any person who connectors has formed at system and istherefore responsible for the system to comply with the require-ments of IEC 60601-1-1.if,in doubt, contact qualified technician or your local representative.On installation1.Openings in the LCD monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked orcovered. if you put the LCD monitor in a bookcase or some other enclosed space, be sure to provide adequate ventilation. 2.Put your LCD monitor in a location with low humidity and a minimum of dust. 3.Do not exepose the LCD monitor to rain or use it near water (in kitchens, near swimming pools, etc.). if the LCD monitor accidentally gets wet, unplug it and contact an authorized dealer immediately.You can clean the LCD monitor with a damp cloth ifnecessary, but be sure to unplug the LCD monitor first. 5.Locate your LCD monitor near an easily accessible AC outlet.6.High temperature can cause problems. Don't use your LCD monitor in direct sunlight and keep it away from heaters, stoves, fireplaces, and sources of heat. English - 7 . This symbol alerts the user that important literature concerning the operation of this unit has been included.Therefore, it should be read carefully in order to avoidpotential problems. This symbol warms user that un-insulated voltage withinthe unit the may have sufficient magnitude to cause electrical shock. Therefore, it is dangerous to make contact with any part inside the unit. To reduce the risk ofelectric shock, DO NOT remove cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personal. To prevent fire or shock hazards, do not expose this unit to rain ormoisture. Also, do not use this unit's polarized plug with an extension cord receptacle or other outlets unless the prongs canbe fully inserted. The display is designed to meet the medical safety requirements for a patient vicinity device. This device maynot be used in connection with life support equipment. CAUTION Underwriters Laboratories (UL) Classification: UL safety Compliance: This LCD monitor is U.L. Classified WITH RESPECT TOELECTRIC SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL 60601-1/CAH/CSA C22.2 NO. 601.1 6 - English Environmental Conditions for transport and Storage- Temperature range within -30 °C to 85 °C - Relative humidity range 5% to 95%Atrnospheric pressure range within 500 to 1060hPs. English - 9 8 - English ServicingDo not attempt to service the apparatus yourself as opening or removing covers may expose you to dangerous voltages or other hazards, and will void the warranty. Refer all servicing to qualified service personnel.Unplug the apparatus from its power source and refer servicing toqualified personnel under the following conditions:If the power cord or plug is damaged or frayed.If liquid has been spilled int…

Text truncated - open the document above for the full version.

LCD PANEL R/Pr VGA IN SVHS-Y G/Y B/Pb CS/HS VS R/G/B TMDS Data/Clk R/Pr G/Y B/Pb LVDS Dual Data/Clk FLASH EN29LV800BT RS-232 Rx/Tx INVERT ER Back Light Control Dimming Control CLK MAX232 R/G/B 24bit SIL1161CT TMDS Receiver AD9888 A/D Converter POWER PW338B 27 MHz DVI IN Optical DVI IN DVI OUT SDI GS1574 GS1578 GO1525 VCO GS1559 IN OUT SN74LVTH 16245DGGR SN74LVTH 16245DGGR TMDS Data/Clk SIL1161CT TMDS Transmitter DDR K4H561638H DDR K4H561638H 28.322 MHz 3.3V 2.5V 1.8V SVHS-C CVBS 24V AP1501-50K5LAP1501-33K5L AP1501-K5L AP1501-12K5L 5V StandBy 3.3V StandBy1.8V StandBy 12V LCD

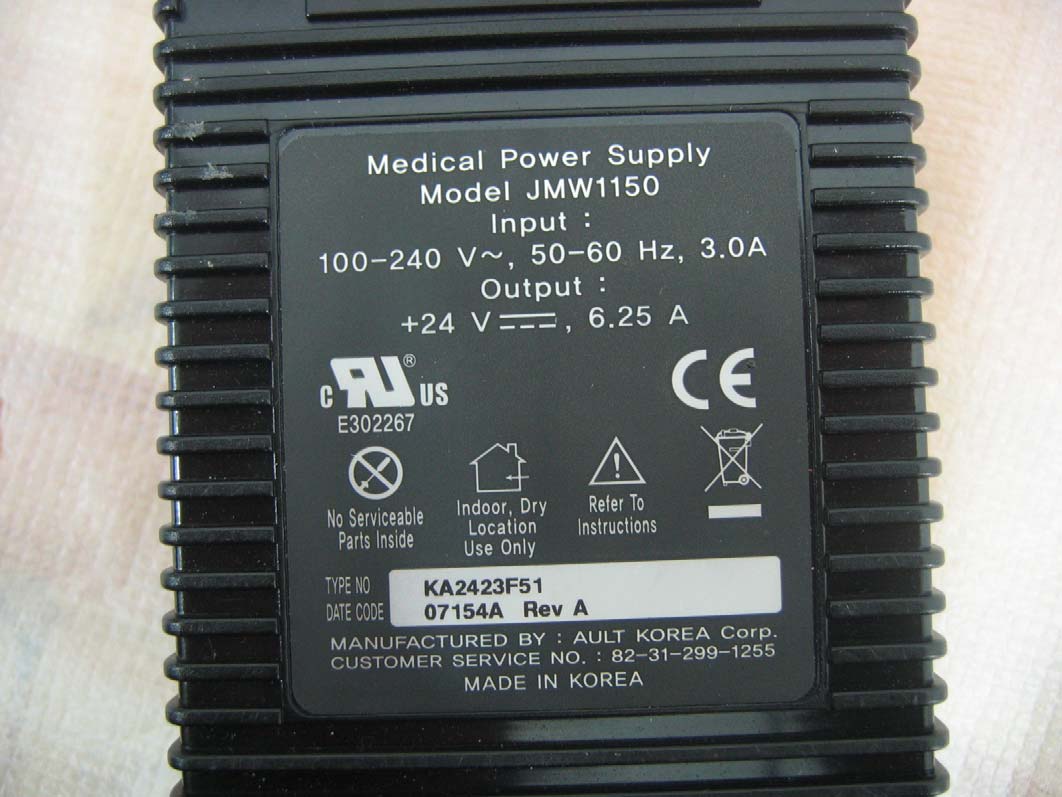

Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 1 of 6 Appendix A: EXTERNAL PHOTOS FRONT Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 2 of 6 REAR Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 3 of 6 LEFT Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 4 of 6 RIGHT Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 5 of 6 ADAPTOR I Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 6 of 6 ADAPTOR II

Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 6 of 23 1.2 Equipment Marking Plate

Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 2 of 2 Label Location

Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 1 of 15 Appendix B: INTERNAL PHOTOS INSIDE I Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 2 of 15 INSIDE II Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 3 of 15 INSIDE III Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 4 of 15 BNC JACK BOARD-TOP Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 5 of 15 BNC JACK BOARD-BOTTOM Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 6 of 15 DIL BOARD-TOP Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 7 of 15 DIL BOARD-BOTTOM Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 8 of 15 INTERFACE BOARD-TOP Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 9 of 15 INTERFACE BOARD-BOTTOM Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 10 of 15 MAIN BOARD-TOP Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 11 of 15 MAIN BOARD-BOTTOM Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 12 of 15 PANEL INVERTER BOARD-TOP Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 13 of 15 PANEL INVERTER BOARD-BOTTOM Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 14 of 15 PANEL CONTROL BOARD-TOP Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 15 of 15 LCD-LABEL

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 07CA31821 File: TC8312 Report 07CA31821-FCC Date: July 19, 2007 Model: FS-L2401D Electromagnetic Compatibility Test Report FCC Certification Part 15 Subpart B Class B For D&T Inc. Daedeok Valley, 60-1, jang Dong, Yuseong Gu, Daejeon, 305-343, Korea UL Korea Ltd. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 2 of 23 TEST REPORT DETAILS Tests Performed By: UL Korea Ltd. 33 rd FL. Gangnam Finance Center, 737 Yeoksam-dong, Kangnam-ku, Seoul, 135-984, Korea Test site: BWS TECH Inc. 611-1, Maesan-ri, Mohyeon-myeon, Yongin-si, Gyeonggi-do 449-853, Korea Registration No. : 553281 Tests Performed For: D&T Inc. Daedeok Valley, 60-1, jang Dong, Yuseong Gu, Daejeon, 305-343, Korea Applicant Contact: W.W.Lee Title: General Manager/QA Phone: 82-18-311-1246 E-mail: [email protected] Test Report Number: 07CA31821-FCC Test Report Date: July 12, 2007 Product Type: LCD Monitor Product standards FCC Part 15 Subpart B Class B Model Number: FS-L2401D FCC ID: THCFS-L2401D Sample Serial Number: None (Proto type) Sample Receive Date: June 25, 2007 Testing Start Date: June 28, 2007 Date Testing Complete: July 10, 2007 Overall Results: PASS UL Korea Ltd. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. UL Korea Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from UL Korea Ltd. issued reports. Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 3 of 23 TEST SUMMARY Test Result Requirement – Test Reference standards Verdict Conducted Disturbance at the mains ports Complied Radiated Disturbance FCC Part 15 Subpart B Class B Complied The tests listed in the Summary of Testing section of this report have been performed and the results recorded by UL Korea, Ltd. in accordance with the procedures stated in each test requirement and specification. The applicant determined the list of tests performed were applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. The equipment under test has met the technical requirements not met the technical requirements Tested by Sung Hoon Baek, Associate Project Engineer Reviewed by Kyung Yong, Kim , Senior Project Engineer Conformity Assessment Services - 3014ASEO Conformity Assessment Services - 3014ASEO UL Korea Ltd. UL Korea Ltd. July 19, 2007 July 20, 2007 Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 4 of 23 Report Directory 1. EQUIPMENT UNDER TEST(EUT) ............................................................................................................... 5 1.1 E QUIPMENT DESCRIPTION SPEC ............................................................................................................. 5 1.2 E QUIPMENT MARKING PLATE.................................................................................................................. 6 1.3 E QUIPMENT USED DURING TEST.............................................................................................................. 7 1.4 I NPUT/OUTPUT PORTS...............................................................................................................................7 1.5 EUT I NTERNAL OPERATING FREQUENCIES:........................................................................................... 8 1.6 P OWER INTERFACE: .................................................................................................................................. 8 2. EUT OPERATION MODES: ........................................................................................................................... 8 3. EUT CONFIGURATIONS: ............................................................................................................... 9 4. CONDUCTED DISTURBANCE AT THE MAINS PORTS ....................................................................... 10 5. RADIATED DISTURBANCE ........................................................................................................................ 17 6. EUT MODIFICATION................................................................................................................................... 21 7. MEASUREMENT UNCERTAINTIES....................................................................................................... 23 APPENDIX A: External Photos APPENDIX B: Internal Photos APPENDIX C: ID Sample LABEL & Location Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July.19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 5 of 23 1. EQUIPMENT UNDER TEST (EU…

Text truncated - open the document above for the full version.

Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 1 of 4 Appendix D: Test Setup Figure 1 Conducted Emission Test Setup: D-SUB Mode Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 2 of 4 Figure 2 Conducted Emission Test Setup: SDI Mode Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 3 of 4 Figure 3 Photo of Radiated emission test setup: D-SUB Mode Project Number: 07CA31821 File Number TC8312 Test Report No: 07CA31821-FCC Model Number: FS-L2401D Date of Issue : July 19, 2007 UL Korea Ltd. FCC Certificate Test for D&T Inc. TFT LCD Monitor FCC ID: THCFS-L2401D 4 of 4 Figure 4 Photo of Radiated emission test setup: SDI Mode
