Englis h GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service. Sensor for weather station Model Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services. Safety • Never subject the outdoor sensor to tempera- tures outside the specified range, extensive sunlight, or rain. • Never mix old and new batteries or alkaline and rechargeable batteries. • Remove the batteries if the product is not to be used for a long time. Old batteries can begin to leak and damage the product. • Remember to always insert the batteries according to the markings in the battery com- partment. The wrong polarity (+/-) can dam- age the weather station. • Damage that has occurred by careless han- dling is not covered by the guarantee. • The product must not be modified in any way. Synchronising the sensor with the weather station Before starting: The units should be placed near to one another to ensure a successful synchronisation (when the outdoor temperatu re appears on the display the synchronisation has been successful). Once synchronised, the sensor and weather station can be placed in their intended locations within functional range. 1. Pr ess +/CHANNEL on the weather station one or more times to select channel 2 (CH2). 2. Hold in +/CHANNEL until starts to flash, the weather station will now start to search for a sensor on channel 2. 3. Remove the battery cover of the sensor, set the channel selector to position 2 and then insert two batteries according to the polarity markings. Replace the battery cover. 4. The temperature and humidity readings fr om sensor 2 will now be shown at the same time as the CH2 symbol. If no readings ar e shown on channel 2, you must reset and repeat the synchronisation procedure: Pr ess RESET on the fr ont of sensor once. 5. Repeat the above procedure for sensor 3 if required. 1 2 3 4 1. LED indicator 2. Reset 3. Battery cover 4. Channel selector TW003

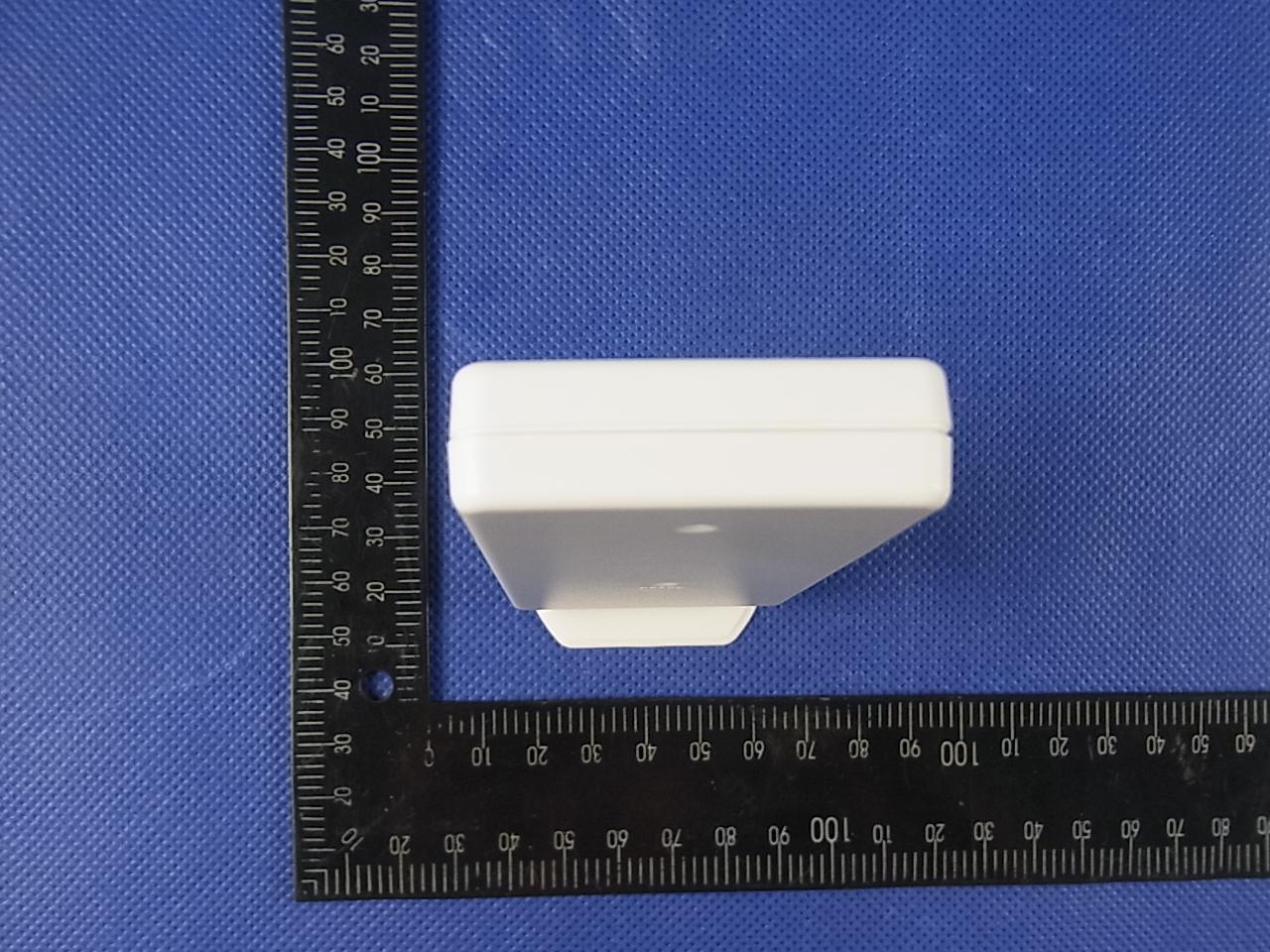

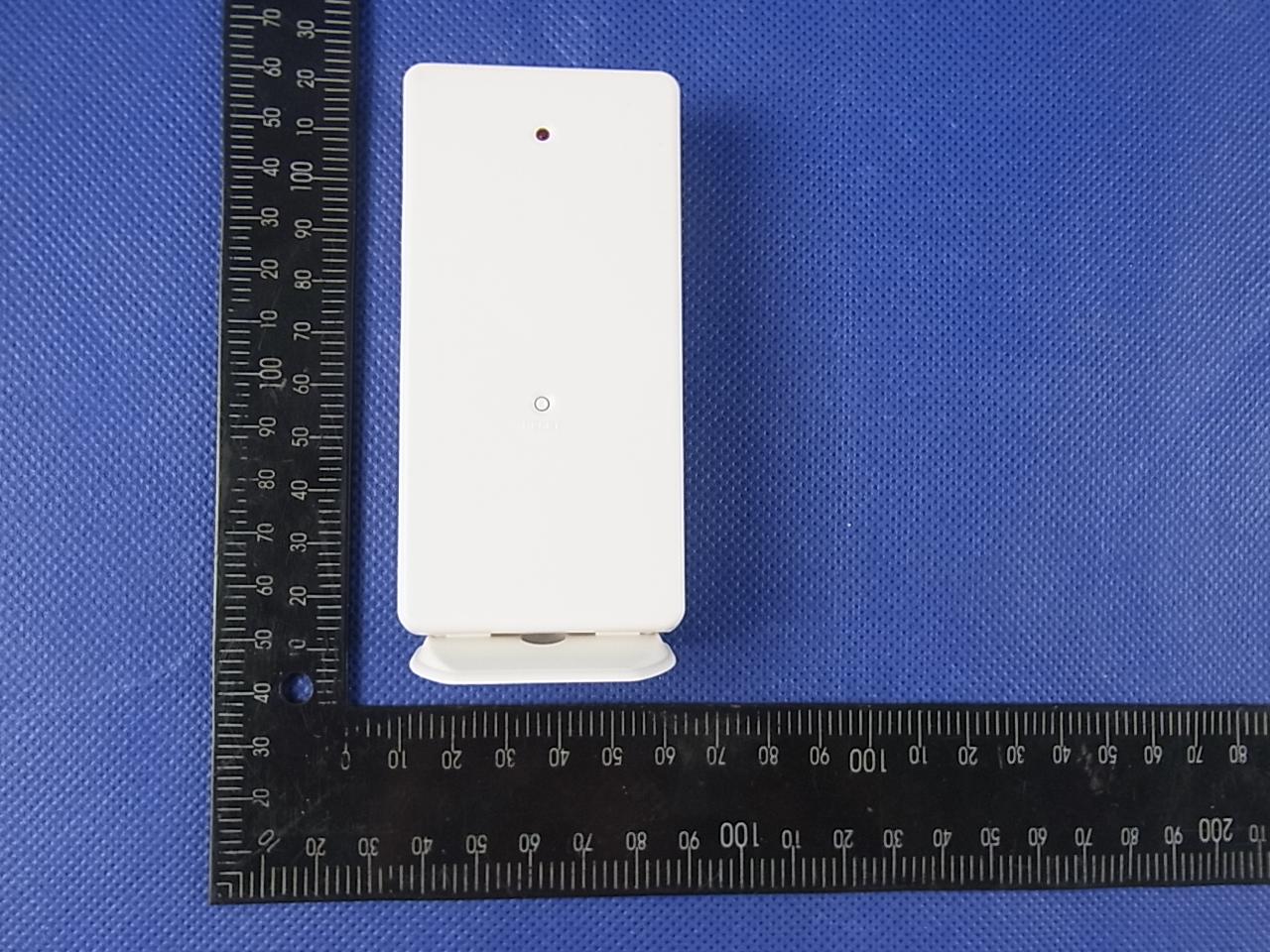

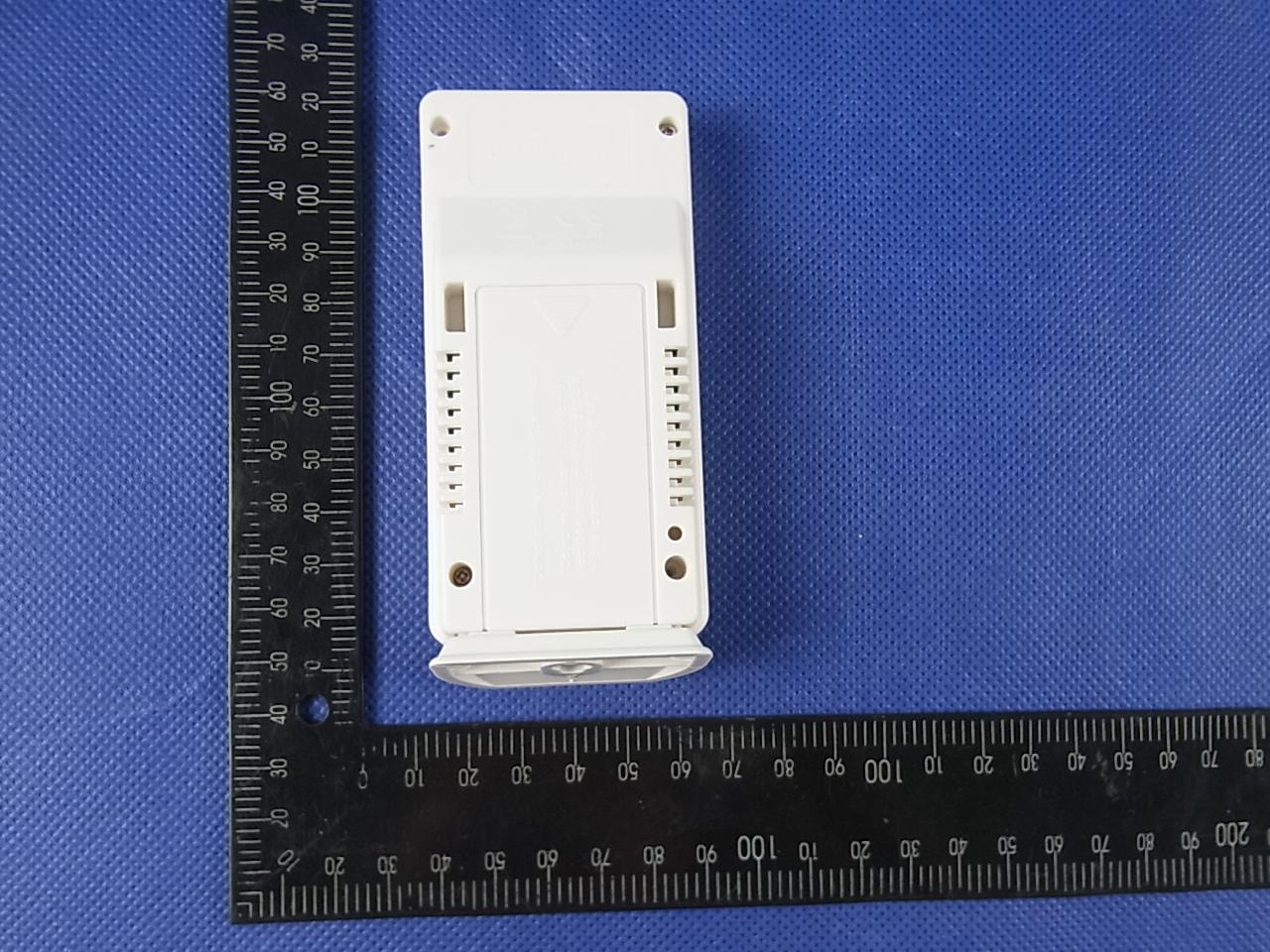

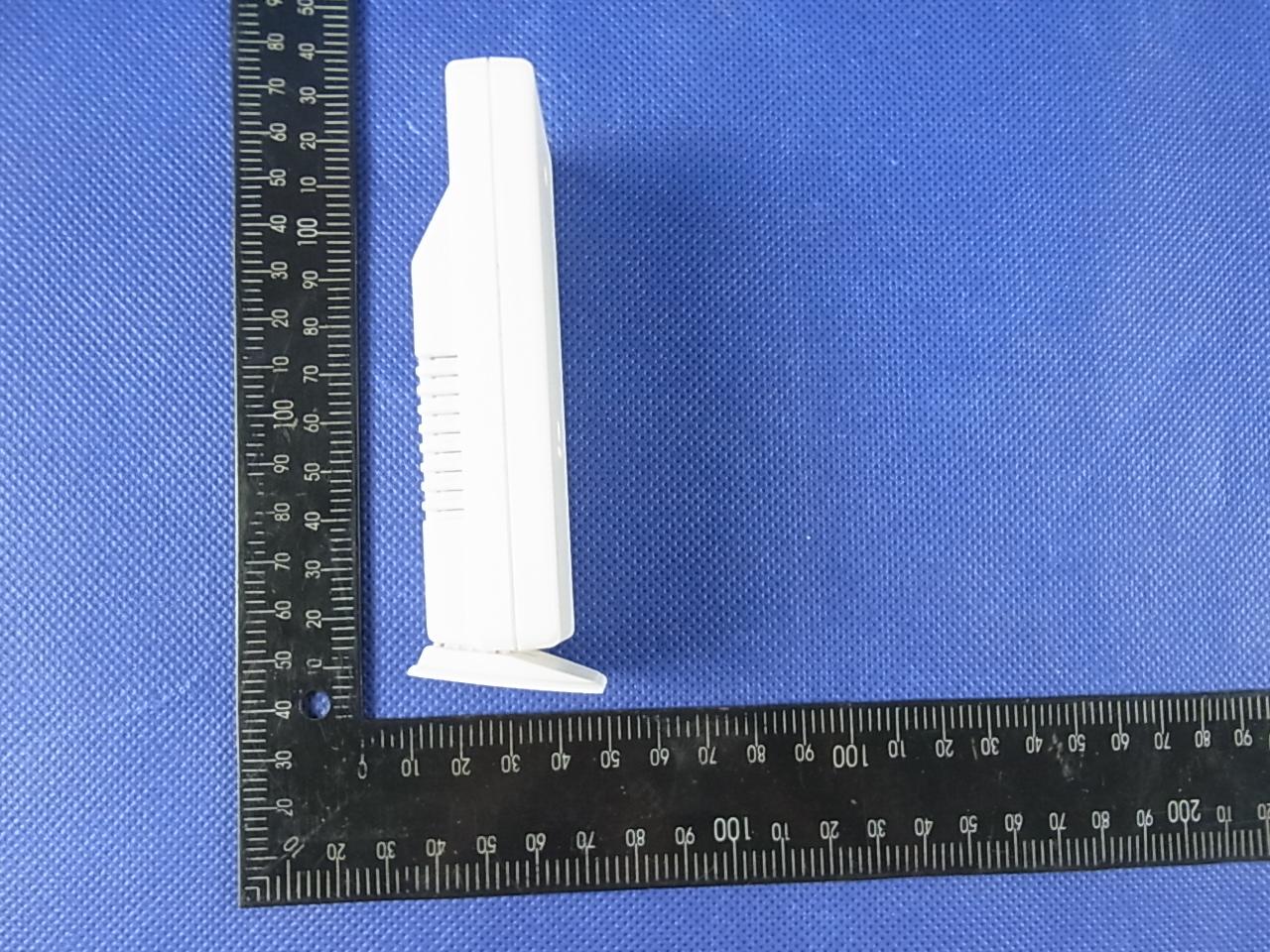

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

FCC RADIO TEST REPORT FCC ID:TIUTW003 Product： LCD Weather Station Trade Name： N/A Model Name： TW003 Serial Model： N/A Report No.： NTEK-2013NT0327060F Prepared for Nexus Industrial Design Ltd. 15/F., Tower 2, Tern Centre, 251 Queen's Road Central, Central, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 28 Report No.: NTEK-2013NT0327060F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Nexus Industrial Design Ltd. Address ................................. : 15/F., Tower 2, Tern Centre, 251 Queen's Road Central, Central, Hong Kong Product description Product name............................ : LCD Weather Station Model and/or type reference : TW003 Serial Model： N/A Rating(s) ................................ : DC 3V Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 15 Mar. 2013 ~24 Mar. 2013 Date of Issue .......................................... : 25 Mar. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 28 Report No.: NTEK-2013NT0327060F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 12 3.1 STANDARD REQUIREMENT 12 3.2 EUT ANTENNA 12 3.3 CONDUCTED EMISSION MEASUREMENT 13 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.3.2 TEST PROCEDURE 14 3.3.3 DEVIATION FROM TEST STANDARD 14 3.3.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.4 RADIATED EMISSION MEASUREMENT 16 3.4.1 RADIATED EMISSION LIMITS 16 3.4.2 TEST PROCEDURE 17 3.4.3 DEVIATION FROM TEST STANDARD 17 3.4.4 TEST SETUP 18 3.4.5 TEST RESULTS (BLOW 30MHZ) 20 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 21 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 TEST SETUP 25 5.4 TEST RESULTS 26 6 . EUT TEST PHOTO 28 Page 4 of 28 Report No.: NTEK-2013NT0327060F ` Table of Contents Page APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 28 Report No.: NTEK-2013NT0327060F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Deactivation Time Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 6 of 28 Report No.: NTEK-2013NT0327060F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 28 Report No.: NTEK-2013NT0327060F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment LCD Weather Station Trade Name N/A Model Name TW003 Serial Model N/A Model Difference N/A Product Description The EUT is a LCD Weather Station Product Type Low Power Communication Device Transmitter Operation Frequency: 433.92MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: Wire Spiral antenna Antenna Gain(Peak) 0.16 dBi Output Power: 69.86 dBuV/m (AV Max.) More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery 1.5V*2cell “AAA” alkaline battery Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Spiral Antenna N/A 0.16 Antenna Page 8 of 28 Report No.: NTEK-2013NT0327060F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 N/A For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use new battery. Page 9 of 28 Report No.: NTEK-2013NT0327060F ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED Radiated Spurious Emission Test E-…

Text truncated - open the document above for the full version.

Page 27 of 27 Report No.: NTEK-2013NT0327060F ` 6. EUT TEST PHOTO Radiated Measurement Photos(worst case position)
