TJ7VALOREBTK-C5Bluetooth Headset

Bluetooth Headset User Manual FCC ID: TJ7VALOREBTK-C5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN SHI KISB ELECTRONIC CO., LTD 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE 2015-07-08 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: TJ7VALOREBTK-C5 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, SHENZHEN SHI KISB ELECTRONIC CO., LTD Contact person: KK LEE Title: Manager

SHENZHEN SHI KISB ELECTRONIC CO., LTD 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/3/2015 Request for Confidentiality Company name: SHENZHEN SHI KISB ELECTRONIC CO., LTD FCC ID: TJ7VALOREBTK-C5 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, My Music Group Limited hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) parts lists. (3)block diagrams (4)operational description These documents contain detailed system and equipment description and related information about the product which SHENZHEN SHI KISB ELECTRONIC CO., LTD considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, SHENZHEN SHI KISB ELECTRONIC CO., LTD considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: KK Lee Company address： 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China Email: [email protected]

SHENZHEN SHI KISB ELECTRONIC CO., LTD 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China July 08, 2015 Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY Subject: Explanation of differences between product types FCC ID : TJ7VALOREBTK-C5 Model Number: Valore BTK-C5 , C5, BTK-M5, M5, M15, M13, M11, M3, C1,BTK-M3, BTK-M6, M6, BTK-C1, C8, M8, M9, M10, M12, M14, M15, M16, M18, R300, V301, V300 To Whom It May Concern: We, The SHENZHEN SHI KISB ELECTRONIC CO., LTD hereby declare that the model : C5, BTK-M5, M5, M15, M13, M11, M3, C1,BTK-M3, BTK-M6, M6, BTK-C1, C8, M8, M9, M10, M12, M14,M15, M16, M18, R300, V301, V300 is identical with the model : Valore BTK-C5 , except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Company Officer: KK LEE Telephone Number: (86) 755-27472066 Email: [email protected]

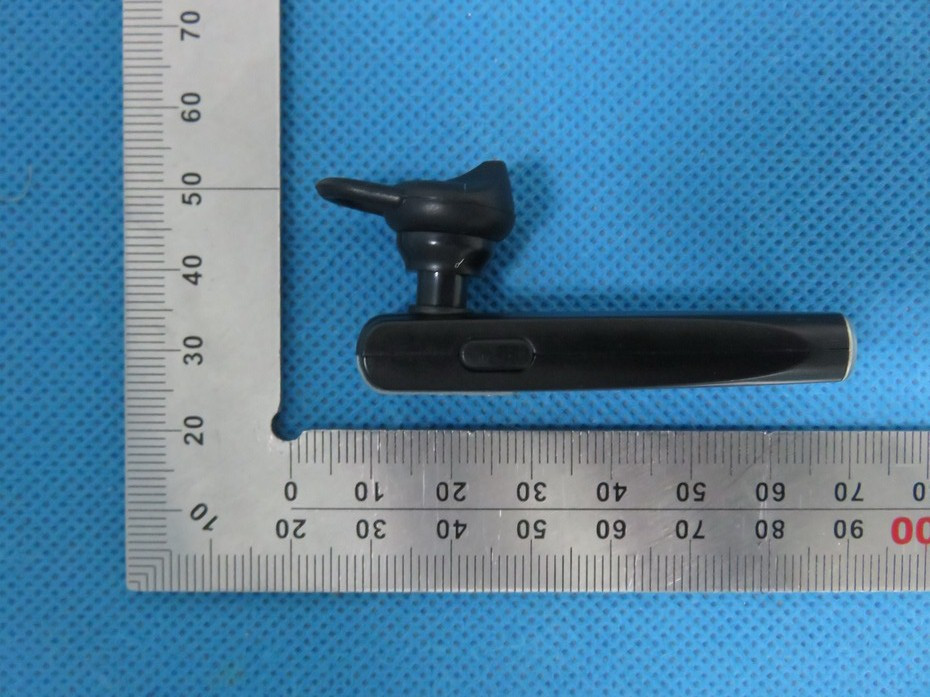

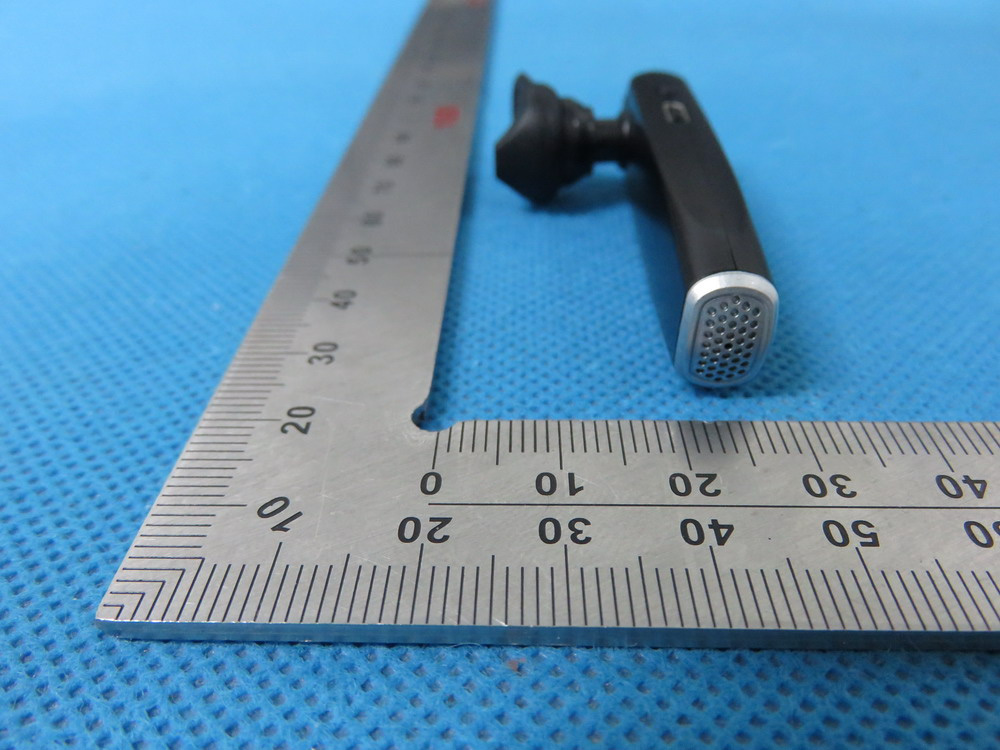

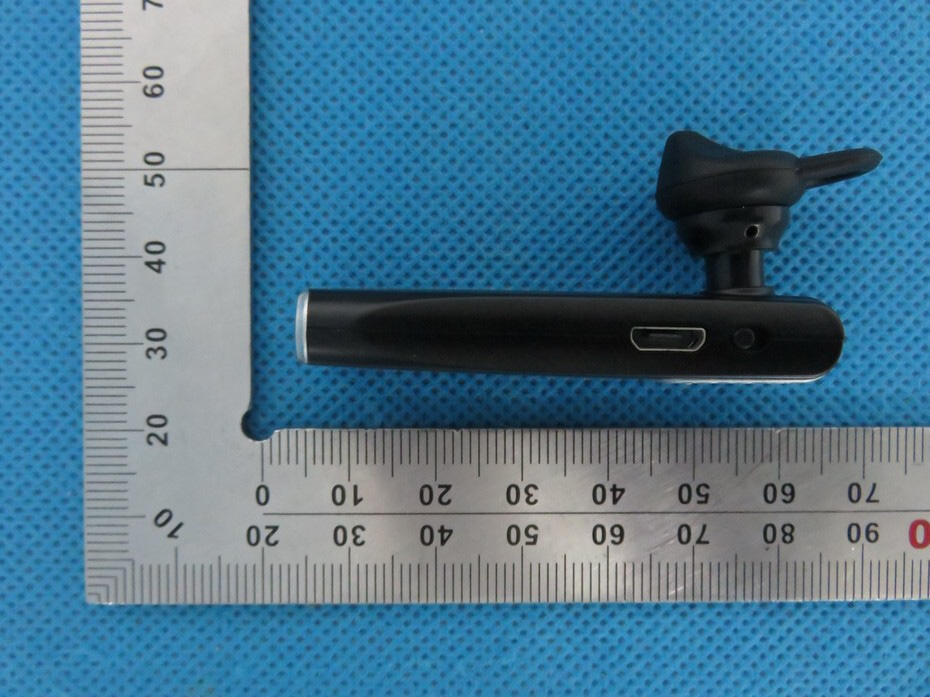

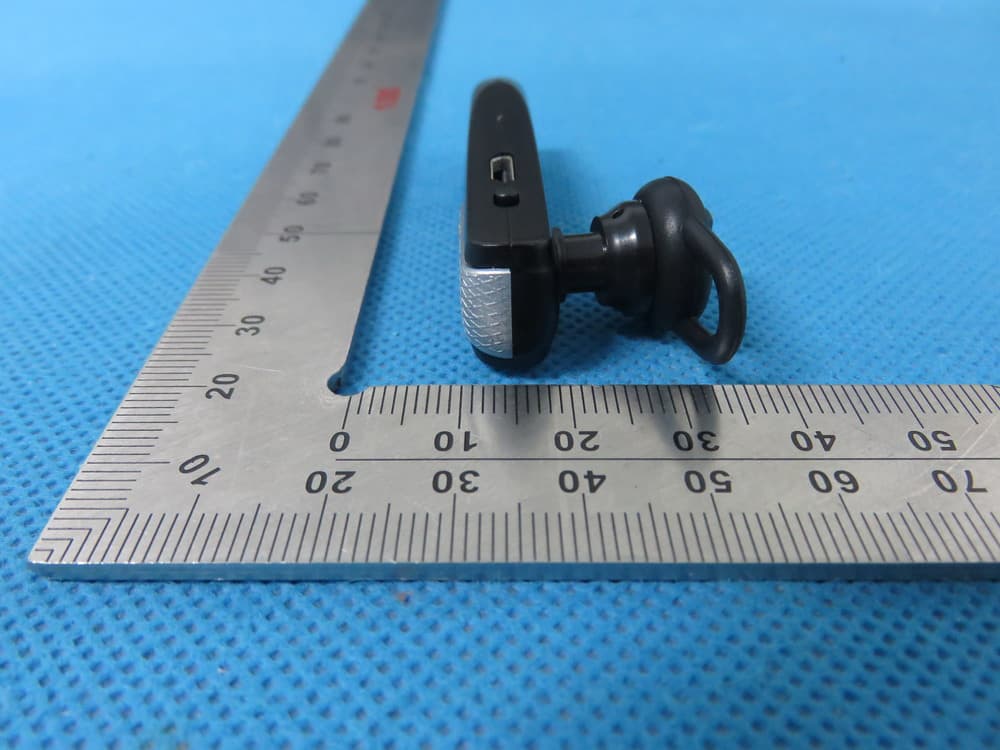

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: TJ7VALOREBTK‐C5 Valore BTK‐C5

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3

SHENZHEN SHI KISB ELECTRONIC CO., LTD 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China Declaration concerning Antenna Specification It is hereby declared that the product Model No.: ValoreBTK-C5 FCC ID: TJ7VALOREBTK-C5 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna permanently attached Gain of the antenna: 0.5 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN SHI KISB ELECTRONIC CO., LTD Address: 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong, City: Shenzhen City ZIP / Postal code: 518103 Country: China Place: Shenzhen Date: 2015-07-08 Signature:

RF Exposure evaluation Product Description: Bluetooth Headset Model Number: Valore BTK-C5 FCC ID: TJ7VALOREBTK-C5 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=99.16dBuv/m=0.091V/m,d=3m,g t =1.12 P t =（E x d） 2 /（30 x g t ）=(0.091x3) 2 /(30x1.12)=0.002218W=2.22mW The result is rounded to one decimal place for comparison Worse case is as below: [2440MHz -2.22mW output power] (2.22mW /5mm) .[√2.440(GHz)]= 0.694<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 72 FCC Test Report Report No.: AGC00042150601FE03 FCC ID : TJ7VALOREBTK-C5 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : KISS , BTK, Valore MODEL NAME : ValoreBTK-C5 ,C5,BTK-M5,M5,M15,M13,M11,M3,C1, BTK-M3,BTK-M6,M6,BTK-C1,C8,M8,M9,M10,M12,M14, M15,M16,M18 CLIENT : SHENZHEN SHI KISB ELECTRONIC CO., LTD DATE OF ISSUE : July 07,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00042150601FE03 Page 2 of 72 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / July 07,2015 Valid Original Report Report No.: AGC00042150601FE03 Page 3 of 72 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 8 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 8 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT................................................................................................................................ 10 8.2. MEASUREMENT PROCEDURE ............................................................................................... 11 8.3. TEST SETUP ........................................................................................................................... 13 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................. 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE .............................................................................................. 41 9.2 TEST SETUP ............................................................................................................................ 41 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ............................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE ............................................................................................ 50 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS .............................................................................. 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................. 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................... 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................... 61 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 65 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 67 Report No.: AGC00042150601FE03 Page 4 of 72 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN SHI KISB ELECTRONIC CO., LTD Address 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China Manufacturer SHENZHEN SHI KISB ELECTRONIC CO., LTD Address 3-5/F, A Building, Shanghe Industrial Park, Nanchang Road, Xixiang Town, Bao’an District, Shenzhen, Guangdong,518103 P.R.China Product Designation Bluetooth Headset Brand Name KISS ,BTK,Valore Test Model Valore BTK-C5 Series Model C5,BTK-M5,M5,M15,M13,M11,M3,C1,BTK-M3,BTK-M6,M6,BTK-C1,C8,M8,M9, M10,M12,M14, M15,M16,M18 Different Description All the same except for the color and shape of appearance Date of test July 01,2015 to July 04,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) a…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
