TLGD08C0DIGITAL PHOTO PRINTER

DIGITAL PHOTO PRINTER DS-621 ©2014 Dai Nippon Printing Co., Ltd. English Deutsch français español For Safe Operation Start-up Guide Sicherheitshinweise Leitfaden zur Inbetriebnahme Pour un fonctionnement sans risque Guide de dém arrage Para un funcionamiento seguro Guía de in icio de English WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. This apparatus must be earthed. For pluggable equipment, the socket-outlet be installed near the equipment and shall be easily accessible. To disconnect the main power, unplug the AC IN connector. When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug. Warning on power connection Use a proper power cord for your local power supply. 1. Use the approved Power Cord (3-core mains lead) /Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable. 2. Use the Power Cord (3-core mains lead) / Appliance Connector /Plug conforming to the proper ratings (Voltage, Ampere). If you have questions on the use of the above Power Cord/Appliance Connector/Plug, please consult a qualified service personnel or the distributor. For the Customers in Europe This product shall not be used in the residential area. This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Dai Nippon Printing Co.,Ltd. hereby declares that this DS-621 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. If you want to dispose this product, do not mix with general household waste. There is a separate collection system for used electronics products in accordance with legislation under the WEEE Directive and is effective only within European Union. For details, consult your dealer. For kundene i Norge Dette utstyret kan kobles til et IT-strømfordelingssystem. dansk Undertegnede Dai Nippon Printing Co.,Ltd. erklærer herved, at følgende udstyr DS-621 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Nederlands Hierbij verklaart Dai Nippon Printing Co.,Ltd. dat het toestel DS-621 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. suomi Dai Nippon Printing Co.,Ltd. vakuuttaa täten että DS-621 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. ελληνικά Με την παρούσα η Dai Nippon Printing Co.,Ltd δηλώνει ότι DS-621 συμμορφώνεται προς της ουσιώδεις απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1999/5/ΕΚ. magyar Alulírott, Dai Nippon Printing Co.,Ltd. nyilatkozom, hogy a(z) DS-621 megfelel a vonatkozó alapvetQ követelményeknek és az 1999/5/EC irányelv egyéb elQírásainak. italiano Con la presente Dai Nippon Printing Co.,Ltd. dichiara che questo DS-621 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. norsk Dai Nippon Printing Co.,Ltd. erklærer herved at utstyret DS-621 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. português Dai Nippon Printing Co.,Ltd. declara que este DS-621 está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. svenska Härmed intygar Dai Nippon Printing Co.,Ltd. att denna DS-621 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. For the Customer in USA FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Caution: Use shielded cables to connect this computers. Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. For the customers in Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Türkçe EEE Y ğ • Be sure to read this document before using the product. After reading, keep it in a safe place where it can be easily accessed as needed. • The warnings listed here are to ensure proper use of the product, to prevent physical injury to the customer or other persons, and to prevent property damage. Please follow these warnings. Warnings and Cautions The possible levels of injury or damage due to misuse are categorized below as Warnings and Cautions, according to the degree of danger involved. Warning Accidents caused by failure to heed the warnings accompanying this symbol may lead to serious or fatal injury. Caution Accidents caused by failure to heed the cautions accompanying this symbol may lead to physical injury or prop…

Text truncated - open the document above for the full version.

点、~ιレト]-1A..w-久

応、ヌe~~~吋久

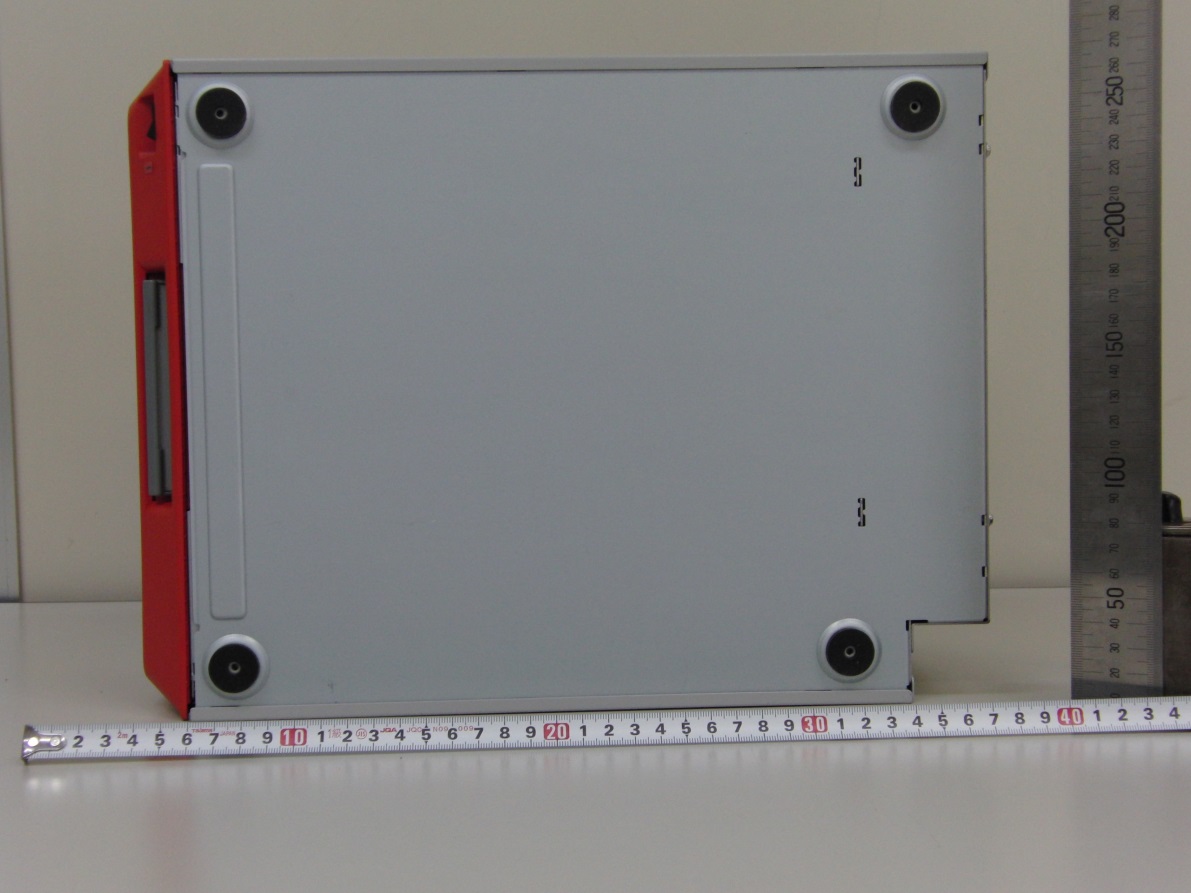

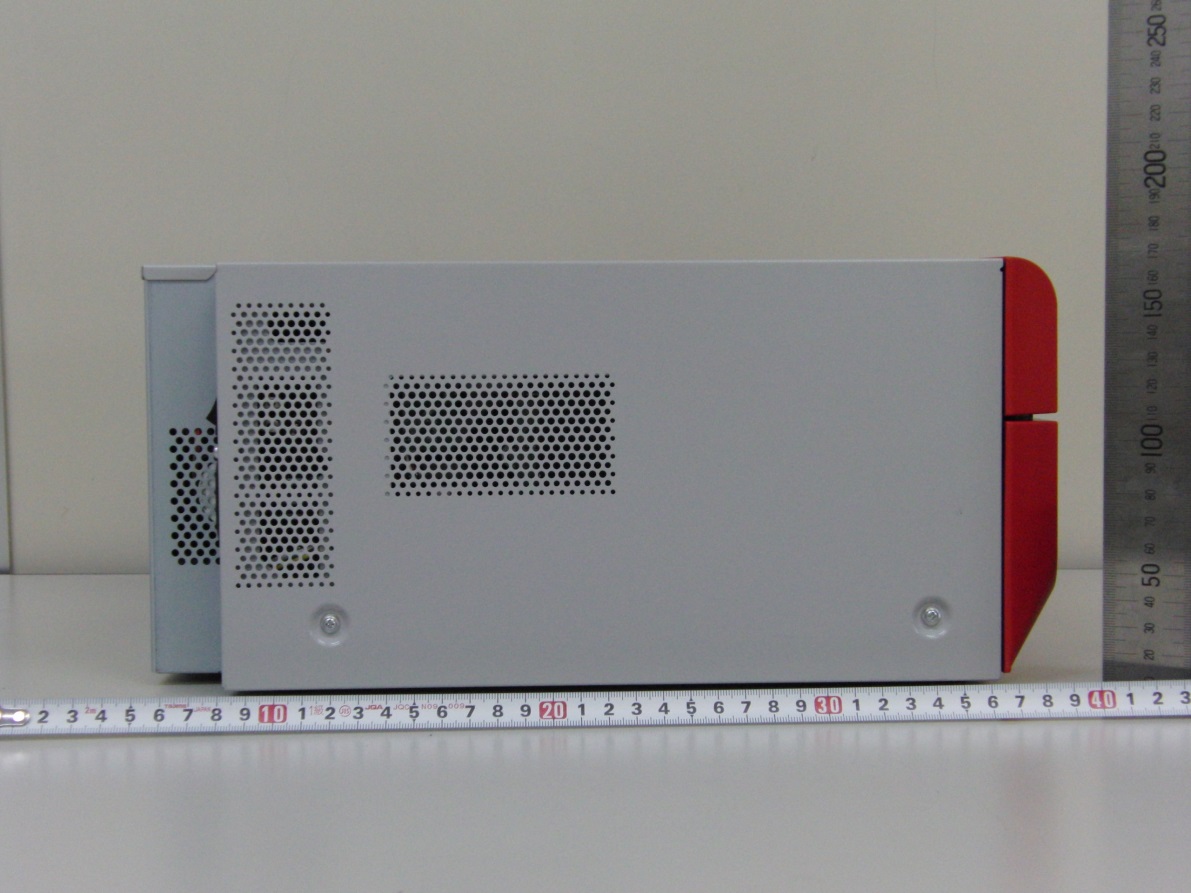

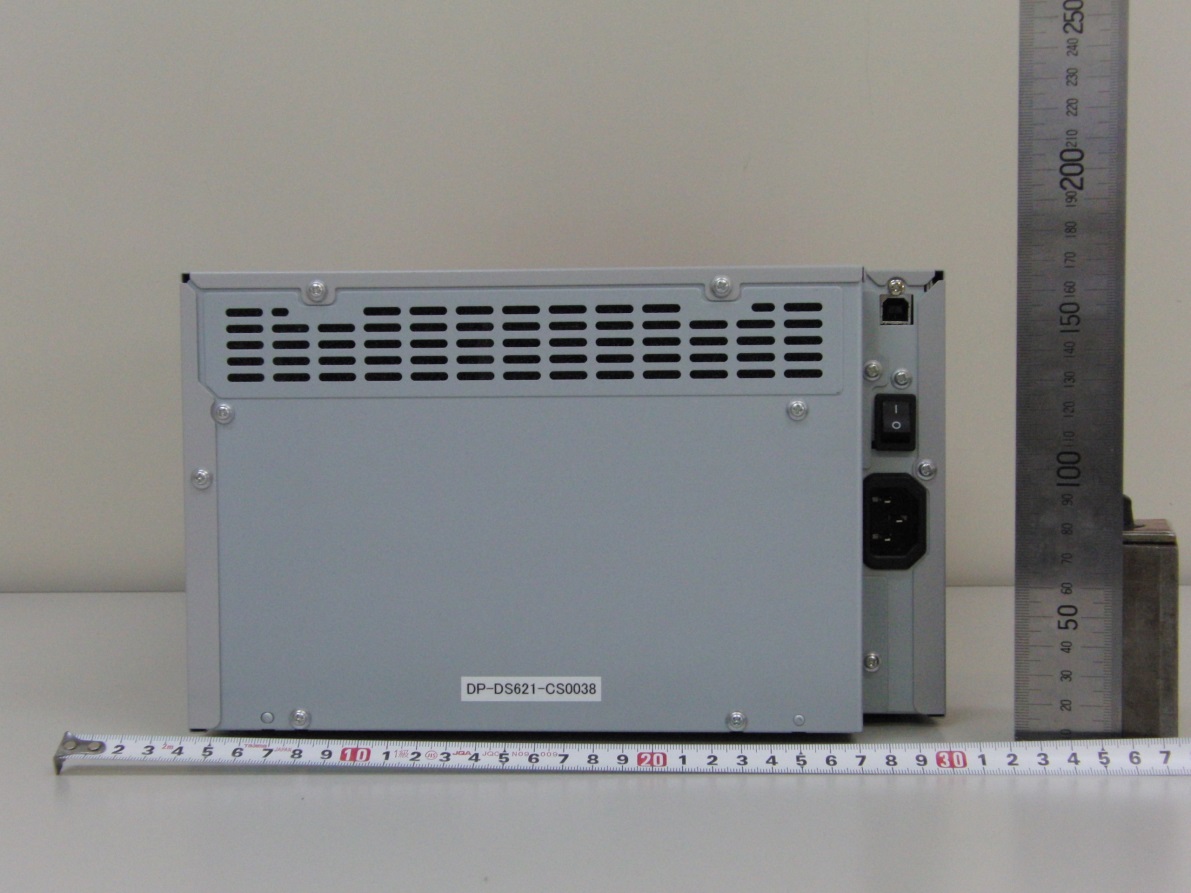

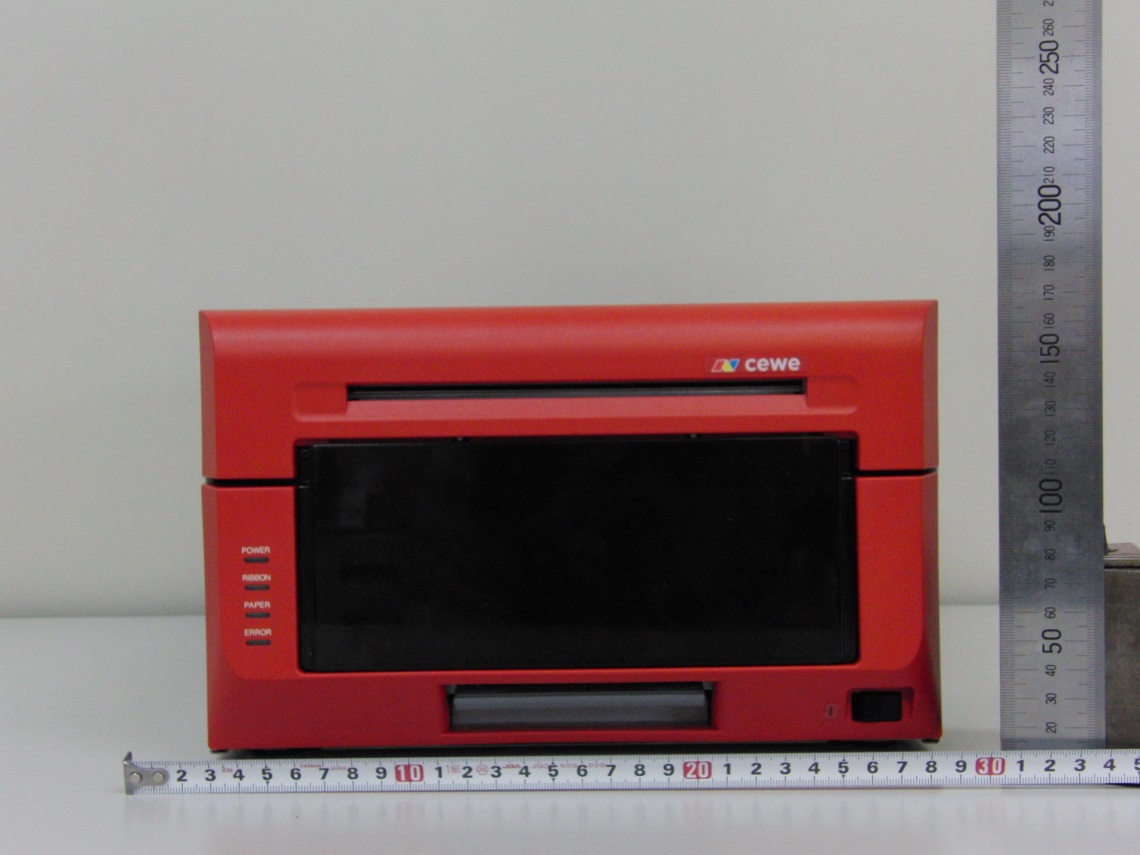

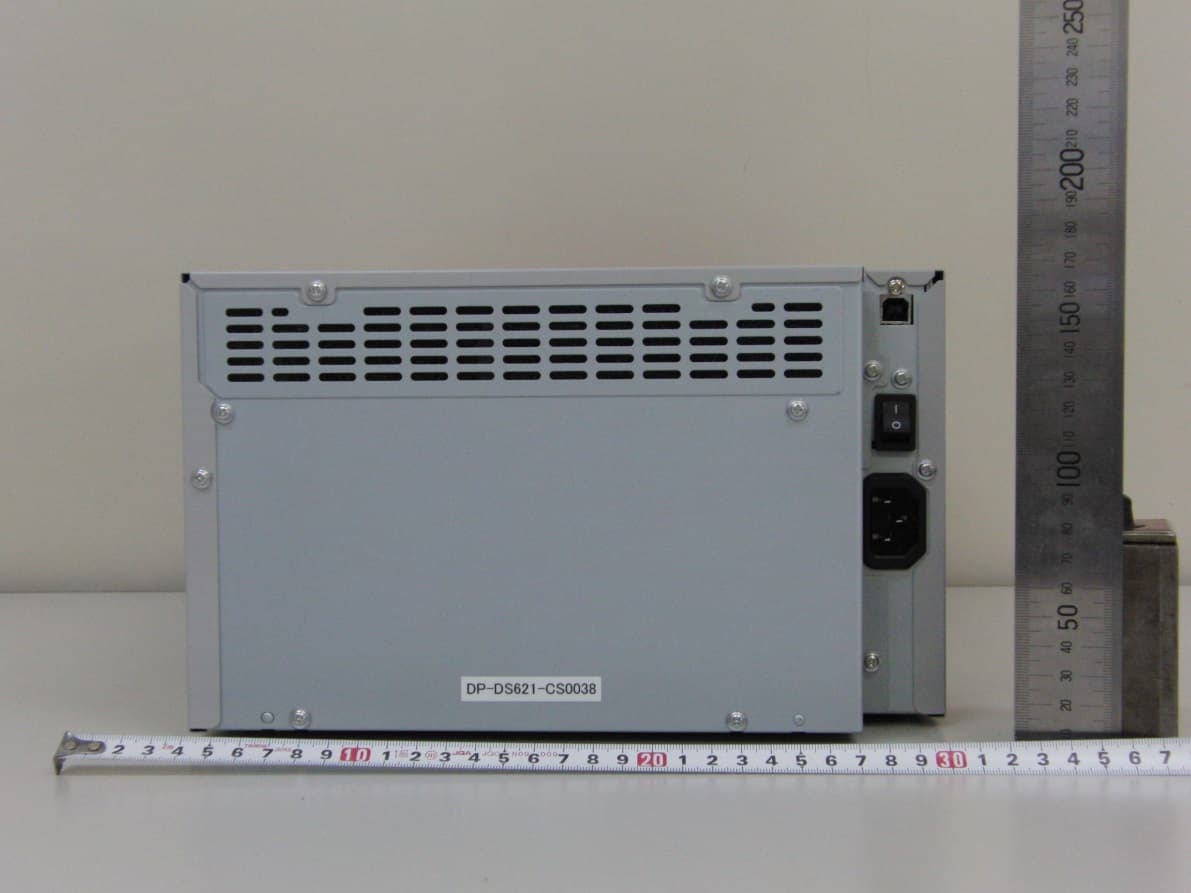

Product: Digital Photo Printer Model: CX02, CX20, DP-DS620, DS-621 External Photo Front Rear Top Bottom Right Left

Product: Digital Photo Printer Model: CX02, CX20, DP-DS620, DS-621, etc Label location RATING LABEL

Internal Photos Location of RFID Module RFID Reader/Writer Module RF module Antenna

Test report No. : 10332222H-B-R2 Page : 2 of 21 FCC ID : TLGD08C0 IC Number : 5278A-D08C1 Issued date : June 25, 2014 Revised date : July 3, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10332222H-B Revision Test report No. Date Page revised Contents - (Original) 10332222H-B June 25, 2014 - - 1 10332222H-B-R1 July 1, 2014 All pages Correction of FCC ID and IC Number 1 10332222H-B-R1 July 1, 2014 P.8 Addition of explanatory note for test mode 2 10332222H-B-R2 July 3, 2014 P.14, 15, 16Correction of calculation formula Test report No. : 10332222H-B-R2 Page : 3 of 21 FCC ID : TLGD08C0 IC Number : 5278A-D08C1 Issued date : June 25, 2014 Revised date : July 3, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) ...... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Data of EMI test ........................................................................................................ 13 Conducted emission ..............................................................................................................................................................13 Fundamental emission and Spectrum Mask .......................................................................................................................14 Spurious emission .................................................................................................................................................................15 20dB Bandwidth and 99% Occupied Bandwidth ...............................................................................................................17 Frequency Tolerance ............................................................................................................................................................18 APPENDIX 2: Test instruments ........................................................................................................ 19 APPENDIX 3: Photographs of test setup ......................................................................................... 20 Conducted emission ..............................................................................................................................................................20 Radiated emission .................................................................................................................................................................21 Test report No. : 10332222H-B-R2 Page : 4 of 21 FCC ID : TLGD08C0 IC Number : 5278A-D08C1 Issued date : June 25, 2014 Revised date : July 3, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : CITIZEN SYSTEMS JAPAN CO., LTD. Address : 7572 Matsuomyo, Iida-shi, Nagano, 395-8577, Japan Telephone Number : +81-265-21-1501 Facsimile Number : +81-265-21-1502 Contact Person : Masao Yoshizawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : DIGITAL PHOTO PRINTER Model No. : DS-621 Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : May 16, 2014 Country of Mass-production : Japan Condition of EUT Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No Modification by the test lab 2.2 Product Description General Specification Model No: DS-621 (referred to as the EUT in this report) is the DIGITAL PHOTO PRINTER. Variant models: US: CX02, CX20, DP-DS620, DS-621(EUT) Canada: DP-DS620, DS-621 (EUT) The difference between variant models is only color. Radio and EMC specifications are the same. Therefore, tests were performed on DS-621 as representative. Feature of EUT: Clock frequency(ies) in the system: 480MHz (max.) Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Modulation : ASK Power Supply (inner) : DC 5V Antenna type : Integral Antenna Gain : -58.91dBi Operating Temperature : +5 deg. C to +40 deg. C Test report No. : 10332222H-B-R2 Page : 5 of 21 FCC ID : TLGD08C0 IC Number : 5278A-D08C1 Issued date : June 25, 2014 Revised date : July 3, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification/Title : FCC Part 15 Subpart C: 2014, final revised on March 6, 2014 and effective April 7, 2014 : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz Test Specification/Title : RSS-Gen Issue 3: 2010 +A1: January 2012 General Requirements and Information for the Certification of Radio Apparatus. Test Specification/Title : RSS-210 Issue 8: December 2010 : Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. 3.2 Procedures and res…

Text truncated - open the document above for the full version.

Test report No. : 10332222H-B-R2 Page : 20 of 21 FCC ID : TLGD08C0 IC Number : 5278A-D08C1 Issued date : June 25, 2014 Revised date : July 3, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 10332222H-B-R2 Page : 21 of 21 FCC ID : TLGD08C0 IC Number : 5278A-D08C1 Issued date : June 25, 2014 Revised date : July 3, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 End of Report
