TLGJR10M01Digital Photo Printer

D D i i g g i i t t a a l l P P h h o o t t o o P P r r i i n n t t e e r r User’s Manual JR10-M01 Version 1.00 1 ●Concerning Copyright The copyrights for this document are the property of CITIZEN SYSTEMS JAPAN CO.,LTD.. Reproduction of any or all of the contents of this document without consent of the company is a violation of copyright law. However, one back-up copy may be made for non-commercial, personal purposes. Also, the contents of this document are subject to change in the future without prior notice. ●Concerning Safety Warnings Warnings concerning safety and use, and the contents of this document, conform to existing standards as of the date published. ●Concerning Modification This printer was planned, developed, and manufactured by CITIZEN SYSTEMS JAPAN CO.,LTD.., and for safety purposes, any modification of the device is prohibited. 2 Introduction Thank you for purchasing this device. This document explains the handling and operation required to use this printer. Please read this document well before use. Be sure to read “For Safe Operation” (Pg 2-4), and operate the printer correctly. For Safe Operation ・ Be sure to read this document before use. After reading, keep it in a safe place, where it can be re-read as needed. ・ The warnings listed here are to ensure proper use of the device, to prevent physical injury to the customer or other persons, and to prevent property damage. Please obey these warnings. ■ About “Warning” and “Caution” Listed below, the possible levels of injury or damage due to misuse are categorized as “Warning” and “Caution”, according to the degrees of danger involved. ■ About the symbols The symbols shown have the following meanings: This symbol calls attention to contents of warnings and cautions. Details are indicated in or near this s ymbol. This symbol indicates prohibited actions. The prohibited actions are detailed within or near this symbol. This symbol designates necessary actions, and relevant content. Details of the actions are shown within or near this symbol. Accidents caused by failure to heed the warnings accompanying this symbol could lead to serious or fatal injury. WARNING Accidents caused by failure to heed the warnings accompanying this symbol could lead to physical injury or property damage. CAUTION 3 WARNING ・ Use only with the designated voltage and frequency. Improper connection could cause electric shock or fire. ・ Avoid overstressing outlets and using extension cords. The outlet could overheat and cause a fire. ・ Do not damage, destroy, bundle, or alter the power cord. Also, placing heavy objects on, pulling on, or bending the cord excessively can damage it, and could cause a fire. ・ Do not set the printer up in places with salinity or corrosive gases in the air. This could cause a fire. ・ Do not block the vents. Heat could build up in the printer and cause a malfunction or fire. ・ Do not stand on or place heavy objects on the printer. Also, do not use excessive force on the buttons, switches, terminals, etc. This could break the printer and cause injury to the user o r others. ・ Be careful to avoid injury or damages from the edges in the printer. ・ Do not use this printer for applications where malfunction could be life-threatening (such as medical, space, aeronautic, or other applications that require extreme reliability). ・ The printer weighs approximately 14 kg (31 lbs). When moving it, lift in a way that avoids excessive physical stress. Lifting recklessly or dropping the printer could cause injury. ・ Locate the printer as close to an outlet as possible, and allow easy access to unplug the powe r cord in case of problems. ・ If there is dust on the plug, clean it off thoroughly. It could cause electric shock or a short-out. ・ If metal objects or liquids have fallen into the printer, and there is smoke, a strange odor, or any other apparent abnormality, immediately turn the power OFF, and unplug the power cord. Then contact a service representative. Do not continue using the printer if it is not operating properly. This could cause shock, short circuit, or fire. ・ Be sure to attach the ground. Otherwise, it could short-circuit, causing electric shock or fire. ・ Do not plug or unplug the cord with wet hands. This could cause electric shock. ・ Do not open the inside of the printer, disassemble internal parts, or modify the printer. It coul d cause electric shock, fire, or injury, or break the printer. For internal check-ups, adjustments, or repair, please contact a service representative. 4 CAUTION ・ Do not set the printer up in dusty or overly humid places. This could cause fire or electric shock, or damage the printer. ・ Do not set the printer up on an unstable surface. It could fall and cause injury to the user or others. ・ Do not allow foreign objects to enter the printer. They could cause electric shock, short circuit, o r fire, or break the printer. If something falls into the printer, immediately turn the power OFF, and call a service representative. ・ Do not open the cover while printing. This could break the printer. ・ Do not spill or spray liquids or chemicals into the printer. ・ When cleaning the cover, do not use thinner, trichloroethane, benzene, ketone- based cleaners, or chemically treated cloths. They could discolor or deteriorate the cover. ・ At least once a year, unplug the power cord, and clean the prongs and the plug. If dust accumulates, it could cause a fire. ・ When printing continuously for long periods of time in a small room, be sure to ventilate properly. ・ If use is intended on a transportation vehicle (train, truck, ship, etc.), please talk to a representative in advance. ・ When disposing of the printer, peripheral items, packaging, or media, please abide by local waste removal ordinances. For details, contact your local government offices. ・ When unplugging the cord, grip the plug. Do not pull on the cord. It could damage the cord, an d cause electric shock or fire. ・ When moving the printer, be sur…

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 CITIZEN SYSTEMS JAPAN CO.,LTD. March 25, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, CITIZEN SYSTEMS JAPAN CO., LTD.. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Digital Photo Printer , JR10-M01 We affirm that between SIEMIC and CITIZEN SYSTEMS JAPAN CO.,LTD.., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely,

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006

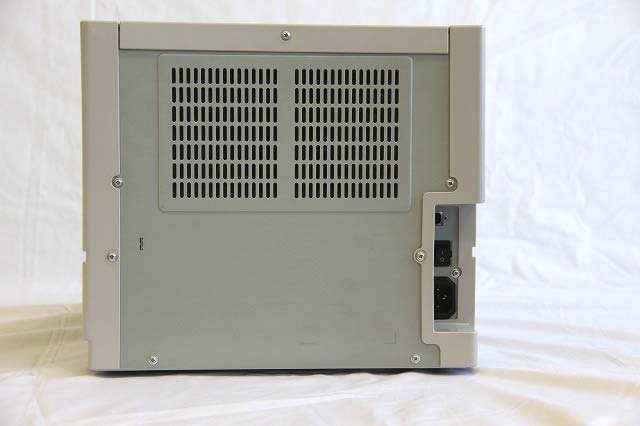

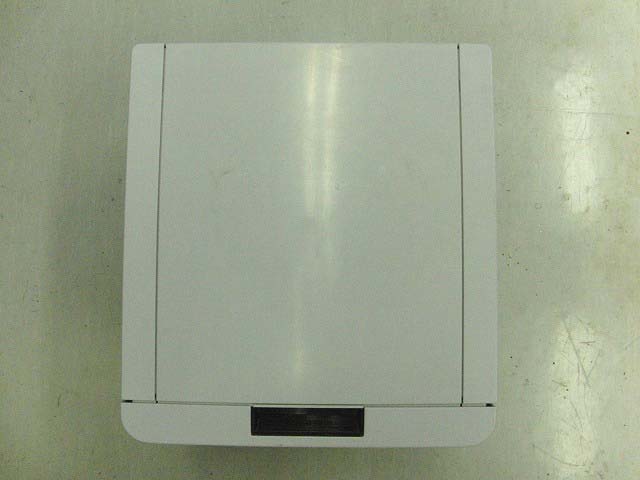

External Photographs JE10-M01 Figure 1 External View- Front Figure 2 External View - RIGHT Figure 3 External View - LEFT Figure 4 External View - Rear Figure 5 External View - Top

JR10-M01 Rating Label location Figure 1 Rating Label location Rating Label

Internal Photographs JE10-M01 Figure 1 Internal View - LEFT Figure 2 TOP and BOTTOM VIEW OF RFID Reader/Writer Module Figure 3 TOP and BOTTOM VIEW OF RFID Reader/Writer Module ANT BORAD Figure 4 TOP and BOTTOM VIEW OF RFID Reader/Writer Module CONTROL BORAD Figure 5 TOP VIEW OF Main BORAD Figure 6 BOTTOM VIEW OF Main BORAD Figure 7 TOP VIEW OF POWER SUPPLY UNIT Figure 8 BOTTOM VIEW OF POWER SUPPLY UNIT

JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 Page 1 of 34 JQA File No.: 441-100650 Issued Date : March 11, 2011 TEST REPORT APPLICANT : CITIZEN SYSTEMS JAPAN CO., LTD. ADDRESS : 6-12 Tanashi-cho, Nishi-Tokyo-shi, Tokyo 188-8511, Japan PRODUCTS : Digital Photo Printer MODEL No. : JR10-M01 SERIAL No. : CY01-ES04 FCC ID : TLGJR10M01 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C TESTING LOCATION : Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Department Testing Division and EMC Engineering Department TSURU EMC Branch TEST RESULTS : Passed DATE OF TEST : February 15, 2011 - March 3, 2011 Shinichi Yokoi Manager Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. JQA File No. : 441-100650 Issue Date: March 11, 2011 Model No. : JR10-M01 FCC ID : TLGJR10M01 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 2 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION Table of Contents Documentation Page 1 Test Regulation 3 2 Test Location 3 3 Recognition of Test Laboratory 3 4 Description of the Equipment Under Test 4 5 Test Condition 5-6 6 Preliminary Test and Test-Setup 7-12 7 Equipment Under Test Modification 13 8 Responsible Party 13 9 Deviation from Standard 13 10 Test Results 14-15 11 Summary 16 12 Operating Condition 17 13 Test Configuration 17 14 Equipment Under Test Arrangement (Drawings) 17 Appendix A : Test Data 18-24 Appendix B : Test Arrangement (Photographs) 25-26 Appendix C : Test Instruments 27-34 Definitions for Abbreviation and Symbols Used In This Test Report “EUT” means Equipment Under the Test. “AE” means Associated Equipment. “N/A” means that Not Applicable. “N/T” means that Not Tested. -indicates that the listed condition, standard or equipment is applicable for this report. -indicates that the listed condition, standard or equipment is not applicable for this report. JQA File No. : 441-100650 Issue Date: March 11, 2011 Model No. : JR10-M01 FCC ID : TLGJR10M01 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 3 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Test procedure : ANSI C63.4-2003 2 Test Location 2.1 Test Location 1 Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Department Testing Division 1-21-25, Kinuta, Setagaya-ku, Tokyo 157-8573, Japan 2.2 Test Location 2 Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Department TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, JAPAN 3 Recognition of Test Laboratory 3.1 Test Laboratory 1 Japan Quality Assurance Organization SAFETY & EMC CENTER, EMC Engineering Department Testing Division is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies . VLAC Code : VLAC-001-1 (Effective through : March 30, 2012) NVLAP Lab Code : 200189-0 (Effective through : June 30, 2011) VCCI Registration Number : R-002, R-003, C-002, C-966, C-3679, T-1814, T-1815, T-1816, G-170, G-171 (Effective through : March 30, 2012) FCC Registration Number : 349652 (Date of Listing : March 30, 2012) IC Registration Number : 2079A-1, 2079A-2 (Effective through : October 20, 2012) Accredited as conformity assessment body for Japan electrical appliances and material law by METI. (Effective through : February 22, 2013) 3.2 Test Laboratory 2 Japan Quality Assurance Organization SAFETY & EMC CENTER EMC Engineering Department TSURU EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies . VLAC Code : VLAC-001-4 (Effective through : March 30, 2012) NVLAP Lab Code : 200192-0 (Effective through : June 30, 2011) BSMI Recognition Number : SL2-IN-E-6004, SL2-IS-E-6004, SL2-A1-E-6004 (Effective through : September 14, 2013) VCCI Registration Number : R-004, R-824, R-828, C-003, C-005, C-859, C-860, C-864, C-3085, T-1420, T-1421, T-1422, T-1423, T-1424, T-1425, G-175, G-176, G-177 (Effective through : March 30, 2012) FCC Registration Number : 444763 (Effective through : March 30, 2012) IC Registration Number : 2079D-1, 2079D-2, 2079D-3 (Effective through : December 16, 2012) Accredited as conformity assessment body for Japan electrical appliances and material law by METI. (Effective through : February 22, 2013) JQA File No. : 441-100650 Issue Date: March 11, 2011 Model No. : JR10-M01 FCC ID : TLGJR10M01 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 4 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 4 Description of the Equipment Under Test 1 Manufacturer : CITIZEN SYSTEMS JAPAN CO., LTD. 6-1-12 TANASHI-CHO NISHI-TOKYO-SHI TOKYO 188-8511 JAPAN 2 Products : Digital Photo Printer 3 Model No. : JR10-M01(*) 4 Serial No. : CY01-ES04 5 Product Type : Production 6 Date of Manufacture : February 7, 2011 7 Power Rating : 100VAC-240VAC 50/60Hz 8 EUT Grounding : Grounded at the plug end of the power Line cord. 9 Received Date of EUT : February 10, 2011 10 EUT Authorizat…

Text truncated - open the document above for the full version.

JQA File No. : 441-100650 Issue Date: March 11, 2011 Model No. : JR10-M01 FCC ID : TLGJR10M01 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 25 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION Appendix B : Test Arrangement (Photographs) B.1 AC Powerline Conducted Emission - Front View - - Side View - * The EUT was rotated all axis(X-axis, Y- axis, Z-axis), this photograph present configuration with maximum emission. JQA File No. : 441-100650 Issue Date: March 11, 2011 Model No. : JR10-M01 FCC ID : TLGJR10M01 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 26 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION B.2 Radiated Emissions - Front View - - Rear View - * The EUT was rotated all axis(X-axis, Y- axis, Z-axis), this photograph present configuration with maximum emission.
