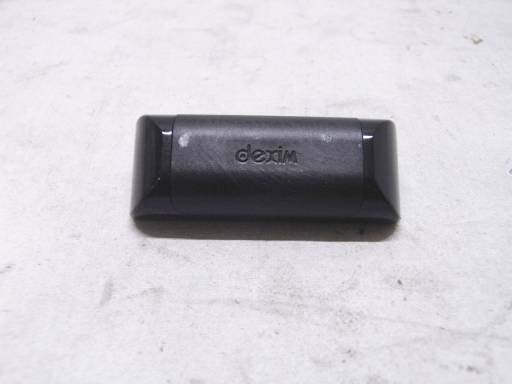

FCC ID: TM4DXA013B3 Report No.:MOST110703F2 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE

FCC ID: TM4DXA013B3 Report No.:MOST110703F2 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 FCC ID: TM4DXA013B3 Report No.:MOST110703F2 INTERNAL PHOTO OF SAMPLE - 3

Operation Description Put the EUT product to plug with IPOD ios4.0 device, choose the software DF speed and open it. Select touch to control the remote car to Left, Right,Up,Down. The MCU is the controller IC, the 2.4GHz module is the transmitter, it was transmitter the signal by the antenna. The transmitter modulation is MSK, the crystal is 26MHz, the transmitter power is DC3.3 V by the Ipod.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA F/W GND 1 F/W GND 2 TPA+ 3 USB D+ 4 TPA- 5 USB D- 6 TPB+ 7 USB PWR 8 TPB- 9 ACCESS ID 10 F/W PWR 11 F/W PWR 12 3.3V OUT 13 RESERVED 14 USB GND 15 DGND 16 RESERVED 17 RX>IPOD 18 TX<IPOD 19 ACESS DET 20 SVIDEO C 21 SVIDEO Y 22 COMPOSITE 23 REMOTE SEN 24 LINE-IN L 25 LINE-IN R 26 LINE-OUT L 27 LINE-OUT R 28 AUDIO RET 29 DGND 30 J1 MFi517-0433 R2 549K +3.3V +3.3V C3 1uF NC 1 MODE1 2 NC 3 RESET 4 VCC 5 NC 6 NC 7 NC 8 NC 9 NC 10 VSS 11 SCL 12 SDA 13 MODE0 14 NC 15 NC 16 NC 17 NC 18 NC 19 NC 20 U2 IPOD RXD +3.3V C1 104 Title Company Name Designed by Approved by Version Date TELEWAY INDUSTRIAL LTD V01 li tao P1.2 2 P1.3 3 P0.0/INT0 4 P1.5/RST/VPP 5 VSS 6 P5.0 7 P5.1 8 P5.2 9 P5.3 10 P5.4/BZ0/PWM0 11 P5.5 12 P5.6 13 P5.7 14 VCC 15 P1.4/XOUT 16 P1.6/XIN 17 P1.0 18 P1.1 19 P0.1/INT1 1 P1.7 20 U1 SN8P2613 SDASCLK SDA SCLK IPOD TXD 2011-06-11 DXA014B david +3.3V C2 104 SISCLKSOGDO2 GDO0 CSn 1 2345678 RF R1 4.7R C4 1uF C5 10uF/16V C6 104 UnRegistered

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : TELEWAY INDUSTRIAL LTD. Address : 3/6F, Block 1, Sanwei Industrial Zone, Bao’an Road, Xixiang, Bao’an District, Shenzhen, 518102, P.R.C. Product Name : DF Speed Monster Truck for ipod/ iphone/ ipad Model Name : DXA013B3, DXA013B1 Brand Name : dexim FCC ID : TM4DXA013B3 Report No. : MOST110703F1 Date of Issue : July. 21, 2011 Issued by :Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 27 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: TM4DXA013B3 Report No.:MOST110703F2 Page 2 of 27 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions ............................................................................................................................. 5 3. TEST FACILITY ............................................................................................................................................. 6 3.1TEST FACILITY ............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ....................................................................................................... 8 4.1 SUPPORT EQUIPMENT .............................................................................................................................. 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................. 9 5. 47 CFR Part 15C 15.249 Requirements ..................................................................................................... 10 5.1 Spurious Emission Test ........................................................................................................................... 10 5.1.1 Requirement ............................................................................................................................................ 10 5.1.2 Test Description ........................................................................................................................................ 11 5.1.3 Test Description ....................................................................................................................................... 12 5.1.4 Test Result ............................................................................................................................................... 13 5.2 Band Edge................................................................................................................................................. 17 5.2.1 Requirement ............................................................................................................................................ 17 5.2.2 Test Description ....................................................................................................................................... 17 5.2.3Test Result ................................................................................................................................................ 17 5.3 LINE CONDUCTED EMISSION TEST ....................................................................................................... 20 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 20 5.3.2. BLOCK DIAGRAM OF TEST SETUP ..................................................................................................... 20 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 21 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 21 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 21 APPENDIX 1 .................................................................................................................................................... 22 PHOTOGRAPHS OF TEST SETUP ..................................................................................................... ........... 22 APPENDIX 2 .................................................................................................................................................... 24 PHOTOGRAPHS OF EUT .......................................................................................…
