TM4DXA022Bluetooth remote control car

AppSpeed RC Monster Truck for iPod/iPhone/iPad iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. "Made for iPod", “Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance. dexim is a trademark of Santom Limited. All other registered and unregistered trademarks are the property of their respective owners. Visit www.dexim.net or call (1) 888-445-5655 for more information. Model# DXA022 2 AppSpeed RC Monster Truck EN 15 AppSpeed RC Monster Truck FR 28 AppSpeed RC Monster Truck DE 41 AppSpeed RC Monster Truck ES 54 AppSpeed RC Monster Truck JP 80 AppSpeed RC Monster Truck TR 93 AppSpeed RC Monster Truck KO 67 AppSpeed RC Monster Truck CN -2- 3 Directional guide ·The directional guide on the bottom of the car can be used to adjust the car's straight-line-running performance. Compatibility: compatible with New iPad, iPad 2, iPad, iPhone 4S, iPhone 4, iPhone3GS/3G, iPod touch 4G, 3G, 2G (iOS4.0 or later). Effective range: 12m-15m Toy car charging time: 10-15minutes Toy car running time: 15-20minutes Monster truck dimension: 9.8×6.7×7.5cm Weight: 83.6g Features: ·Offer two controller mode (Gyroscopic sensor and Touch Sensor) ·Placing 360 degrees of excitement in the user's palm. ·Tilt your iPhone forward to move forward, back to go backwards, right and left to turn, almost like driving a real car. ·3 Preset play stations (Spin, Zigzag and dance to music) ·Easy to use and fun to drive ·Effective range: 12m-15m 1 x Monster truck 1 x USB to 3.5mm charge cable USB to 3.5mm charge cable LED indicator LL RR OFFOFFONON Monster truck ON/OFF Charging port 54 Note: ① The LED indicator of charge cable will flash when the car is being charged. It will stop flashing and remain lit up when the car is fully charged. ② Actual running time may vary depending upon operation mode and car's speed. ③ Always fully charge the built-in battery of the toy cars before re-charged. Switch off the button on the bottom of the car when not in use. OR 1. Charge Vehicle ·Connect the USB charge cable to USB power adapter or personal computer for charging 1 (sold separately) Note: Make sure that the output of USB power adapter is DC, 5V. 2 (not included) OFFOFFONON 2. AppSpeed ·Switch the Monster car to ON position to pair with your iPhone/iPod touth or iPad device via Bluetooth. ”Application not installed”message will be displayed on the Apple device’s screen.Tap Yes to download ”AppSpeed”. Or you can access to app store to download AppSpeed firstly.you can also get the app from itunes store. Yes Note: Make sure that your Apple devices are connected to the internet. 76 ·When your installation is complete, activate the app and switch on the button on the bottom of the toy car then place the car on the flat place. Now your Apple device can be used as a remote control for the toy car through wireless communication. Note: ·This application requires pairing to Bluetooth,please pay attention to your iPhone device’s Bluetooth function is actived ·This application offers two controller modes, gyroscopic sensor and touch sensor. Orientation uses your Apple devices gyroscopic sensor to control the car. You tilt your Apple devices forward to move forward, back to go backwards, right and left to turn. 3. AppSpeed Quick Guide 1 Gyroscopic Sensor Controller 98 Gyroscopic sensor controller It is highly recommended to hold your iPhone horizontally to control the car. Touch START to activate Gyroscopic Sensor This application allows you to tilt your iPhone to control the vehicle. Tilt your iPhone forward to move forward,back to go backwards, right and left to turn. Keep iPhone horizontal to stop the vehicle. Tap the icon, the car will spin around automatically, tap again to exit. Spin Tap the wheel to go back options menus. 1011 Tap the icon, the car will run in zigzag automatically Zigzag Tap the icon, the car will run randomly to the music built-in. Programmer control Home Tap the icon to go back main menu. Set the car's running speed from Level 1 to Level 15 by sliding the button For technical support and more information, please email at [email protected]. Touch Sensor Controller 2 Turn right Speed up Turn left Move forward Go backward 1213 Touch sensor controller Tap the wheel to go back options menus. Tap to see more dexim products Note: To resuce power consumption, please enter your device to standby model when the AppSpeed is not in use. ·Store your toy car in a cool and dry place. ·Don’t reserve toy car under high temperature or near fire. ·If the car slows down or stop running, and the headlights flash during operation, the car might be at low power level. Please follow the instruction to recharge the car. Cautions: Caractéristiques : ·Deux modes de contrôle disponibles (capteur gyroscopique et Capteur tactile) ·360 degrés de pur plaisir au creux de votre main. ·Inclinez votre téléphone vers l’avant pour avancer, vers l’arrière pour reculer, vers la gauche ou la droite pour tourner. Quasiment identique à la conduite d’une vraie voiture ·3 stations de jeu préréglées (Rotation, Zigzag et Danse au son de la musique) ·Simple à utiliser et ludique à conduire ·Portée effective : 12m-15m 1 x Monster Truck 1 x câble de recharge USB vers 3,5mm Contenu: Présentation: Témoin LED câble de recharge USB vers 3,5mm WARNING: CHOKING HAZARD Small parts. Not for children under 8 years. 1415 Monster Truck Spécifications: Port de recharge MARCHE/ARRÊT Guide directionnel ·Le guide directionnel situé au bas de la voiture peut être utilisé pour régler les performances de course en ligne droite de la voiture. Compatibilité : c…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: _June 07, 2012______ Subject: Confidentiality Request for: ____FCC ID: TM4DXA022______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _ Teleway Industrial Ltd _____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify PHOENIX in the event information regarding the product or the product is made available to the public. PHOENIX will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details.

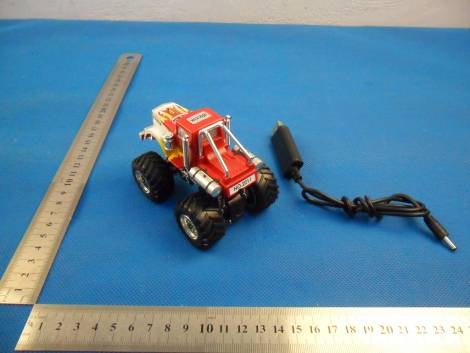

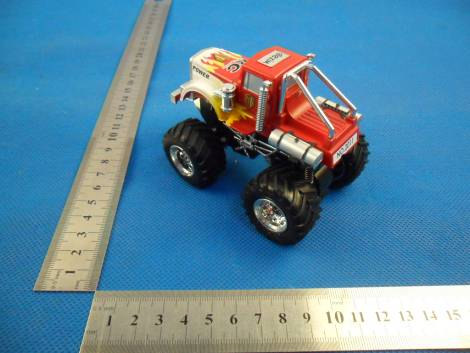

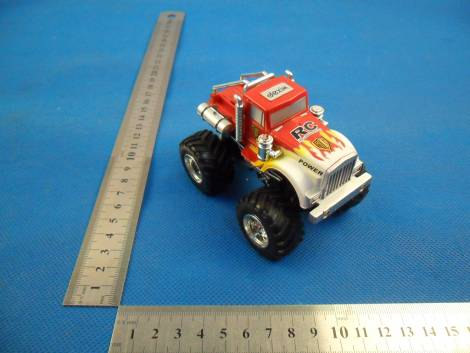

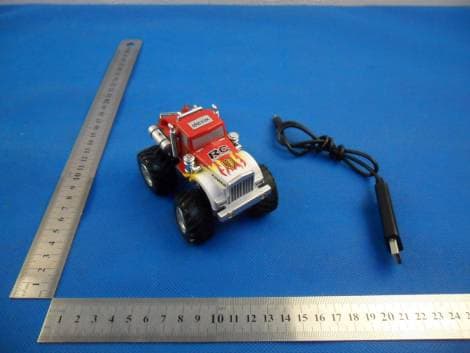

1 Photographs (Test Model No.:DXA022) 1.1 EUT Constructional Details

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120500277801 Page: 1 of 74 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1205002778RF Applicant: TELEWAY INDUSTRIAL LTD. Manufacturer: TELEWAY INDUSTRIAL LTD. Factory: TELEWAY INDUSTRIAL LTD. Product Name: Bluetooth remote control car Model No.(EUT): DXA022 FCC ID: TM4DXA022 Standards: FCC CFR Title 47 Part 15 (2010) Date of Receipt: 2012-05-23 Date of Test: 2012-05-28 to 2012-06-01 Date of Issue: 2012-06-15 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120500277801 Page: 2 of 74 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement FCC CFR Title 47 Part 15C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission FCC CFR Title 47 Part 15C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power FCC CFR Title 47 Part 15C Section 15.247 (b)(1) ANSI C63.10 (2009) DA 00-705 PASS 20dB Occupied Bandwidth FCC CFR Title 47 Part 15C Section 15.247 (a)(1) ANSI C63.10 (2009) DA 00-705 PASS Carrier Frequencies Separation FCC CFR Title 47 Part 15C Section 15.247 (a)(1) ANSI C63.10 (2009) DA 00-705 PASS Hopping Channel Number FCC CFR Title 47 Part 15C Section 15.247 (b) ANSI C63.10 (2009) DA 00-705 PASS Dwell Time FCC CFR Title 47 Part 15C Section 15.247 (a)(1) ANSI C63.10 (2009) DA 00-705 PASS Pseudorandom Frequency Hopping Sequence FCC CFR Title 47 Part 15C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) DA 00-705 PASS Band-edge for RF Conducted Emissions FCC CFR Title 47 Part 15C Section 15.247(d) ANSI C63.10 (2009) DA 00-705 PASS RF Conducted Spurious Emissions FCC CFR Title 47 Part 15C Section 15.247(d) ANSI C63.10 (2009) DA 00-705 PASS Radiated Spurious emissions FCC CFR Title 47 Part 15C Section 15.205/15.209 ANSI C63.10 (2009) DA 00-705 PASS Band Edge (Radiated Emission) FCC CFR Title 47 Part 15C Section 15.205/15.209 ANSI C63.10 (2009) DA 00-705 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120500277801 Page: 3 of 74 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attentio…

Text truncated - open the document above for the full version.

1 Photographs (Test model No.:DXA022) 1.1 Conducted Emission Test Setup 1.2 Radiated Emission Test Setup
