MUSIC TRANSMITTER USERβS MANUAL Main features: - Attractive color to match iPod (Yellow/Blue /Green/ White / Pink) - Transmits wirelessly any MP3 /MP4/MD/iPod/DVD/VCD/CD player NOTEBOOK/PC music to car radio system or to home hi-fi system - Transmit distance: 3~10m (depending on customer requirement) - Frequency: 4 channels (88.1/ 88.3/88.5/88.7) - Digital sound quality - Powered by one AAA rechargeable NiMh battery Description: 1. Connection plug 2. Frequency switch 3. On-off switch 4. Status LED 5. 5 V DC adapter jack 6. Battery compartment Connecting with MP3 player 1. Insert one AAA battery into the battery compartment 2. Insert the supplied connection cable into MPFREE connection plug (1). 3. Insert the other side jack into the headset plug of MP3 player. Listening to music 1. Turn on car stereo (or any other stereo on which you would like to hear your MP3 player music), frequency FM 88.3 2. Turn on MPFREE, slide on off switch (3); LED (4) will turn on 3. Turn on your MP3 player and push PLAY button. 4. Check signal quality. In case quality is not satisfactory try to switch car stereo to FM 88.1, then slide frequency switch on MPFREE on 88.3. If still not satisfactory, try 88. 5 or 88.7 Important safety information: 1. We suggest to use the supplied rechargeable battery or a good quality dry Alkaline equivalent battery. A poor quality battery will affect the sound quality and hurt our product because of the inside resistance of battery is higher than our standard one. 2. Once battery low, it will the sound quality will be affected. As well, it will be more difficult to cover a radio station who disturbs the same frequency. As a result, the sound will not be clear enough. 3. In case of car usage, the sound quality also depends on speed. On an average 90 Km/h speed, there is no problem found. In case of higher speed, there might be some noise caused by difficult transmission. 4. There is an antenna inside the plastic case. Itβs very important to handle the unit with care because the antenna can be easily damaged. Also, when the unit is in the hand, there is a human body antenna effect, so the sound could be modified in case the unit is separated from human body. Itβs a natural effect which cannot be modified. 5. The battery could only be charged through car or USB charger. Any higher voltage would damage the internal circuit.

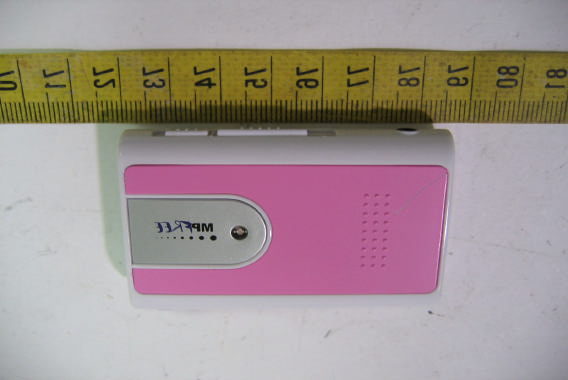

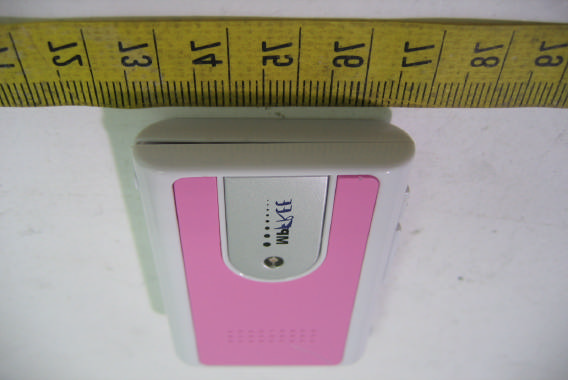

ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Side View of EUT ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Side View of EUT ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Rear View of EUT Battery ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Charger Audio Cable
32mm 6mm Trade Name Model Number Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model:TMP3FT, TMP3FT-1, TMP3FT-2 FCC ID:TM4TMP3FT12345
ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB
Rev. No 1.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : MPFree Music Transmitter FCC ID. : TM4TMP3FT12345 MODEL : TMP3FT Working Frequency : 88.0~89.0MHz for APPLICANT : TELEWAY INDUSTRIAL LTD. ADDRESS : 5F., Block 40, Ma Jia Long Industrial Area, Nan Shan District, Shenzhen, 518052, Guangdong Province, P.R.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number : ET94R-09-029-01 ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : TELEWAY INDUSTRIAL LTD. 5/F., Block 40, Ma Jia Long Industrial Area, Nan Shan District, Shenzhen, 518052, Guangdong Province, P.R.C. Manufacturer : Shenzhen De Ying Electronics Co., Ltd. 5/F., Block 40, Ma Jia Long Industrial Area, Nan Shan District, Shenzhen, 518052, Guangdong Province, P.R.C. Description of EUT a) Type of EUT : MPFree Music Transmitter b) Trade Name : iSee c) Model No. : TMP3FT d) The data also apply to : TMP3FT-1; TMP3FT-2 e) FCC ID : TM4TMP3FT12345 f) Working Frequency : 88.1-88.7MHz g) Power Supply : DC 1.5V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Sep. 23, 2005 Test Engineer : (Vicent Chang) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94R-09-029-01 FCC ID.: TM4TMP3FT12345 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION...................................................................................................1 1.1 Product Description....................................................................................................................1 1.2 Characteristics of Device:...........................................................................................................1 1.3 Test Methodology......................................................................................................................1 1.4 Test Facility................................................................................................................................1 2. DEFINITION AND LIMITS....................................................................................................2 2.1 Definition....................................................................................................................................2 2.2 Restricted Bands of Operation....................................................................................................2 2.3 Limitation...................................................................................................................................2 2.4 Labeling Requirement.................................................................................................................3 2.5 User Information........................................................................................................................3 3. SYSTEM TEST CONFIGURATION.......................................................................................4 3.1 Justification.................................................................................................................................4 3.2 Devices for Tested System.........................................................................................................4 4 RADIATED EMISSION MEASUREMENT..........................................................................5 4.1 Applicable Standard...................................................................................................................5 4.2 Measurement Procedure.............................................................................................................5 4.3 Measuring Instrument.................................................................................................................7 4.4 Test Data...................................................................................................................................8 4.4.1 Fundamental and Harmonics........................................................................................................................................8 4.4.2 Other Emissions..............................................................................................................................................................10 4.5 Field Strength Calculation.........................................................................................................10 4.6 Radiated Measurement Photos.................................................................................................11 5 CONDUCTED EMISSION MEASUREMENT....................................................................12 5.1 Description...............................................................................................................................12 6 ANTENNA REQUIREMENT................................................................................................13 6.1 Standard Applicable.................................................................................................................13 6.2 Antenna Construction...............................................................................................................13 7 EMISSION BAND MEASUREMENT..................................................................................14 7.1 Standard Applicable.................................................................................................................14 7.2 Measurement Procedure.......................................................................β¦
