TM4TMP3FT2FM TRANSMITTER

Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufactures may void user’s authority to operate this device.

Document Control From: "Generic Office of Engineering Technology" <[email protected]> To: <[email protected]> Sent: Friday, January 05, 2007 10:55 AM Sub ject: Response to Inquiry to FCC (Tracking Number 488460) Page 1 of 1 1/5/2007 Inquiry: To Whom it May Concern We are requesting to grant the FM Transmitters with testing following with FCC Section 15.239 rule and guidance. Base on the TCB conference call on December 22, 2006, TCB must contact FCC prior to grant issuing a grant and FCC wants to do a quick review of the test report for the following applicant. Company name: Teleway Industrial Ltd FCCID: TM4TMP3FT2 b. FCC15.239 c. FM transmitters f. Please refer to the enclosed B0612216 quick review question & report. Thanks for your help Regards Tina Response: Go ahead and complete filing. Ensure that all exhibits comply with FCC rules and policies. Submit a copy of this inquiry into the filing. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry S ystem to add any additional information pertaining to this inquiry.

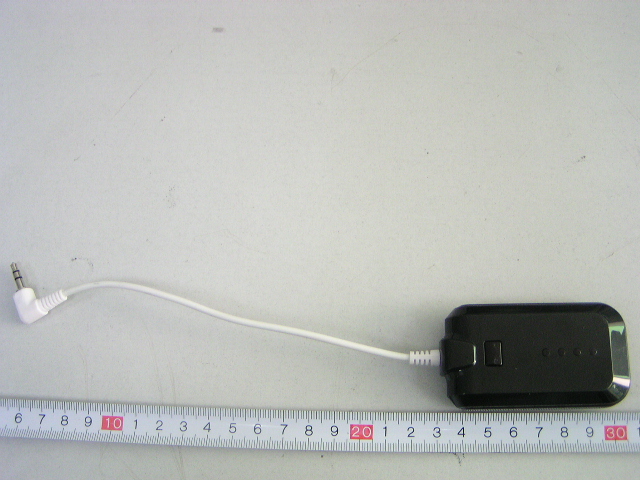

EXHIBIT B - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location FCC ID Label Location FCC ID: TM4TMP3FT2

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncovered View EUT – Inside View EUT – PCB Front View EUT – PCB Rear View

TMP3FT2 Circuit description 1. The 3V voltage that provided by 2 x AAA batteries provides the power for PLL IC MW_S5 after it’s been stabled by regulating circuit (be made up of Q2, Q4, Q5, R6, R7, R27), then the unit would be standing by. Once the switch S1 be pressed, PLL IC MW_S5 start the electronic switch to power for the whole unit, when the OSC circuit (be made up of D5, L5, Q6, R13, R14, R19, C15, C16, C27, C28, C29) start to work, with the vibratory frequency is around 98.80MHz. After be sampling by PLL IC MW_S5, this frequency will send a tuning circuit onto BD910 to make the vibratory frequency be stabled at 98.8MHz, at the same time, PLL IC MW_S5 will supplier the power for D1. Been increased by class 1 enlarging circuit, this frequency will be sent out through inner antenna once the tuning wave been removed by high frequency removing wave circuit. While pressing S1 in turn, PLL IC MW_S5 will send tuning voltage to make the vibratory circuit at 99.0MHz, 99.2MHz, 99.4MHz, meanwhile PLL IC MW_S5 will supply power for D2, D3, D4 in turn. 2. While the unit working, the audio signal that input by audio inputting wire will be adjusted to BD910 by impedance matching network, then BD910 will modulate it to OSC frequency then send it out. 3. While the unit working, PLL IC MW_S5 will check the audio through audio testing circuit (be made up of Q8, Q9, D6, R22, R23, R24, R25, C33, C32). When there’s no audio be input, it will start to time, and if still no input audio within 15 minutes, PLL IC MW_S5 will off the electronic switch, then the unit will stop working.

1 2 3 4 56 A BC D 6 5 4 3 2 1 D CB A C22 18P C2447P D5BB910 C8104 D4LED LED1 1 LED2 2 LED3 3 LED4 4 POWER 5 LED5 6 VDD 7 VSS 8 FM_IN 9 BAND1 19 BAND0 18 TSET 17 SND_DET 16 PWR_OUT 15 X2 14 X1 13 OSC1 12 RESET 11 TUNE 10 U1MW_S5 R210K D1LED D3LED X1 32.768 R447K R13 270ohm C14102 C13103 R9100 R62.2K D2LED C1020P R16 51K C12102 C2647P C15222 C7104 C2720P R14.7K + C247uF R1447K R5470K R3100K R8150 C1104 L3 BLM18BD222TN1 + C947uF R191K C23 1000P R111M C18333 C630P C17473uF C19102 R1047K C5104 C420P C30 682 R152.2K L1 1uH C34 5P C2915P R21 10K C320P L2 0ohm R180ohm R71M R206.8K R17 10K C11104 C2830P R1227K L5 4.5T/D=2.5/d=0.4 123 CP1 S1P ON Q39014 Q5 9014 Q49014 Q79018H Q69018H Q19015 Q29015 BT1BATT C31102 R22330K R2447K R25680 R2310M C32104 C331uF Q99014 Q8 9014 R26100K D64148 VDD VDD S_DET S_DET R2775k C1620P R0R R2810ohm FCC2006/12/12 E? ANT (88.1MHz-88.7MHz)

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.239 EMI MEASUREMENT AND TEST REPORT For TELEWAY INDUSTRIAL LTD 5/F, BLOCK 40, MAJIALONG INDUSTRIAL AREA, NANSHAN DISTRICT, SHENZHEN, 518052, GUANGDONG PROVINCE, PRC FCC ID: TM4TMP3FT2 This Report Concerns: Original Report Equipment Type: FM TRANSMITTER Test Engineer: Charmi Peng Report No.: RSZ06111401 Test Date: 2006-12-16 to 2006-12-23 Report Date: 2006-12-19 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China. Tel: + 86-755-33320018 Fax: +86-755-33320008 TELEWAY INDUSTRIAL LTD FCC ID: TM4TMP3FT2 Report # RSZ06111401 Page 2 of 18 FCC Part 15.239 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 §15.209 AND §15.239- RADIATED EMISSION ........................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 §15.239(a) – EMISSION BANDWIDTH ...................................................................................................................12 STANDARD APPLICABLE.............................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
