TMY-BT-20Bluetooth USB Dongle

IVT BlueSoleil™ User Manual Version: 1.4 This document describes how to use IVT BlueSoleil噡. IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 2 Contents 1BlueSoleil™ Introduction............................................................................ 1 1.1 Profiles .................................................................................................... 1 1.2 New features in BlueSoleil 1.4 ..................................................................... 2 1.3 Features in BlueSoleil 1.2 ........................................................................... 2 2BlueSoleil™ Basic Operations ..................................................................... 4 2.1 Start BlueSoleil™ ...................................................................................... 4 2.2 Exit BlueSoleil™ ........................................................................................ 4 2.3 BlueSoleil™ Main Window ........................................................................... 5 2.4 Service Window......................................................................................... 8 2.5 What You Need To Do Before Build A Connection ......................................... 10 2.6 Start Or Stop A Bluetooth Service Connection.............................................. 14 3Bluetooth Security.................................................................................... 16 3.1 Introduction ........................................................................................... 16 3.2 BlueSoleil Security Configuration ............................................................... 17 4Personal Area Networking........................................................................ 22 4.1 Introduction ........................................................................................... 22 4.2 Communication Between Two Computers.................................................... 23 4.3 Access LAN Through PAN-NAP ................................................................... 29 4.4 Access LAN Through IVT BlueSoleil™.......................................................... 33 4.5 Access Internet through IVT BlueSoleil™..................................................... 35 4.6 PAN Configuration ................................................................................... 36 5Dial-Up Networking .................................................................................. 38 5.1 Introduction ........................................................................................... 38 5.2 Connect to a Dial-up Gateway from a Computer........................................... 38 5.3 Settings for Dial-up Networking Profile (client side) in Windows98/Me ............. 41 6Bluetooth Serial Port ................................................................................ 46 6.1 Introduction ........................................................................................... 46 6.2 Connect Two Computers........................................................................... 46 6.3 Use SPP to Print a Document..................................................................... 48 6.4 Use a cellphone to control a computer ........................................................ 48 6.5 SPP Configuration.................................................................................... 50 7Bluetooth File Transfer............................................................................. 52 7.1 Introduction ........................................................................................... 52 7.2 Transfer files to/from a Computer .............................................................. 52 7.3 FTP Configuration .................................................................................... 55 8LAN Access............................................................................................... 56 8.1 Introduction ........................................................................................... 56 8.2 Access a Local Area Network (LAN) ............................................................ 56 8.3 Access a LAN via a LAN Access Point .......................................................... 60 8.4 Settings for LAN Access Profile (client side) in Windows98/Me........................ 61 8.5 Usage of LAN Access Profile (server side) in Windows98/Me........................... 65 9Object Push.............................................................................................. 70 9.1 Introduction ........................................................................................... 70 9.2 Transfer Objects from a Computer to a Bluetooth Cellular Phone .................... 70 IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 3 9.3 Transfer Objects from a Bluetooth Cellular Phone to a Computer .................... 74 9.4 Transfer Objects between Two Computers................................................... 75 9.5 Configure OPP Service.............................................................................. 76 9.6 Using OPP in Microsoft Outlook .................................................................. 77 10Synchronization..................................................................................... 80 10.1Introduction......................................................................................... 80 10.2Exchange PIM Data with a Cellular Phone ................................................. 80 10.3Set up SYNC Connection between Two Computers ..................................... 81 10.4Synchronization Configuration ................................................................ 83 10.5Using Synchronization in Outlook ...........…

Text truncated - open the document above for the full version.

IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 63 Figure 8.11: Select Windows Setup tab Step 4: Double-click the Communications item in the Windows Setup component list to check the properties. (Figure 8.12) IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 64 Figure 8.12: Double-click Communications item Step 5: Check if Direct Cable Connection is selected. If not, select it and click OK to install a Direct Cable Connection. (Figure 8.13) Figure 8.13: Check if Direct Cable Connection is selected IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 65 8.5 Usage of LAN Access Profile (server side) in Windows98/Me 8.5.1 Configure a LAP server in Windows 98/ Me Step 1: Start the LAP service. iSee “Section 8.2: Access a Local Area Network (LAN)”, Steps 1 to 5. iIf this is the first time the service is started n Windows 98/Me, the Direct Cable Connection window pops up. Step 2: Select Host and click the Nextbutton. (Figure 8.14) Figure 8.14: Direct Cable Connection window Step 3: Select Bluelet NULL Modem (Server) and click Next. (Figure 8.15) IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 66 Figure 8.15: Select Bluelet NULL Modem (Server) Step 4: Click the Finishbutton. (Figure 8.16) Figure 8.16: Click Finish button. Step 5: Finally, the Direct Cable Connection window pops up. It is now possible to connect to the LAP server. No password is required. Figure 8.17: Connection created IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 67 Note: The above steps are applicable when configuring the LAP server for the first time only. The next time the LAP service is started, the Direct Cable Connection window (Figure 8.17) appears. 8.5.2 Set-up a LAP connection from Windows 2000 to Windows 98/Me Step 1: In the Connect BlueSoleil LAP Connection window click Properties and a window as shown in Figure 8.18 pops up. Figure 8.18: Connect BlueSoleil LAP Connection window Step 2: Select the Security tab in BlueSoleil LAP Connection window. SelectAdvanced (custom settings) and click Settings. (Figure 8.19) IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 68 Figure 8.19: Select Advanced (custom settings) Figure 8.20: Advanced Security Settings window IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 69 Step 3: Select Allow older MS-CHAP version for Windows 95 servers and click OK. (Figure 8.21) Figure 8.21: Select Allow older MS-CHAP version for Windows 95 servers Step 4: Select the Yes button. The LAP client in Windows 2000 is now able to connect to the LAP server in Windows 98/Me. (Figure 8.22) Note: The IVT Corporation LAP service does not require a password. Figure 8.22: Click Yes button IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 70 9 Object Push 9.1 Introduction The Bluetooth Object Push profile (OPP) is an application that offers a way to send and receive Personal Information Management (PIM) data objects from one Bluetooth-enabled device to or from the other one. The objects Object Push supports the following four formats: iBusiness cards (*.vcf) iCalendar entries (*.vcs) iNotes (*.vnt) iMessages (*.vmg) The OPP profile can be used in the following scenarios: iConnecting a computer to a Bluetooth cellular phone (or PDA), and transferring objects from the computer to the cellular phone (or PDA). iConnecting a computer to a Bluetooth cellular phone (or PDA), and transferring objects from the cellular phone (or PDA) to the computer. iConnecting two computers and transferring objects between them. 9.2 Transfer Objects from a Computer to a Bluetooth Cellular Phone This section outlines the steps involved in transferring OPP objects from a Computer to a Bluetooth cellular phone. Computer A: Bluetooth Cellular Phone: IVT BlueSoleil™ Ericsson T39 A Bluetooth Device Step 1: Insert the Bluetooth Device into the computer. Step 2: Start BlueSoleil™ in the computer. Step 3: Configure the business card of Computer A. 1. Open the Service Configuration window and select the Object Push page. In the BlueSoleil™ Main Window, click Tools | Configuration | My Services (Figure 9.1). 2. Check the boxes, Send Business Card on Request, Accept Business Card, Accept Calendar Items, Accept Email Messages and Accept Notes. 3. To set ‘my business card’, click the box Send My Business Card (*.VCF). This opens the Open File window. Select a VCF file as your own business card and click the Open button. Click the OK button on the Service Configuration window. If you do not set a business card, the program will generate a business card file IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice. 71 automatically using your computer name. (Figure 9.2) Figure 9.1: Service Configuration Figure 9.2: Open File Step 4: To obtain a VCF card file from MS Outlook. iOpen MS Outlook, and select the Contacts item in Outlook Shortcuts. (Figure 9.3) IVT BlueSoleil™ User Manual Copyright © 2001, IVT Corporation, http://www.ivtcorporation.com All specifications are preliminary and subject to change without notice…

Text truncated - open the document above for the full version.

BLUETOOTH USB DONGLE BLOCK DIAGRAM BLUETOOTH CHIPSET EEPROM USB CONNECTOR CRYSTALLED 2.4GHz ANTENNA

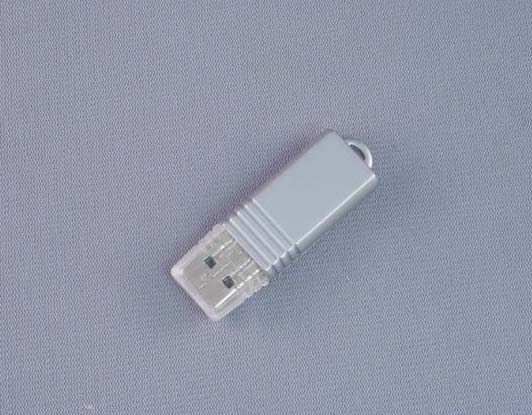

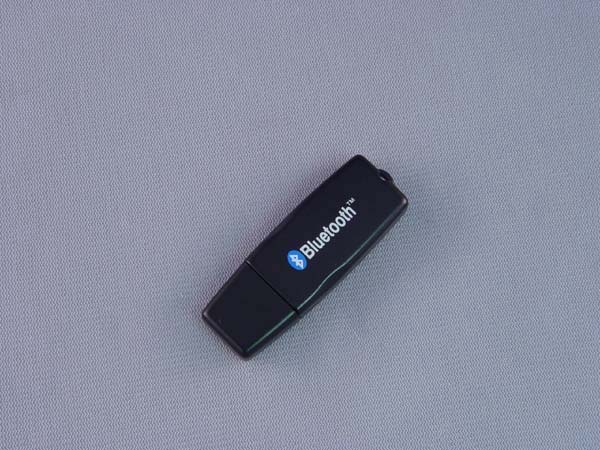

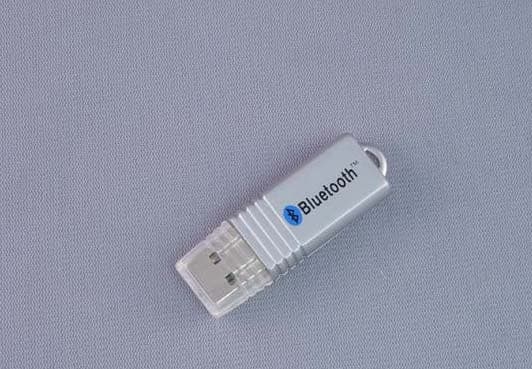

Compliance Certification Services Inc. Report No: 50726226 Date of Issue: August 17, 2005 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Model: BT-20S / Transparent Compliance Certification Services Inc. Report No: 50726226 Date of Issue: August 17, 2005 Page 2 Rev. 00 Model: BT-20C Compliance Certification Services Inc. Report No: 50726226 Date of Issue: August 17, 2005 Page 3 Rev. 00 Model: BT-20B Compliance Certification Services Inc. Report No: 50726226 Date of Issue: August 17, 2005 Page 4 Rev. 00 Model: BT-20S / Black

Compliance Certification Services Inc. Report No: 50726226 Date of Issue: August 17, 2005 Page 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50726226 Date of Issue: August 17, 2005 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: 50726226-RP1 FCC ID: TMY-BT-20 Date of Issue: August 17, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 47 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For BLUETOOTH USB DONGLE Model: BT-20S, BT-20B, BT-20C Trade Name: BT-LINKS Issued to BT-LINKS COMPANY LIMITED RM 802, 8/F, NAN FUNG CTR, 264-298 CASTLE PEAK RD., TSUEN WAN, HK Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50726226-RP1 FCC ID: TMY-BT-20 Date of Issue: August 17, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION.....................................................................................................7 5. FACILITIES AND ACCREDITATIONS .......................................................................................8 5.1 FACILITIES ......................................................................................................................................8 5.2 EQUIPMENT.....................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS..........................................................................................11 7.1 PEAK POWER.................................................................................................................................11 7.2 BAND EDGES MEASUREMENT .............................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................17 7.4 FREQUENCY SEPARATION....................................................................................................20 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................22 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................24 7.7 RADIO FREQUENCY EXPOSURE.....................................................................................................31 7.8 SPURIOUS EMISSIONS .............................................................................................................32 7.9 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ...........................................................................45 Compliance Certification Services Inc. Report No.: 50726226-RP1 FCC ID: TMY-BT-20 Date of Issue: August 17, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: BT-LINKS COMPANY LIMITED RM 802, 8/F, NAN FUNG CTR, 264-298 CASTLE PEAK RD., TSUEN WAN, HK Equipment Under Test: BLUETOOTH USB DONGLE Trade Name: BT-LINKS Model: BT-20S, BT-20B, BT-20C Date of Test: August 02 ~ 16, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 50726226-RP1 FCC ID: TMY-BT-20 Date of Issue: August 17, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product BLUETOOTH USB DONGLE Trade Name BT-LINKS Model Number BT-20S, BT-20B, BT-20C M…
