TMY-BTM-118Bluetooth Headset

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

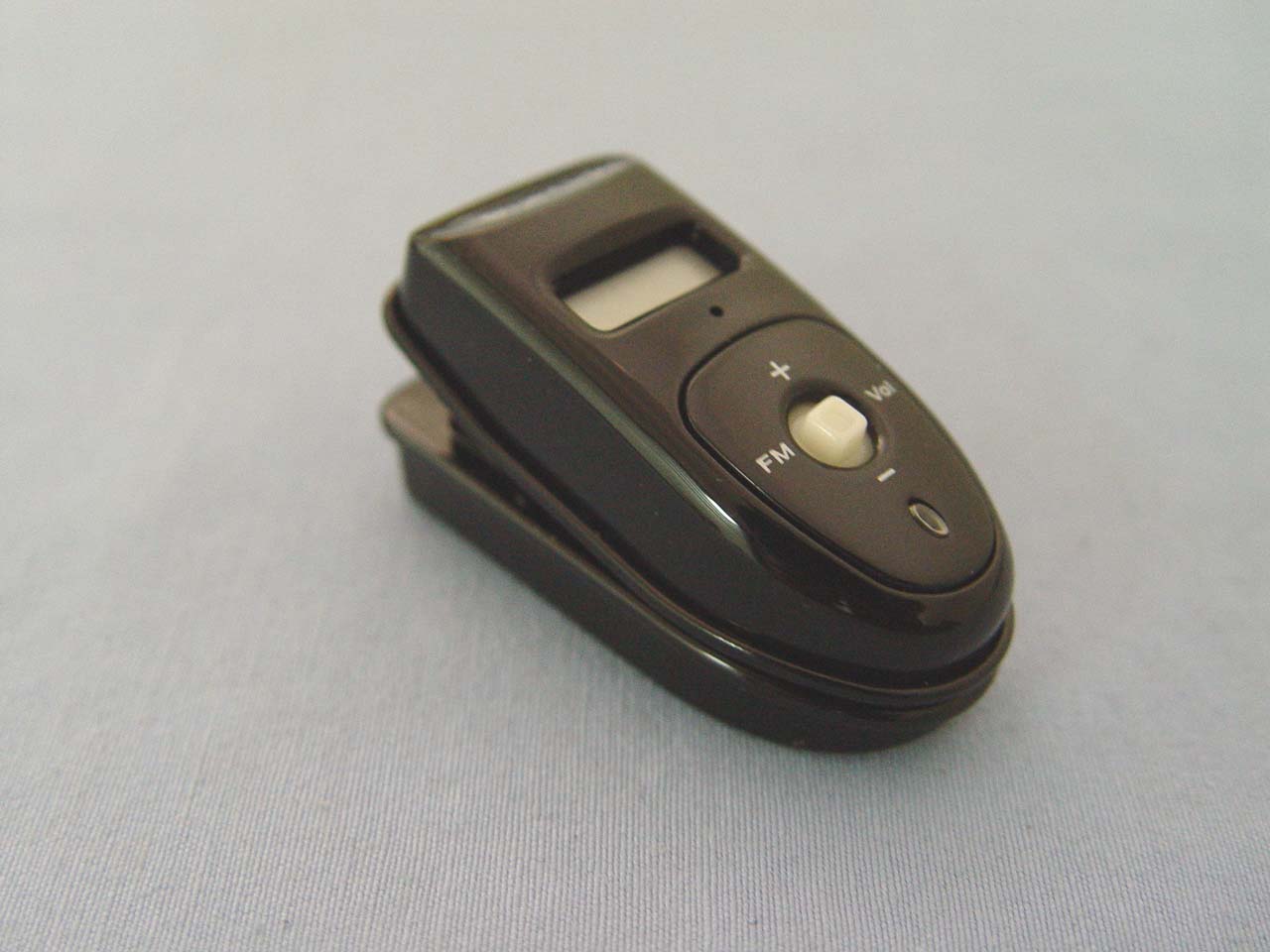

Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 1 Total Page: 10 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 4 Rev.00

Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 7 Rev.00 Multilayer Chip Antenna Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 71219214 Date of Issue: January 30, 2008 Page 10 Rev.00

ACX Advanced Ceramic X AT3216 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain XZ-V Average Gain XZ-V VSWR Impedance AT3216 -B2R7HAA_ 2400 ~ 2500 0.5 dBi typ. -0.5 dBi typ. 2 max. 50 Ω Q’ty/Reel (pcs) : 3,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 3216 - B 2R7 HAA ‡ c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 3.2× 1.6 mm e Material Code B f Frequency Range 2R7=2700MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 3.20.2 1.60.2 1.3+ 0.1/-0.2 0.50.3 (a) Without Matching Circuits (b) With Matching Circuits 1.2pF 3.3nH 2.6 4.2 1.6 1.9 2.7nH 0.4 * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Ground 13.5mm 6.5mm 39.5mm 4mm No Ground Matching Circuit 50Ω Feed Line 19mm Antenna 6.5mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits ACX Advanced Ceramic X Radiation Patterns .... XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H XY cut @2.45GHz Vertical Horizontal XY-V/XY-H Z 270 o 0 o X Y XY-cut scanning direction Y 270 o 0 o X Z XZ-cut scanning direction Z X 0 o 270 Y YZ-cut scanning direction 180 180 180 o 90 o 90 o 90 o Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw ACX Adv anced Ceram ic X Item Requirements Procedure Solderability 1. No apparent damage 2. More than 75% of the terminal electrode shall be covered with new solder 1. Preheat: 120± 5 o C 2. Solder: 230± 5 o C for 5± 1 sec Thermal shock (Temperature Cycle) 1. No apparent damage 2. Fulfill the electrical specification after test 1. One cycle/ step 1: 85 ± 5 o C for 20sec step 2: -40 ± 3 o C for 20sec 2. Cycle time: 30min 3. No. of cycles: 100 4. Recovery: 1-2hrs Heat Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85± 2 o C 2. Duration: 24±2hrs 3. Recovery: 1-2hrs Low Temperature Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: -40 o ± 5 o C 2. Duration: 24 ±2hrs 3. Recovery: 1-2hrs Humidity Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85± 2 o C 2. Humidity: 80% ~ 85% RH 3. Duration: 1000±48hrs 4. Recovery: 1-2hrs Soldering strength (Push strength) 1. 9.8N minimum 1. Solder specimen onto test jig. 2. Apply push force at 0.5mm/s until electrode pads are peeled off or ceramic are broken. Pushing force is applied to longitude direction Deflection (Bending) 1. No apparent damage 2. Fulfill the electrical specification 1. Solder specimen onto test jig (FR4, 0.8mm) using the recommend soldering profile. 2. Apply a bending force of 2mm deflection ` Drop Shock 1. No apparent damage 1. Dropped onto hard wood from height of 50 cm for 3 times ; each x,y and z direction except terminal direction Mechanical & Environmental Characteristics R230 Pressure Rod 90mm ACX Advanced Ceramic X Taping Specifications ™Tape Dimensions (Unit: mm) φ1.55 +0.05 A’ t D 7.5 ± 0.1 1.75 ± 0.1 C T A B 16± 0.2 A A’ B C D t T 4.0 0.1 4.0 0.1 1.9 0.1 3.5 0.1 2.0 0.1 0.20 0.05 Max. 1.4 4.0 0.1 4.0 0.1 2.4 0.1 5.5 0.1 2.0 0.1 0.20 0.05 Max. 1.4 7020 4.0 0.1 4.0 0.1 2.4 0.1 7.3 0.1 2.0 0.1 0.22 0.05 Max. 1.55 7635 8.0 0.1 4.0 0.1 3.75 0.1 7.85 0.1 2.0 0.1 0.30 0.05 Max. 1.40 8516 4.0 0.1 4.0 0.1 1.85 0.1 8.70 0.1 2.0 0.1 0.25 0.05 Max. 1.40 9520 4.0 0.1 4.0 0.1 2.3 0.1 9.7 0.1 2.0 0.1 0.22 0.05 Max. 1.45 R130 8.0 0.1 4.0 0.1 3.35 0.1 10.35 0.1 2.0 0.1 0.25 0.05 Max. 1.40 Typ e 3216 5020 ™Quantity Type 3216 5020 7020 7635 8516 9520 R130 Quantity /per reel 3,000pcs 2,000 1,000 pcs 1,000 pcs 1000pcs 1,000 pcs 1,000 pcs ™Reel Dimensions (Unit: mm) 178 ± 2.0 60 ± 0.5 1.4 Label: Customer’s Name, ACX P/N, Q’ty, Date, ACX Corp. D:13.0 ± 0.3 2.0 ± 0.5 D:21.8 ± 0.8 Label 19.5 16.7 ± 0.3 ™Leader and Trailer Tape (Plastic material) Trailer End Trailer (80mm min.) Cover Tape Only 60mm min. Leader End Empty Compartments with Cover Tape (80mm min.) ™Peel-off Force Peelin g Direction Top Cover Tape Carrier Ta pe <10 0 Peel-off force should be in the range of 0.1 – 0.6 N at a peel-off speed of 30010 mm/min . ACX Adv anced Ceram ic X Typical Soldering Profile ™Typical Soldering Profile for Lead-free Process Flow Soldering : Reflow Soldering : T e m p erature ( o C) 20s. 230 o C 180 o C 260C 5s, max. Time (s.) 60s, min. Pre-heating 30s. 230 o C 180 o C 250 o C 10s, max. Time (s.) 60s, min. Pre-heating T e m p erature ( o C) The sample must be pre-heated before soldering .The temperature difference between preheating and soldering must be within 150 . Notes ™The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. ACX Adv anced Ceramic X ™Storage Conditions (1) Temperature: 15 ~35, relative humidity (RH): 45~75%. (2) Non-corrosive environment (3) Products should be used within six months of receipt. Notes ™The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order.

Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 46 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Bluetooth Headset Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: Bluetooth: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -7.36 dBm (0.184mW) Antenna gain (Max) 0.5 dBi (Numeric gain: 1.12) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is –7.36dBm (0.184mW) at 2480MHz (with 1.12numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. (SAR evaluation is not required for the PORTABLE device while its maximum output power is lower than the general population low threshold: 60/f (GHz) =60/2.441=24.58mW) Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 47 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 0.184 mW Numeric Antenna gain = 1.12 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.00004 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 53 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Headset Model: BTM-118 Trade Name: BT-LINKS Issued to BT-LINKS COMPANY LIMITED RM 802, NAN FUNG CTR, 264-298 CASTLE PEAK RD, TSUEN WAN, HONG KONG Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION.....................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS .......................................................................................9 5.1 FACILITIES 9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS..........................................................................................12 7.1 20 DB BANDWIDTH .................................................................................................................12 7.2 PEAK POWER.................................................................................................................................15 7.3 AVERAGE POWER.........................................................................................................................16 7.4 BAND EDGES MEASUREMENT .............................................................................................17 7.5 PEAK POWER SPECTRAL DENSITY.................................................................................................22 7.6 FREQUENCY SEPARATION....................................................................................................25 7.7 NUMBER OF HOPPING FREQUENCY ...................................................................................27 7.8 TIME OF OCCUPANCY (DWELL TIME)................................................................................29 7.9 SPURIOUS EMISSIONS .............................................................................................................36 7.10 POWERLINE CONDUCTED EMISSIONS............................................................................................46 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................49 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................51 Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: BT-LINKS COMPANY LIMITED RM 802, NAN FUNG CTR, 264-298 CASTLE PEAK RD, TSUEN WAN, HONG KONG Equipment Under Test: Bluetooth Headset Trade Name: BT-LINKS Model: BTM-118 Date of Test: January 11 ~ 25, 2008 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Complianc…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 51 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 52 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 71219214-RP1 FCC ID: TMY-BTM-118 Date of Issue: January 29, 2008 Page 53 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
