TN8-OWC-401TWireless Charger

User Manual Please read this manual carefully before you use the product. 0168 RF Exposure Warning : During operation, the user may keep a minimum separation distance of 10 cm with the RF devices. Product detail and features Product Detail Wireless charging pad (OWC-401T) Crystal Clear Bezel micro USB cable User manual Product features PowerHolic Crystal Clear Wireless Charging Pad is designed for quick and easy Qi standard wireless charging of all Qi-enabled devices. Qi is the universal magnetic induction wireless charging standard created by WPC (Wireless Power Consortium).  Non-slip silicon is applied on top and bottom for stable charge with vibration mode setting.  Detachable clear bezel enhances elegant appearance of your charging pad while providing improved LED visibility and stability for large smart phone.  PowerHolic wireless charging pad’s round design allows the device to be placed in any direction and psychologically encourages users to place the device on the center of the pad. The device does not have to be aligned to a spot in order to charge.  PowerHolic wireless charging pad’s concentric wave design with curved surfaces generate air flow between the device and the pad thus minimizing excessive heat that are prevalent with the conventional pad design.  Three dual color LED indicators facing downward indicate the charging status of your device. This product is WPC Qi certified and is compatible with all other Qi-enabled devices from different manufacturers. Basic Instruction 1. 1. Connect the AC adaptor with DC 5V, minimum 1.8A to the charging pad then to the electrical outlet. 2. Place your Qi-enabled device on the center of charging pad. Charging will start within few seconds. LED indicators lights green to indicate charging is in progress. LED display information Standby mode LED off Charging in progress Green LED on Fully Charged Charging completion signal supported: LED off Charging completion signal NOT supported: Green LED on (Depends on the receiver) Charging Interrupted Red LED on Low power charging mode Red LED blink slow (Restricted charging mode) CAUTION: Please use included micro USB cable and AC adaptor with DC 5V 1.8+ A for charging. Otherwise your phone may not be charged normally or lead malfunction or failure of the device. Do not put metallic objects on the charging pad. It may cause overheating or malfunction. If the Qi-enabled device is not placed properly on the wireless charging pad, charging will not start. Specifications Power output 5W (Max) Power input DC5V, 1.8A (Min.) Operational temperature 0~55°C Humidity Range 0~90% Operational frequency range 110~190KHz Size (mm) 80 x 80 x 10 Weight(g) 55g±2g One year limited warranty Opentech Inc. sells its products with the intent that they are free of defects in manufacture and workmanship for one year from the date of original purchase, except as noted below. Opentech Inc. warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to customers and does not extend to Retailers. To obtain warranty service on your Opentech Inc. product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address: Opentech Inc. After Service 13F, SJ-Technoville 60-19, Gasan-Dong, Geumcheon-Gu, Seoul, Korea 153-801 Opentech Inc. does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Opentech Inc. in any way beyond the term set forth herein. FCC compliance statement This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause interference harmful to radio communications. There is no guarantee, however, that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or TV technician for help. Type of equipment: Wireless Charging Pad Brand Name /Trade Mark: Power Holic Type designation /model: OWC-401T Manufacturer: OPENTECH Inc. In accordance with the following Directives: Directive 1999/5/EC Radio Equipment and Telecommunications Terminal Equipment and the mutual recognition of their conformity The following harmonized European standards and technical specifications have been applied: Art.3.1.a) EN 60950-1:2006+A11:2009+A1:2010+A12:2011 EN 62311:2008 Art.3.1.b) ETSI EN 301 489-1 V1.9.2 (2011-09) ETSI EN 301 489-3 V1.4.1 (2002-08) Art.3.2) ETSI EN 300 330-1 V1.7.1 (2010-02) ETSI EN 300 330-2 V1.5.1 (2010-02) Test report issued by: RF: CTK Co., Ltd. LVD: CTK Co., Ltd. EMC: CTK Co., Ltd. The CE Marking on the products and/or their packaging signifies OPENTECH Inc. holds the reference te…

Text truncated - open the document above for the full version.

13F., SJ-Technoville 60-19, Gasan-Dong,Geumcheon-Gu, Seoul, Korea, 153-801 Tel :+82-2-3397-0600 Fax :+82-2-3397-0685 Date (25/06/2013) TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: TN8-OWC-401T Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, OPENTECH Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Com pany Officer: Jae Sung, Kim Telephone Number: +82 -2- 3397-0184 Email: [email protected]

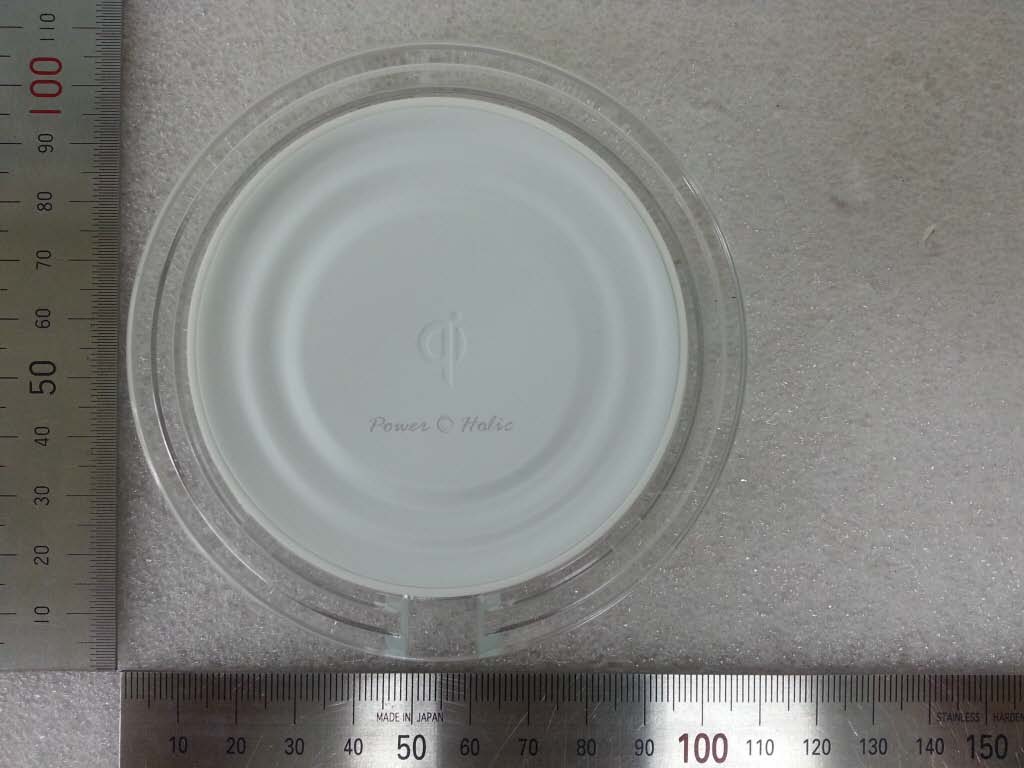

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 2 EUT External Photos CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 2

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 1 EUT Label Photos

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 2 EUT Internal Photos CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 2

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01031 Date: June 25, 2013 Page 1 of 12 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) RF EXPOSURE REPORT According to : FCC 47CFR part 1 subpart I and part 2 subpart J KDB Inquiry : Tracking Number 423526 Test Report No. : CTK-2013-01031 Date of Issue : June 25, 2013 FCC ID : TN8-OWC-401T Equipment Under Test : OWC-401T Kind of Product : Wireless Charging Pad Applicant : OPENTECH Inc. Applicant Address : 13F, SJ-Technoville 60-19, Gasan-Dong, Geumcheon-Gu, Seoul, Korea, 153-801 Manufacturer : OPENTECH Inc. Manufacturer Address : 13F, SJ-Technoville 60-19, Gasan-Dong, Geumcheon-Gu, Seoul, Korea, 153-801 Contact Person : Jae Sung, Kim / Project Manager Telephone : +82-2-3397-0184 Received Date : June 7, 2013 Test period : Start : June 7, 2013 End : June 25, 2013 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek Lee Test Engineer Young-Joon, Park Technical Manager Date: June 25, 2013 Date: June 25, 2013 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01031 Date: June 25, 2013 Page 2 of 12 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) REPORT REVISION HISTORY Date Revision Page No June 25, 2013 Issued (CTK-2013-01031) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01031 Date: June 25, 2013 Page 3 of 12 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) TABLE OF CONTENTS REPORT REVISION HISTORY .......................................................................................... 2 1.0 General Product Description ............................................................................... 4 1.1 Model Differences ............................................................................................. 4 1.2 Device Modifications ......................................................................................... 4 1.3 Peripheral Devices ............................................................................................ 4 1.4 EUT Operating Modes ........................................................................................ 5 1.5 Test Modes ...................................................................................................... 5 1.6 Calibration Details of Equipment Used for Measurement ......................................... 7 1.7 Test Facility...................................................................................................... 7 1.8 Laboratory Accreditations and Listings ................................................................. 7 2.0 Summary of tests ............................................................................................. 8 2.1 Test Setup ....................................................................................................... 9 2.2 Radio frequency radiation exposure limits .......................................................... 10 2.3 Test Results ................................................................................................... 11 APPENDIX A – Test Equipment Used For Tests ................................................................ 12 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01031 Date: June 25, 2013 Page 4 of 12 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) 1.0 General Product Description Type of equipment Wireless Charging Pad Equipment model name OWC-401T Frequency Range 110 kHz – 205 kHz Antenna type Coil antenna Coil Specification Outer diameter : 42.0±1.0 mm Inner diameter : 20.5.0±0.5 mm Number of turns : 11 Power Source TRAVEL ADAPTER Input : AC 100-240 V, 50/60 Hz Output : DC 5 V, 2.0 A Test Voltage and Frequency : AC 120 V, 60 Hz 1.1 Model Differences Not applicable 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. FCC ID or DoC TRAVEL ADAPTER TIANJIN E&P ELECTRONICS Inc. ETA-U90KWK DK3D301TS/B-E Verification Wireless Charging Cover OPENTECH Inc. OWC-300R - - Wireless Charging Cover RFTech Co., Ltd. EBC-1G6WWE RT0C802AS/4-E - Mobile Phone Samsung Electronics Co., Ltd. SCH-I535 - A3LSCHI535 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01031 Date: June 25, 2013 Page 5 of 12 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) 1.4 EUT Operating Modes Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Modulation Type : CW (Continuous Wave) Output Power : Max. 7.46 dBuV/m (Frequency 123.40 kHz, Test Distance 3 m) TX Duty Cycle : 100 % by measurement 1.5 Test Modes This device has been tested below condit…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01030 Date: June 25, 2013 Page 1 of 30 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) TEST REPORT According to : FCC 47CFR part 15 subpart C Test Report No. : CTK-2013-01030 Date of Issue : June 25, 2013 FCC ID : TN8-OWC-401T Equipment Under Test : OWC-401T Kind of Product : Wireless Charging Pad Applicant : OPENTECH Inc. Applicant Address : 13F, SJ-Technoville 60-19, Gasan-Dong, Geumcheon-Gu, Seoul, Korea, 153-801 Manufacturer : OPENTECH Inc. Manufacturer Address : 13F, SJ-Technoville 60-19, Gasan-Dong, Geumcheon-Gu, Seoul, Korea, 153-801 Contact Person : Jae Sung, Kim / Project Manager Telephone : +82-2-3397-0184 Received Date : June 7, 2013 Test period : Start : June 7, 2013 End : June 25, 2013 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek Lee Test Engineer Young-Joon, Park Technical Manager Date: June 25, 2013 Date: June 25, 2013 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01030 Date: June 25, 2013 Page 2 of 30 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) REPORT REVISION HISTORY Date Revision Page No June 25, 2013 Issued (CTK-2013-01030) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01030 Date: June 25, 2013 Page 3 of 30 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) TABLE OF CONTENTS REPORT REVISION HISTORY .......................................................................................... 2 1.0 General Product Description ............................................................................... 4 1.1 Model Differences ............................................................................................. 4 1.2 Device Modifications ......................................................................................... 4 1.3 Peripheral Devices ............................................................................................ 4 1.4 EUT Operating Modes ........................................................................................ 5 1.5 Test Modes ...................................................................................................... 5 1.6 Calibration Details of Equipment Used for Measurement ......................................... 7 1.7 Test Facility...................................................................................................... 7 1.8 Laboratory Accreditations and Listings ................................................................. 7 2.0 Summary of tests ............................................................................................. 8 2.1 Power line conducted emissions (Section 15.207) .................................................. 9 2.2 Radiated emissions (Section 15.209) ................................................................. 21 APPENDIX A – Test Equipment Used For Tests ................................................................ 30 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01030 Date: June 25, 2013 Page 4 of 30 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) 1.0 General Product Description Type of equipment Wireless Charging Pad Equipment model name OWC-401T Frequency Range 110 kHz – 205 kHz Antenna type Coil antenna Power Source TRAVEL ADAPTER Input : AC 100-240 V, 50/60 Hz Output : DC 5 V, 2.0 A Test Voltage and Frequency : AC 120 V, 60 Hz 1.1 Model Differences Not applicable 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. FCC ID or DoC TRAVEL ADAPTER TIANJIN E&P ELECTRONICS Inc. ETA-U90KWK DK3D301TS/B-E Verification Wireless Charging Cover OPENTECH Inc. OWC-300R - - Wireless Charging Cover RFTech Co., Ltd. EBC-1G6WWE RT0C802AS/4-E - Mobile Phone Samsung Electronics Co., Ltd. SCH-I535 - A3LSCHI535 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01030 Date: June 25, 2013 Page 5 of 30 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.1) 1.4 EUT Operating Modes Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Modulation Type : CW (Continuous Wave) Output Power : Max. 7.46 dBuV/m (Frequency 123.40 kHz, Test Distance 3 m) TX Duty Cycle : 100 % by measurement 1.5 Test Modes This device has been tested below conditions: [Test Mode #1] Frequency Charging current Note 110 kHz 650 mA Low Frequency, Max. Load 157.5 kHz 425 mA Middle Frequency, Medium Load 205 kHz 250 mA High Frequency, Min. Load This device has been tested with the various resistors to simulate the various load conditions of the client device. T…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 8 Test Setup Photos Conducted Voltage Emissions [Test Mode #1] CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 8 Conducted Voltage Emissions [Test Mode #2] CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 3 of 8 Radiated Electric Field Emissions [Test Mode #1] CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 4 of 8 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 5 of 8 Radiated Electric Field Emissions [Test Mode #2] CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 6 of 8 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 7 of 8 RF Exposure [Test Mode #1] CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 8 of 8 RF Exposure [Test Mode #2]
