TNU-EMV400-W150N Wireless LAN Broadband Router

User Manual E E M M V V 4 4 0 0 0 0 D D V V R R EVERFOCUS ELECTRONICS CORPORATION EMV400 DVR Instruction Manual  2010 EverFocus Electronics Corp www.everfocus.com All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the Everfocus Electronics Corporation. Release Date: Oct. 2010 QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered trademark of the Microsoft Corporation. Linksys is a registered trademark of the Linksys Corporation. D-Link is a registered trademark of the D-Link Corporation. DynDNS is a registered trademark of the DynDNS.org Corporation. Other product and company names mentioned herein may be the trademarks of their respective owners. ii Safety Precautions Refer all work related to the installation of this product to qualified service personnel or system installers. Do not block the ventilation openings or slots on the cover. Do not drop metallic parts through slots. This could permanently damage the appliance. Turn the power off immediately and contact qualified service personnel for service. Do not attempt to disassemble the appliance. To prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Contact qualified service personnel for maintenance. Handle the appliance with care. Do not strike or shake, as this may damage the appliance. Do not expose the appliance to water or moisture, nor try to operate it in wet areas. Do take immediate action if the appliance becomes wet. Turn the power off and refer servicing to qualified service personnel. Moisture may damage the appliance and also may cause electric shock. Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry cloth to clean the appliance when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently. Do not overload outlets and extension cords as this may result in a risk of fire or electric shock. Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the DVR at indoor type temperatures within -20濎~55濎 (-4F~131ºF). The input power source for this device is 10V~36VDC. Read Instructions All the safety and operating instructions should be read before the unit is operated. Retain Instructions The safety and operating instructions should be retained for future reference. Heed Warnings All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions All operating and use instructions should be followed. Cleaning Unplug the unit from the outlet before cleaning. Do not use liquid cleaners, abrasive or aerosol cleaners. Use a damp cloth for cleaning iii Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards. Water and Moisture Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any area which is classified as a wet location. Servicing Do not attempt to service this unit by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Power Cord Protection Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, playing particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance. Object and Liquid Entry Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit. ATTENTION! This is a class A product which may cause radio interference in a domestic environment; in this case, the user ma y be urged to take adequate measures. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures : •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the users’ authority to operate this equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and o perated with minimum distance 20cm between the radiator & your body. iv This Product is RoHS compliant. WEEE The information in this manual was current upon publication. The manufacturer reserves the right to revise and improve his products. Therefore, all specifications are subject to change without prior notice. Manufacturer is not responsible for misprints or typographical errors. Please read this manual carefull…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 1/17/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Digital Video Recorder Model Number: EMV200 Series, EMV400 Series We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

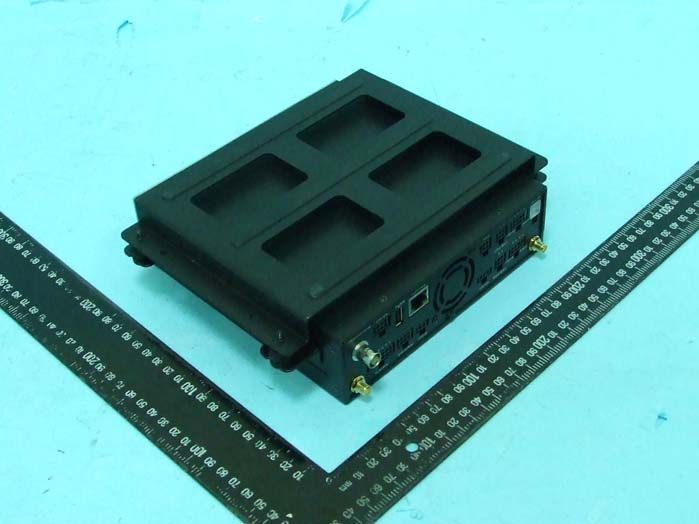

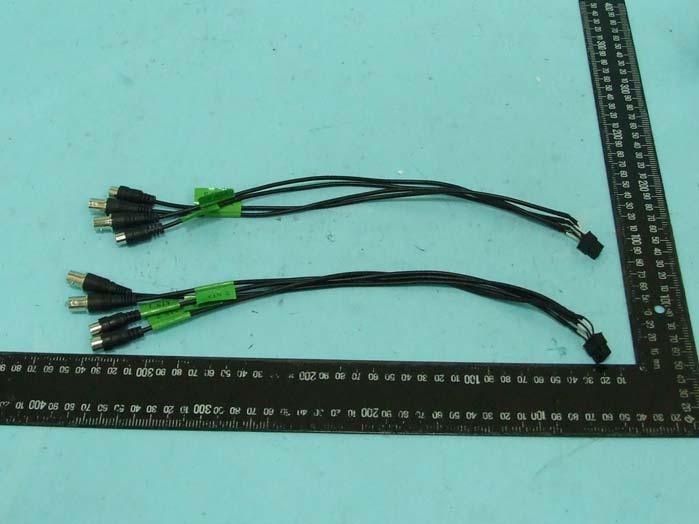

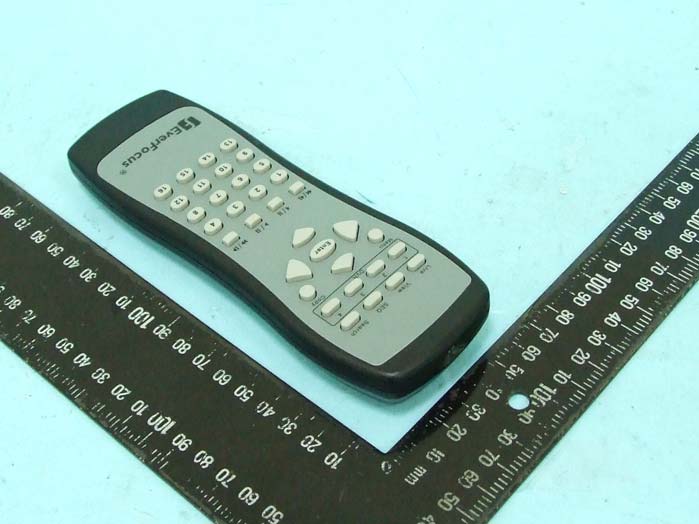

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255

FCC Label in bottom

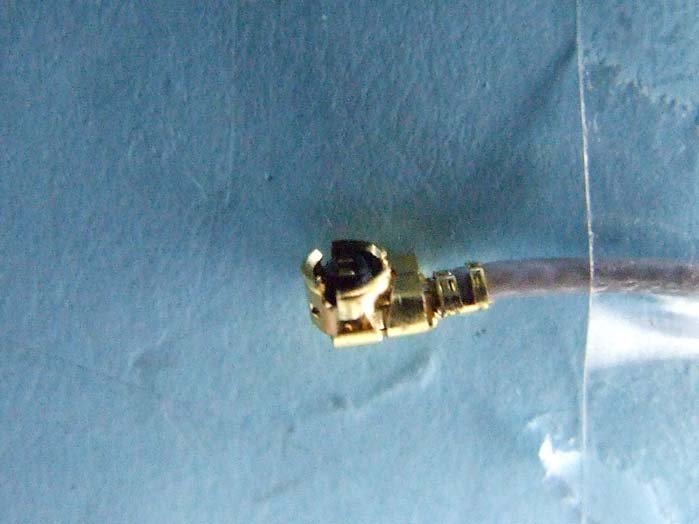

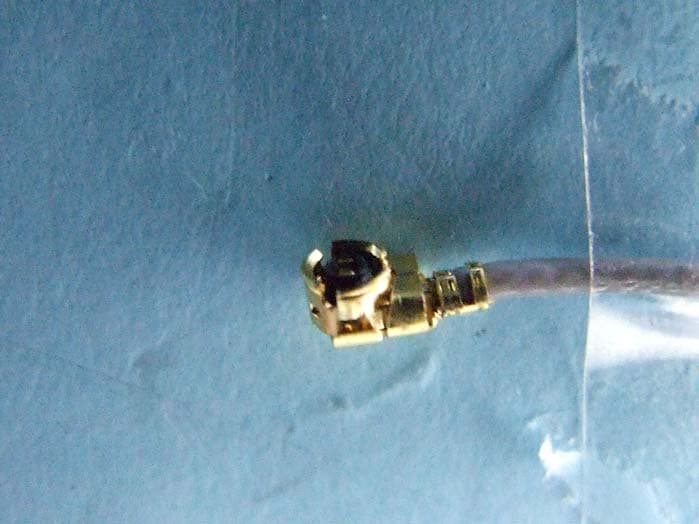

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C11 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 11, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A3 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 1.3. Calculated Result and Limit Antenna Type : Dipole antenna Max Conducted Power for IEEE 802.11b/g: 22.91 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 22.91 195.4339 0.0617

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR0O2712-01 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Digital Video Recorder Model No. : EMV200 Series, EMV400 Series Brand Name : EverFocus Filing Type : New Application Applicant : EverFocus Electronics Corp. 12F-1, No. 79, Sec. 1, Shin-Tai Wu Rd., His-Chih Taipei Hsien, Taiwan FCC ID : TNU-EMV400-W Manufacturer : EverFocus Electronics Corp. 2F., No. 8, Lane 270, Sec. 3, Beishen Rd., Shenkeng Towanship, Taipei County 222, Taiwan EVERFOCUS ELECTRONICS (BEIJING) CORP. 4F, No. 2, D4 BUILDING, LIYUAN INDUSTRIAL PARK, LANGXIN COMMUNITY, SHIYAN STREET, BAOAN DISTRICT, SHENZHEN CITY, GUANGDONG PROVINCE, CHINA. Received Date : Dec. 21, 2010 Final Test Date : Dec. 27, 2010 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jan. 11, 2011 FAX : 886-2-2696-2255 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Feature of Equipment under Test ........................................................................................................................................................ 3 2.4 Table for Filed Antenna ....................................................................................................................................................................... 3 2.5 Table for Carrier Frequencies ............................................................................................................................................................. 3 2.6 Table for Test Modes .......................................................................................................................................................................... 4 2.7 Table for Testing Locations ................................................................................................................................................................. 4 2.8 Table for Supporting Units .................................................................................................................................................................. 4 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 4 2.10 EUT Operation during Test ................................................................................................................................................................. 4 2.11 Test Configuration ............................................................................................................................................................................... 5 3 TEST RESULT ......................................................................................................................................................... 6 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 6 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 10 3.3 Power Spectral Density Measurement .............................................................................................................................................. 12 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 18 3.5 Radiated Emissions Measurement .................................................................................................................................................... 24 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 42 3.7 Antenna Requirements ..................................................................................................................................................................... 47 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 48 5 TEST LOCATION ................................................................................................................................................... 50 6 TAF CERTIFICATE OF ACCREDITATION ..............................................…

Text truncated - open the document above for the full version.

Page No. : B1 of B6 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 Appendix B. Test Photos Page No. : B2 of B6 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : B3 of B6 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 SIDE VIEW Page No. : B4 of B6 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B5 of B6 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : B6 of B6 FCC ID : TNU-EMV400-W F FCC TEST REPORT Report No. : FR0O2712-01 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
