TNUEVEREDR810-410Digital Video Recorder

INSTRUCTION MANUAL Digital Eight Channels/Four Channels Video Recorder About this manual Before installing and using this unit, please read this Manual carefully. Be sure to keep it handy for later reference. V 1.21 EDR810H/810M/ 410H/410M Updated on: Nov. 17th 2005 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures : •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution : Any changes or modifications not expressly approved by the party responsible for compliance could void the users’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE . CAUTION DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice: The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice. Safety Warning Note: This is a class A product. In a domestic environment this product may cause radio interference In which case the user may be required to take adequate measures. 2 „Refer all work related to the installation of this product to qualified service personnel or system installers. „Do not block the ventilation opening or slots on the cover. „Do not drop metallic parts through slots.This could permanently damage the appliance. Turn the power off immediately and contact qualified service personnel for service. „Do not attempt to disassemble the appliance.To prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Contact qualified service personnel for maintenance. Handle the appliance with care. Do not strike or shake, as this may damage the appliance. „Do not expose the appliance to water or moisture, nor try to operate it in wet areas. Do take immediate action if the appliance becomes wet. Turn the power off and refer servicing to qualified service personnel. Moisture may damage the appliance and also cause electric shock. „Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry cloth to clean the appliance when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently. „Do not overload outlets and extension cords as this may result in a risk of fire or electric shock. „Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the appliance at temperature within indoor type DVR for 0 o C ~ +40 o C and a humidity below 90%. The input power source for this appliance is AC100~240V. Safety Precautions Safety Precautions 3 The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance(servicing)instructions in the literature accompanying the appliance. Warning : To prevent fire or shock hazard, do not expose units not specifically designed for outdoor use to rain or moisture. Safety Precautions The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ” dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Attention: Installation should be performed by qualified service personnel only in accordance with the National Electrical Code or applicable local codes. Power Disconnect: Units with or without ON-OFF switches have power supplied to the unit whenever the power code is inserted into the power source; however, the unit is operational only when the ON-OFF switch is in the ON position. The power cord is the main power disconnect for all units. External Power Supplies Use only the recommended power supplies. Power supplies must comply with the requirement of the latest version of IEC 60065/CNS 13439. Substitutions may damage the unit or cause a fire or shock hazard. AC100~240V Power Cords AC100~240V power…

Text truncated - open the document above for the full version.

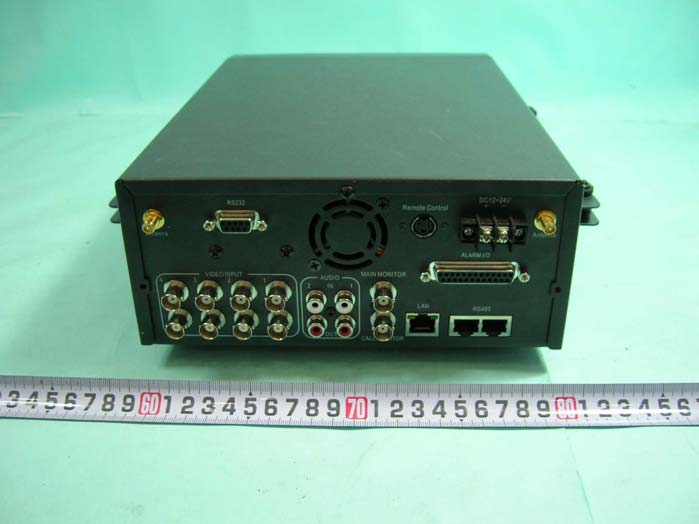

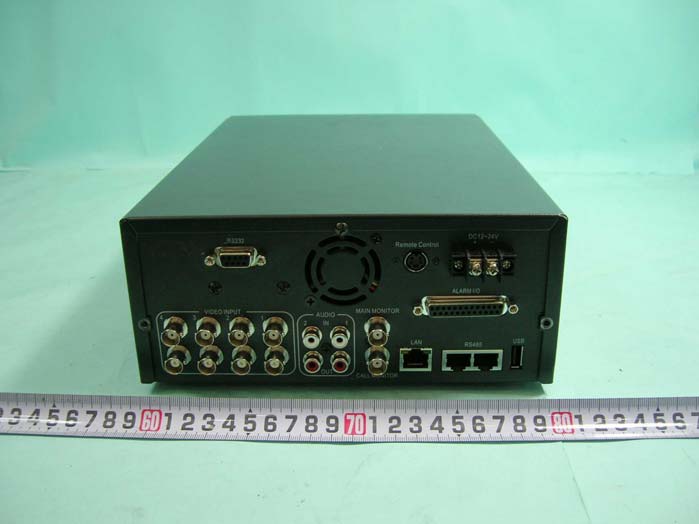

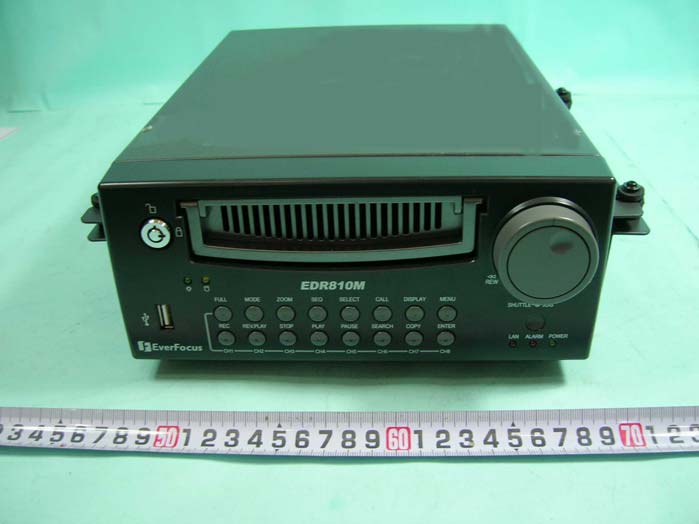

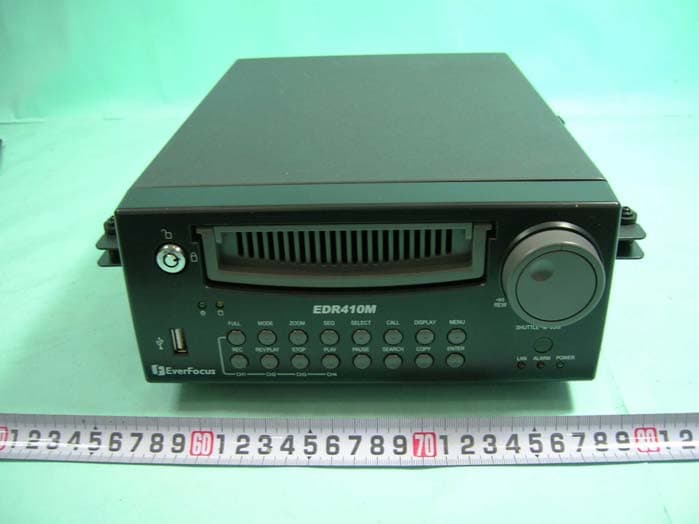

SPORTON International Inc. PAGE NUMBER : A1 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT

SPORTON International Inc. PAGE NUMBER : A12 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A19 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A20 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A21 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A22 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A23 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A24 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A25 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A26 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A27 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A28 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A29 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A30 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A31 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A32 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A33 OF A33 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2006 FAX : 886-2-2696-2255

Opreational Description Date: 2006/1/20 EUT is a Digital Video Recorder with 11 channels(2412MHz~2462MHz, Space 5MHz). It allows you to connect to other WLAN device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Transceiver IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: BBP IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by BBP IC. Data Modulation: DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation type is controlled by BBP IC. Power Control Level: BBP IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is ±0.5dB. Transmit/Receive Switch: EUT has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11 Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Interface: Antenna Port x2 / RS-232 / PS2 / DC IN / ALARM I/O / RS485 / VIDEO INPUT x8 / AUDIO x4 / MAIN MONITOR / CALL MONITOR / LAN (RJ-45) / RS485 7. Power: Input DC 12~24V from DC power provider. This power is provided to regulator components to regulated DC power. Report No.: FR5D0906 Report Format Version: RF-15.247-2006-01-10-c Page No. : 3 of 50 FCC ID: EVEREDR810-410 Issued Date : Jan. 20, 2006 3. GENERAL INFORMATION 3.1. Product Details EUT is a Digital Video Recorder with IEEE 802.11b/g radio functions. Only the radio detail of WLAN is shown in the table below. For more detailed features description, please refer to the manufacturer’s specifications or user’s manual. Items Description Product Type WLAN Radio Type Intentional Transceiver Power Type DC 12~24V Interface Type Antenna Port x2 / RS-232 / PS2 / DC IN / ALARM I/O / RS485 / VIDEO INPUT x8 / AUDIO x4 / MAIN MONITOR / CALL MONITOR / LAN (RJ-45) / RS485 Modulation DSSS for IEEE 802.11b ; OFDM for IEEE 802.11g Data Modulation DSSS (BPSK / QPSK / CCK) ; OFDM (BPSK / QPSK / 16QAM / 64QAM) Data Rate (Mbps) DSSS (1/ 2/ 5.5/11) ; OFDM (6/9/12/18/24/36/48/54) Frequency Range 2400 ~ 2483.5MHz Channel Number 11 Channel Band Width (99%) 11b: 14.64 MHz ; 11g: 16.36 MHz Conducted Output Power 11b: 17.59 dBm ; 11g: 16.11 dBm Carrier Frequencies Please refer to section 3.3 Antenna Please refer to section 3.2 3.2. Table for Filed Antenna Ant. Antenna Type Connector Gain (dBi) 1 Dipole Antenna Reversed-SMA 2.0

Report No.: FR5D0906 FCC ID: EVEREDR810-410 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR5D0906 FCC ID: EVEREDR810-410 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (cm) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR5D0906 FCC ID: EVEREDR810-410 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 17.59dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.5900 57.4116 0.018111 1 Complies

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA RF_LE-G# IREF RADIO_PD# SYNCLK SYNDATA RX_BB_Q- RFIN_G PA_RFING RFTX_PE RFRX_PE RX_BB_Q+RX_BB_I-RX_BB_I+ TX_BB_I- TX_BB_I+ TX_BB_Q+ TX_BB_Q- 40MI 82011-84104ES01-2-A82011-84104ES01-2-A.SCH ANTSEL_N ANTSEL_P PA_RFING RFIN_G PA_PE_G 82011-84104ES01-3-A82011-84104ES01-3-A.SCH AD[0..31]PARCBE1BCBE0BLD2P_24GLD1P_ACTDEVSELBSERRBPERRBSTOPBTRDYBCLKRUNBFRAMEBIRDYBCBE2B MRSTB INTABCBE3B CCLK IDSEL RFTX_PERFRX_PEANTSEL_NANTSEL_PRADIO_PD#PA_PE_GTX_BB_I+TX_BB_I-TX_BB_Q- IREF RX_BB_I+ RX_BB_I- RX_BB_Q- RX_BB_Q+ 40MI TX_BB_Q+LD2_YN5 RFTXDIS# REQB GNTB SYNDATARF_LE-G#SYNCLK 82011-84104ES01-4-A82011-84104ES01-4-A.SCH CBE0BCBE3BCCLKIRDYBIDSELSTOPBAD[0..31]CBE2BPERRBDEVSELB SERRB FRAMEBCBE1BPARTRDYBMRSTB INTAB LD2P_24G GNTBCLKRUNBRFTXDIS# LD1P_ACT LD2_YN5 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA SYNCLK RF_LE-G# GND RF_LE-G# GND RFLDOBP IREF SYNDATA RADIO_PD# SYNDATA IREF SYNCLK RX_BB_Q- RX_BB_Q- RFOUTG+RFING+ PA_RFING GND GNDGNDGND VCCAVCCA RFIN_G RFOUTG-RFING- GND TXR_VO3 VCTRL1 TXR_VO3 GND TXR_VO2 VCCA C_VCC VE RFRC C_VCC TXR_VO3 GNDGND RFRX_PE RFRX_PE RFTX_PE RFTX_PE VCCA VCCA VCCA VCCA VCCARX_BB_Q+ RX_BB_Q+ RX_BB_I- RX_BB_I- RX_BB_I+ RX_BB_I+ TX_BB_I- RF_VCCD VCCA GND 1.8VA 1.8VA GND GND GND GND GND3.3VA 3.3VD VCCA GND VCCA GND GND GND TX_BB_I- TX_BB_Q- TX_BB_Q-TX_BB_Q+ TX_BB_Q+ TX_BB_I+ TX_BB_I+ TXR_VO2 TXR_VO2 40MI TXR-40MO GND RFIN_F F40M GND 40MX240MX1 1 2 C492 4.7pF 1 2 C15 33pF 5x3.2 12 43 U50 XTAL/5x3.2/40MHz 12 C27 33pF/NI 1 2 R115 0 ohm 1 2 C437 10pF 12 C2810uF/6.3V 1 2 C491 100pF 12 C2440.1uF 1 2 R259 68pF 1 2 L36 2.7nH/NI 1 2 L63 0 ohm/NI 1 2 C443 39pF 1 2 C409 10uF/6.3V 1 2 L54 1.2nH 12 C413 10uF/6.3V 1 2 R160 27 1 2 C24 10pF 1 2 L552.7nH 1 2 C461 0.01uF 1 2 R20 0 ohm 12 C417 10pF 12 C4261nF 12 C4421nF 12 C4281nF 1 2 R7 0 ohm 12 C2454.7uF 1 2 C454 10pF/NI 1 2 C48 1.5pF 1 2 C464 1nF 1 2 C321 0 ohm RFinP2 1 RFinM2 2 VCC2 3 RFoutP2 4 RFoutM2 5 NC 6 NC 7 NC 8 NC 9 NC 10 NC 11 TR_PE 47 CLK 41 Data 42 LE 43 Core_Vcc 21 LO_Vcc 20 VCCA 24 VCCD 29 GND 49 VP1 23 LO_Vc 22 LD_fo 27 CLK_Out 28 Base_Vcc1 37 I_OutP 34 I_OutM 33 Base_Vcc2 32 Q_OutP 31 Q_OutM 30 X1/OSCI 26 X2 25 VCC1 48 Iref 44 Bias_Vcc 45 RF_PE 46 LDO_Out3 17 I_InP 40 I_InM 39 Q_InP 36 Q_InM 35 LDO_Bypass 15 LDO_In 14 LDO_PE 13 LDO_Out1 12 LDO_Out2 16 LO_IOM 18 LO_IOP 19 DAC_Vcc 38 U47RT2527-48P 1 2 L8 2.2nH 1 2 C414 10uF/6.3V 1 2 L10 6.8nH 12 C4394.7pF 12 C452 3.3nF 1 2 L26100nH 1 2 R267 18K 12 C453 15pF 1 2 C419 0.01uF 1 2 R260 68pF 12 C446 100pF 1 2 C45 1.8pF RF_LE-G#IREF RADIO_PD# SYNCLKSYNDATA RX_BB_Q- RFIN_G PA_RFING RFTX_PERFRX_PE RX_BB_Q+RX_BB_I-RX_BB_I+TX_BB_I-TX_BB_I+TX_BB_Q+TX_BB_Q- 40MI VCCA VCCA VCCA VCCA VCCA 1.8VA 3.3VA 3.3VDVCCA VCCA XTAL: CL=15pF, Co=1.5pF 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA 3.3VD ANTSEL_NANTSEL_P ANTE2EANTE1E ANTE1ANTE2 PA_RFING AVC2MVC1 DTR2 ANT_E1STR25 AVC2 MVC1 GND GNDGND PARF GND GND GND GND GND DTR5 GNDPAF BPF_OG GND GND GND PA_PE_G GND GND PARFO GND VB1 GND GND PA_IN RFIN_G VC2 3.3VD VC1 DET1 GND VC1 3 NC/G 2 A1 4 GND 5 NC/G 8 A2 6 NC/G 9 VC2 7 RX 10 TX 12 GND 11 GND 13 NC/G 1 U14 TQS5202 12 C472 C/NI 12 C468C/NI 12 C219 0.5pF 12 L1 1.2nH/NI 1 2 C26 10pF 1 2 C466 10pF 1 2 C465 10pF 12 C21.8pF 12 C362 10uF/6.3V 1 2 R12 0 ohm/SB 1 2 C469 10pF BI 4 BO 2 G 3 G 1 U6 BPF-LCB22B2450S1 12 C467C/NI 12 C360100pF/NI 1 2 C525 10pF 1 2 R150 ohm/SB 12 L232.7nH 1 2 C30 2.7nH 1 2 C29 10pF 12 C341 100pF/NI 1 2 3 CON2 SMA/UFLR 12 L100 100nH 1 2 3 CON1 SMA/UFLR 12 C6NP 1 2 R210 0 ohm RFin 2 GND 3 Vcc1 13 GND 1 Vdet_out 8 NC 7 NC 6 NC 5 NC 9 GND 10 RFOUT 11 GND 12 NC 15 Vcc1 16 GND 17 Vcc2 14 Vpc 4 U5 TQP777002 12 C3291uF 12 C325 0.01uF 12 L101 0 ohm 12 C1 1.8pF 12 C471NP 1 2 C7 10pF 12 C340100pF/NI 12 C3281uF ANTSEL_N ANTSEL_P PA_RFING RFIN_G PA_PE_G 3.3VD AUX. Antenna Main Antenna 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA 1.8VD 1.8VD 3.3VD 3.3VD 3.3VD GND PARCBE1B 3.3VD CBE0B CLKRUNBGNTBTR_SW0IRDYBPERRBSTOPBMRSTBDEVSELB GND INTABFRAMEBREQBSERRBTRDYB 3.3VD 1.8VD LD1P_ACT LED_RDYG#LED_LKACT# LD2P_24G DEVSELBSERRBPERRBSTOPBTRDYBCLKRUNB 1.8VD FRAMEBIRDYBCBE2B 1.8VD EEDIEECS ORG 3.3VD3.3VD3.3VD3.3VD 3.3VD 1.8VD IDSEL INTAB REQB GNTB MRSTBREQB MRSTB CBE3BGNTB CBE3B INTABIDSEL AD23 AD30 AD7AD12AD13AD5AD18AD10 AD31 AD29 AD27 AD22 AD21 AD19AD3AD9 AD24 AD25 AD16 AD[0..31] AD8AD2 AD28 AD26 AD4AD17 AD20 AD14AD15AD6AD11AD1AD0 CCLK CCLK 1.8VC 1.8VC 1.8VC VREF25P 3.3VD 1.8VD 1.8VD 1.8VA1.8VC1.8VA EECS EEDO EEDO RFTX_PERFRX_PEANTSEL_NANTSEL_PRADIO_PD# GND SYNDATA PA_PE_G TX_BB_Q-TX_BB_I+TX_BB_Q+TX_BB_I- VREF IREF TSSI_AG 3.3VARF_LE0 LED_RDYA# LD2_YN5 1.8VC 1.8VA 3.3VA GND RX_BB_Q-RX_BB_Q+RX_BB_I-RX_BB_I+ GND GPIO5 RF_LE-G# RF_DATA0 VREF25N 1.8VDPLL 1.8VD 1.8VDPLL GND 1.8VDPLL 1.8VD EESK GND 3.3VD3.3VD 3.3VD 3.3VD 3.3VD3.3VD 3.3VD 3.3VD3.3VD3.3VD 3.3VD 3.3VD 3.3VD GND EESK EEDI 1.8VA1.8VAVREFP GND GND GND 1.8VA GND GND GND GND GND VREFN GND GND VCCA PA_PWR RFTXDIS# SYNCLK RF_CLK 12 C4840.1uF 1 2 R6 0 ohm/SB 12 D2 LED/NI 1 2 R279 510 12 C164 0.1uF 1 2 R273 100 1 2 R276 0 ohm/NI 1 2 C302 1uF 12 C299 0.1uF/NI 12 C252 10pF/NI 1 2 R2 330 12 D3 LED/NI 1 2 C301 1uF 1357 2468 RA4 RA 4.7K*4/NI 12 C4870.1uF 1 2 C303 1uF 12 D1 LED/NI 1 2 R227 10K 12 C4830.1uF 12 C172 0.1uF 1 2 R274 100 12 C1730.1uF 12 C167 0.1uF 12 C2610.1uF 1 2 R1 4.7K 1 2 R4 330 12 R1610K 12 C1650.1uF 1 2 R163 4.7K 12 C477 0.1uF 12 C12 0.1uF/NI 1 2 R207 820 12 C265 0.1uF 12 C4780.1uF 12 C1660.1uF GPIO0 113 RFTXI_P0 10 RFTXI_N0 11 RFTXQ_P0 12 RFTXQ_N0 13 IREF 9 VREFP 24 VCC18A 18 TSSI_A0 15 NC 27 NC 28 NC 31 NC 32 TR_PE 121 VCC18A 23 RF_SCLK 3 NC 4 RF_PE 120 TR_SW0 122 TR_SWN0 123 RADIO_PE 126 PA_PE_G 6 ANSEL_P 127 ANSEL_N 128 VCCIO 114 EEDO 119 EEDI 118 EESK 117 EECS 116 INTA_N 44 RST_N 46 VDD18 43 VCCIO 65 GNT_N 48 REQ_N 47 AD[31] 49 AD[30] 50 AD[29] 51 AD[28] 52 AD[27] 53 AD[26] 54 VCCIO 55 AD[25] 57 AD[24] 58 CBE[3]_N 59 IDSEL 61 AD[23] 60 AD[22] 62 AD[21] 63 AD[20] 64 AD[19] 66 AD[18] 68 VDD18 75 AD[17] 69 AD[16] 70 VCCIO 74 CLK_PCI 45 CBE[2]_N 71 FRAME_N 73 IRDY_N 72 CLKRUN_N 76 TRDY_N 77 DEVSEL_N 81 STOP_N 79 VCCIO 84 PERR_N 80 SERR_N 78 PAR 67 CBE[1…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-01-10-c FCC RADIO TEST REPORT Applicant’s company EverFocus Electronics Corp Applicant Address 12F, No. 79, Sec. 1, Shin-Tai Wu Rd., His-Chi Taipei Hsien, Taiwan FCC ID EVEREDR810-410 Manufacturer’s company EverFocus Electronics Corp Manufacturer Address 12F, No. 79, Sec. 1, Shin-Tai Wu Rd., His-Chi Taipei Hsien, Taiwan Product Name Digital Video Recorder Brand Name EverFocus Model Name Please refer to section 3.6 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Dec. 12, 2005 Test Date Jan. 13, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR5D0906 Report Format Version: RF-15.247-2006-01-10-c Page No. : i of ii FCC ID: EVEREDR810-410 Issued Date : Jan. 20, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Table for Filed Antenna.......................................................................................................................................................................3 3.3. Table for Carrier Frequencies .............................................................................................................................................................4 3.4. Table for Test Modes ...........................................................................................................................................................................4 3.5. Table for Testing Locations..................................................................................................................................................................4 3.6. Table for Multiple Listing & Class II Change ........................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................10 4.3. Power Spectral Density Measurement ..............................................................................................................................................12 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................17 4.5. Radiated Emissions Measurement ....................................................................................................................................................22 4.6. Band Edge Emissions Measurement .................................................................................................................................................42 4.7. Antenna Requirements .....................................................................................................................................................................47 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 48 6. SPORTON COMPANY PROFILE ........................................................................................................................ 49 6.1. Test Location.....................................................................................................................................................................................49 7. CNLA CERTIFICATE OF ACCREDITATION .......................................................................................................... 50 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A33 APPENDIX B. TEST PHOTOS....…

Text truncated - open the document above for the full version.

Report No.: FR5D0906 FCC ID: EVEREDR810-410 Page No. : 1 of 2 Appendix B. Test Photos Report No.: FR5D0906 FCC ID: EVEREDR810-410 Page No. : 2 of 2 1. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
