TPD7P217USB Fingerprint Reader

FCC ID: TPD7P217 Page 1/1 USER MANUAL This is a copy of the user’s manual where the FCC statement is included:

FCC ID: TPD7P217 Page 1/1 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of the CERTIS 2 product - 12MHz - 2MHz 1.2 Block diagram of the CERTIS 2 product

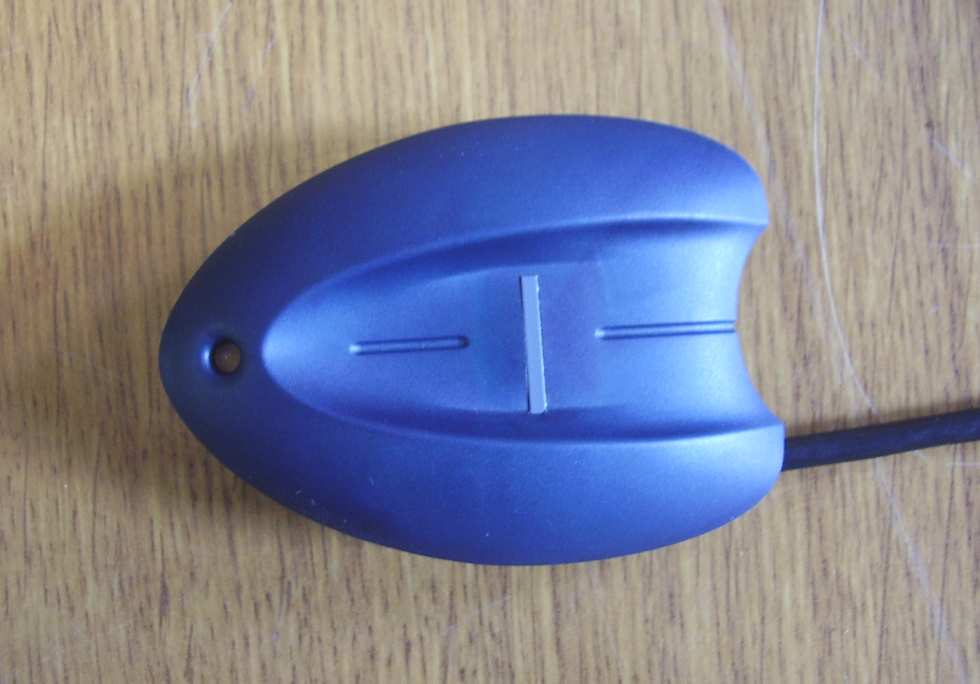

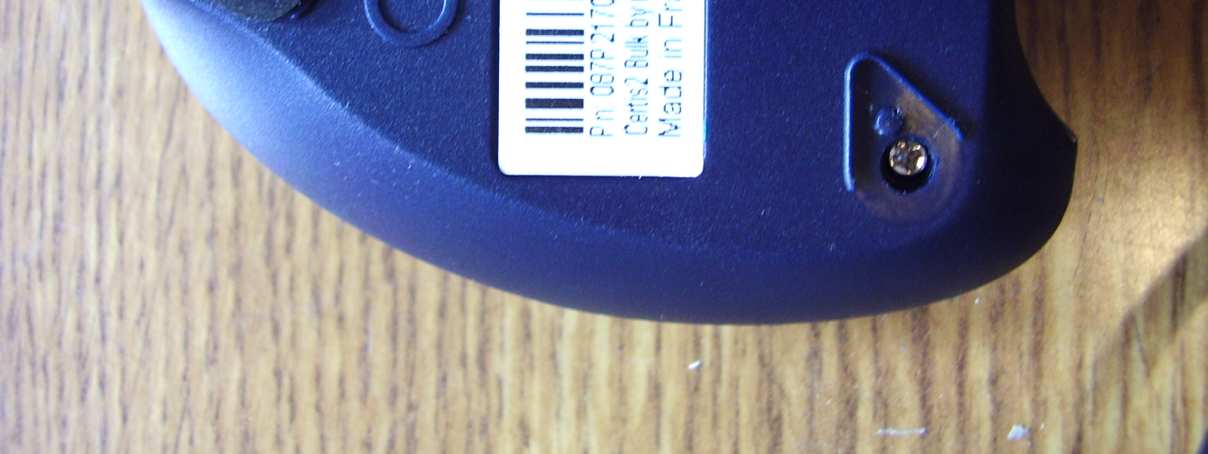

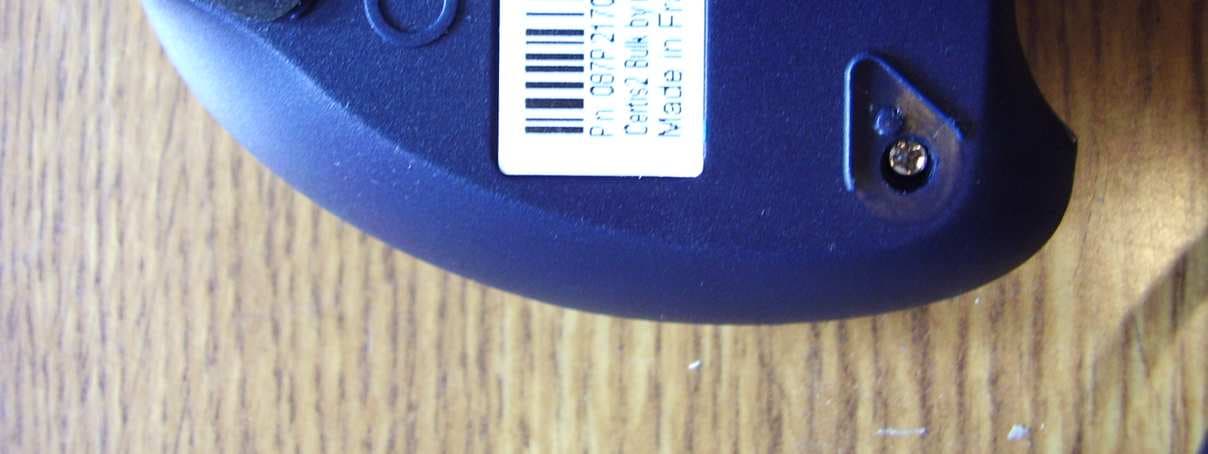

FCC ID: TPD7P 217 P age 1/2 EXTERNAL PHOTOS OF TESTED EUT CERTIS 2 external photos Ge neral vie w Ge neral vie w, upper face FCC ID: TPD7P 217 P age 2/2 Detail vie w, re ar side Detail vie w, left and right si des

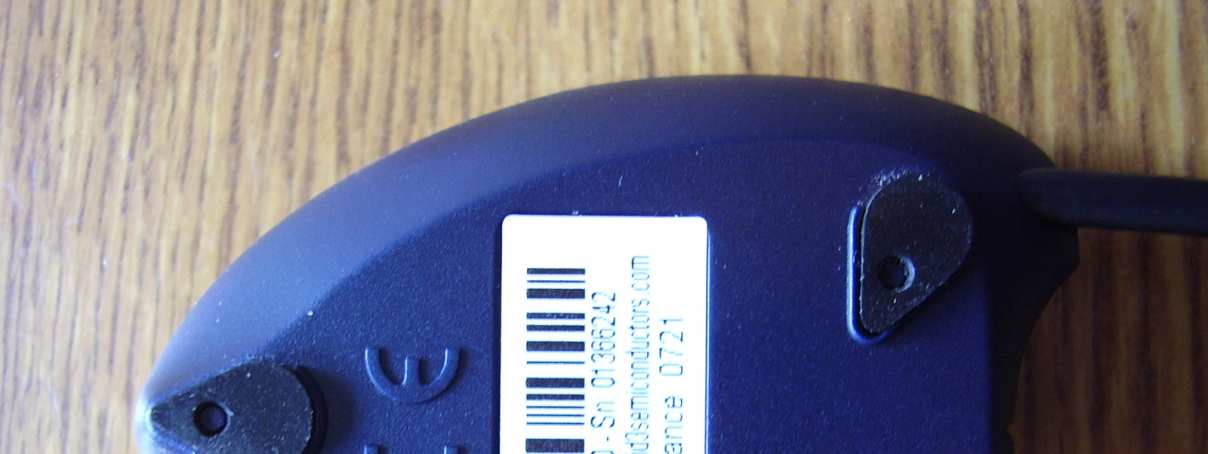

FCC ID: TPD7P217 Page 1/1 1 PRODUCT LABELING 1.1 FCC ID label This is a copy of the label: Label material: Polyester (printed by thermal transfer) 1.2 Location of the label on EUT The label is set on the rear side of the equipment. Label location (rear side)

FCC ID: TPD7P217 Page 1/3 INTERNAL PHOTOS OF TESTED EUT 1.1 General view General view, cover opened (upper side) General view, PCB removed (upper side) FCC ID: TPD7P217 Page 2/3 General view, lower side. 1.2 PCB view FCC ID: TPD7P217 Page 3/3

FCC ID: TPD7P217 Page 1/2 OPERATIONAL DESCRIPTION 1.1. Product description of the CERTIS 2 FCC ID: TPD7P217 Page 2/2 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Trade Mark – Model Number (Serial number) FCC ID Description Cable description Erreur ! Source du renvoi introuvable. * (sn : Erreur ! Source du renvoi introuvable.) IGTUAX220MIC Professional USB Audio Interface USB cable 1m COMPAQ Deskpro PIII (Win XP) Sn: 8146FR4Z02GN DoC Personal computer Power cord unshielded. All other cable shielded. Hewlett Packard P/N:D2846 (sn: JP74001000) DoC Monitor Power cord unshielded. Video cable shielded with ferrites LOGITEK M-C43 (sn: Sn: B21A70LBUMFOAF) DZL211146 Mouse PS2 cable (1.5m) COMPAQ M/N: KB-9963 (sn: B21A70LBUMFOAF) DoC Keyboard PS2 cable (1.2m) Hewlett Packard DESKJET 895cxi (sn: MY9761915S) DoC Parallel printer Power cord unshielded. All other cable shielded. TELEX 700373-000 None Microphone Audio cable (2m) *: Equipment under test. 1.4. Test Methodology Radiated testing was performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B. Radiated testing was performed at an antenna to EUT distance of 3 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed on May 28 th , 2007. The test facility used to collect all the test data is the LCIE facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated July 14, 2005 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

Rapport d’essai / Test report JDE : 60058465 N° 200704-3754C-A2-R1-E DELIVRE A / ISSUED TO : ID3 SEMICONDUCTORS 5, rue de la Verrerie 38120 LE FONTANIL-CORNILLON France Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes : Electromagnetic compatibility tests according to the standards: FCC CFR 47 Part 15, Subpart B. ANSI C63.4 (2003) Matériel testé / Apparatus under test : • Produit / Product : Lecteur empreintes digitales USB / USB Fingerprint reader • Marque / Trade mark : ID3 Semiconductors • Constructeur / Manufacturer : ID3 Semiconductors • Type / Model : CERTIS 2 • N° de série / serial number : N° 01366242 Date des essais / Test date : 28 mai 2007 / May 28 th , 2007 Lieu d’essai / Test location : LCIE ZI des Blanchisseries 38500 VOIRON - France Test réalisé par / Test performed by : Laurent CHAPUS Ce document comporte /Composition of document: 14 pages. V OIRON, LE 6 JUIN 2007 / JUNE 6TH, 2007 Ecrit par / Written by Approuvé par / Approved by, Laurent CHAPUS Yannick SAVOIE La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Il ne préjuge en aucun cas d’une décision de certification. This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N°200704-3754C-A2-R1-E Page : 2 / 14 SUMMARY 1. TEST PROGRAM ................................................................................................................................... 3 2. APPARATUS UNDER TEST: CONFIGURATION ................................................................................... 4 3. MEASUREMENT OF RADIATED EMISSION (30MHZ TO 1GHZ) .......................................................... 6 4. MEASUREMENT OF CONDUCTED EMISSION (150KHZ-30MHZ) ....................................................... 8 5. TEST EQUIPMENT LIST ........................................................................................................................ 9 6. UNCERTAINTIES CHART .................................................................................................................... 10 7. ANNEX 1 (GRAPHS) ............................................................................................................................ 11 RAPPORT D'ESSAI / TEST REPORT N°200704-3754C-A2-R1-E Page : 3 / 14 1. TEST PROGRAM 1.1. REQUIREMENTS FOR DISTURBANCE EMISSIONS Standard: - FCC Part 15, Subpart B (Digital Devices) - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Frequency Quasi-peak value (dBμV) Average value (dBμV) 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 Limits for conducted disturbance at mains ports 150kHz-30MHz 5-30MHz 60 50 COMPLY Radiated emissions 30MHz-1GHz Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m COMPLY NA: Not Applicable NP: Not Performed RAPPORT D'ESSAI / TEST REPORT N°200704-3754C-A2-R1-E Page : 4 / 14 2. APPARATUS UNDER TEST: CONFIGURATION 2.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it). The USB reader is connected to a PC. 2.2. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES) • Equipment under test (EUT): CERTIS 2 Serial Number: N° 01366242 FCC ID: TPD7P217 P/N: 087P217 - Internal frequencies: 12MHz, 2MHz • Inputs/outputs : - USB port (cable 1m, shielded, attached on EUT) • Auxiliaries equipment used during test: Trade Mark – Model Number (Serial number) FCC ID Description Cable description CERTIS 2 * (sn : N° 01366242) IGTUAX220MIC Professional USB Audio Interface USB cable 1m COMPAQ Deskpro PIII (Win XP) Sn: 8146FR4Z02GN DoC Personal computer Power cord unshielded. All other cable shielded. Hewlett Packard P/N:D2846 (sn: JP74001000) DoC Monitor Power cord unshielded. Video cable shielded with ferrites LOGITEK M-C43 (sn: Sn: B21A70LBUMFOAF) DZL211146 Mouse PS2 cable (1.5m) COMPAQ M/N: KB-9963 (sn: B21A70LBUMFOAF) DoC Keyboard PS2 cable (1.2m) Hewlett Packard DESKJET 895cxi (sn: MY9761915S) DoC Parallel printer Power cord unshielded. All other cable shielded. TELEX 700373-000 None Microphone Audio cable (2m) *: Equipment under test. • Cables : Other cables used for the test are: - 2x Standard power cords (1.5m) for PC and Monitor - Video cable (1.5m), shielded - Parallel printer cable (1.5m), shielded 2.3. RUNNING MODE The biometric reader is connected to the USB port of a PC. The software used during the test permits the acquisition of fingerprints, taken on the tested CERTIS sensor. Tests are performed while the reader is waiting for an acquisition. RAPPORT D'ESSAI / TEST REPORT N°200704-3754C-A2-R1-E Page : 5 / 14 2.4. EQUIPMENT MODIFICATIONS None 2.5. SPECIAL ACCESSORIES None RAPPORT D'ESSAI / TEST REPORT N°200704-3754C-A2-R1-E Page : 6 / 14 3. MEASUREMENT OF RADIATED EMISSION (30MHZ TO 1GHZ) 3.1. TEST CONDITIONS Date of test : May 28 th , 2007 Test performed by : L. Chapus 3.2. SETUP FOR RADIATED EMISSIONS MEASUREMENT The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on the 10 meters Open site. The EUT is set on the non-conducting table of 80 cm height. The EUT is powered by 230Vac/50Hz. Pre-characterisation measurement: A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is performed in horizontal (H) and vertical (V) po…

Text truncated - open the document above for the full version.

FCC ID: TPD2H19Ø P age 1/2 MEASUREMENT PHOTO 1.1 Radiated emissions (3m open site) EUT 80cm above the ground reference plane Detail view FCC ID: TPD2H19Ø P age 2/2 1.2 Conducted emissions Conducted emissions test setup Detail view
