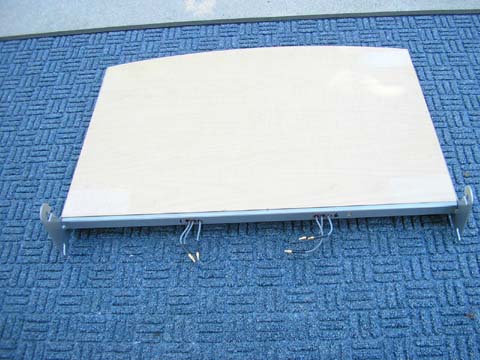

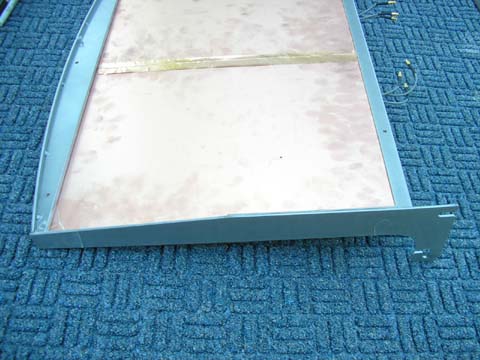

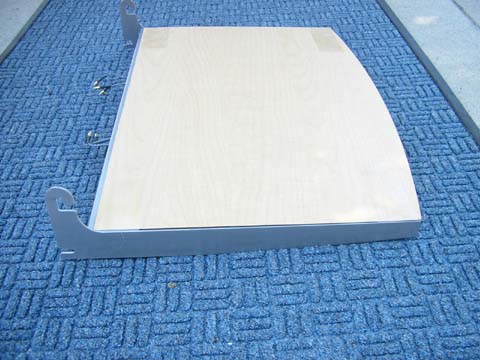

Antenna Array Controller (AAC) User Guide Document Version: 1.0 Vue Technology, Inc. 103 N. Pointe Lake Forest, CA 92630 www.vuetechnology.com Vue Technology, Inc. AAC User Guide Date Last Modified: 8/29/2006 Page 2 Vue Technology, Inc. Table of Contents 1. INTRODUCTION...............................................................................................................................................3 2. PRODUCT DESCRIPTION...............................................................................................................................3 3. HARDWARE DESCRIPTION...........................................................................................................................3 4. TYPICAL CONFIGURATION..........................................................................................................................4 5. REGULATORY INFORMATION.....................................................................................................................5 Vue Technology, Inc. AAC User Guide Date Last Modified: 8/29/2006 Page 3 Vue Technology, Inc. 1. Introduction This User Guide provides information for the Vue Technology Antenna Array Controller (AAC) device. The User Guide includes port descriptions and configuration information. 2. Product Description The Antenna Array Controller (AAC) connects to the RF Intelli-Network via an IntelliSwitch.The IntelliSwitch acts as the AAC’s power supply and network communication interface. The AAC switches RF power to any one of its attached antennas. It is controlled through the data network connection using SNMP commands sent from the IntelliManager via the IntelliSwitch. Features: • The AAC uses SNMP as its main command and control language. SNMP is translated by the IntelliSwitch into proprietary commands directed to the addressed Antenna Array Controller • Supports auto setup using standard DHCP protocols and a specialized algorithm for address allocation. • Supports the creation and destruction of RF paths from the upstream input to any one of the 14 antenna ports. • Provides monitoring and diagnostics for the device itself and the RF path. • Provides an identification capability over the RF path that will allow the IntelliManager to easily support setup by a field technician. 3. Hardware Description The Antenna Array Controller implementations consist of a circuit board, antennas, packaging, and the following ports: • Input port (MCX jack): for Tag-Reader RF, communication, and DC Power • Bypass port (MCX jack): optional, for future RF/comm/DC pass-through to adjacent Antenna Arrays • Antenna ports (MCX jack): optional, if antennas are mounted externally and/or packaged separately. Vue Technology, Inc. AAC User Guide Date Last Modified: 8/29/2006 Page 4 Vue Technology, Inc. 4. Typical Configuration CAUTION: Use only Vue Technology provided parts, or parts approved/recommended by Vue Technology. Substituting other cables or parts may degrade system performance, damage the device, cause non- compliant radio frequency emissions, and/or void the warranty. Vue Technology, Inc. AAC User Guide Date Last Modified: 8/29/2006 Page 5 Vue Technology, Inc. 5. Regulatory Information The Antenna Array Controller must meet UL, FCC, and CE requirements. Antenna Array Controllers are built into various physical forms using FCC-approved AAC and antenna combinations. The following statements address FCC compliance for the installation and use of Vue Technology devices. • The Vue Technology system is approved to function with the Symbol XR400 series multi-protocol radio frequency identification (RFID) readers with FCC ID number H9PRD11320. • CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of 20cm must be maintained between the antenna of this device and all persons. • The following Vue Technology patch antennas are approved for use with the AAC: Antenna Number Gain, dB 32000750-0001 Rev 1.0 9.47 32000750-0002 Rev 1.0 9.44 31000745-0002 Rev 1.0 -0.97 31000765-0001 Rev 1.0 -0.97 32000514-0001 Rev 1.0 6 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

The following product label will be affixed to underside of the product in close proximity to the AAC input connector and readable after installation.

MPE Calculations For RF Exposure Requirements Antenna Array Controller Model: 3200721-XXXX rev X.X Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE Calculations Power density at the specific separation: S = PG/(4R 2 π) S = (263 * 8.85) / (4 * 20 2 * π) S = 0.463159 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) = 263 G = Numeric power gain of the antenna = 8.85 R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) S = 0.46 mW/cm 2 The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (9.47 dBi/10) G = 8.85 MAXIMUM PERMISSIBLE EXPOSURE MEASUREMENTS Antenna Array Controller MN: 32000721 XXXX REV X.X POWER OUTPUT (mW) ANTENNA GAIN (dBi) CALCULATED MPE @ 20cm (mW/cm 2 ) Distance at whic h MPE e xcee ds FCC limit for Occupational/Controlled Expos ure (limit = 3mW/cm 2 ) Distance at whic h MPE e xcee ds FCC limit for Ge ne ral Po pulatio n/Ge ne ral Ex pos ure (limit = 0.6mW/cm 2 ) 263 9.47 0.46 7.8 17.5

Report Number: C60731J1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report FCC ID: TPZ-32000721 Antenna Array Controller Model: 32000721-XXXX REV X.X Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 22 FCC PART 15, SUBPART B and C TEST REPORT for ANTENNA ARRAY CONTROLLER MODEL: 32000721-XXXX rev X.X FCC ID: TPZ-32000721 Prepared for VUE TECHNOLOGY, INC. 103 NORTH POINTE LAKE FOREST, CALIFORNIA 92630 Prepared by:_____________________ JOEY MADLANGBAYAN Approved by:____________________ JOHN ETHINGTON COMPATIBLE ELECTRONICS INC. 19121 EL TORO ROAD SILVERADO (LAKE FOREST), CALIFORNIA 92676 (949) 589-0700 DATE: OCTOBER 30, 2005 REPORT APPENDICES TO TAL BODY A B C D E PAGES 22 2 2 2 14 44 86 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: C60731J1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report FCC ID: TPZ-32000721 Antenna Array Controller Model: 32000721-XXXX REV X.X Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 5.4 EMI Measurement and Control Software Information 13 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 7. CHARACTERISTICS OF THE TRANSMITTER 15 7.1 Transmitter Power 15 7.2 Channel Number and Frequencies 15 7.3 Antenna Gain 15 8. TEST PROCEDURES 16 8.1 RF Emissions 16 8.1.1 Conducted Emissions Test 16 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 17 8.3 20 dB Bandwidth 19 8.4 Peak Output Power 19 8.5 RF Antenna Conducted Test 19 8.6 RF Band Edges 20 8.7 Carrier Frequency Separation 20 8.8 Number of Hopping Frequencies 20 8.8 Average Time of Occupancy Test 21 9. TEST PROCEDURE DEVIATIONS 22 10. CONCLUSIONS 22 Report Number: C60731J1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report FCC ID: TPZ-32000721 Antenna Array Controller Model: 32000721-XXXX REV X.X Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: C60731J1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report FCC ID: TPZ-32000721 Antenna Array Controller Model: 32000721-XXXX REV X.X Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 22 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Antenna Array Controller Model Number: 32000721-XXXX rev X.X S/N: None Product Description: Please see Operational Description. Modifications: The EUT was not modified during the testing. Manufacturer: Vue Technology, Inc. 103 North Pointe Lake Forest, California 92630 Test Dates: July 28 & 31, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209 and 15.247 Test Procedure: ANSI C63.4: 2003 Report Number: C60731J1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report FCC ID: TPZ-32000721 Antenna Array Controller Model: 32000721-XXXX REV X.X Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 10 kHz – 10 GHz Complies with the Class B limits of CFR Title 47, Part 1…
