TPZ-34000002-001IntelliSwitch

IntelliSwitch User Guide Document Version: 1.0 Last Modified: 1/24/2006 3:06:00 PM Vue Technology, Inc. 103 N. Pointe Lake Forest, CA 92630 www.vuetechnology.com Vue Technology, Inc. IntelliRouter User Guide Date Last Modified: 1/24/2006 Page 2 Vue Technology, Inc. Table of Contents 1. INTRODUCTION ...................................................................................................................................................... 3 2. PRODUCT DESCRIPTION...................................................................................................................................... 3 3. FIRMWARE ............................................................................................................................................................... 3 4. PHYSICAL CONNECTIONS ................................................................................................................................... 3 5. TYPICAL CONFIGURATION................................................................................................................................. 5 6. REGULATORY INFORMATION ........................................................................................................................... 6 Vue Technology, Inc. IntelliRouter User Guide Date Last Modified: 1/24/2006 Page 3 Vue Technology, Inc. 1. Introduction This User Guide provides information for the Vue Technology IntelliSwitch device. The User Guide includes LED definitions, port descriptions, and configuration information. 2. Product Description The Vue Technology IntelliSwitch is an intelligent RF networking device that provides RFID network performance and scalability. A hardware device connected to both RF and data networks, it provides a pass-through to neighboring IntelliSwitches, and can switch RF power to an antenna to which it is directly connected. 3. Firmware The IntelliSwitch is shipped with the current firmware version. Contact Vue Technology (www.vuetechnology.com) for information about obtaining firmware upgrades. Note: Ensure that power is not interrupted during a firmware upgrade. 4. Physical Connections The IntelliSwitch hardware form factor consists of a circuit board, microprocessor, moulded plastic housing, with the following ports: • On/Off Switch • DC Power • Reset Parameters button • Power Reset • GPIO • 2 Output ports • 16 RF Out antenna ports (MCX) • 1 RF Input port (1.0/2.3) • 1 RF Bypass port (1.0/2.3) • RS 232 Port • Switched Power (In and Out) • RS 485 Port • ID button • Power, Antenna, and Ready LEDs Vue Technology, Inc. IntelliRouter User Guide Date Last Modified: 1/24/2006 Page 4 Vue Technology, Inc. 4.1.1.1. Back Panel Description IntelliSwitch Back Panel 4.1.1.2. Side Panel Description IntelliSwitch Side Panel Vue Technology, Inc. IntelliRouter User Guide Date Last Modified: 1/24/2006 Page 5 Vue Technology, Inc. 5. Typical Configuration CAUTION: Use only Vue Technology provided parts, or parts approved/recommended by Vue Technology. Substituting other cables or parts may degrade system performance, damage the device, and/or void the warranty. Vue Technology, Inc. IntelliRouter User Guide Date Last Modified: 1/24/2006 Page 6 Vue Technology, Inc. 6. Regulatory Information The following statements address FCC compliance for the installation and use of Vue Technology devices. • The Vue Technology system is approved to function with the following tag reader: Symbol XR400 multi-protocol radio frequency identification (RFID) reader. FCCID: H9PRD11320 • IMPORTANT: The HF port is not supported in the current version of this product. Do not connect any device to the HF port. • CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of 20cm must be maintained between the antenna of this device and all persons. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

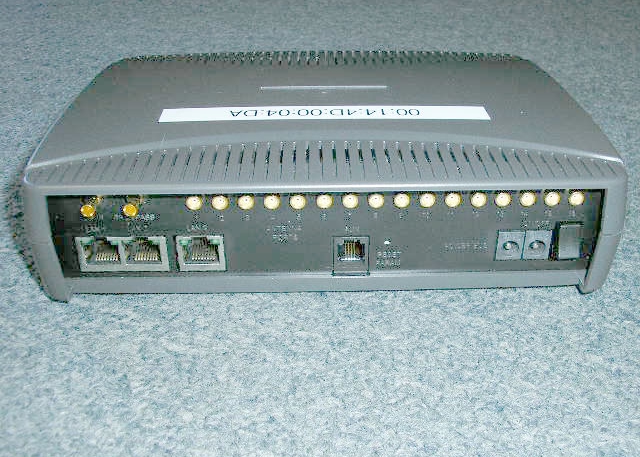

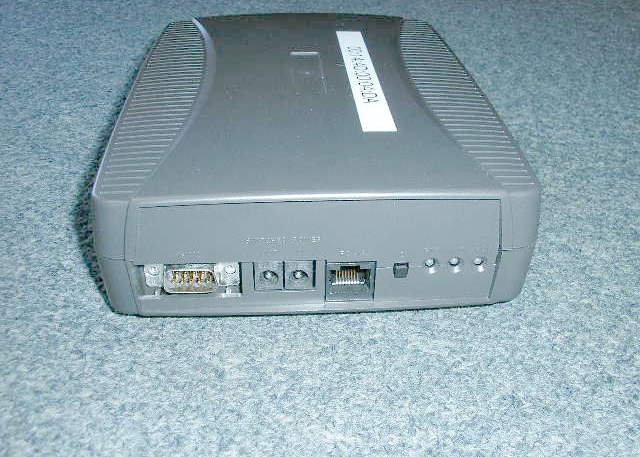

2.500 .500 2.750 3.750 R .06 CUTOUT #1 .020 DEEP CUTOUT #2 .020 DEEP IntelliSwitch ™ Patent Pending Made in the U.S.A. PWRANTRDY RS 485 SWITCHED POWER RS 232 ID OUTIN Side Panel SwcSwc RF BYPASS LAN 1 LAN 3 LAN 2 AUX RESET PARAM POWER BUS Local Area Network Reset Factory Settings RF IN 12345678910111213141516 Serial Port Back Panel Antenna Ports INPUT: 24V 5A Power and Diagnostics Antenna Ready     Device ID Notification E256092 I.T.E. FCC ID: TPZ-34000002-001 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) it must accept any interference received including interference that may cause undesired operation. Model Number: 34000002-001-RA SERIAL NUMBER: 02051910000A MAC ADDRESS: 02051910000A MAC ADDRESS: 02051910000A CUTOUT #3 .020 DEEP 1.900 .625 R .03 R .03

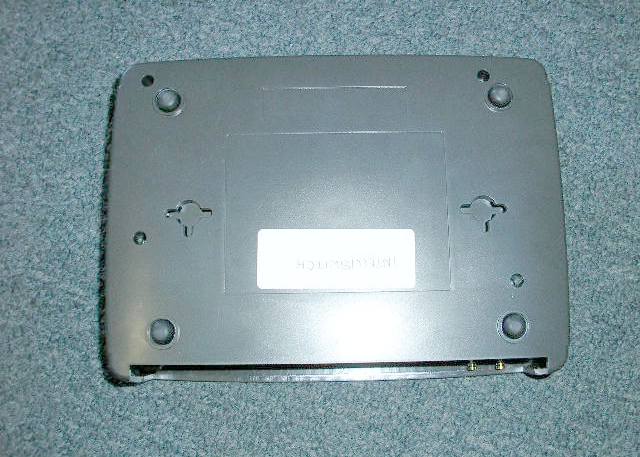

2.500 .500 2.750 3.750 R.03 R.06 91000507-001 REV.5.0 BOTTOM HOUSING, SWITCH LABEL CUTOUTS SCALE: 1.00 5-03-05 CUTOUT #2 .020 DEEP CUTOUT #3 .020 DEEP IntelliSwitch ™ Made in the U.S.A. Patent Pending Model Number: 34000002-001RA PWRANTRDY RS 485 SWITCHED POWER RS 232 ID OUTIN Side Panel SwcSwc RF BYPASS LAN 1 LAN 3 LAN 2 AUX RESET PARAM POWER BUS Local Area Network Reset Factory Settings RF IN 12345678910111213141516 Serial Port Back Panel Antenna Ports INPUT: 24V 5A Power and Diagnostics Antenna Ready     Device ID Notification This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) it must accept any interference received including interference that may cause undesired operation. FCC ID: TPZ34000002-001RA I.T.E. E256092

Report Number: C50830J1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 19121 EL TORO ROAD, LAKE FOREST, CALIFORNIA, 92676 • PH: (949) 589-0700 FX: (949) 589-7700 Page 1 of 16 FCC PART 15 SUBPART B & C TEST REPORT for INTELLISWITCH FCC ID: TPZ-34000002-001 Model: 34000002-001-RA Prepared for VUE TECHNOLOGY, INC. 95 ENTERPRISE SUITE 320 ALISO VIEJO, CA 92656 Prepared by:_____________________ JOEY MADLANGBAYAN Approved by:____________________ JOHN ETHINGTON COMPATIBLE ELECTRONICS INC. 19121 EL TORO ROAD LAKE FOREST (SILVERADO), CALIFORNIA 92676 (949) 589-0700 DATE: JULY 23, 2005 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 16 51 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: C50830J1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 19121 EL TORO ROAD, LAKE FOREST, CALIFORNIA, 92676 • PH: (949) 589-0700 FX: (949) 589-7700 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Photograph Test Configuration - EMI 8 4.1.2 Cable Construction and Termination 9 5 LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 5.3 EMI Measurement and Control Software Information 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Facility Environmental Characteristics 13 7. TEST PROCEDURES 14 7.1 RF Emissions 14 7.1.1 Conducted Emissions Test 14 7.1.2 Radiated Emissions Test 15 8. TEST PROCEDURE DEVIATIONS 16 9. CONCLUSIONS 16 Report Number: C50830J1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 19121 EL TORO ROAD, LAKE FOREST, CALIFORNIA, 92676 • PH: (949) 589-0700 FX: (949) 589-7700 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Antenna and Amplifier Gain Factors • Radiated and Conducted Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: C50830J1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 19121 EL TORO ROAD, LAKE FOREST, CALIFORNIA, 92676 • PH: (949) 589-0700 FX: (949) 589-7700 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government or other governments. Device Tested: IntelliSwitch Model: 34000002-001-RA S/N: None Product Description: This a 922MHz range transmitter system used for the purpose of measuring and recording VSWR (voltage standing wave ratio) readings. Modifications: The EUT was not modified during the testing. Manufacturer: Vue Technology Inc. 95 Enterprise Suite 320 Aliso Viejo, CA 92656 Test Date: July 19, 22 & 30, 2005 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B and Subpart C Sections 15.205, 15.209 and 15.249 Test Procedure: ANSI C63.4: 2003 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz. Complies with the Class B limits of CFR Title 47, Part 15 Subpart C Section 15.207. 2 Radiated RF Emissions, 10 kHz - 9220 MHz. Complies with the limits of CFR 22 Title 47 Part 15 Subpart B (Class B devices) and Subpart C sections 15.205, 15.209 and 15.249. Report Number: C50830J1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 19121 EL TORO ROAD, LAKE FOREST, CALIFORNIA, 92676 • PH: (949) 589-0700 FX: (949) 589-7700 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on IntelliSwitch Model: 34000002-001-RA. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2003. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by Code of Federal Regulations Title 47, Part 15 Subpart B and Subpart C sections 15.205, 15.209 and 15.249. Report Number: C50830J1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 19121 EL TORO ROAD, LAKE FOREST, CALIFORNIA, 92676 • PH: (949) 589-0700 FX: (949) 589-7700 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 19121 El Toro Road, Lake Forest (Silverado), California 92676. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Vue Technology Incorporated Steve Trivelpiece Director of Hardware Steve Raynesford Hardware Engineer Compatible Electronics Inc. Joey Madlangbayan Test Engineer John Ethngton Senior Test Engineer 2.4 Date Test Sample was Received The test sample was received on July 19, 2005. 2.5 Dispositio…
